Description

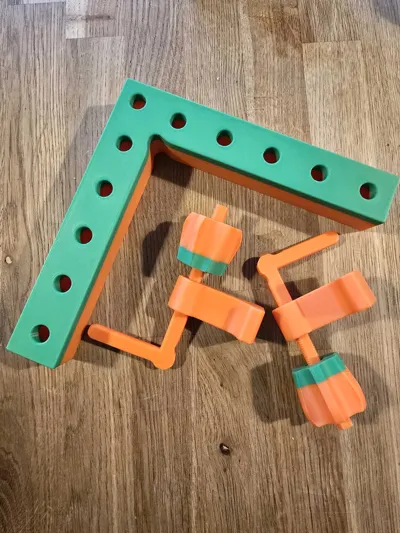

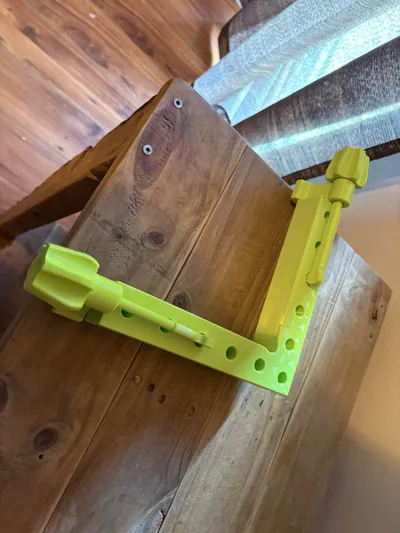

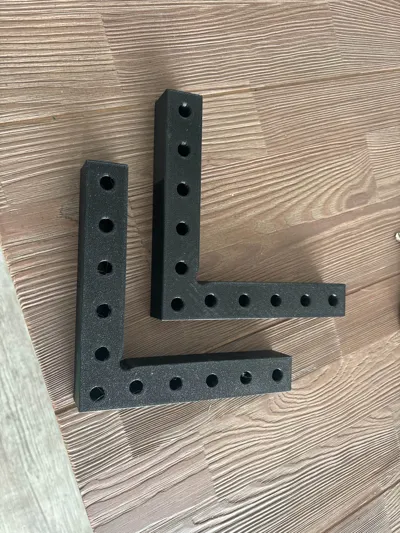

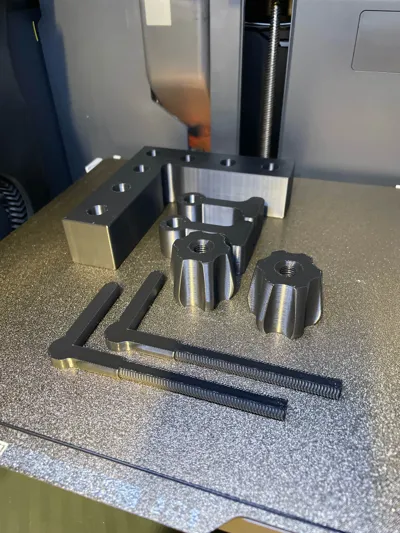

The Corner Clamp is a versatile and easy-to-use tool designed to help you securely hold materials at a 90-degree angleduring gluing, nailing, or assembly tasks. This clamp is perfect for projects involving wood, plastic, or other materials, ensuring precise and strong corner joints. The model is compatible with different sizes of workpieces and can be printed in various sizes to suit your needs.

Boost Me (for free)

woodworking accessories

woodworking accessory

Comment & Rating (92)

@CDPond_YYC

I printed the smallest version using PLA filament, and I'm finding the threads way too tight. Too much friction between the threaded rod and the hand knob that screws onto it. On a whim, I tried adding a bit of Bambu lube oil to both threaded sides of the rod, and that allowed me to finally get it to work. However, I'm unsure how well the plastic will hold up being oiled. Is there any change the hand knob needs to be scaled up slightly to allow for a slightly more tolerant thread mating?

(Edited)

@KnotOrdinary

Print Profile

all version different plates

Strength Issue:the threaded posts, going for a studry hold and one side lets got and bends. Gonna need to find bent threaded posts. might just print another right angle and use clamps.. sort of a waste of filament. was supper stoked about the threads taking it off the bed, but those parts are too flexy. Overture PETG - grass green

@RevJonValt

WHY did you give 3 stars to a SQUARE that bends, threads that don't work. Why did you call it "sort of" a waste of filament? If you'd been more direct, you could have saved me from this TOTAL waste of filament! These types of parts can't be "bendy" AT ALL!!!

@KnotOrdinary

Replying to @RevJonValt :

Ummm, I give you review of my review 2 stars, far too agro for a free design bud.

@RevJonValt

Replying to @KnotOrdinary :

lol this is a site for designs. for things that work. not fee fees

@Fishers3DP

Print Profile

113mm version

Beautiful print using Creality Hyper ABS.

@NecroCane

Print Profile

all version different plates

Works exactly as it should. Printed with no issues.

@user_3307131402

Print Profile

all version different plates

Great for smaller projects!

@LMaker87

Print Profile

all version different plates

easy to print and work well

@kunday

Boosted

Print Profile

all version different plates

Perfect for speed clamping and post checking squareness of cabinet

@Beanerton

Print Profile

all version different plates

Printed as pictured . Thank you!!

@user_1941747579

Boosted

Print Profile

all version different plates

@user_4293884335

Print Profile

113mm version
