Folding Box
Print Profile(0)
Description

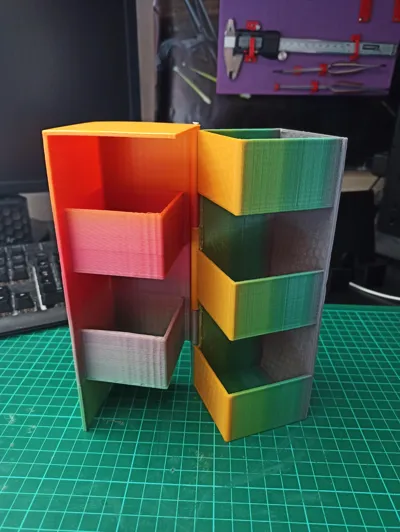

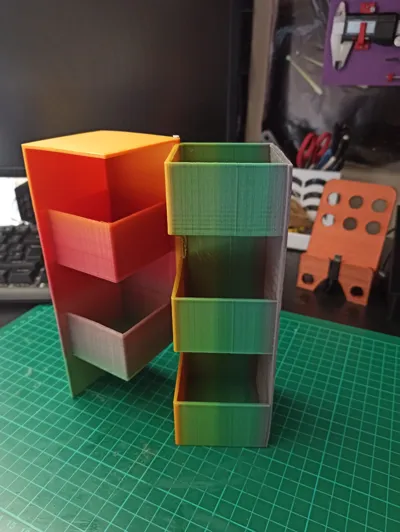

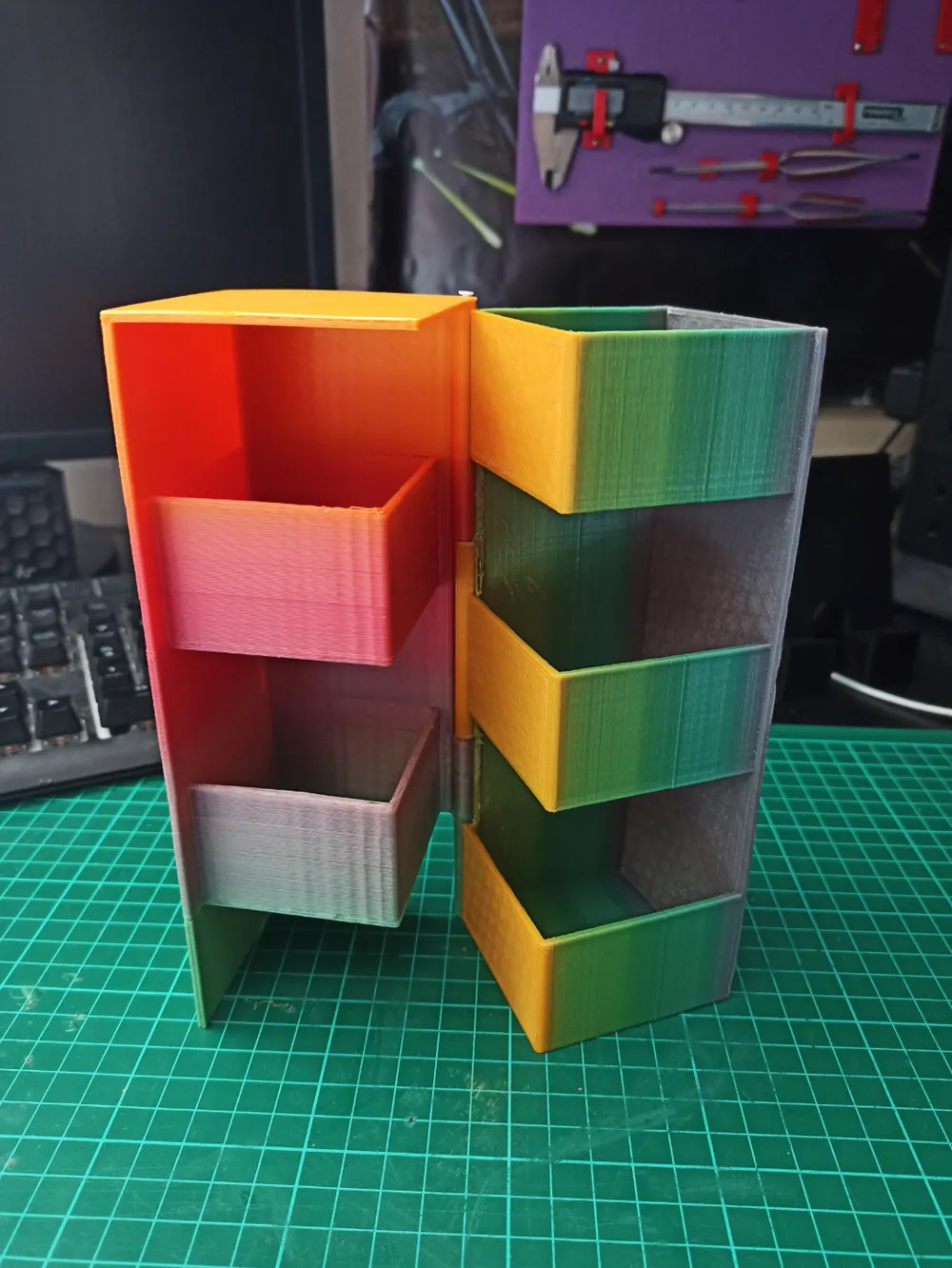

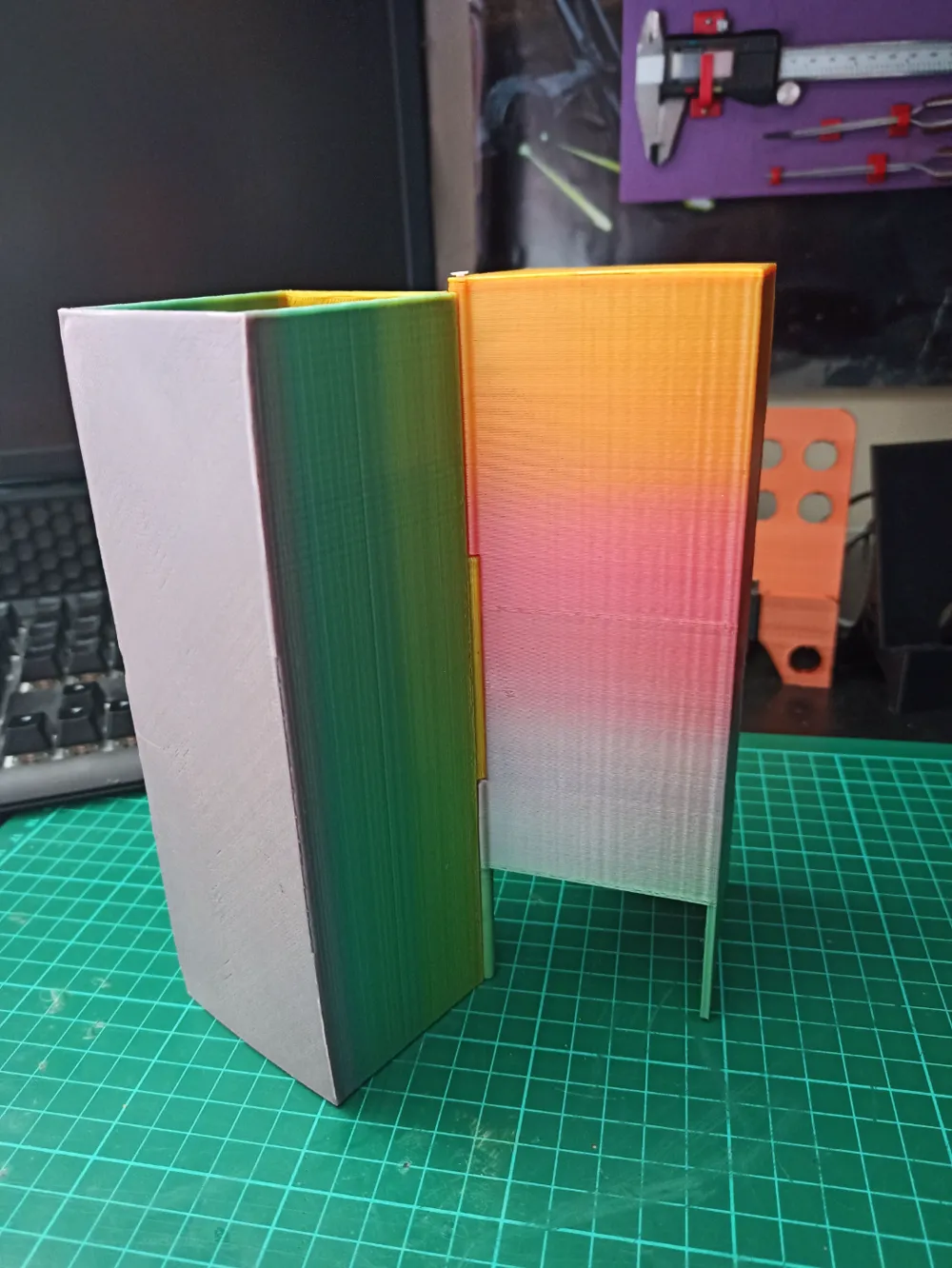

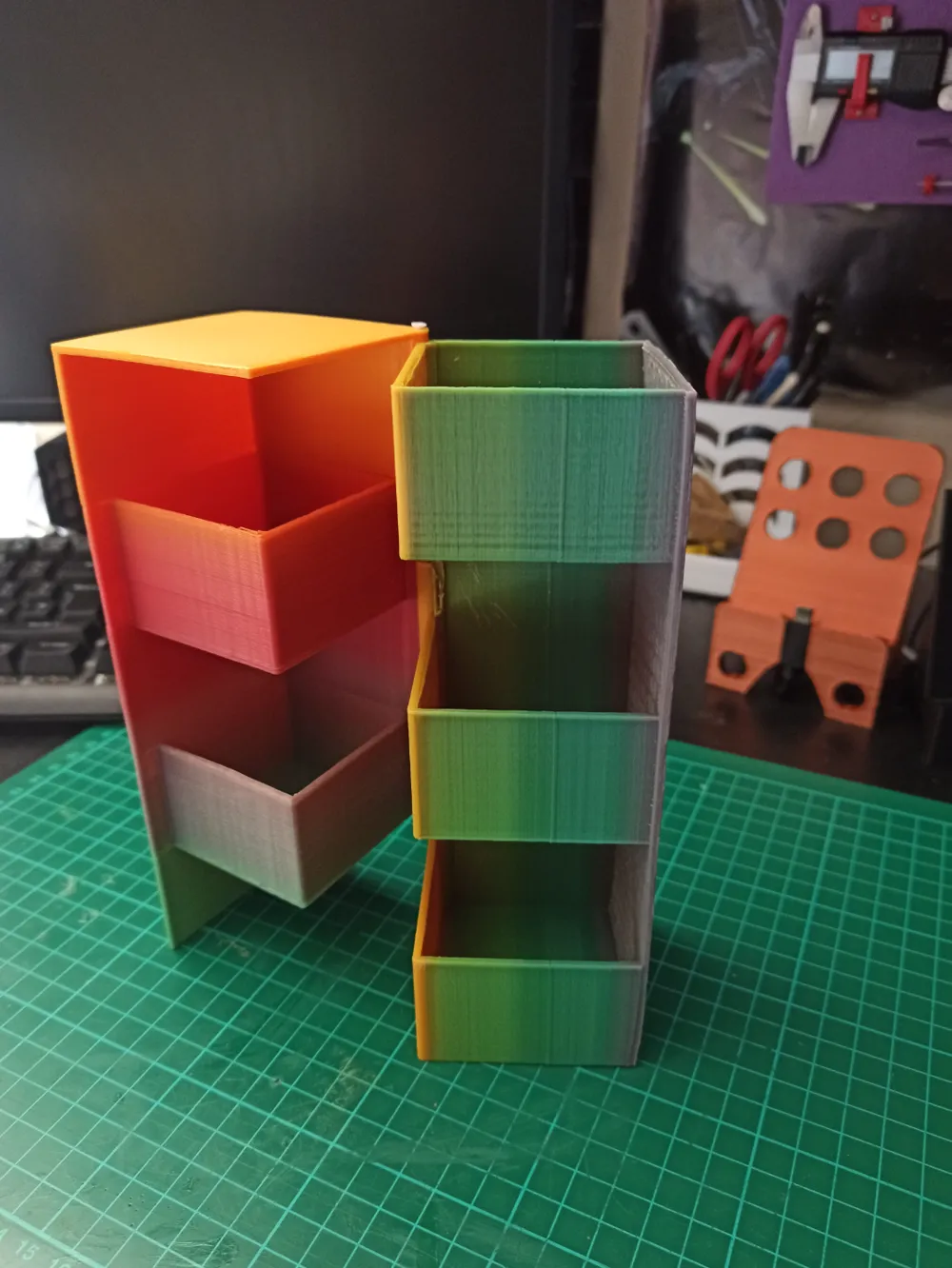

A box that folds in on itself for more compact storage of small parts.

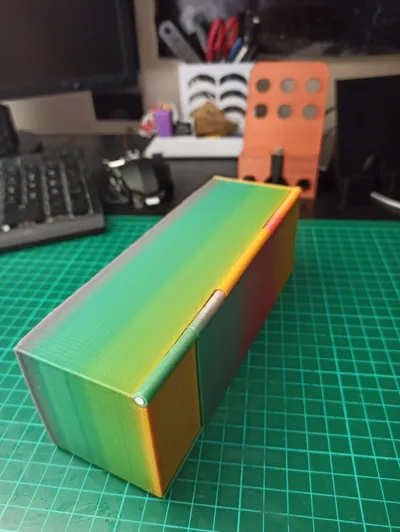

The box holds itself closed with friction.

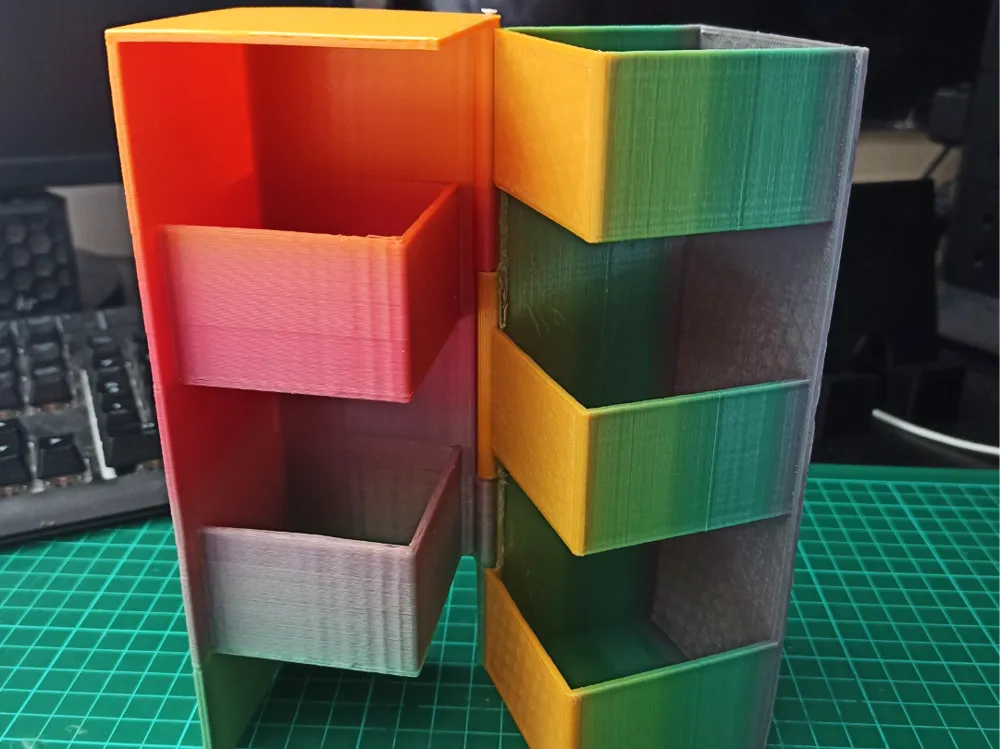

The internal dimensions for the sections is: 55mm x 55mm.

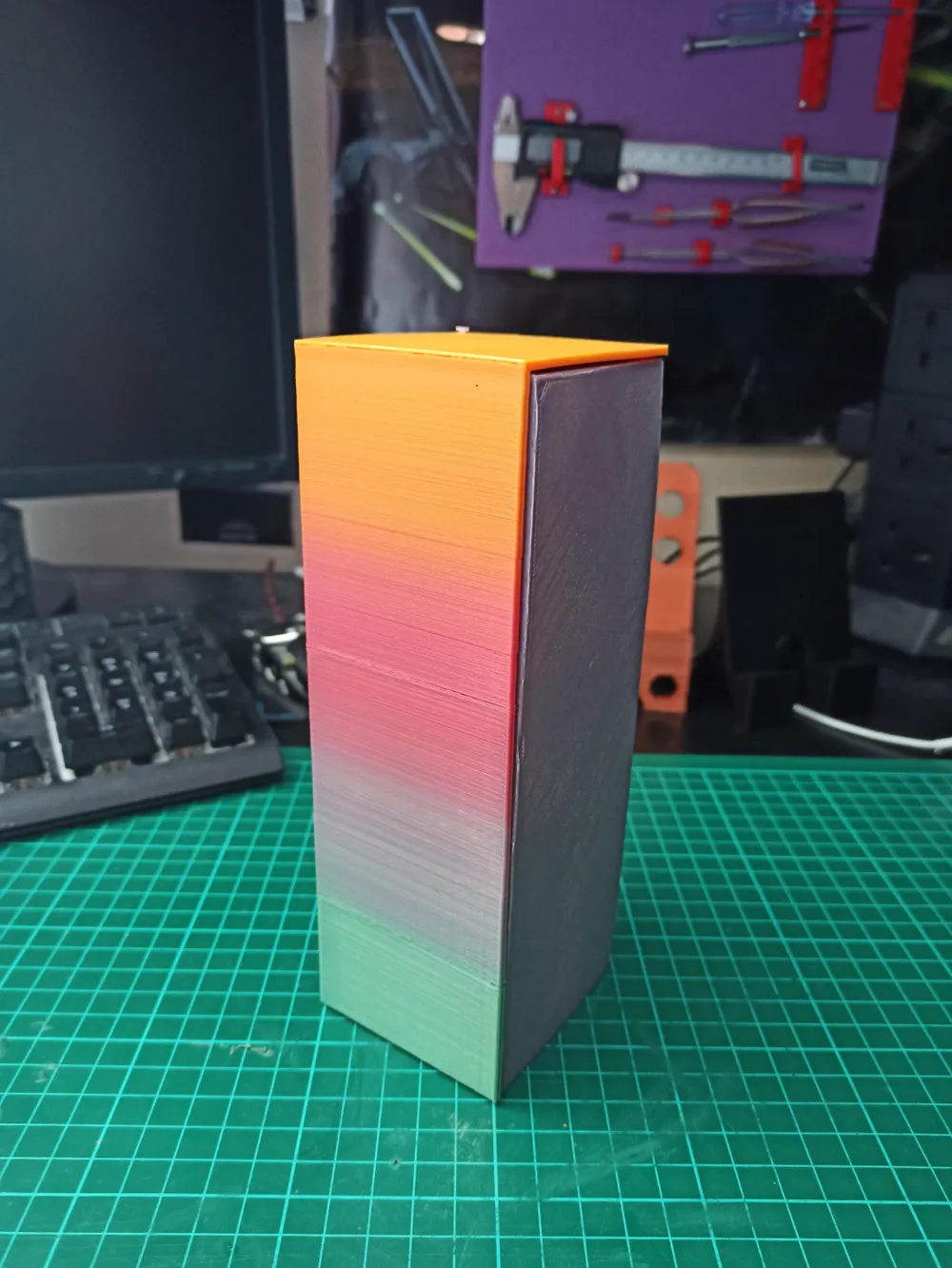

Overall size once assembled is: 65mm x 70mm x 190mm.

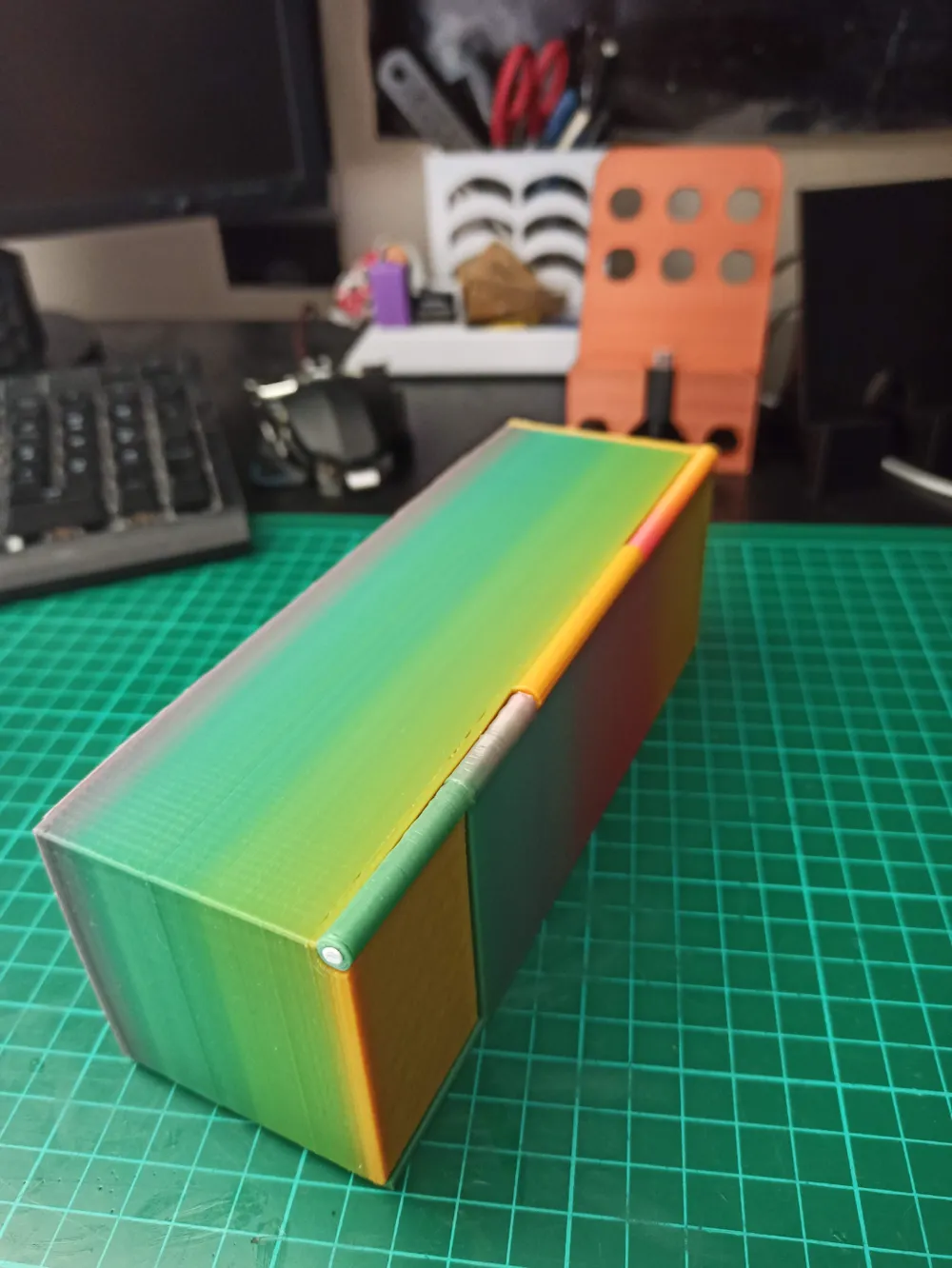

The hole in the hinge will fit a piece of 1.75mm filament as a hinge pin.
To keep the pin in place I melted both ends in to rivet shapes with the following steps:
- Cut the PLA a little longer than the piece so there is about 3mm overhang each side.
- Heat up a piece of flat metal with a lighter (I used the head of a nail).
- Slow press on to hinge pin until a small disk forms.
