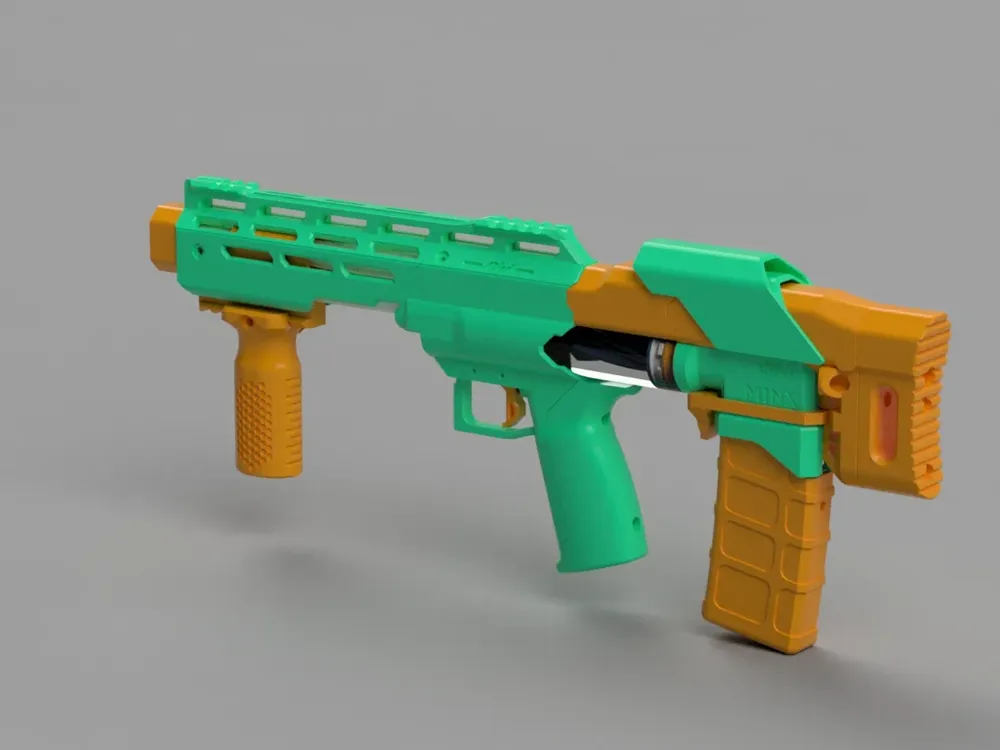

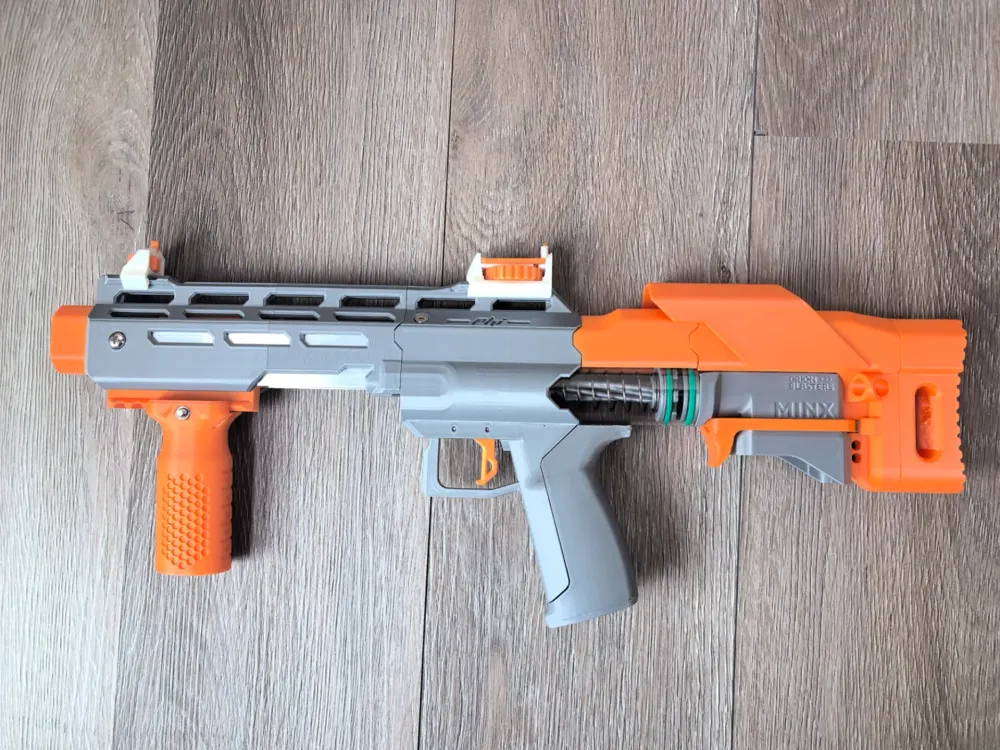

MINI LYNX

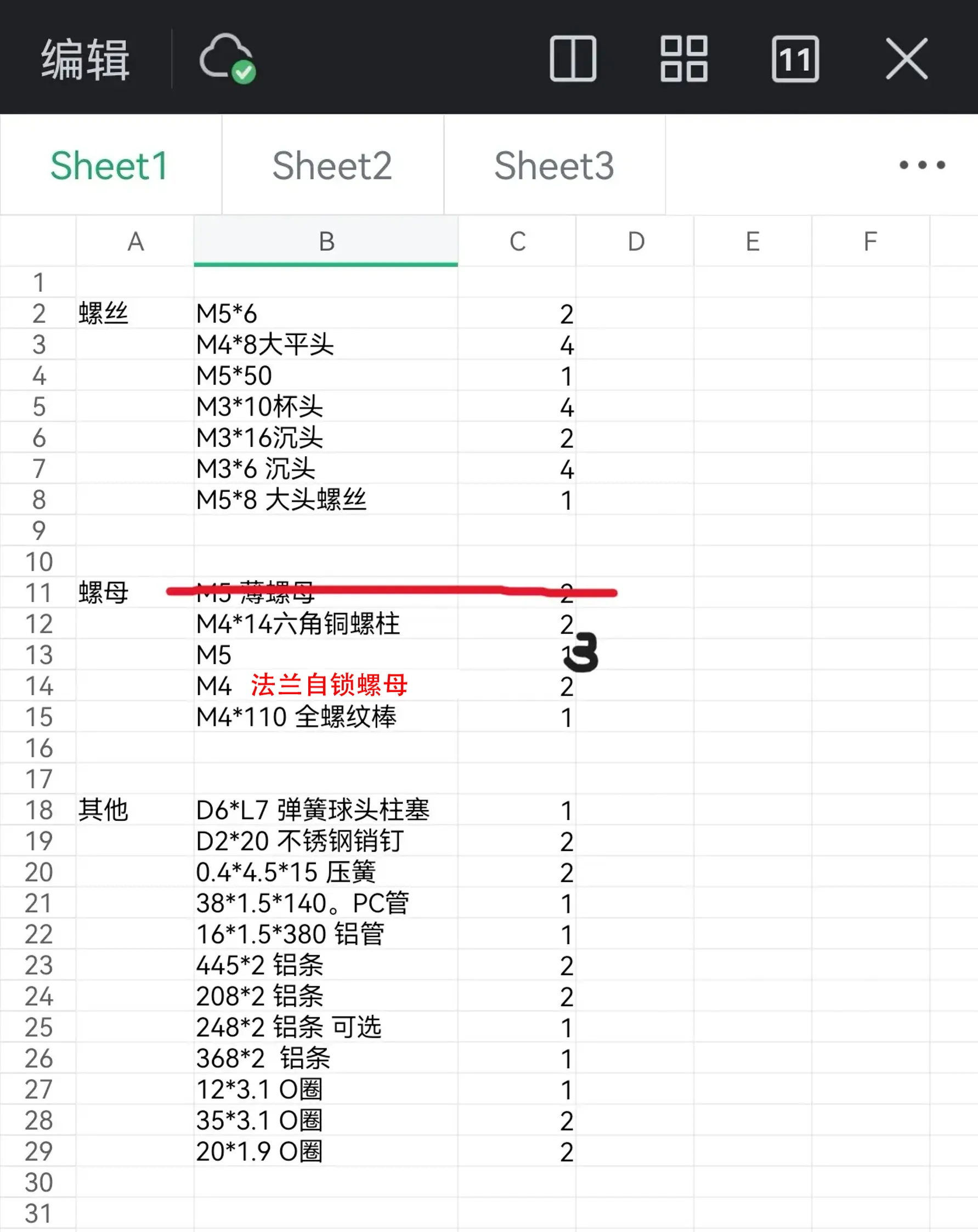

2025.5.6 Correction noted, thanks to a user's feedback: M4 self-locking nuts updated to M4 flange self-locking nuts

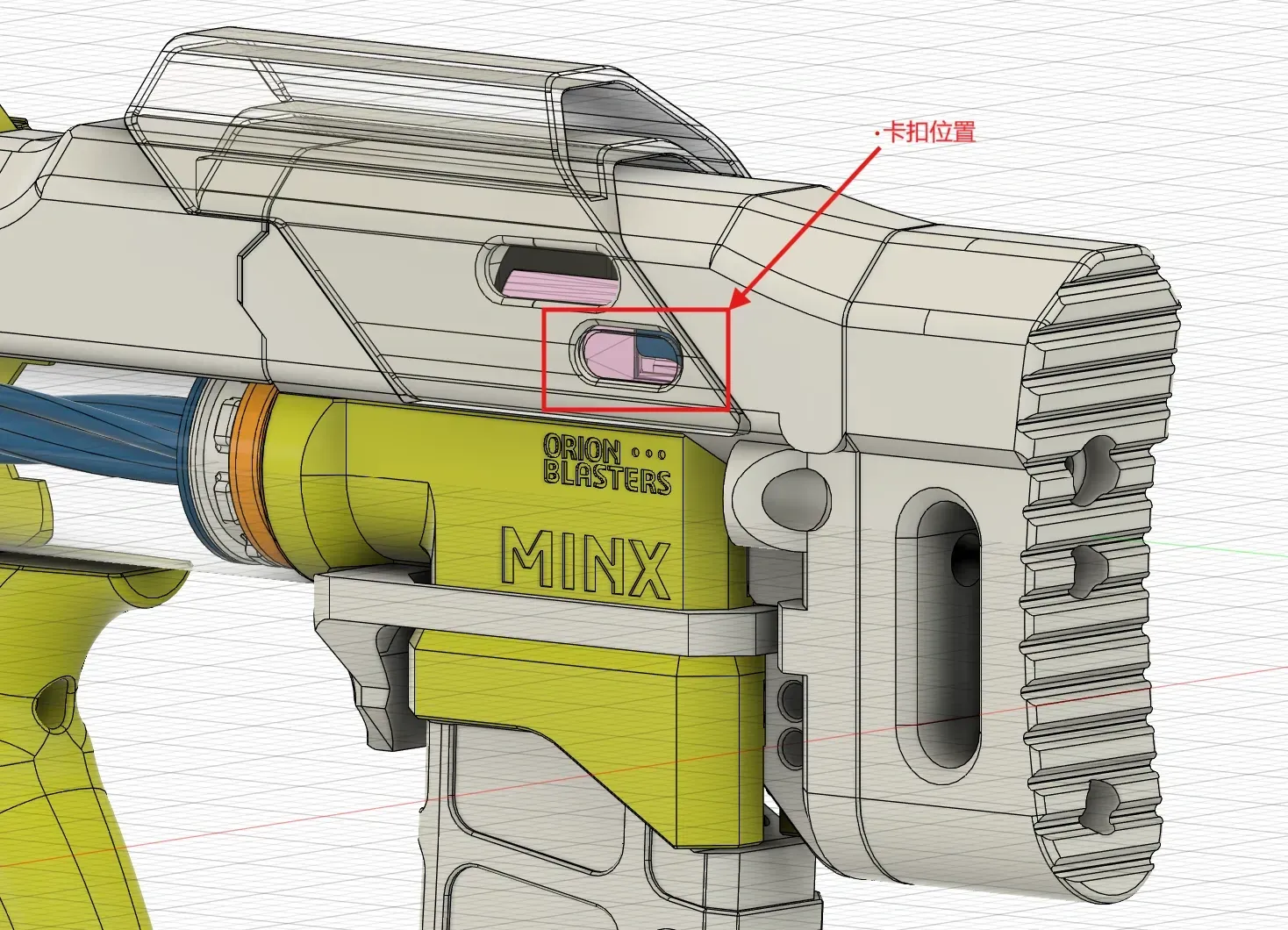

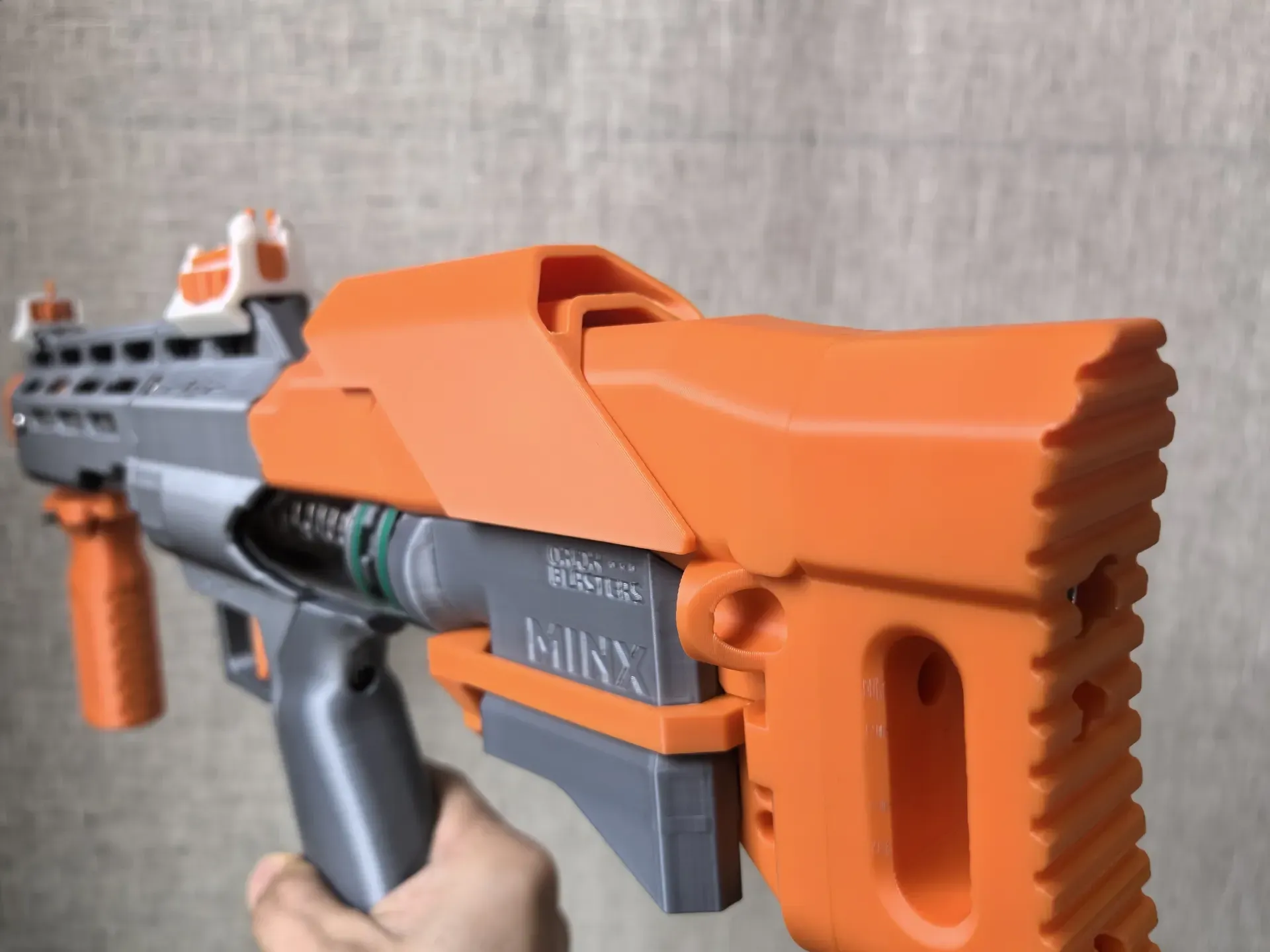

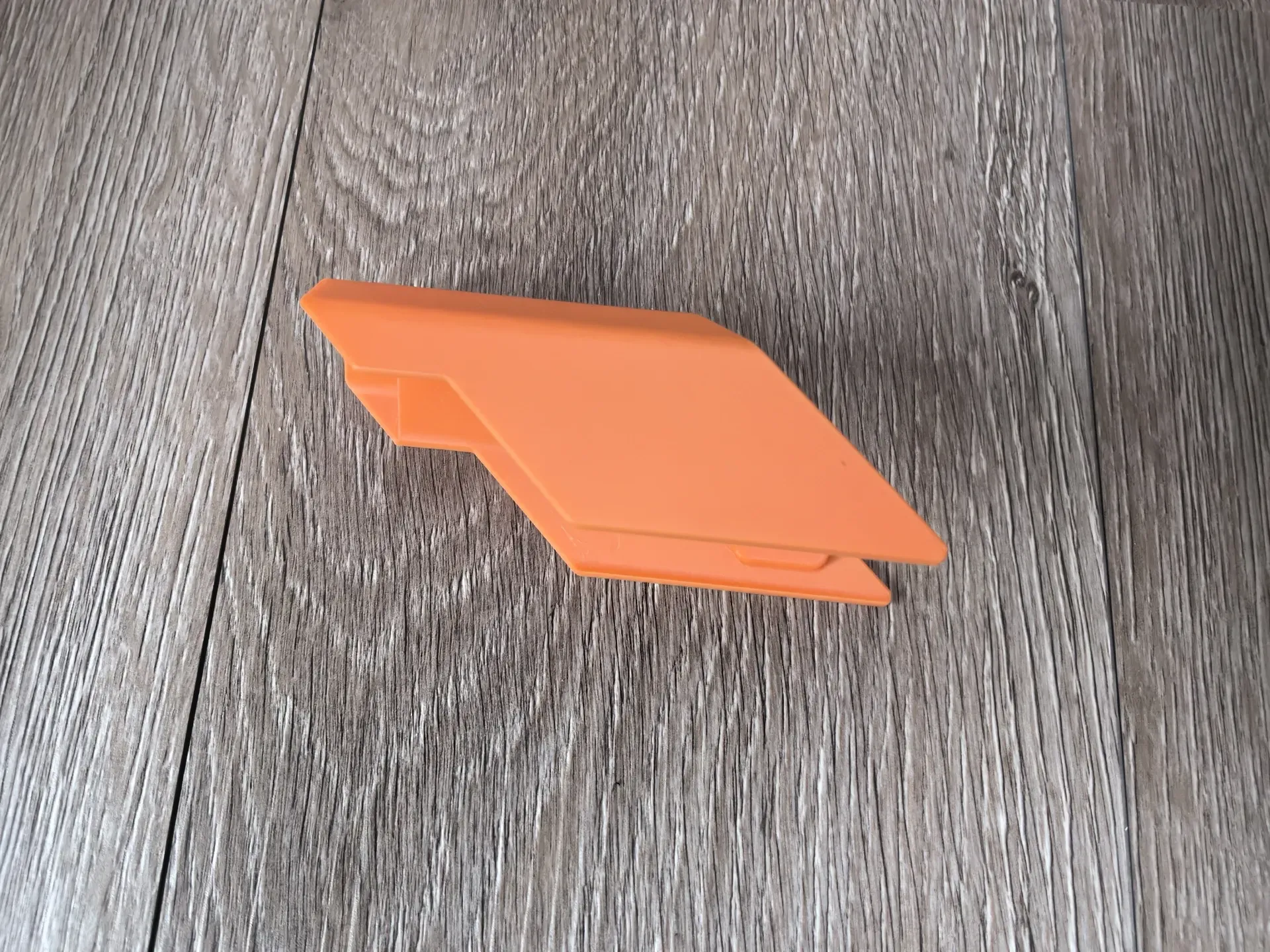

2025.3.9 Cheek rest update: A snap-fit mounting system utilizing existing mounting holes has been implemented for a cleaner, more aesthetically pleasing rear section. No hardware is required, yet it remains remarkably stable and wobble-free. Weighing only 35 grams, assembly takes approximately 90 minutes.

2025.3.6 Hardware update: Eliminated M5 thin nuts; standard nuts provide a more snug fit and easier installation.

Matching magazine decorative cover: LYNX Magazine Decorative Cover from @user_1662720453 - MakerWorld

The model has undergone three significant revisions primarily encompassing:

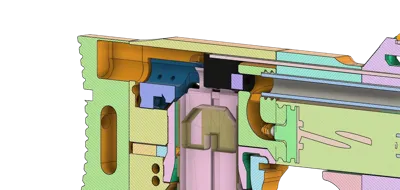

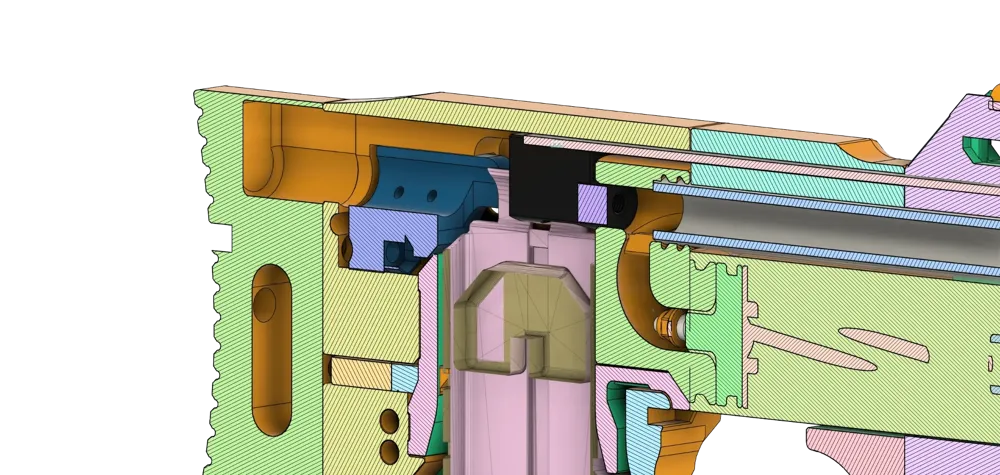

1. Tensioning System

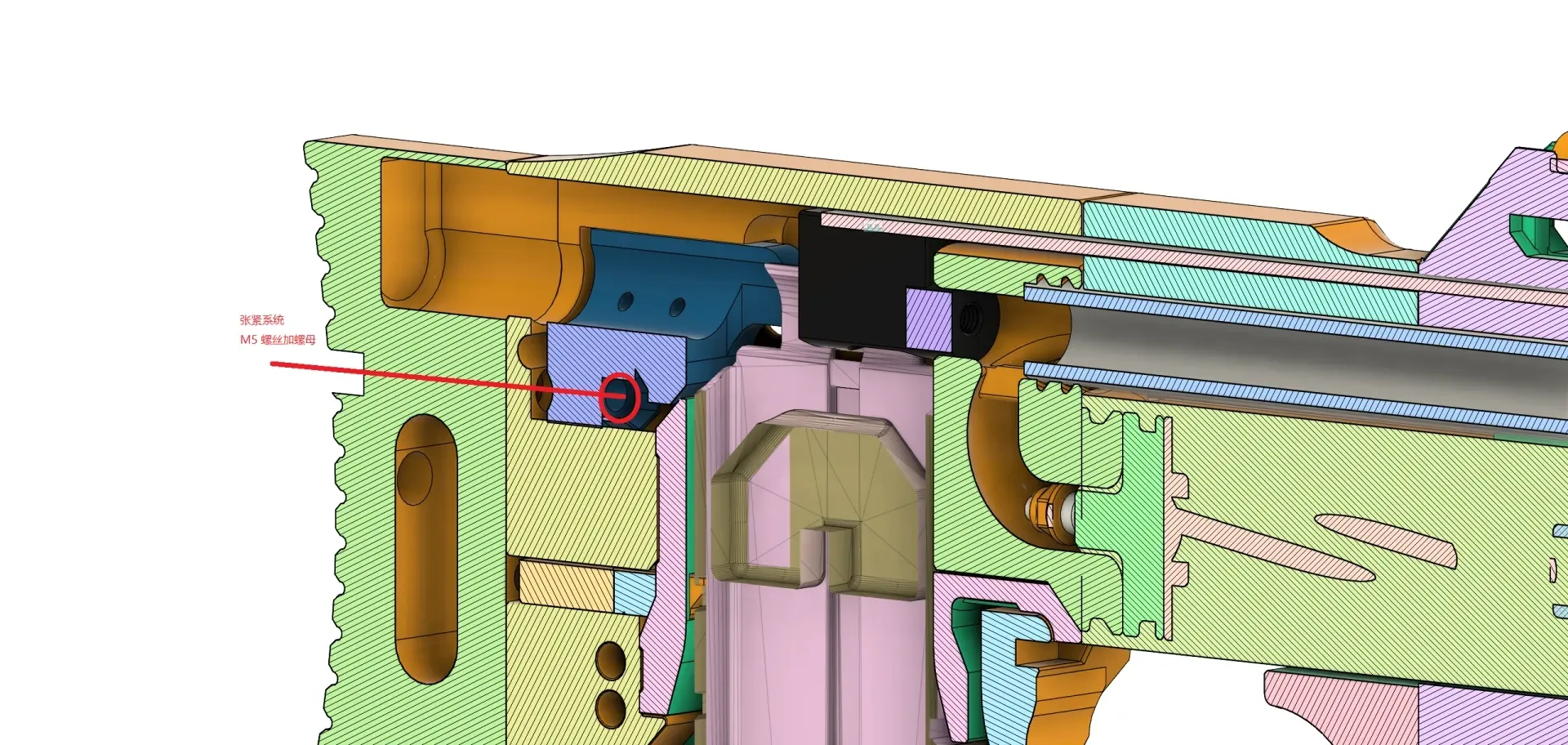

   1. Utilizes M5 screws to adjust and tension the aluminum bar, resulting in a more robust and rigid gun body with reduced play and increased assembly tolerance.
   2. The upper aluminum bar from the previous design can be omitted; the structure remains exceptionally stable.
   3.

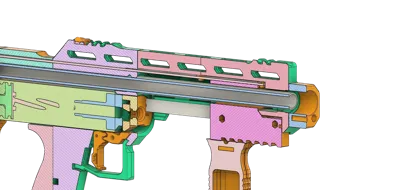

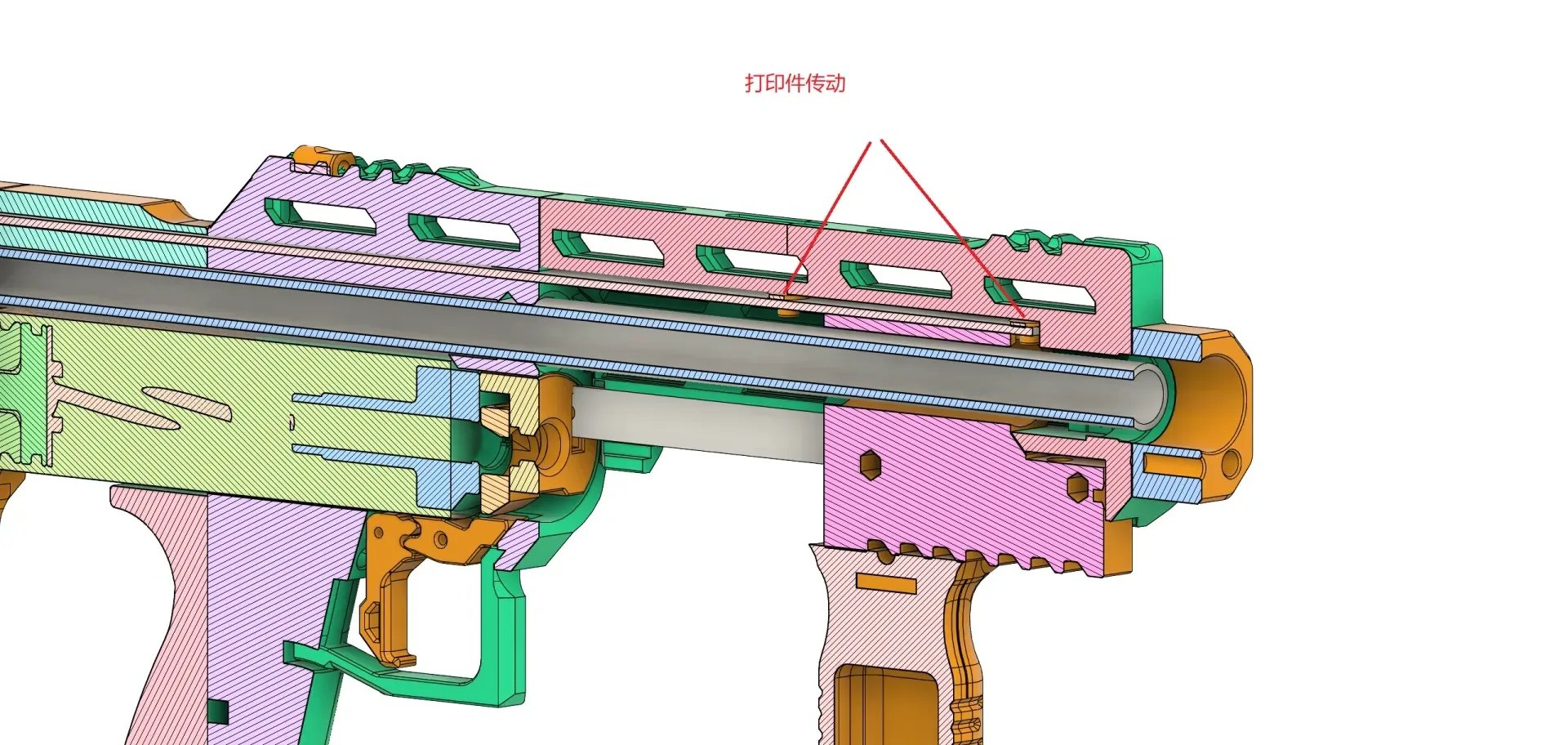

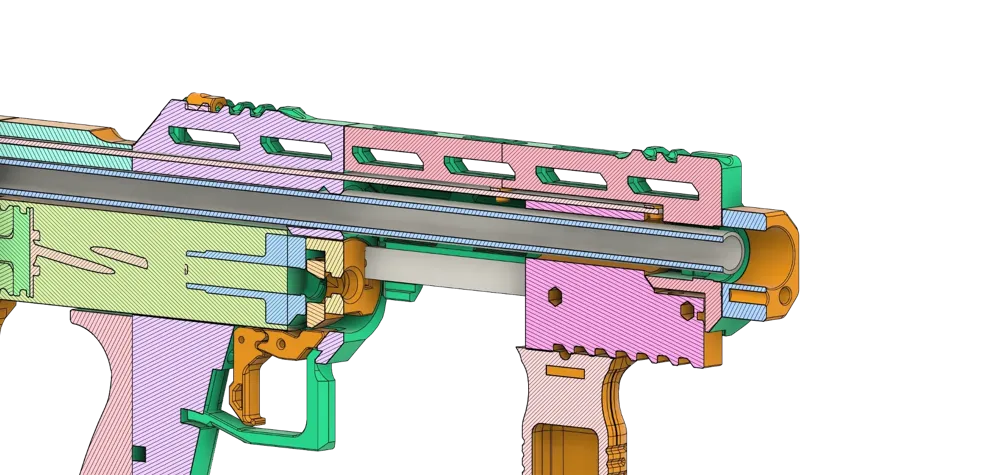

2. Transmission Module
   1. Previously, the aluminum bar utilized a squared recess, proving challenging for home fabrication. This has been revised to a round hole with two printed components, yielding flawless results in practice.
   2.
3. All Hardware Converted to Metric
   1. Aluminum bar uses 12*2

   2.
