Action Cam Mount for Suunto EON Core Dive Computer
Print Profile(1)
Description

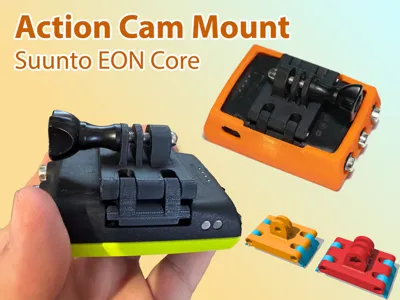

Action Cam Mount for Suunto EON Core - Dive Computer

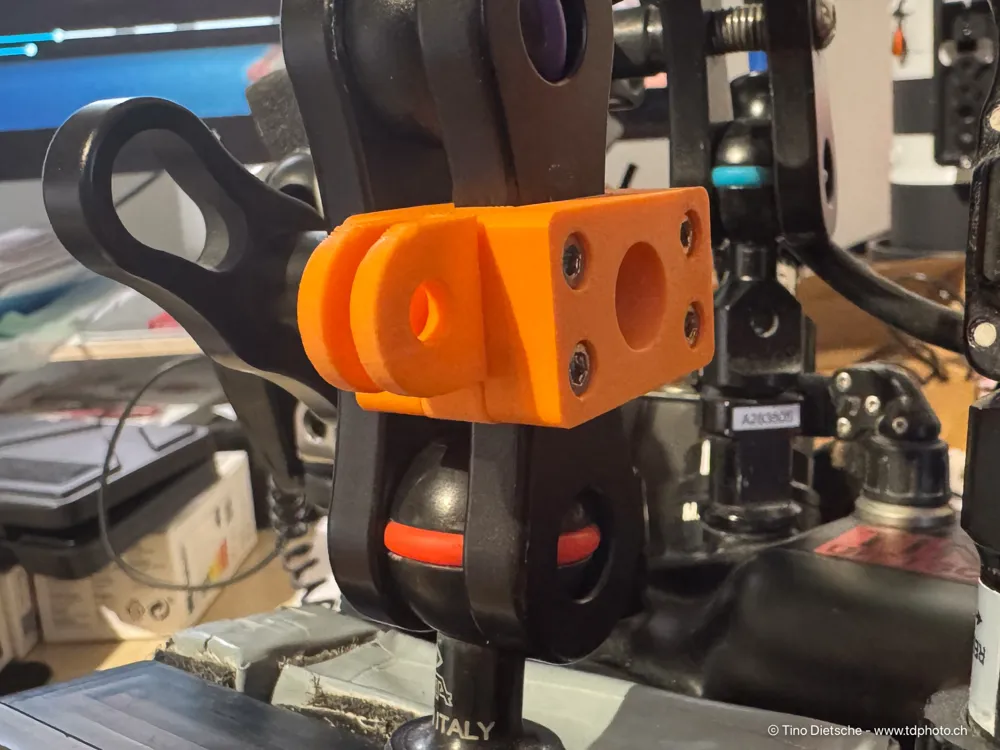

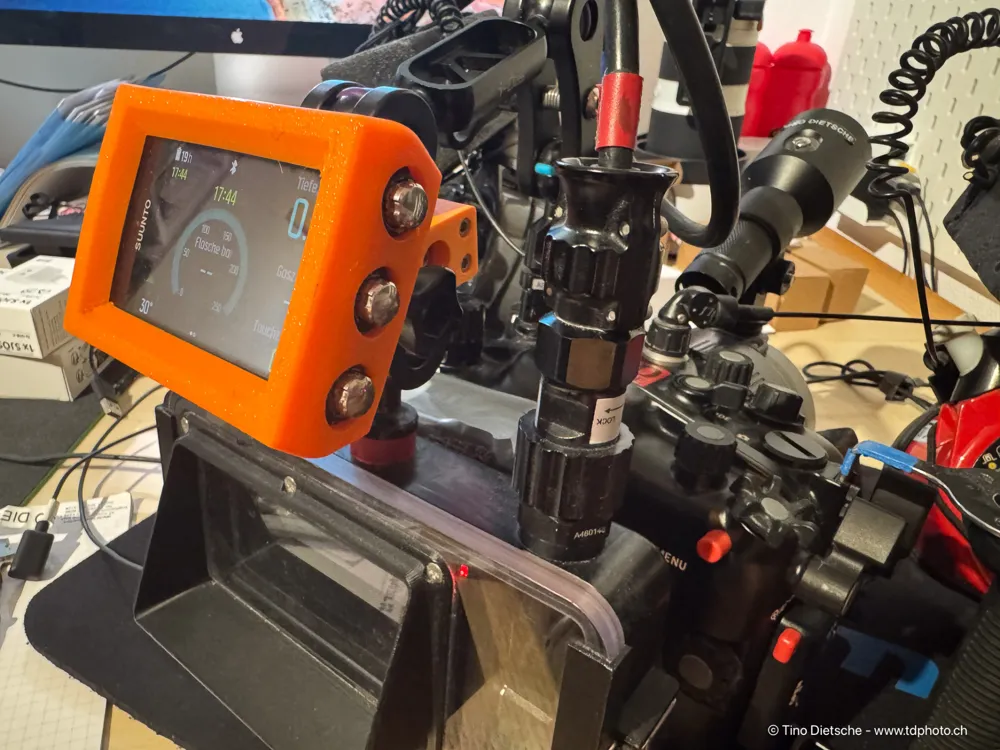

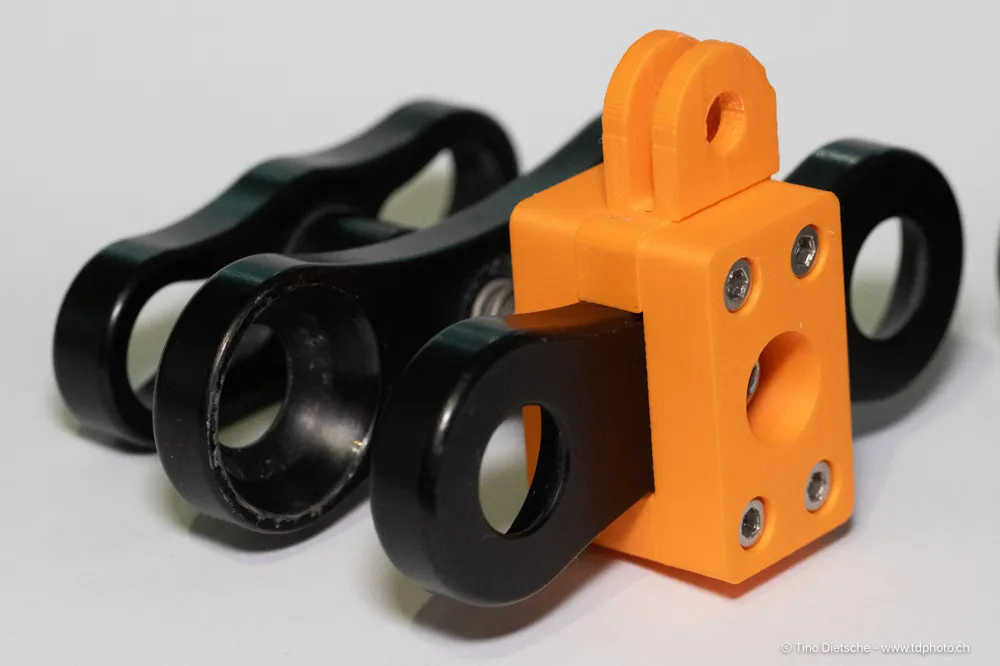

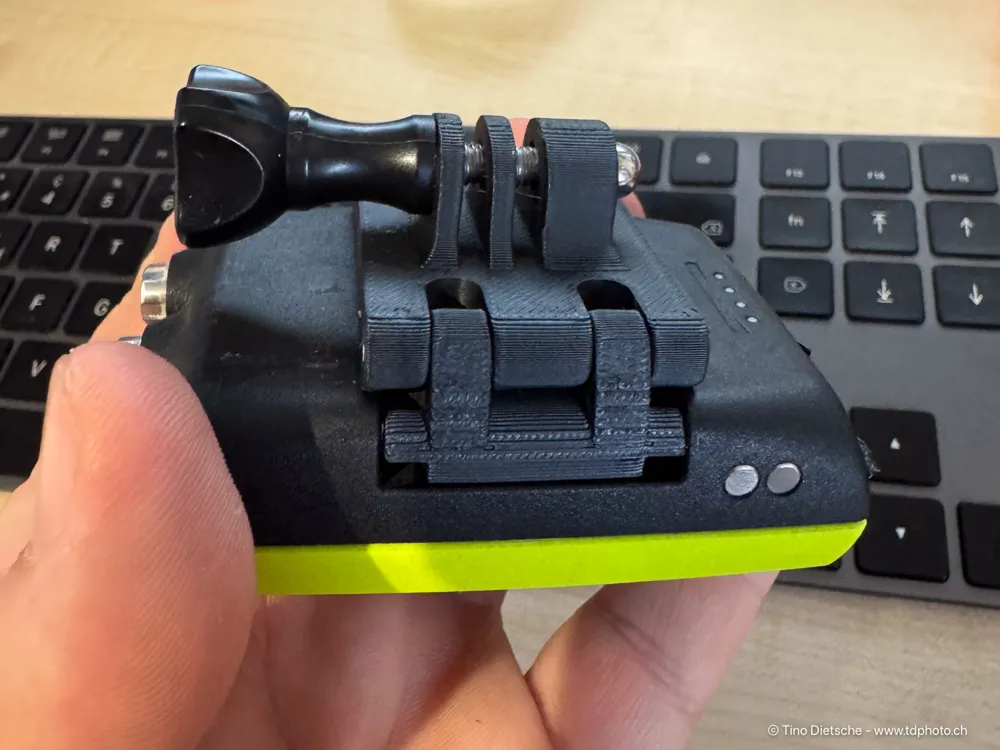

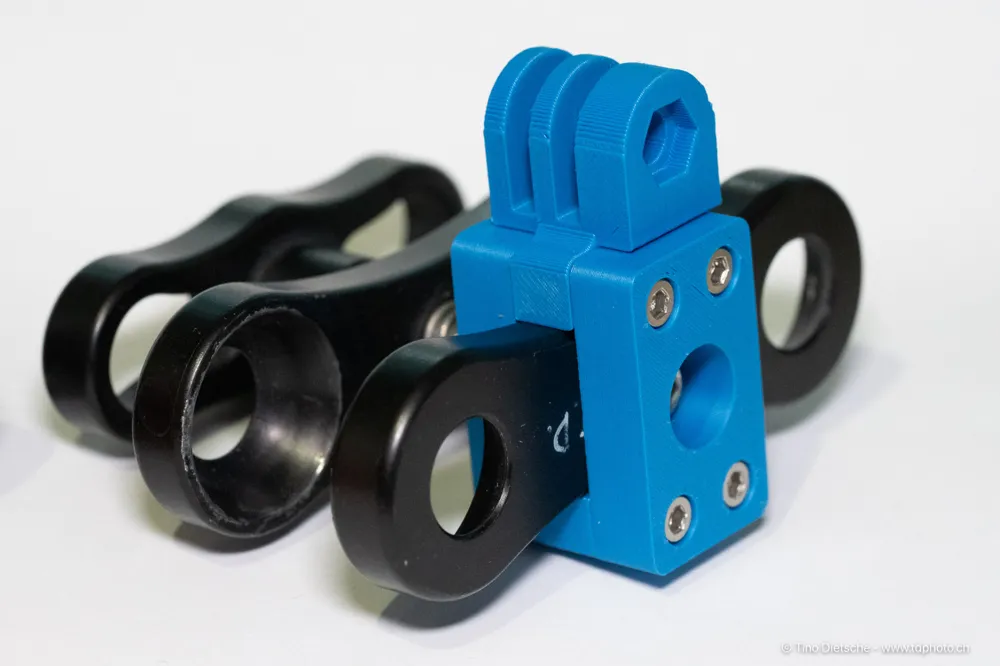

Action Cam mount for the EON Core dive computer. The mount allows the dive computer to be mounted via action cam mount. Both versions of the bracket are available, the part with the screw and the part without.

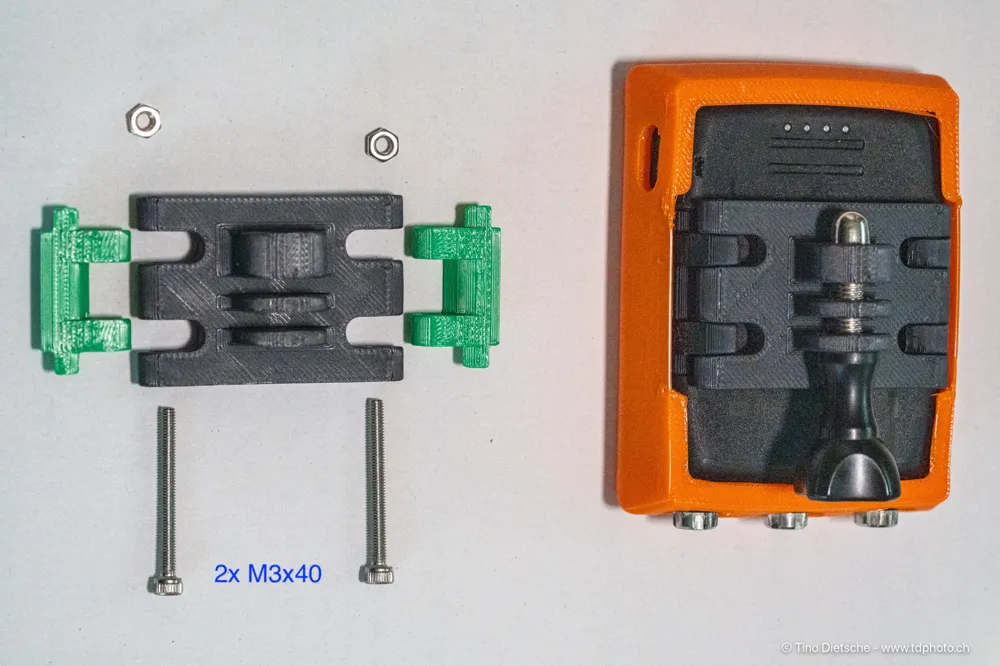

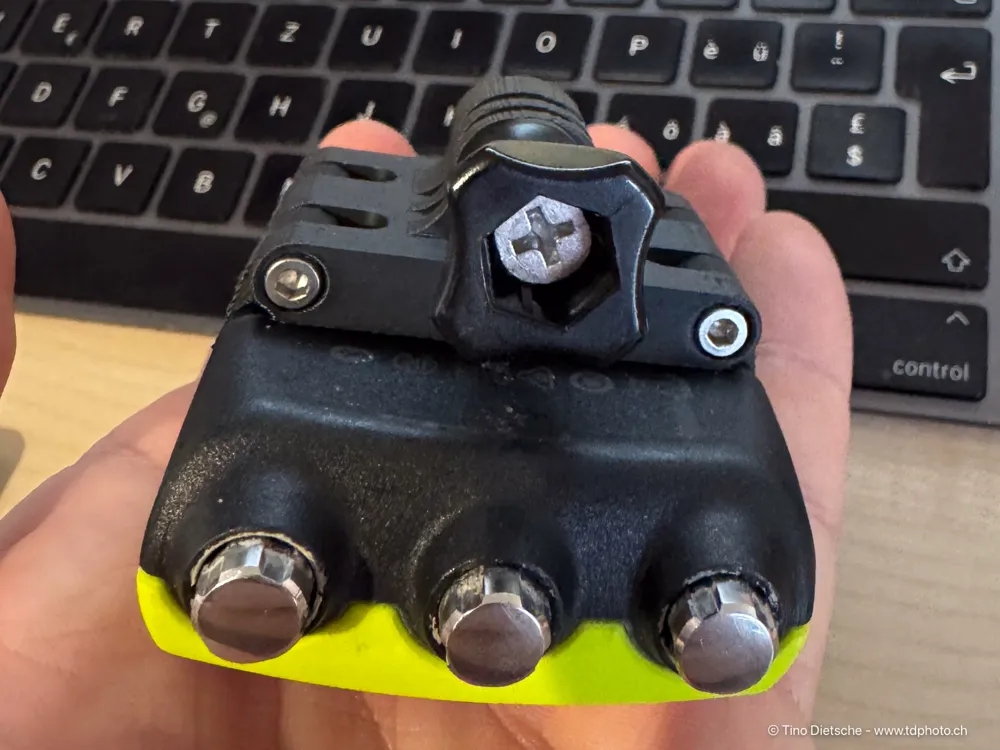

The adapter consists of 3 parts, 2x the side base of the mount which is used instead of the original wristbands with the spring pins. The main base is screwed to the side base parts.
The part should be printed with support to ensure a nice hole. It is best to remove the supports in the hole with a 2.5mm drill.
PLA, PETG, ABS etc. can be used as materials, depending on where it is used.
In order to mount the holder on the EON Core, you need the following material:
- 2x M3x30 screw
- 2x M3 nut
