Bracket Generator - Parametric Mounting Brackets
Print Profile(1)
Description
Looking for Mounting Brackets? Look no further.
This OpenSCAD script allows you to generate a wide variety of parametric mounting brackets with fully customizable geometry and configurations. Whether you need Angle, Corner, Flat, T-, L- or Y-brackets, this script lets you design brackets tailored to your specific needs. Perfect for prototyping, assembly projects, and DIY construction.

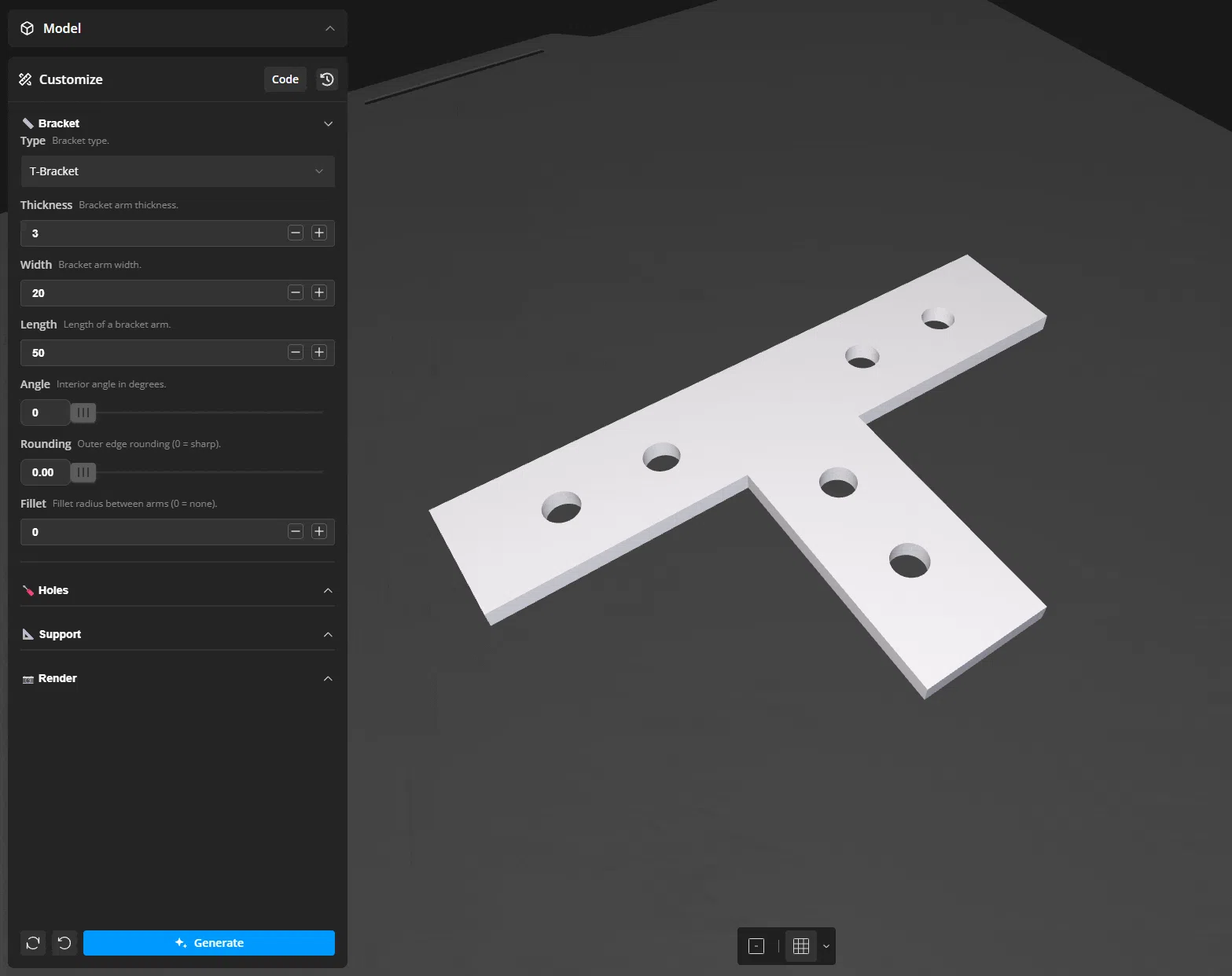

Click on Customize to open the generator.
🚀 Quick Start
1. Select Bracket Type
Choose the bracket type that suits your project needs:
- Angle Bracket: Adjustable angle for corner or structural supports.
- Flat Bracket: Connects flat surfaces.
- T-Bracket: Joins surfaces perpendicularly for T-shaped connections.
2. Customize Your Bracket
Tailor your bracket with these options:
- Dimensions: Adjust Thickness, Width, Length, and Interior Angle.
- Edges & Corners: Add Rounding for smooth edges or Fillet Radius for stronger joints.
- Screw Holes: Define flexible Hole Grid patterns with adjustable rows, columns, and staggered layouts for each bracket arm. Customize spacing, offset, and screw types (ISO/UTS). Optionally set Counterbore and Threading for a perfect fit.
- Support Structures: Reinforce Angle Brackets with Flanges, adjustable for Taper and Thickness.
3. Render and Export
After customization, optionally adjust settings in the Render section:
- FDM Optimization – Adjusts orientation and adds teardrop shapes for cleaner screw holes in 3D printing (if needed).
- Mirror Model – Easily create mirrored versions for symmetrical installations.
Once ready, export your model for slicing and printing. Your bracket is then ready for installation!
⭐ Features
- Parametric Customization
Fine-tune every aspect of the bracket for precise mounting and structural integrity. - Versatile Design
Create Angle, Corner, Flat, T-, Y- and L-Brackets, and everything in between. - Precision Modeling
Produces clean geometry and accurate measurements. - FDM Optimization
Designed with 3D printing in mind.
