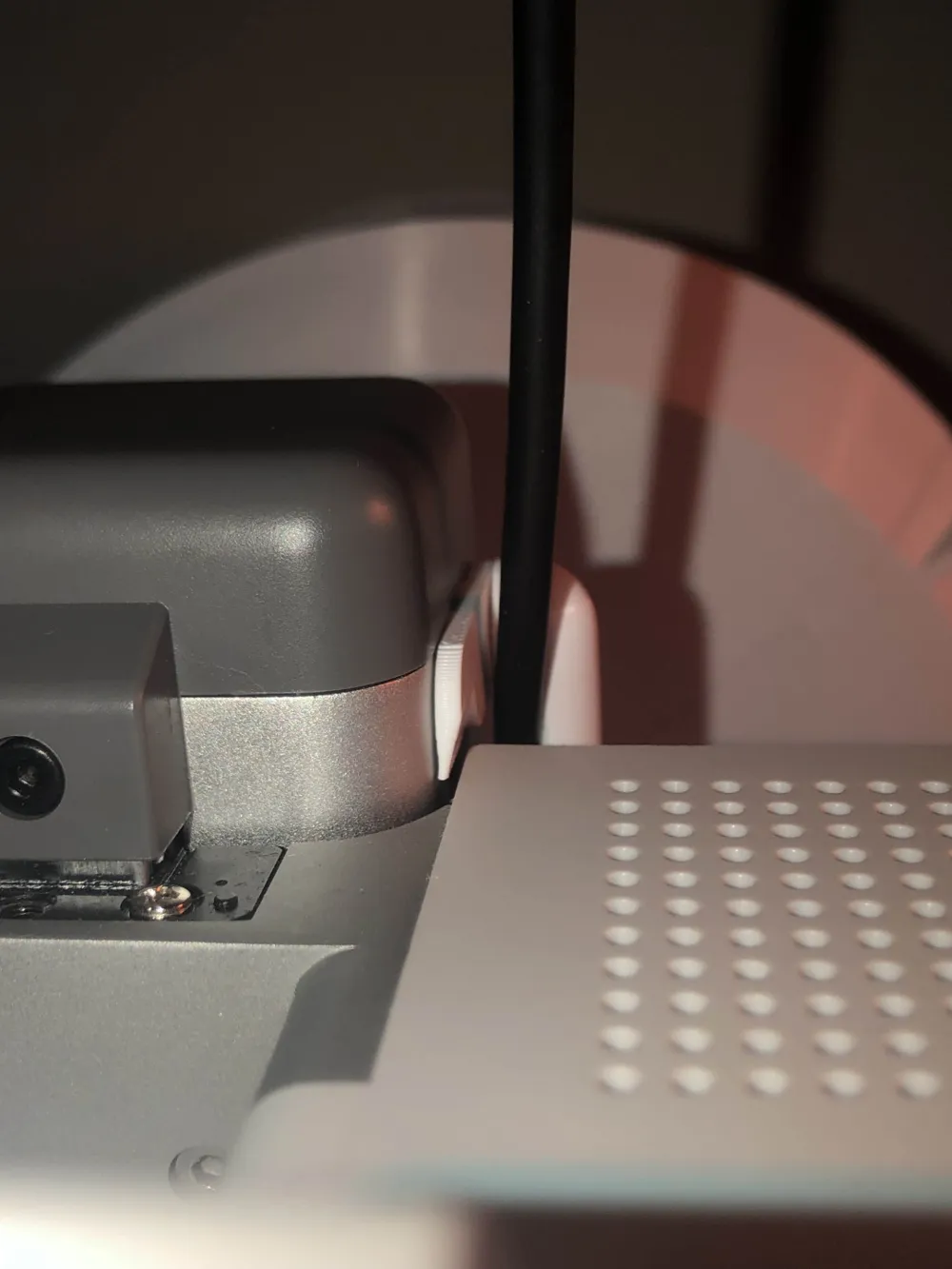

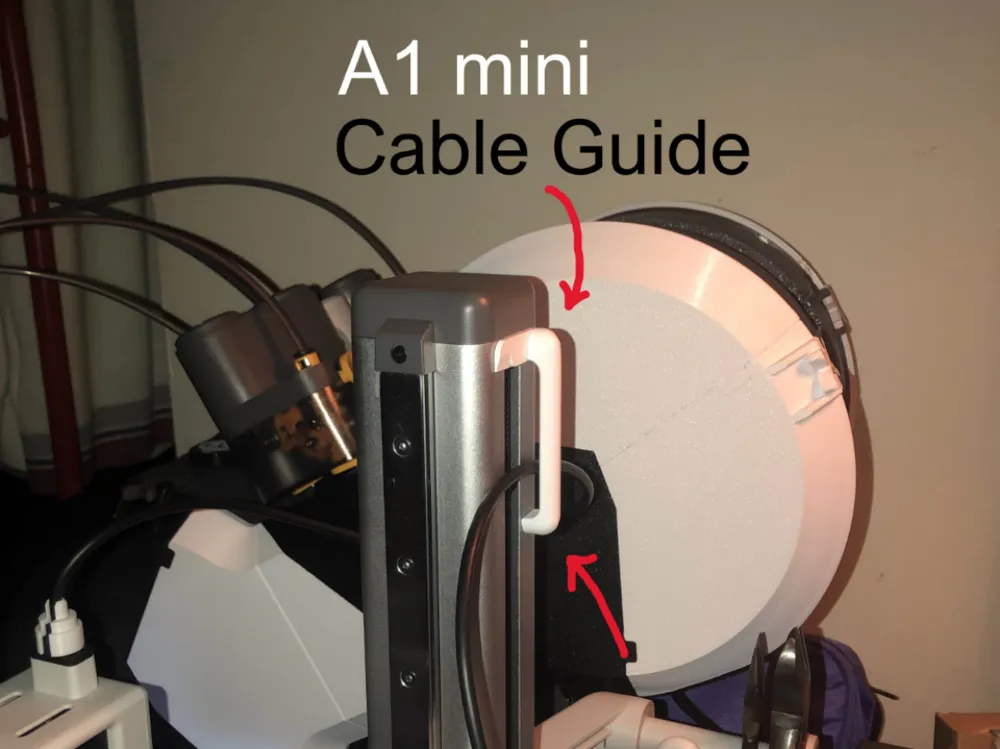

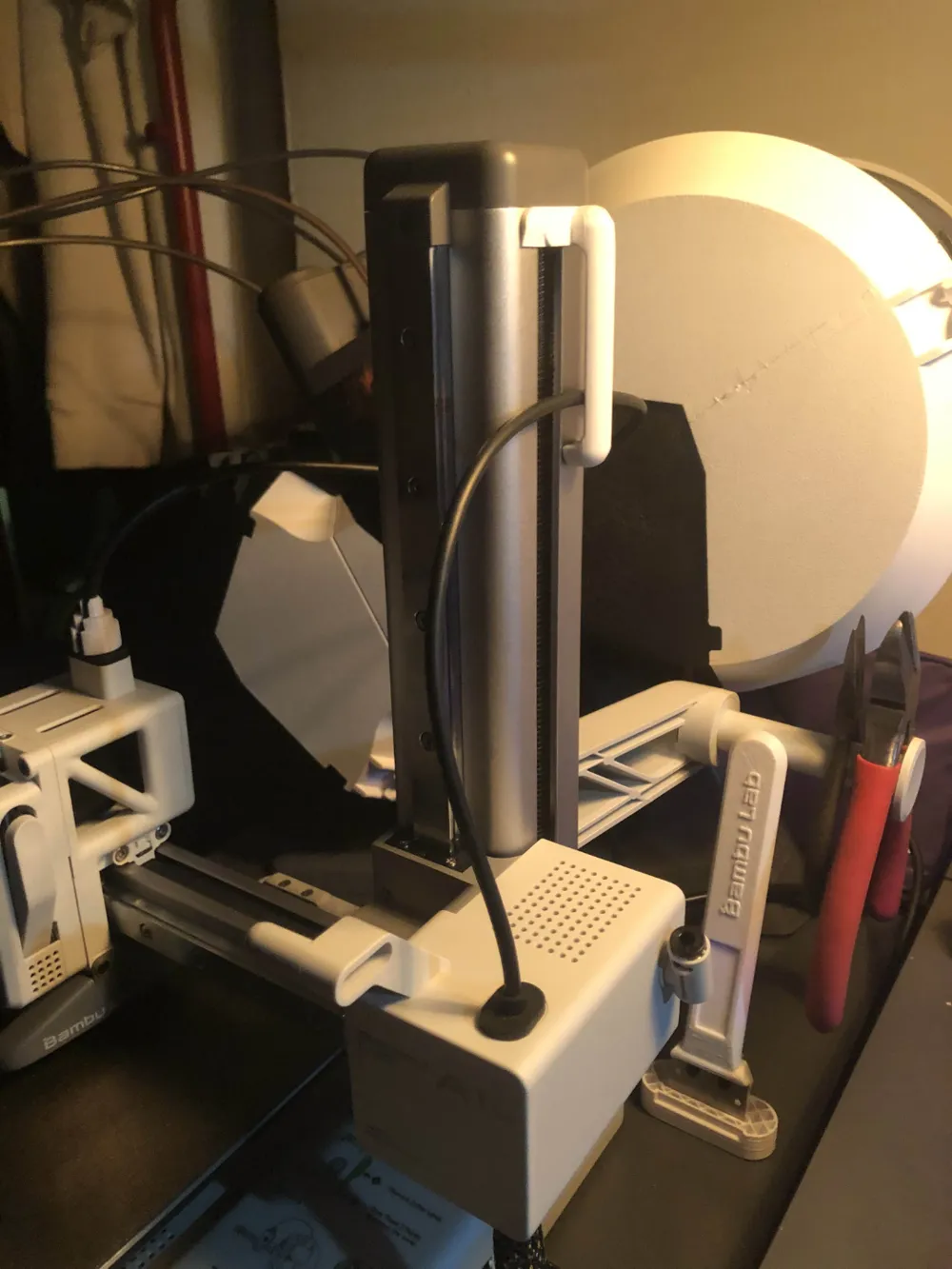

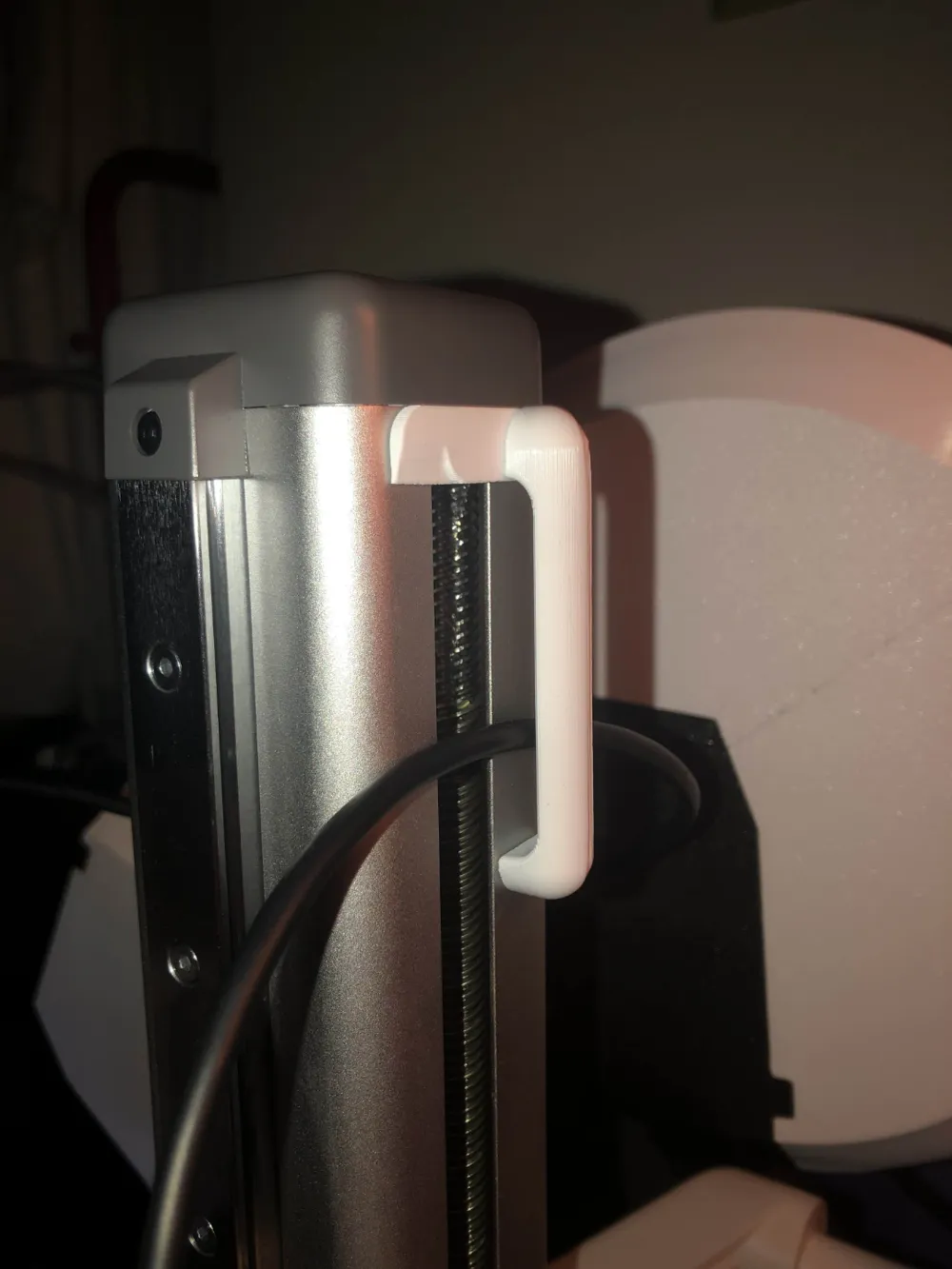

Since my AMS is located behind the A1 mini, the original cable guide is useless since the location of AMS is expected to be on the right side of the printer, and in my application, it is not viable. The tool head cable sogs under its weight and is not supported, so I decided to design cable support that does not require post-processing or any manipulation with A1 mini itself, no need to remove anything or buy something extra, clip it in and that's it.

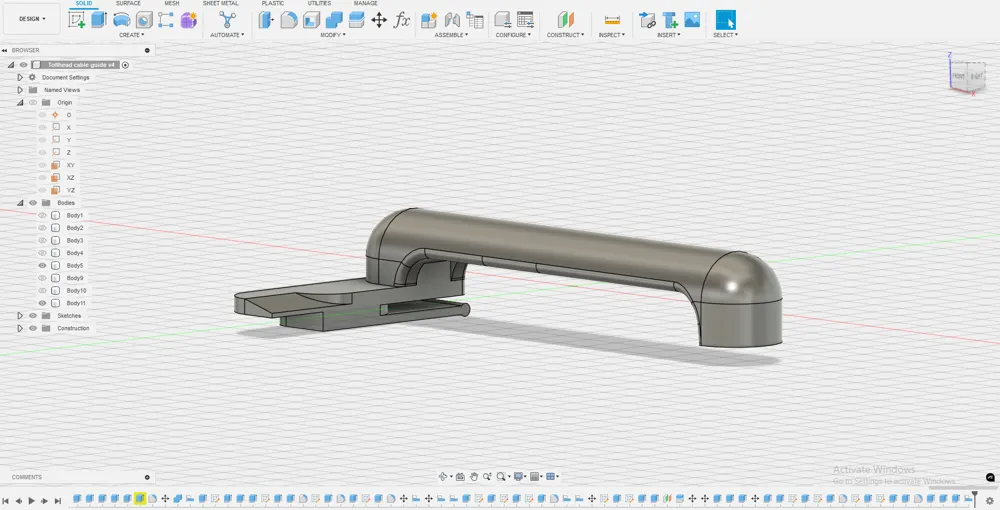

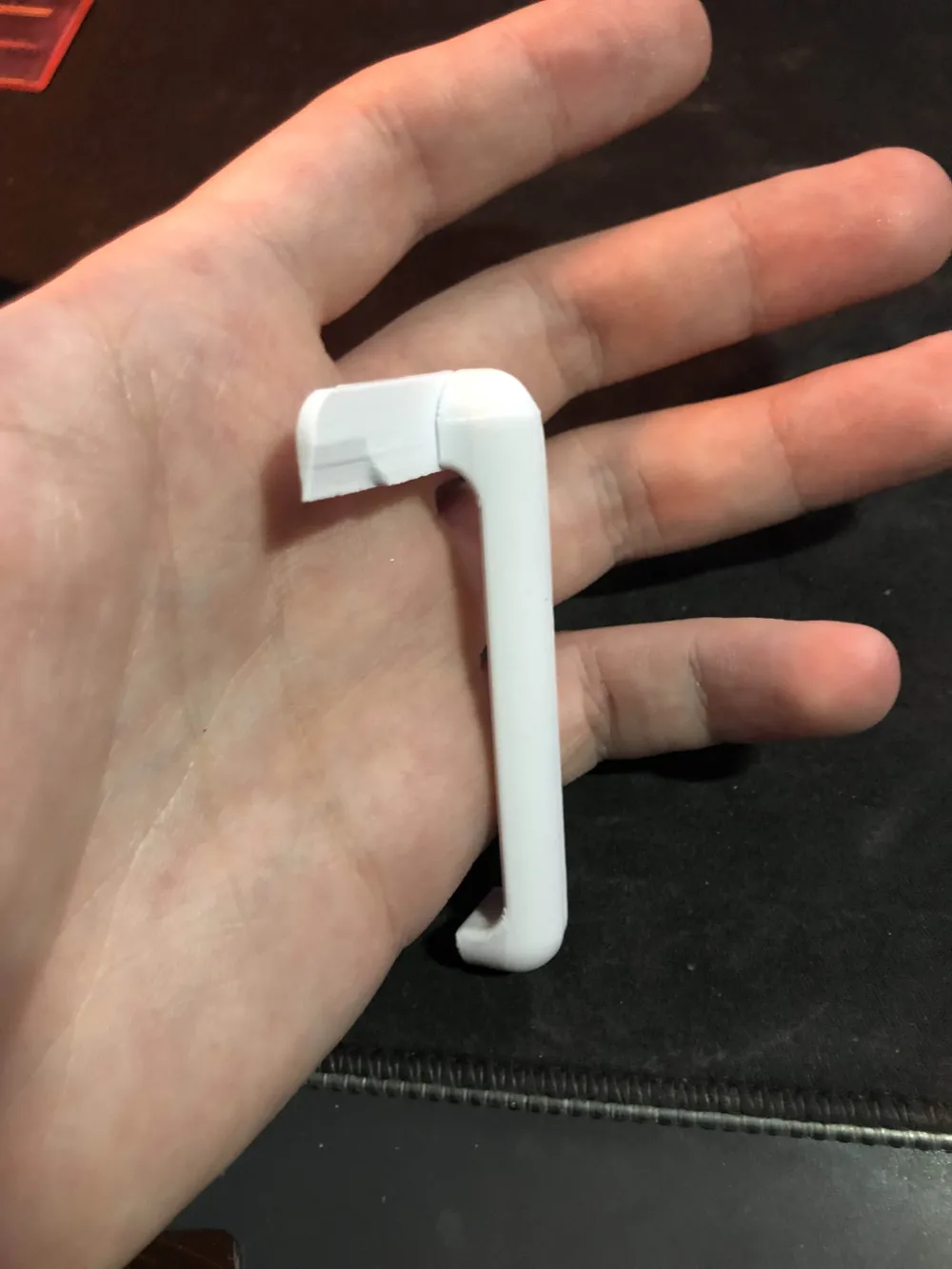

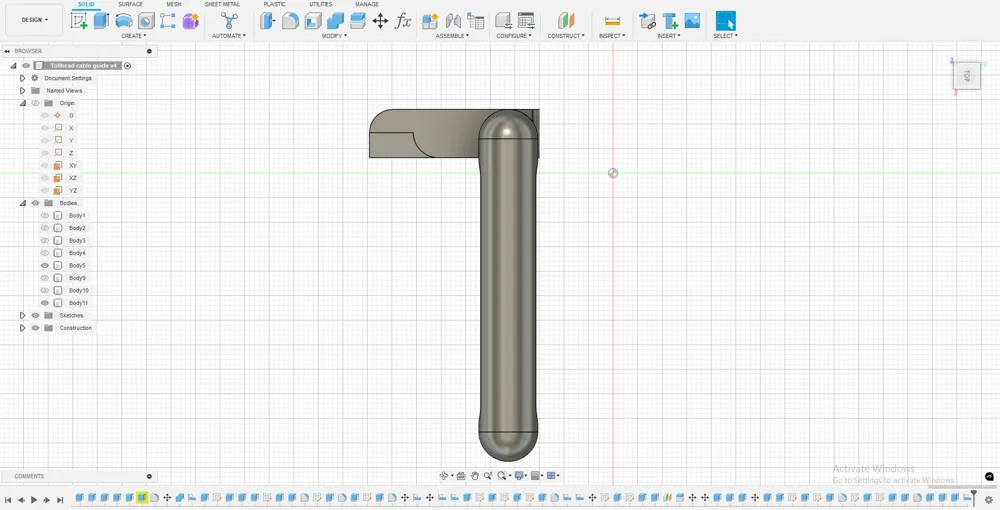

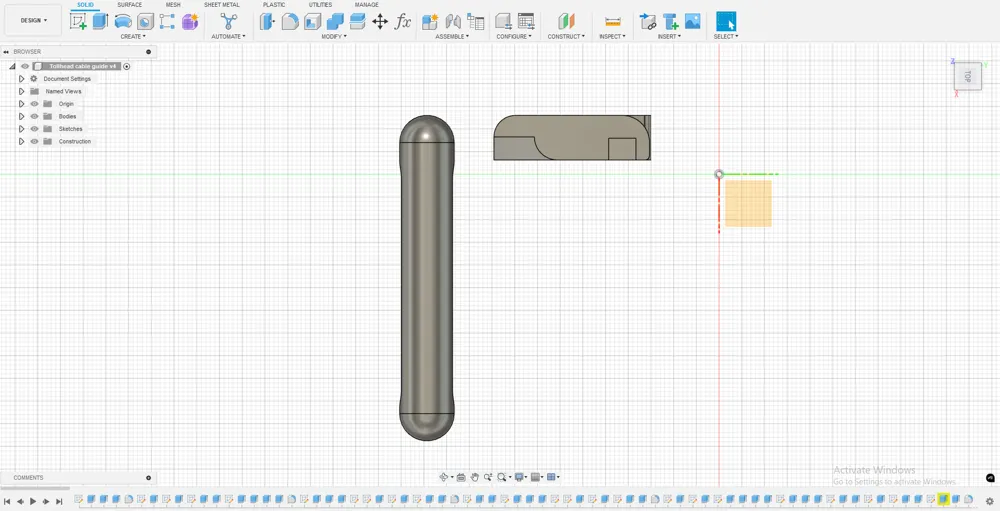

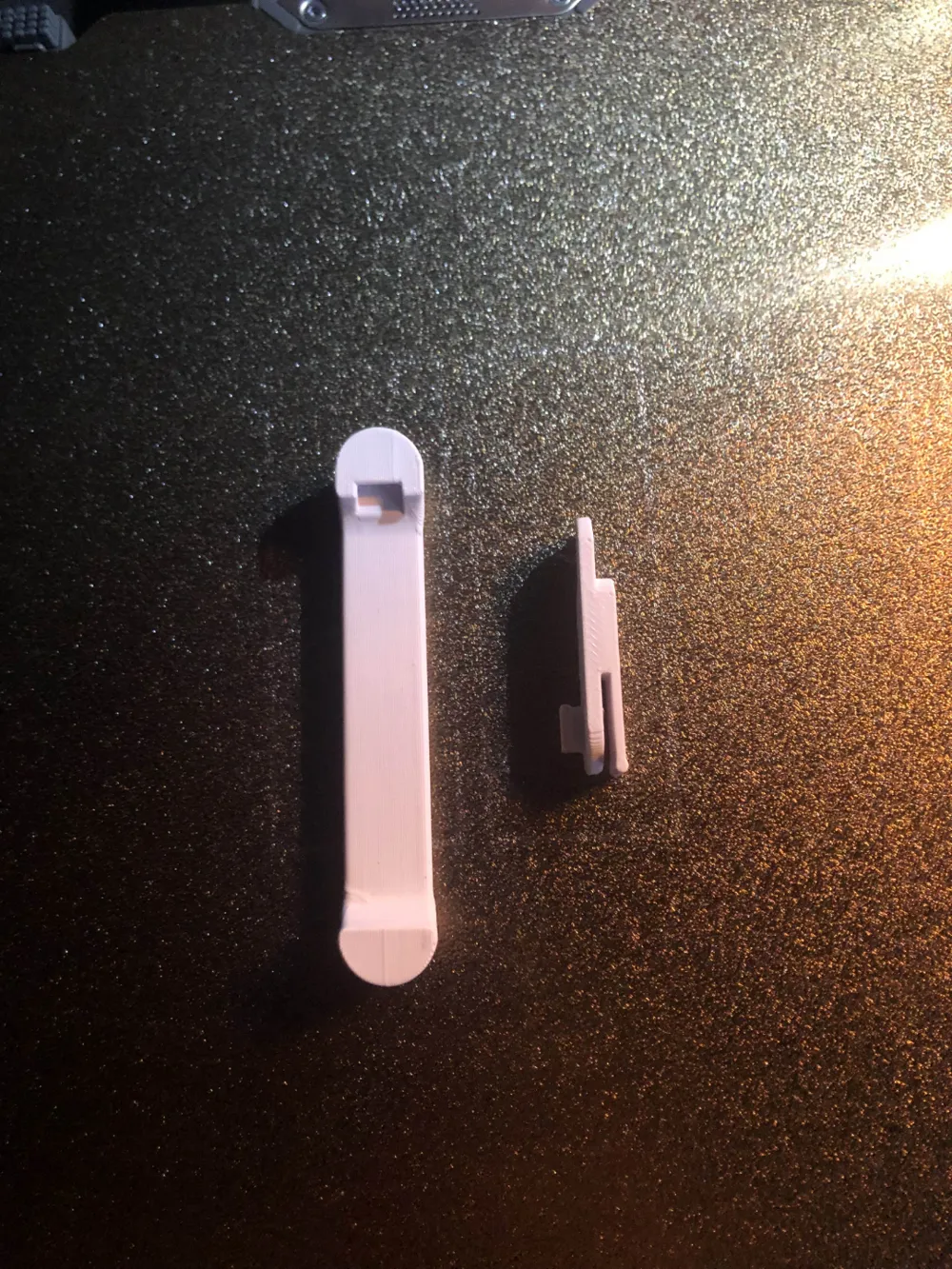

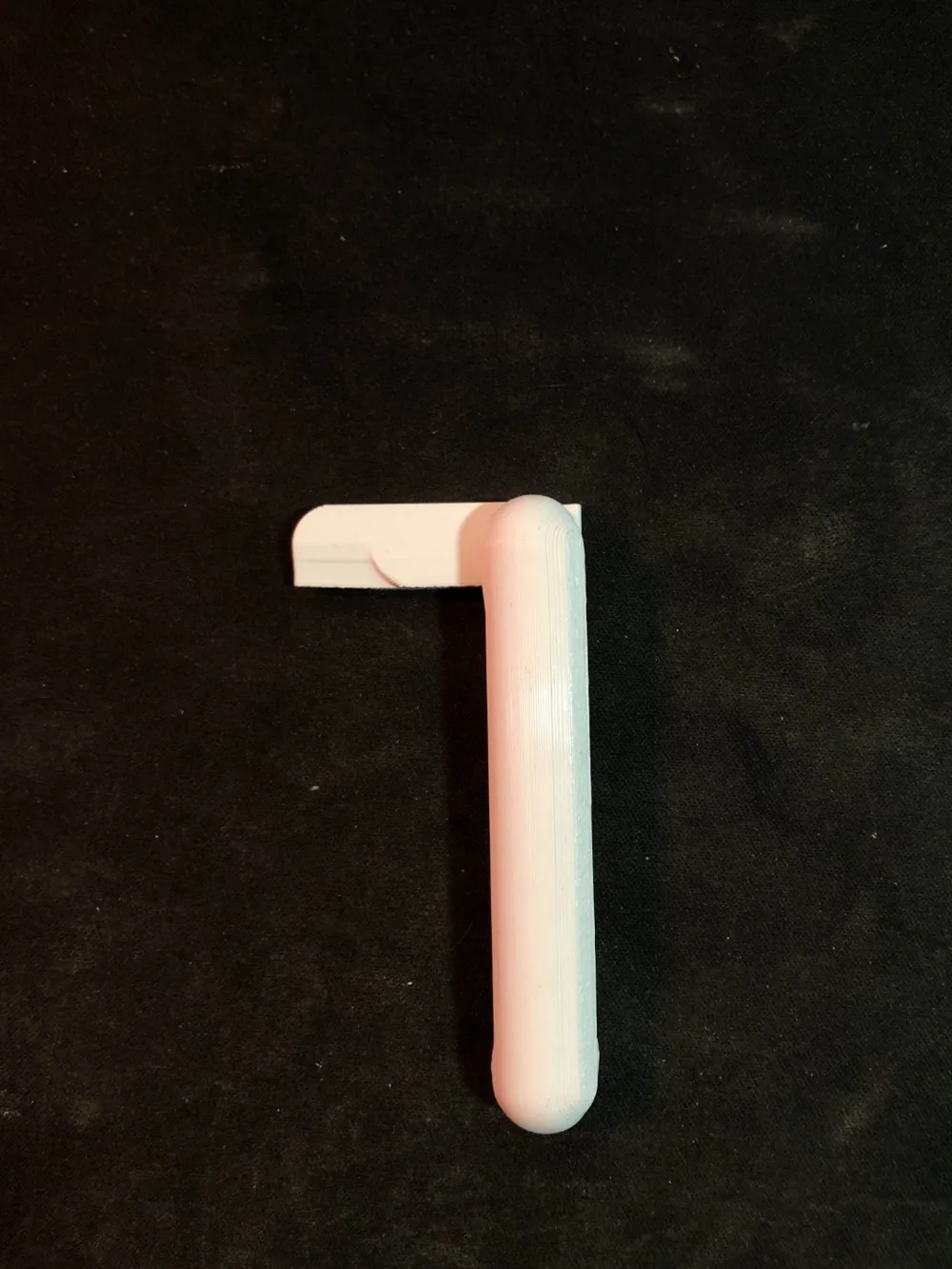

Designed as supportless two parts that snap onto each other, one piece is responsible for sliding in and clipping on a z-axis with grooves to be rotated and snapped between two walls of a z-axis housing, and the other part is a simple cable holder/guide that has 70 mm of an open space, so the cable can move upward and downward. I also left some space on the motor side in case the highest point is different from mine, so the z motor can reach the top point without interference.

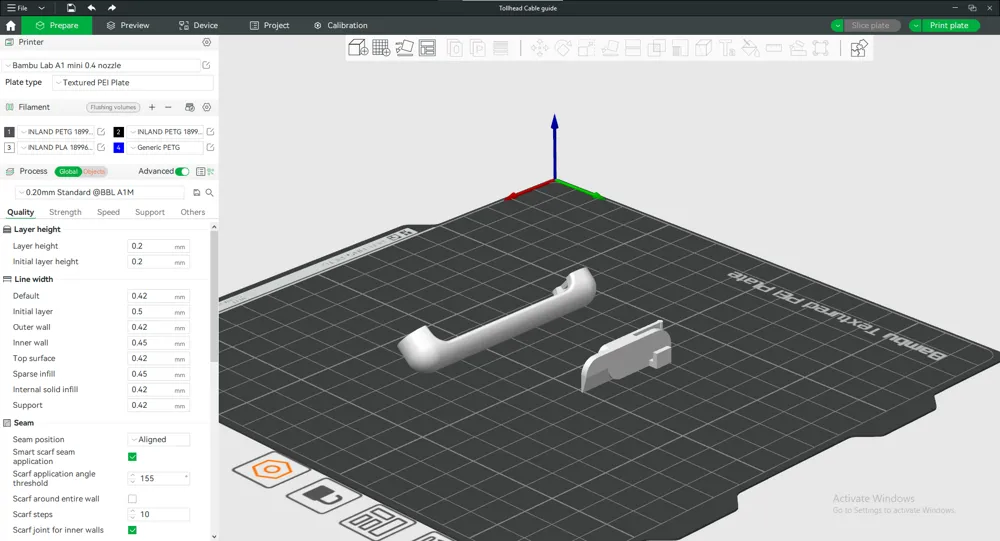

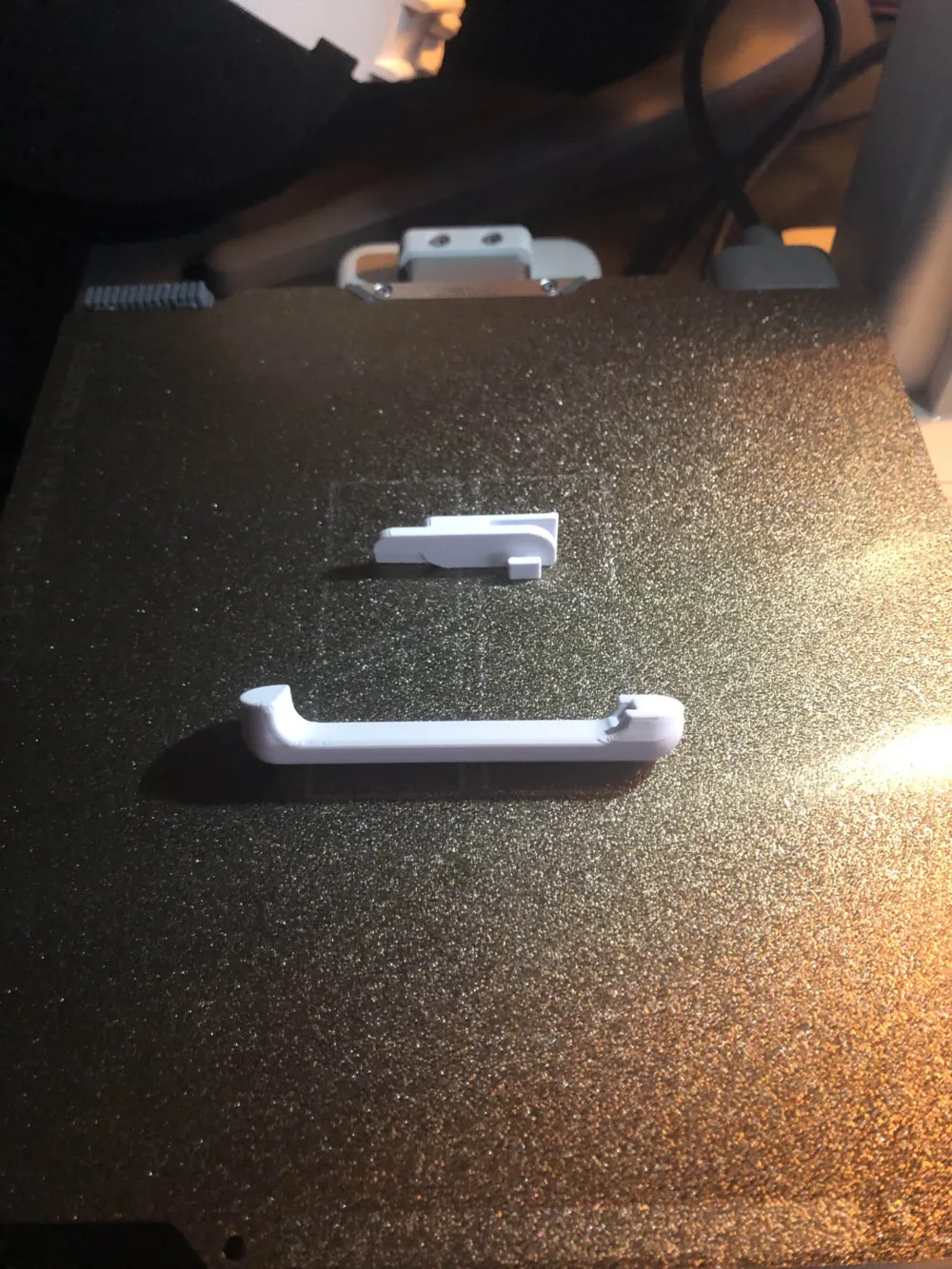

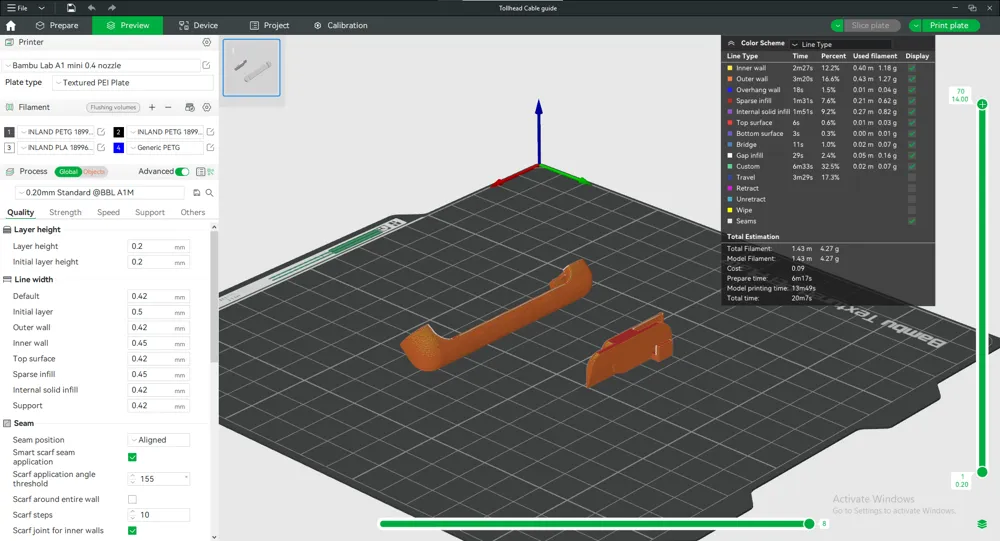

The model does not require support, and prints within 15-20 minutes depending on your speed, with default settings for 0.2mm it took 18 minutes and 4.3g of filament, check out Installation and Assembly guide.

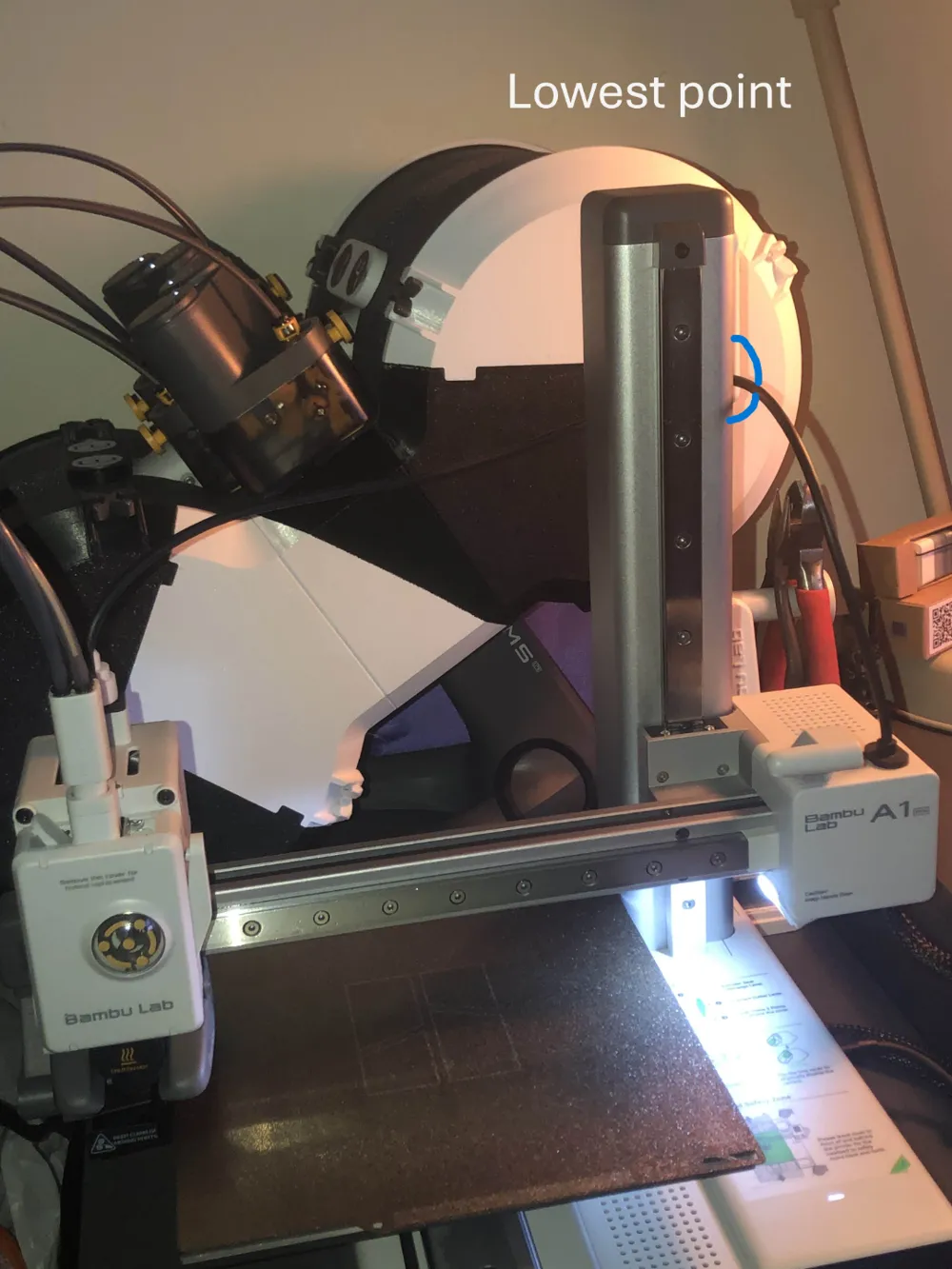

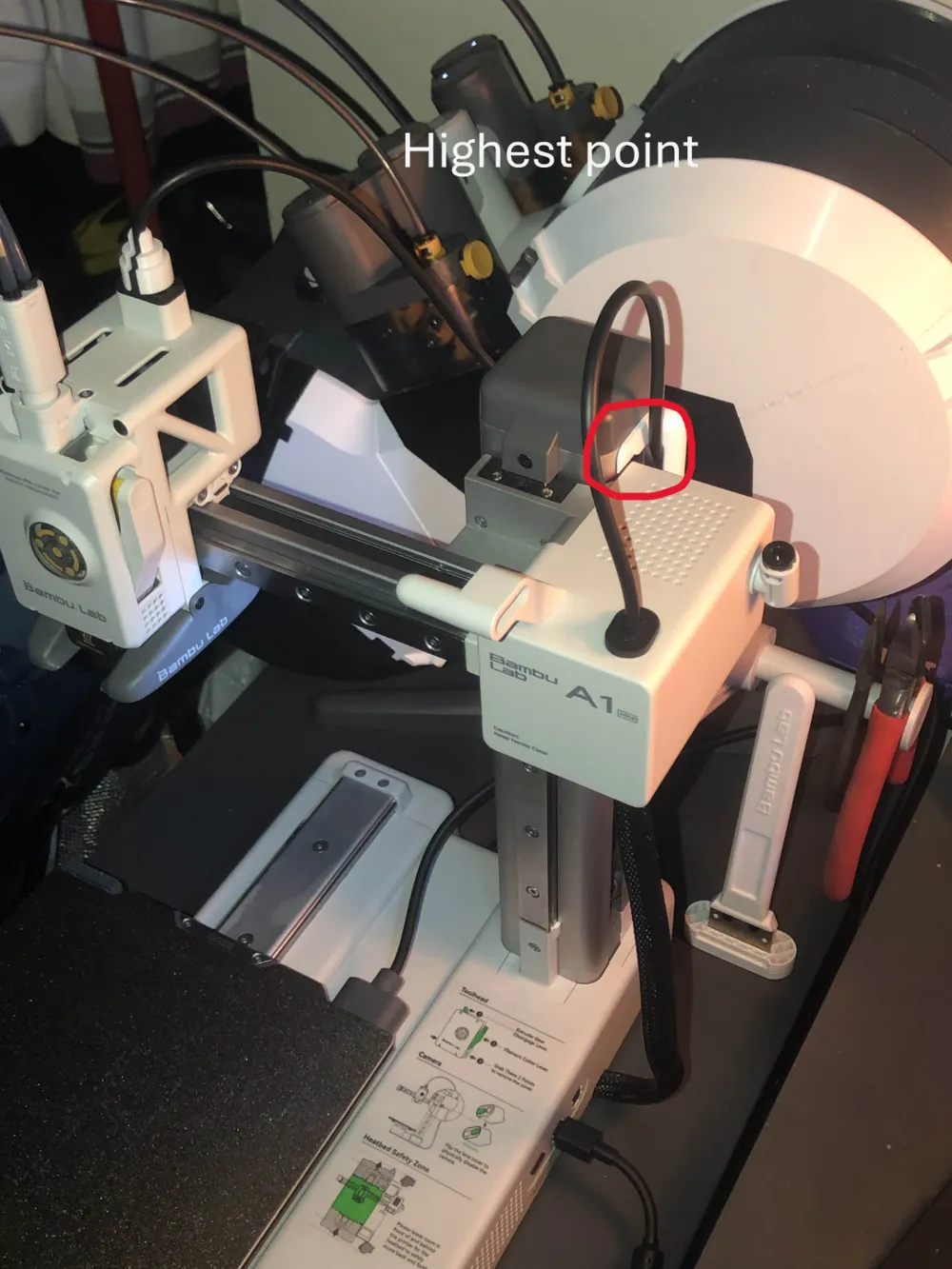

Thinking about relocating the cable mount to the back side of the z-axis, to avoid any tension when the head is at the lowest or highest point. The current model mitigates all of these,  but what is stopping us from making the model even better, if you agree please boost me, or just leave a comment about your suggestions or concerns, I'm very open about it and looking forward as a young creator.
Thanks again for choosing this design and reading through all this boredom, ♥ y'all!
