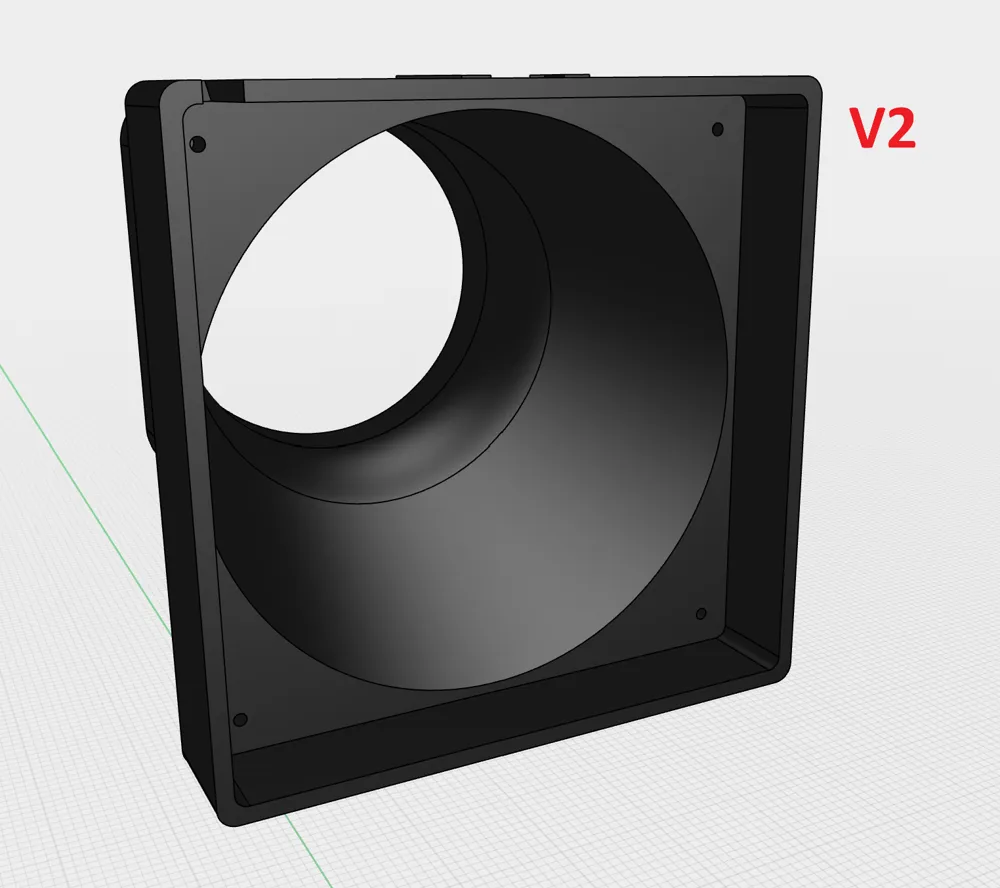

Update: V2 hinzugefügt = etwas stabiler & weniger Luftturbulenzen

[Mittlerweile habe ich das Abluftsystem am K1c komplett überarbeitet und verwende hierfür einen weiteren Radialventilator, genau wie die original verbauten Seitenventilatoren

Siehe hier Creality K1c Upgrade Abluft Radialventilator+HEPA-Filter von Marcy93 - MakerWorld ]

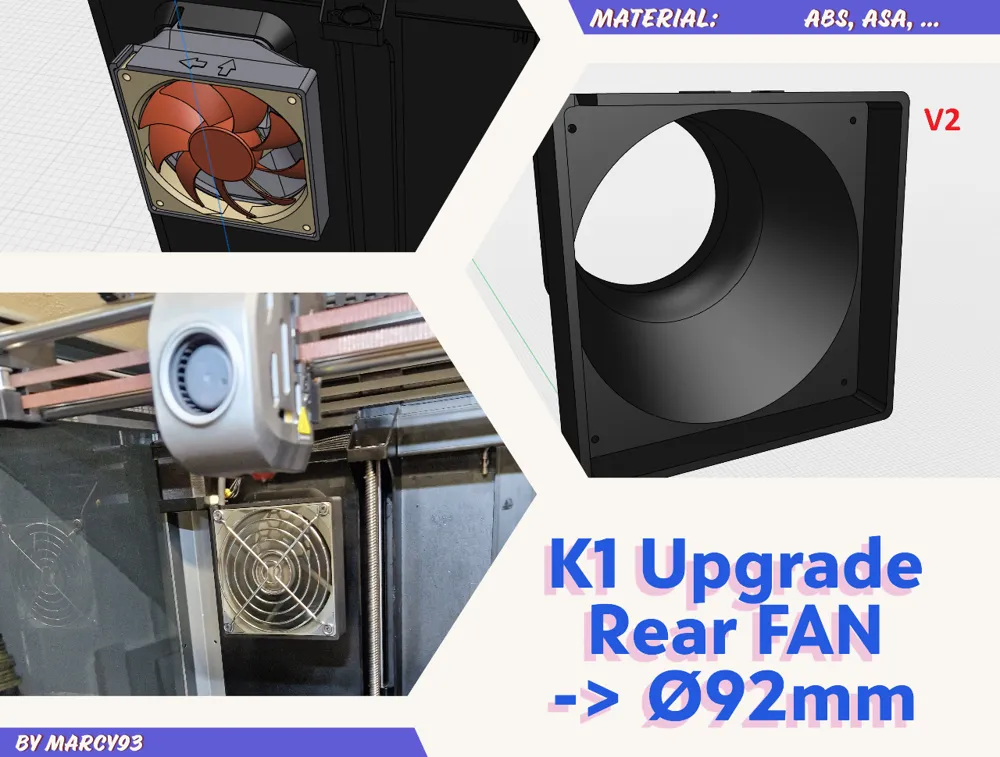

Adapter zum Austausch des hinteren Lüfters im K1c oder K1 durch einen 92-mm-Lüfter

Ziel war es, leiser und gleichzeitig effizienter zu werden

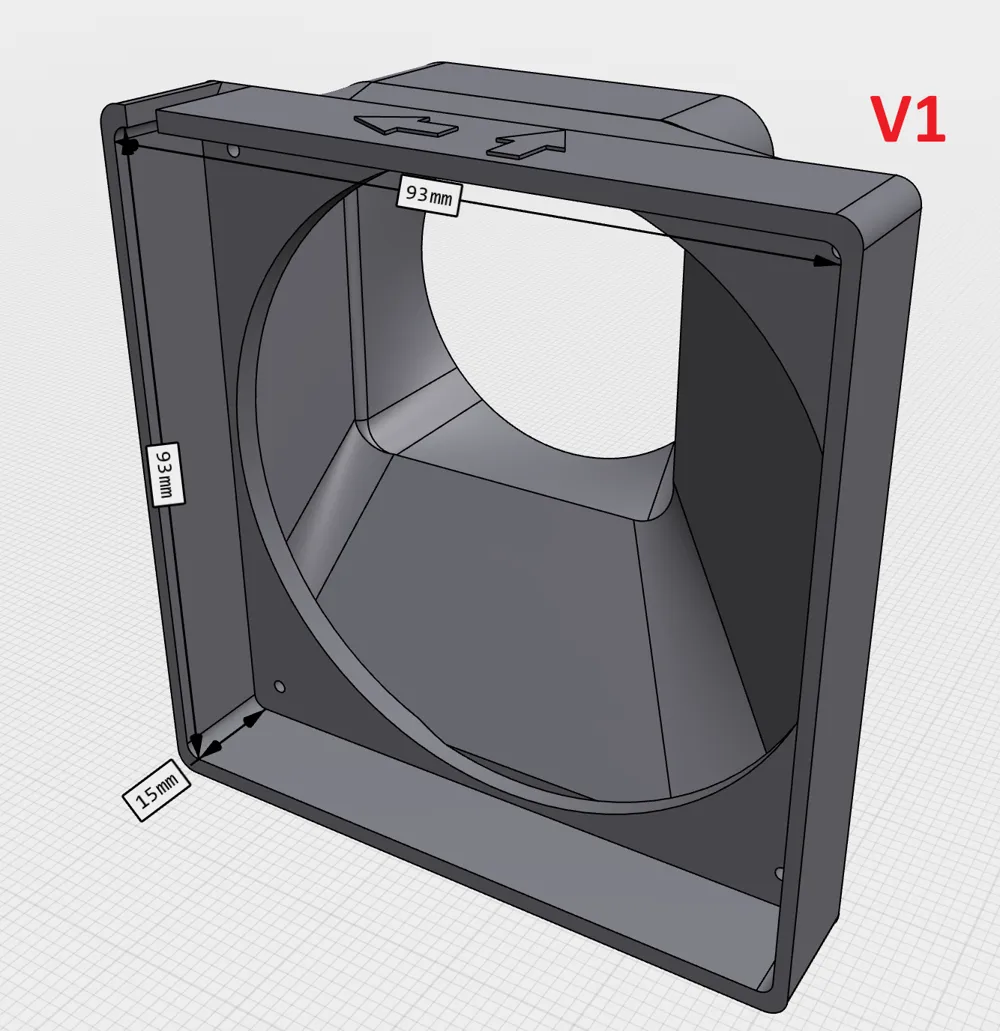

Ein 92 x 15 mm Lüfter wird benötigt

Zusätzlich habe ich einen Spannungswandler verbaut, um handelsübliche 12-V-PC-Lüfter verwenden zu können

Zur Befestigung habe ich selbstschneidende Maschinenschrauben verwendet

Durchmesser 2,5–3 mm möglich

[ Bei Fragen, Interesse oder Änderungswünschen gerne kontaktieren, auch wenn Sie mich unterstützen möchten :D https://www.paypal.com/paypalme/clwmarcy ]

Eng:

Update: V2 added = slightly more stable & reduced air turbulence

[I have now completely redesigned the exhaust system on the K1c, employing an additional radial fan identical to the original side fans

See here Creality K1c Upgrade Abluft Radialventilator+HEPA-Filter von Marcy93 - MakerWorld ]

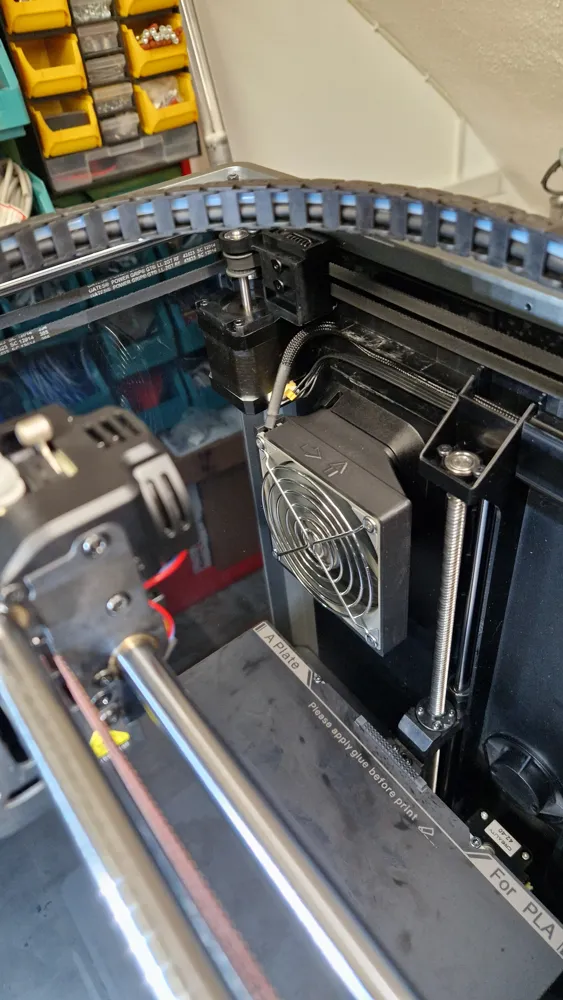

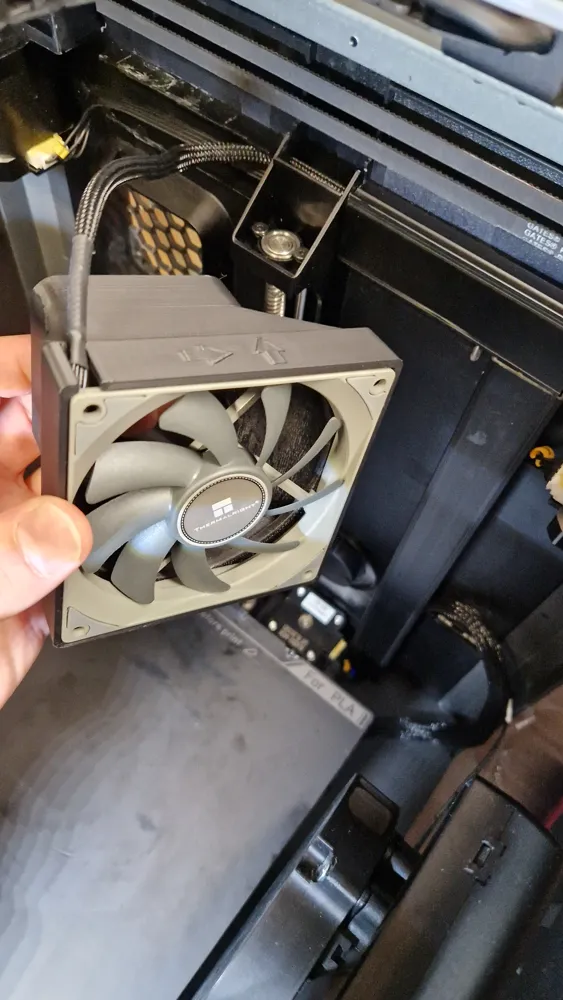

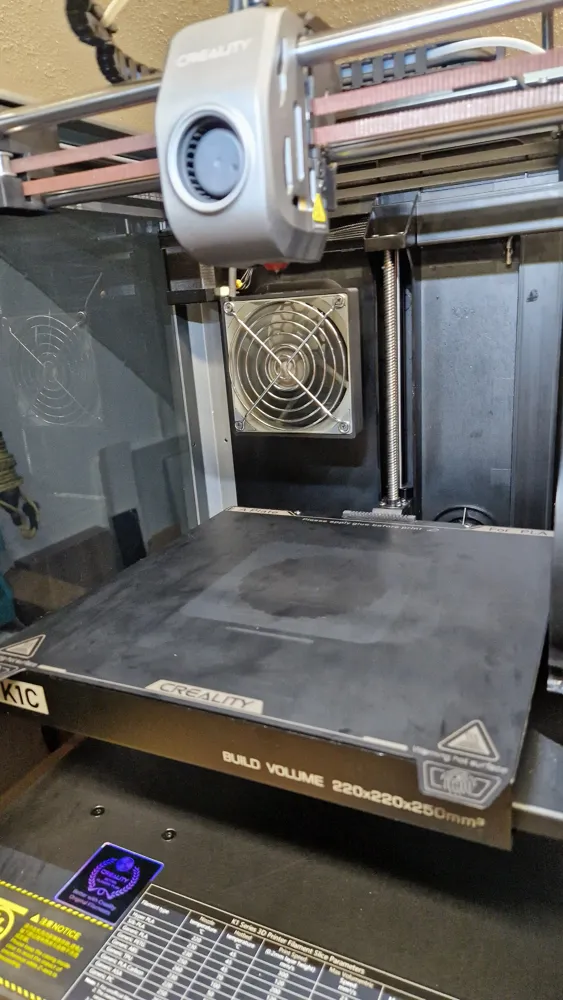

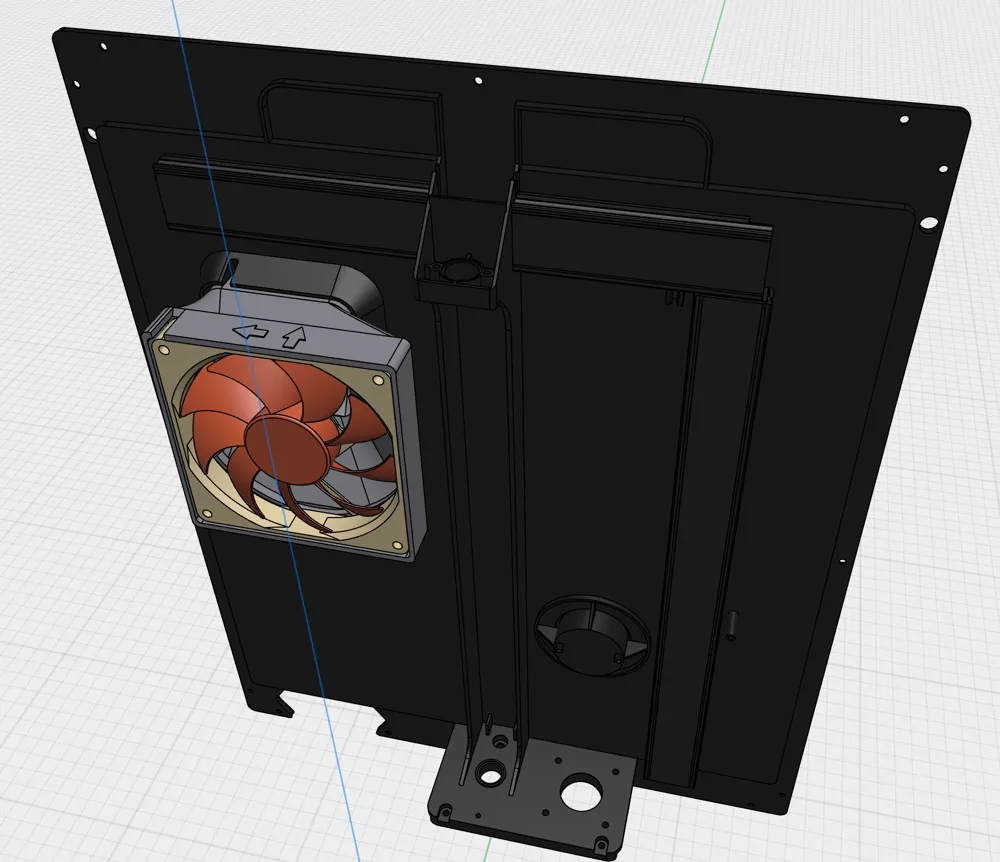

Adapter for replacing the rear fan in the K1c or K1 with a 92mm fan

The objective was to achieve quieter and more efficient operation simultaneously

A 92 x 15mm fan is required

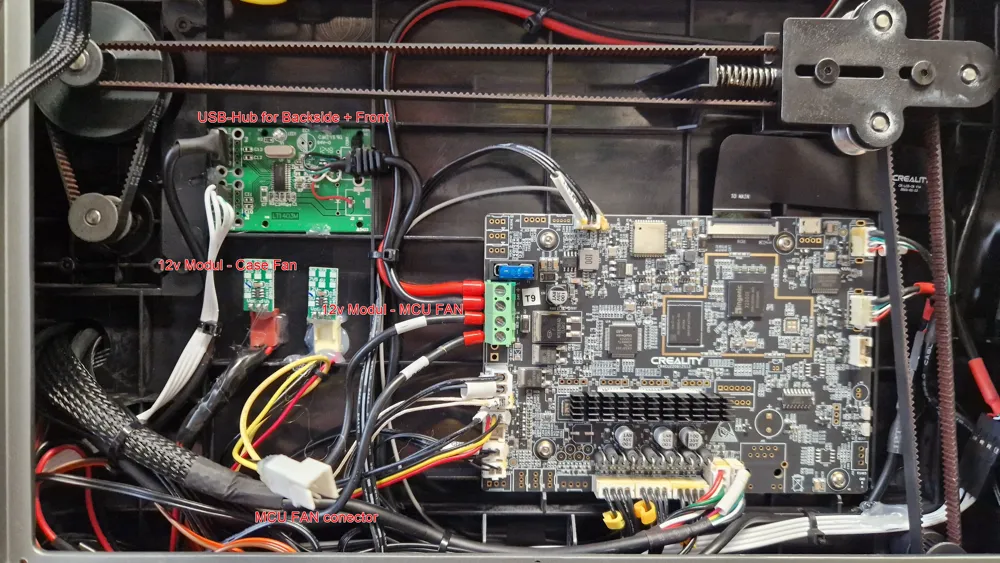

I also incorporated a voltage converter to facilitate the use of standard 12V PC fans

Self-tapping machine screws were used for mounting

2.5–3mm diameter screws are suitable

[ Feel free to contact me with any questions, expressions of interest, or modification requests, or if you wish to offer support :D https://www.paypal.com/paypalme/clwmarcy ]

I extend my gratitude to HENLOR Henlor | Veröffentlicht - MakerWorld whose K1 CAD files proved invaluable during the modeling process, significantly reducing measurement time
