Deburring tool case Remix - Free 3D Print Model

Search models, users, collections, and posts

Remixed by

Bennji

3D Printer>3D Printer Accessories

IP Report

Print Profile(2)

All

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

A1 mini

0.16mm layer, 2 walls, 15% infill

Designer

2.7 h

1 plate

4.4(51)

0.16mm layer, 2 walls, 15% infill

Designer

3.3 h

2 plates

4.8(6)

Open in Bambu Studio

Boost

186

341

213

Released

Description

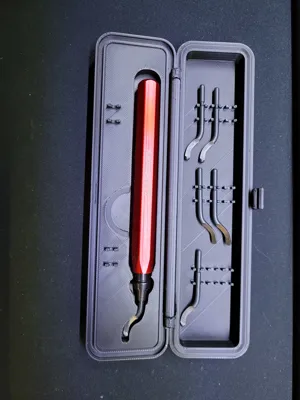

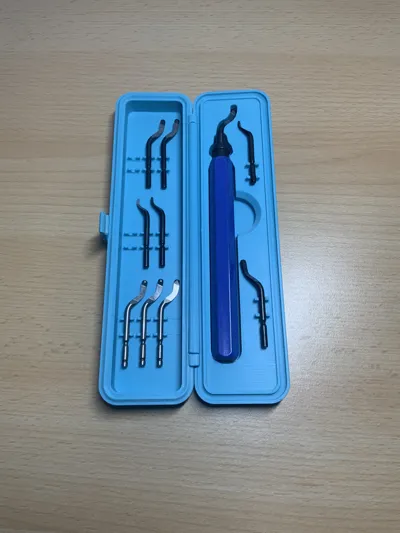

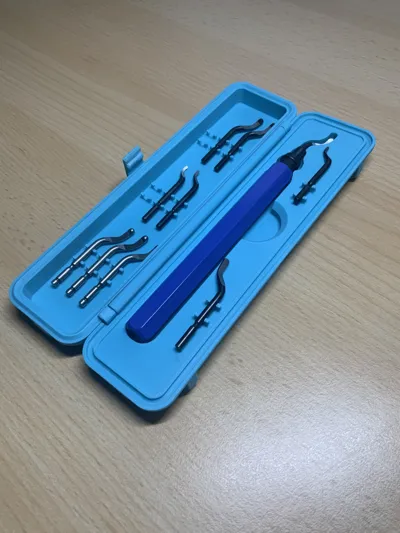

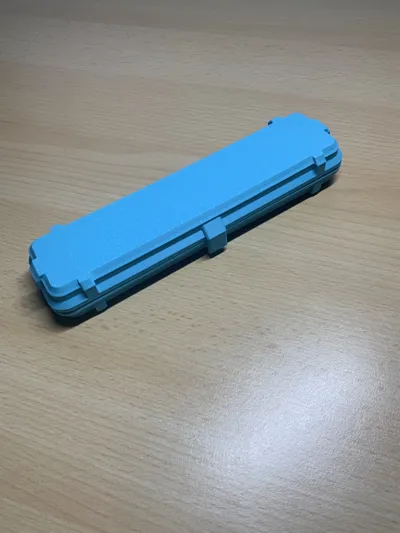

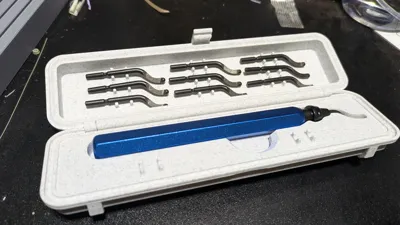

Since my tool is a little longer, I created a remix! You can see the length in the attached photo! thanks to @morleykert_96343 (from Printables) for the great design

Comment & Rating (70)

@red.avtovo

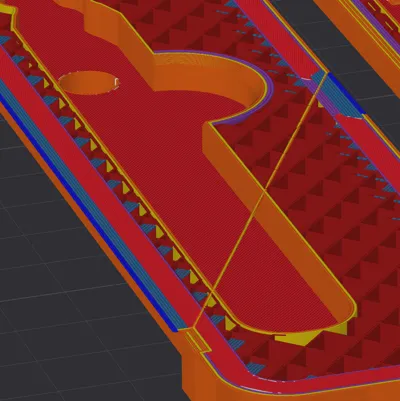

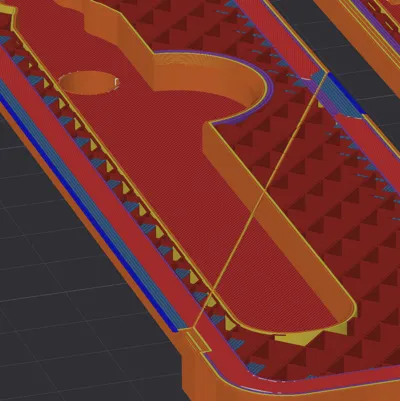

There is a weird wall coming across the whole bottom piece on the 70th layer. Not sure what it caused, it is there every time I slice the model. Can you explain why that happens?

The designer has replied

@printhard

Hello, I looked at the problem! I didn't have that problem. I sliced it again in bambuStudio. Now the error is with me too. but when I do it in Orcaslicer the error is not there. I'm sorry I can't help you.

@printhard

that's with orcaslicer

@red.avtovo

Replying to @printhard :

It's all right! Thanks for checking it. I see the similar issue on my other model. It seems like it is a BambuStudio bug. In the end, it is just a small thread =)

@G_a_f_f_e_r

Print Profile

0.16mm layer, 2 walls, 15% infill

Nice case. Needs some modifications to function well for me: 1: the hinges needed some material filing off to allow the parts to snap together without breaking anything 2: I put the label back on otherwise would just have another nameless box in the drawer (0.32mm = 2 layers thick, text modifier) 3: I had to Dremel a significant amount of material away from the inside “bump” on the clasp otherwise it’s very difficult to open/close without significant force. It’s now much easier/smoother so a slightly smaller bump helps 4: fits the body but the cutout is only shaped for one type of attachment. If you have a variety of them (e.g. larger or straighter) then maybe a roomier/more universal cutout that fits all attachments would work better? Otherwise works really well once those mods are done, is sturdy (keeps the tool safe) and looks good.

@user_2701069646

The box is very nice. There were only two problems: 1. The hinges were very tight, and it was very difficult to assemble the box. 2. The clasp was very tight, and it was quite difficult to open and close. Best regards, and I look forward to seeing your next projects.

@user_939998533

Print Profile

0.16mm layer, 2 walls, 15% infill

looks good but the pips that hold spare blades just snap off

@Koss_74

Print Profile

0.16mm layer, 2 walls, 15% infill

Great print and everything fits perfectly.

@TheTechKid1

Print Profile

0.16mm layer, 2 walls, 15% infill

good

@Positron101

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

The print worked flawlessly :)

@red.avtovo

Print Profile

0.16mm layer, 2 walls, 15% infill

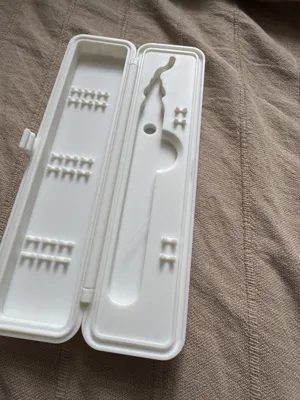

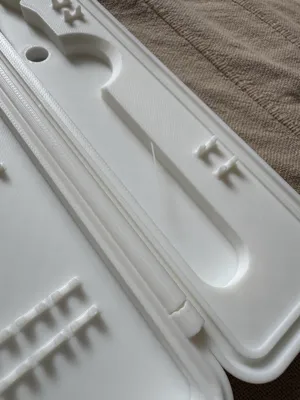

Well… there is no magic: I printed the model on my P1S and the mystirious wall across the tool slot appeared as I mentioned it in the previous comment. Luckily it is very small so easily removable. The hinge is pretty tough to assemble and as a result there was some damage made to the outside skirt of the box. The “deburring tool” label was removed from the box (it was there in the original model) but otherwise it is a perfect fit for the tool!
