Description
Boost Me (for free)
If you like this print, please consider boosting. It would help me a lot. Thank you.

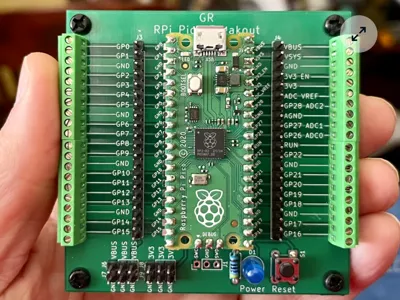

This is a backing plate for the Raspberry pi Pico breakout PCB designed by the GADGET REBOOT youTube channel:

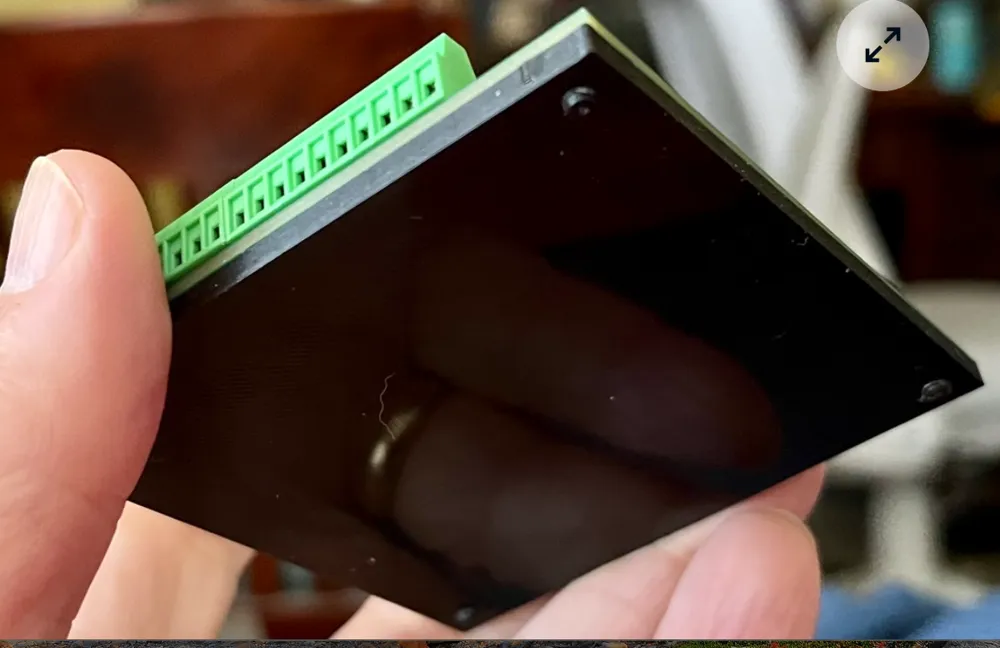

The board is super, and this backing plate protects the bottom of the board.
Super simple print, takes about 16 min.
Since the pre-drilled holes on the circuit board were not done evenly, I left blank pads on the backing to be drilled through. I used m2 screws, self threading them through a slightly smaller drilled hole.
