Description

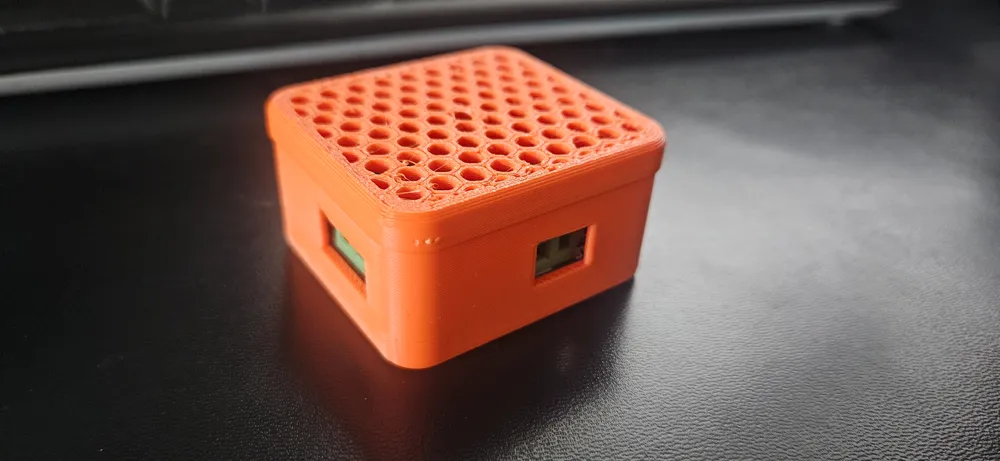

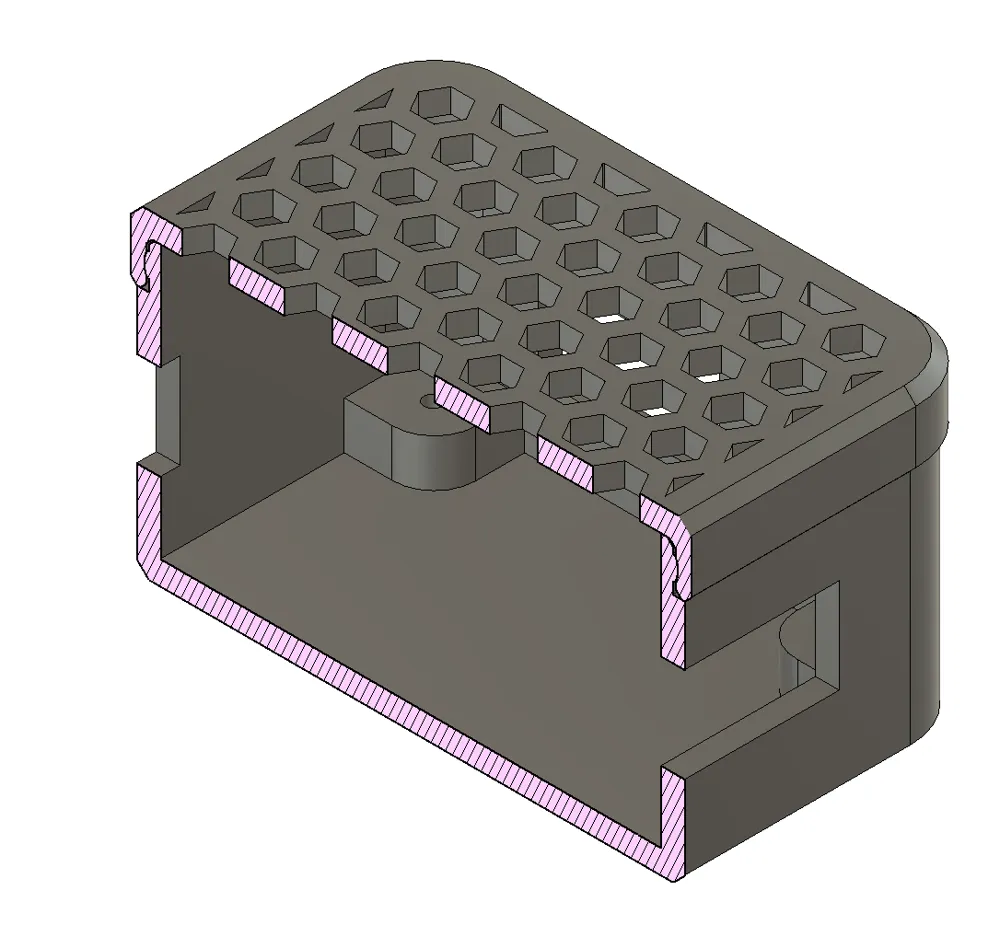

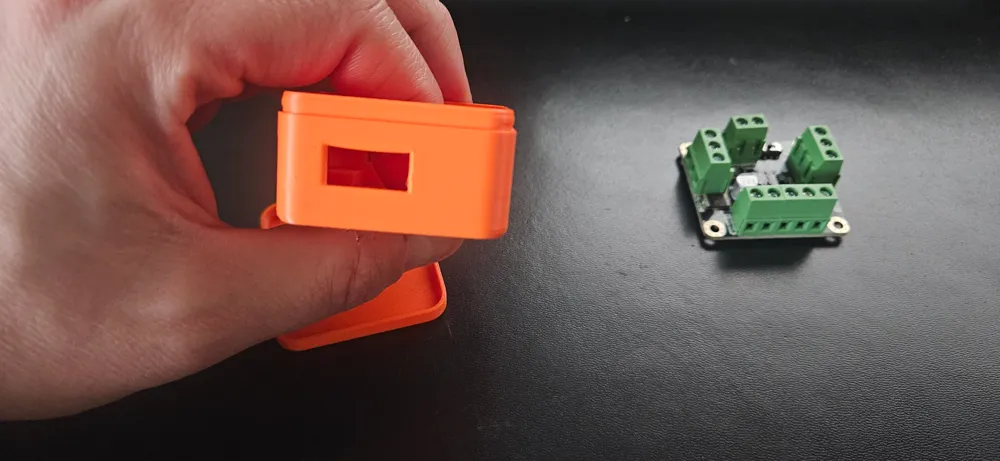

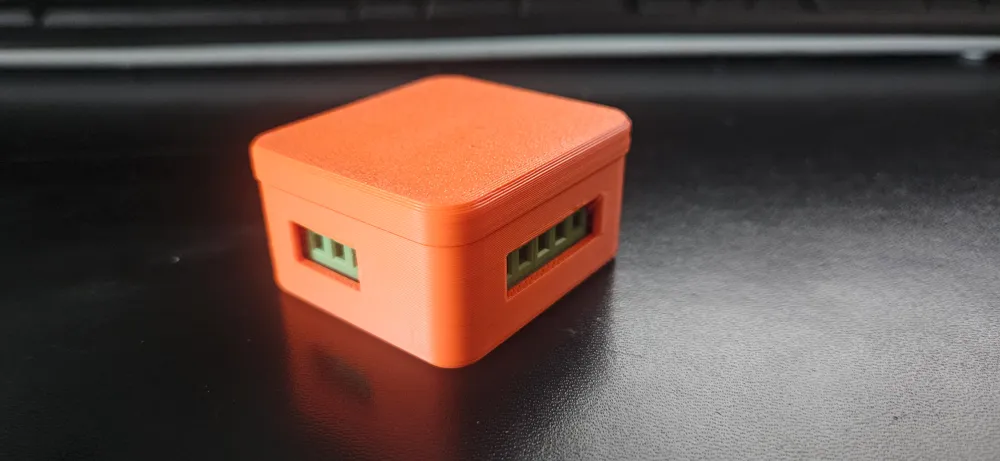

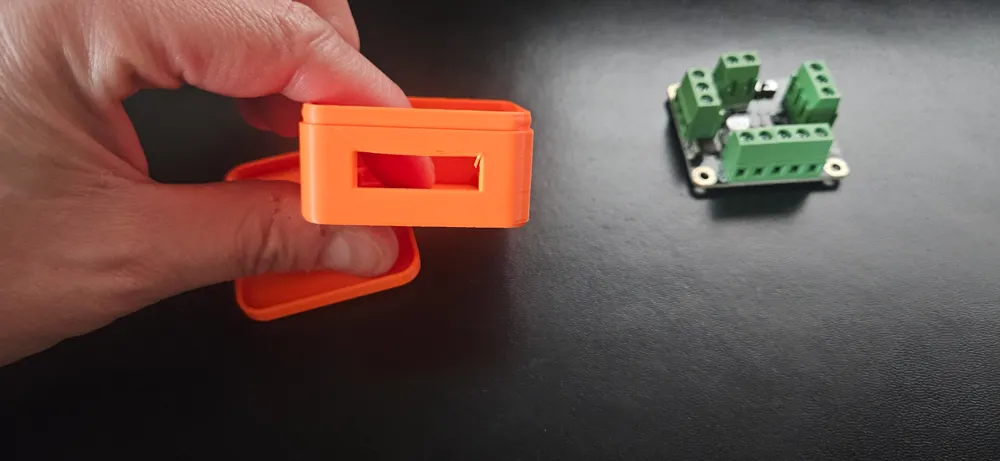

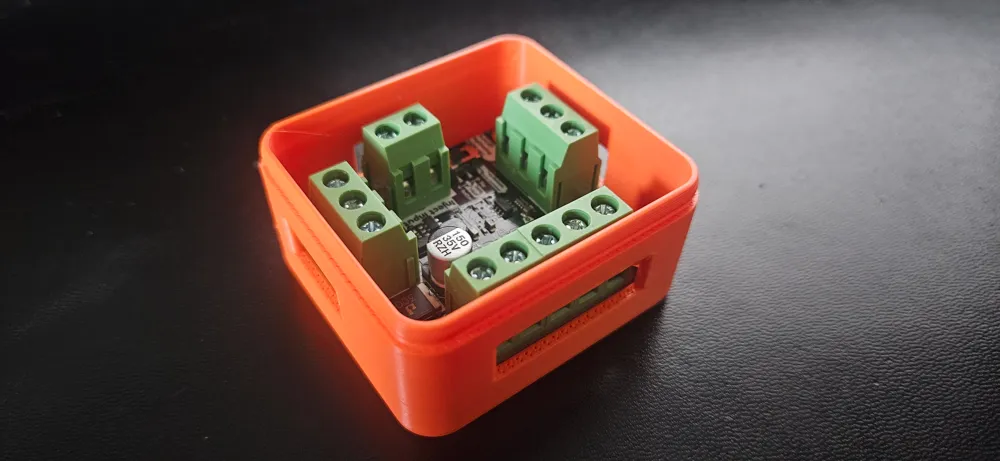

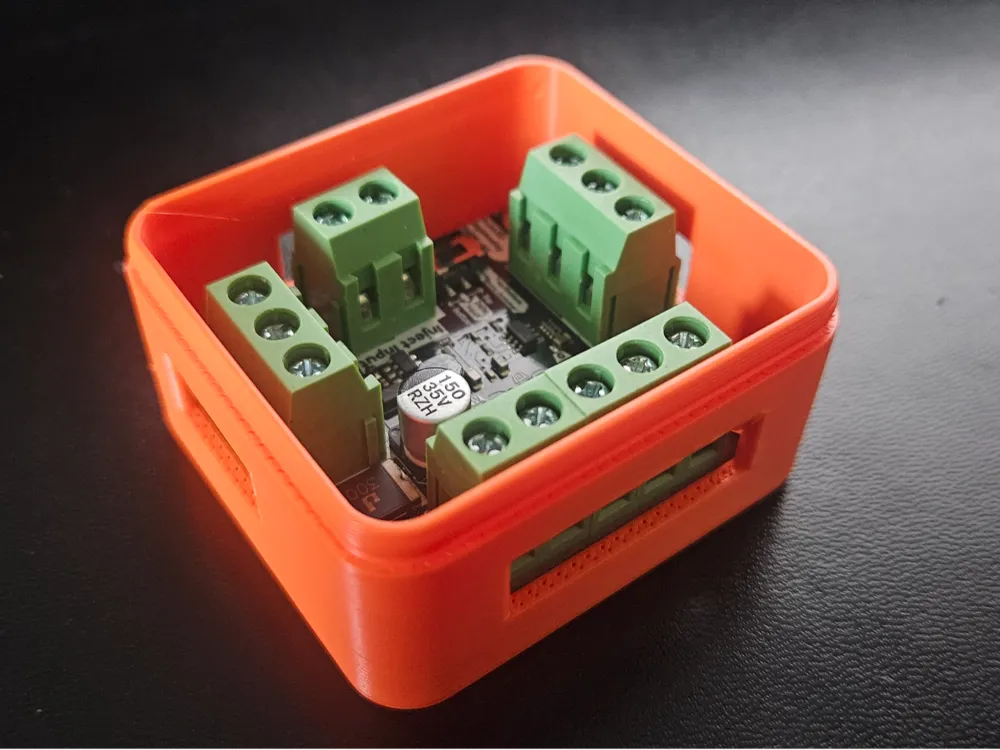

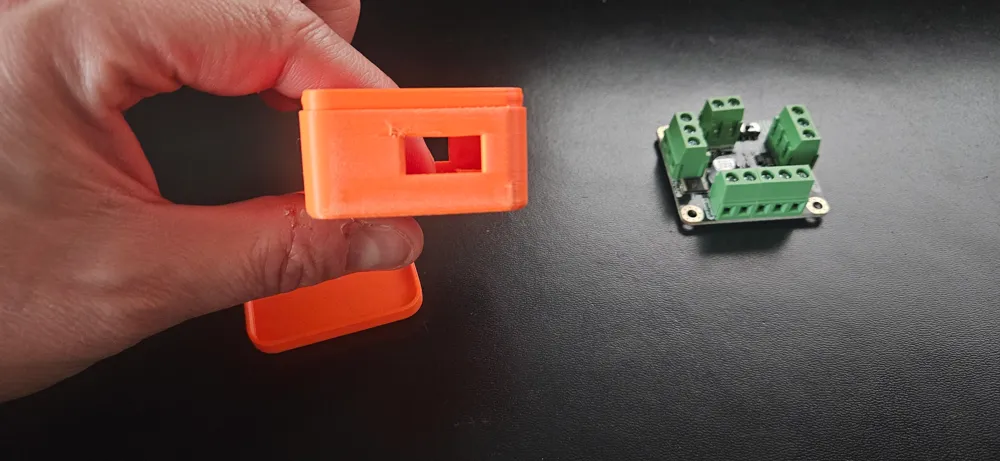

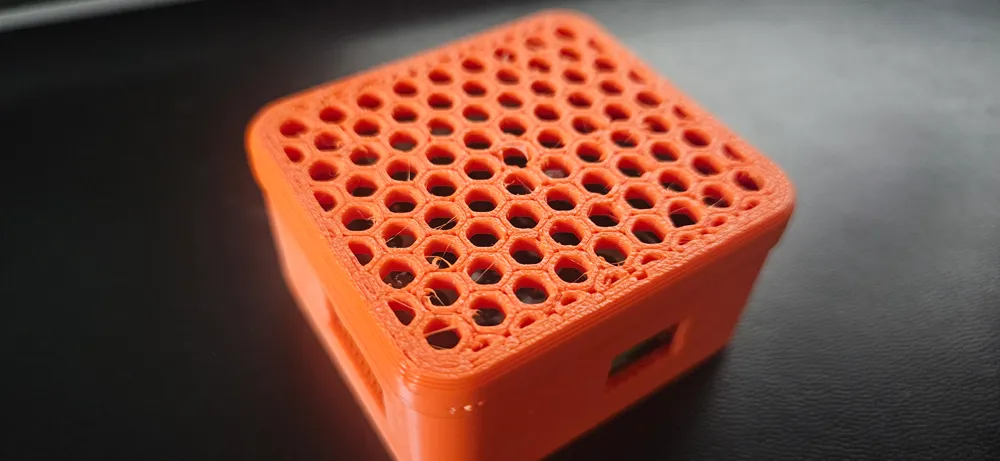

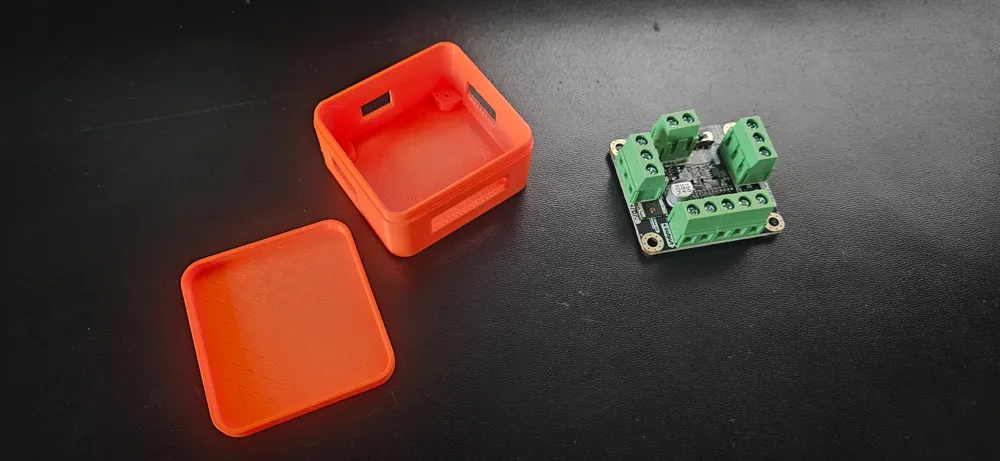

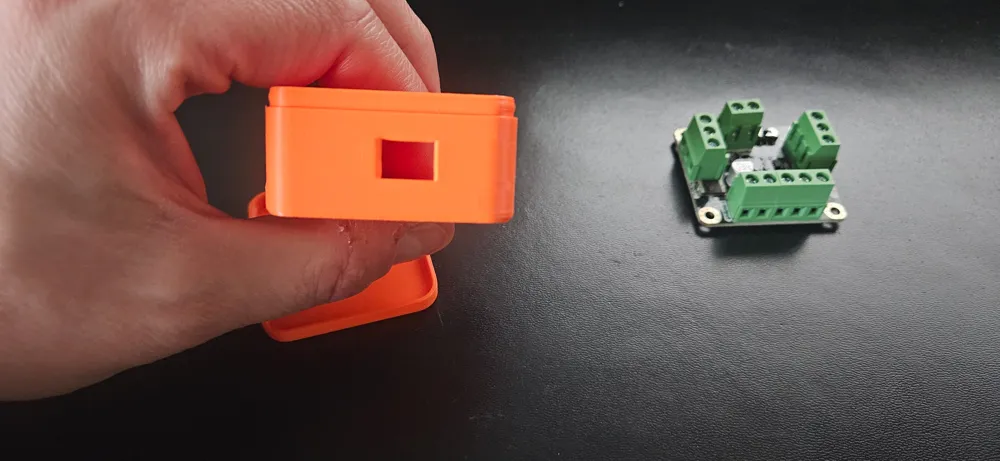

This is a simple case to fit a quinLED dig2Analog. It has a snap fit lid. There's 2 profiles. One with a lid that has holes in it and another that is solid. The base is the same for both lids.

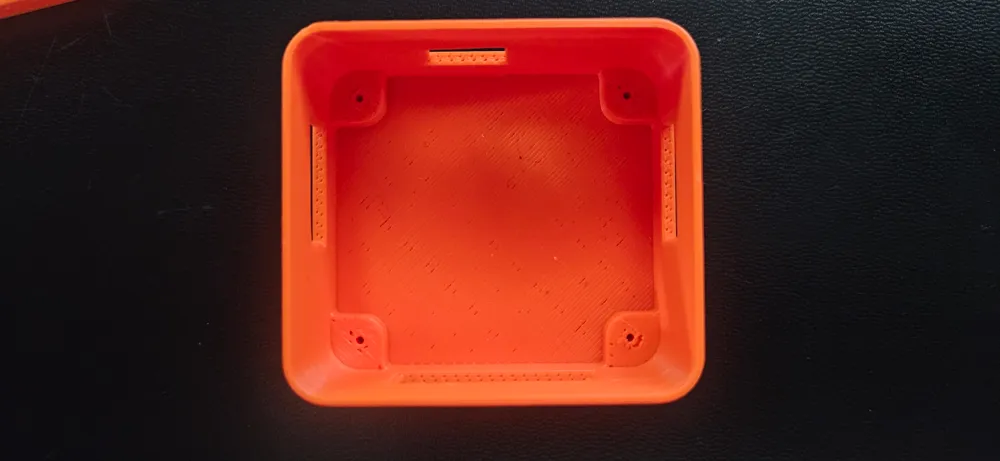

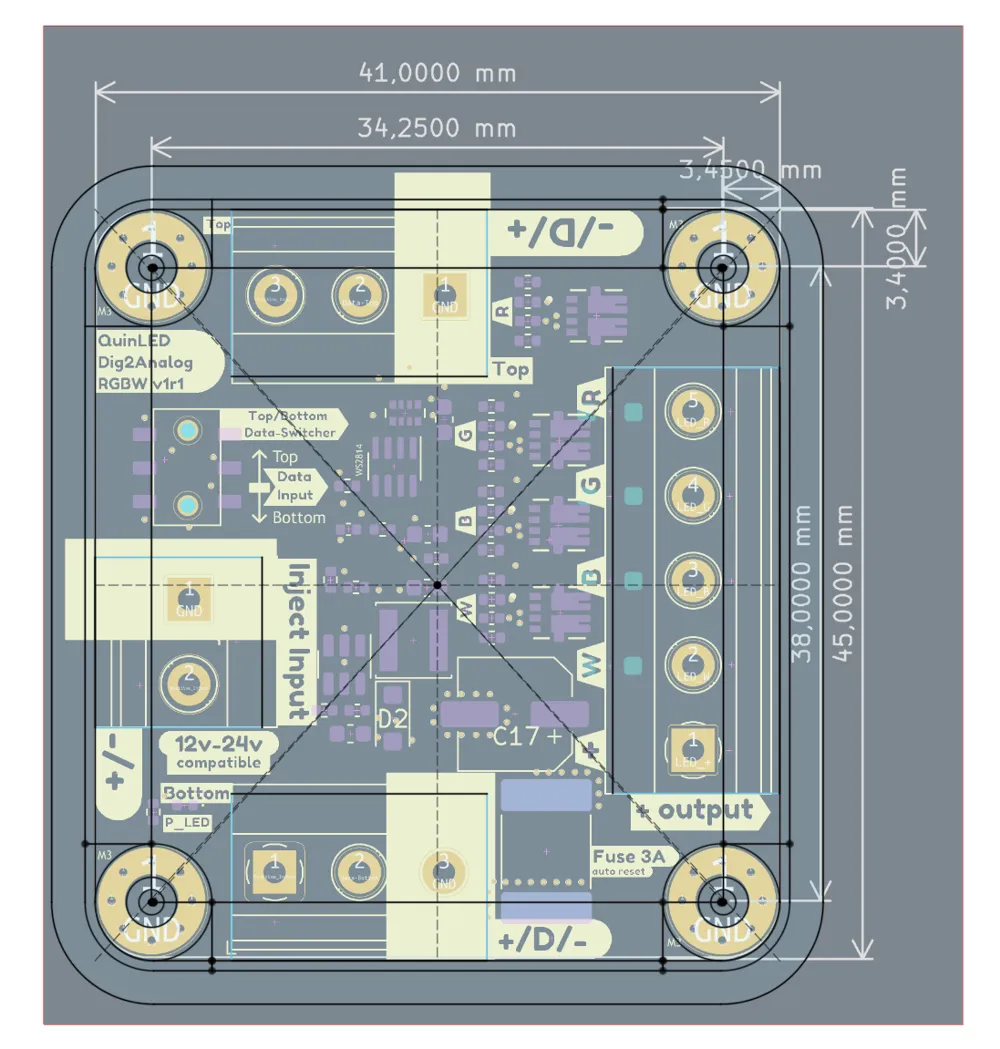

The board calls for 3mm screws but I've found the M2.5x6mm screws that work for the digUno also work for the dig2analog. The board is about 2mm thick and the mounting brackets are 4mm tall on top of a 2mm base. So using a 6mm length screw shouldn't go through 8mm of material.

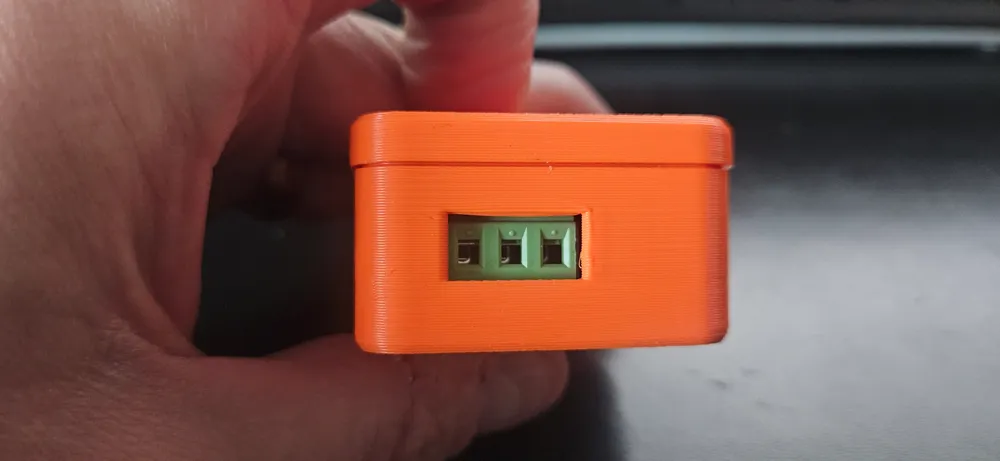

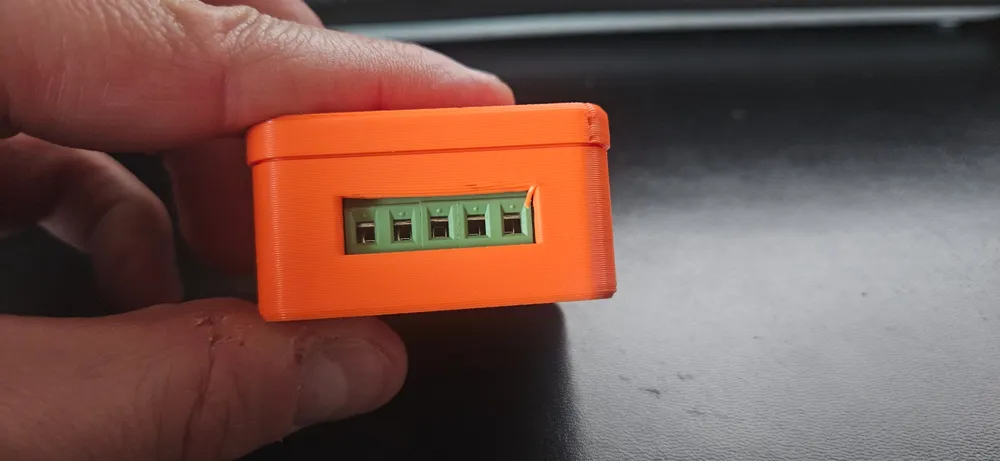

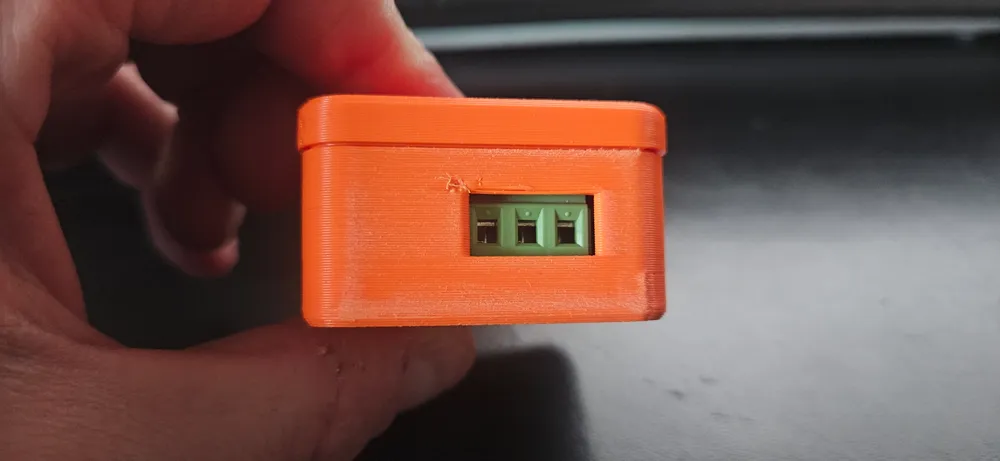

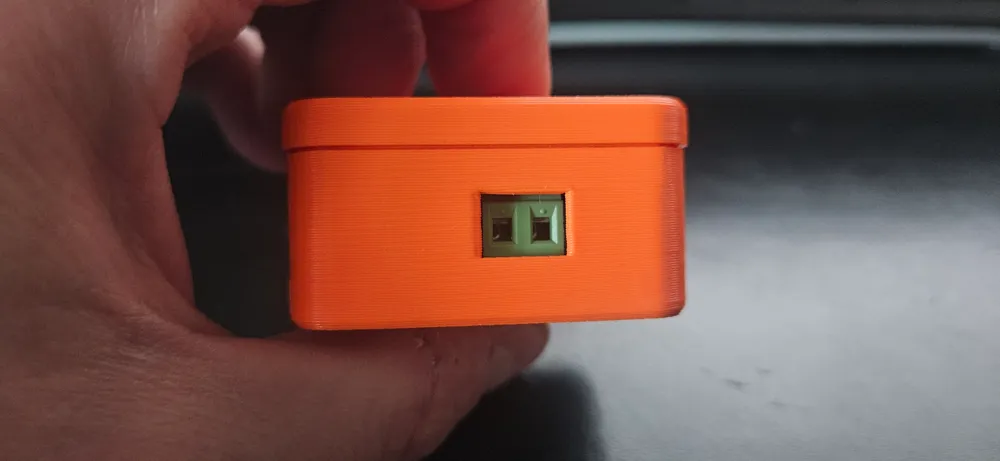

The wiring windows are about 8mm off the ground using this case.
