0.2mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

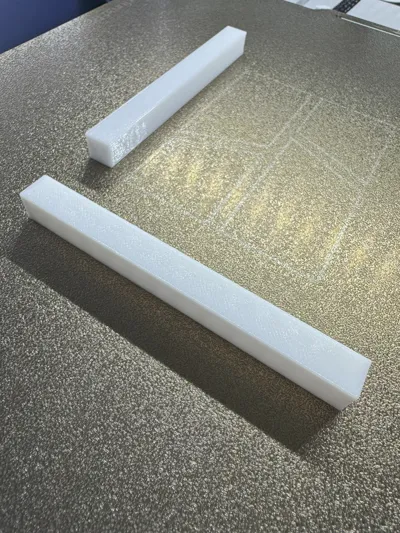

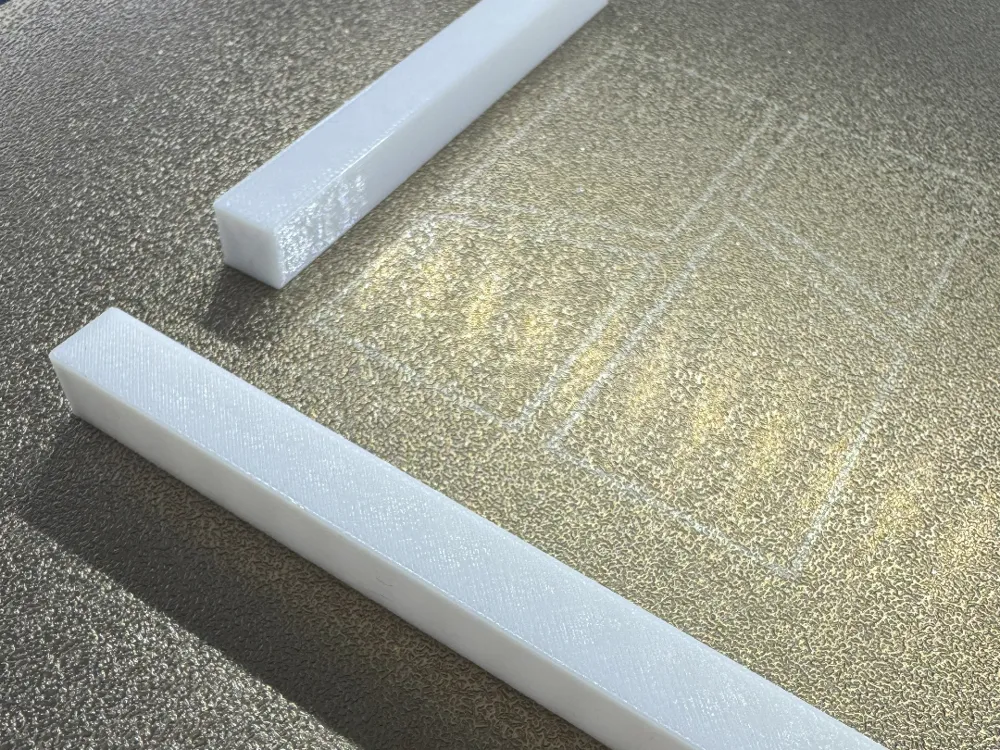

Maßhaltigkeit Test&nbsp;Dieser einfache Test soll die Schrumpfung des Filaments kompensieren.&nbsp;Bei meinem Bambu Lab A1 mit Sunlu Petg beträgt der Unterschied auf 10cm circa 0,5mm&nbsp;&nbsp;Methode 1:Soll: 100mm zu Ist: 99,5mmWert ist für jedes Filament zu berechnen und muss für jedes Objekt vor dem Druck angepasst werden.&nbsp;Soll Länge des gedrucktes Objekt = 100mm (Skalieren 100%)&nbsp;Berechnung:100% / Gedrucktes Objekt in mm * Soll Länge Objekt in mm = Faktor für Skalierung in %&nbsp;Beispiel:100% / 99,5mm * 100mm = 100.50%&nbsp;Wert eintragen bei: Neues Projekt → Vorbereiten → Objekt anklicken → Skalieren&nbsp;&nbsp;Methode 2:Soll: 100mm zu Ist: 99,5mmWert ist für jedes Filament zu berechnen.&nbsp;Ist in mm ≙ Schrumpfung in %Ist: 99,5mm ≙ Schrumpfung 99,5%&nbsp;Wert eintragen bei: Filamenteinstellungen → Shrinkage&nbsp;&nbsp;&nbsp;Dimensional Accuracy Test&nbsp;This simple test is intended to compensate for filament shrinkage.With my Bambu Lab A1 with Sunlu Petg the difference is approx. 0.5mm per 10cm&nbsp;Method 1:Target: 100mm to Actual: 99.5mmValue must be calculated for each filament and must be adjusted for each object before printing.&nbsp;Target length of the printed object = 100mm (scaling 100%)&nbsp;Calculation:100% / Printed object in mm * Target length of object in mm = factor for scaling in %&nbsp;Example:100% / 99.5mm * 100mm = 100.50%&nbsp;&nbsp;Enter value at: New project → Prepare → Click on object → Scale&nbsp;&nbsp;Method 2:Target: 100mm to Actual: 99.5mmValue must be calculated for each filament.&nbsp;Is in mm ≙ Shrinkage in %Actual: 99.5 mm ≙ shrinkage 99.5%&nbsp;Enter value at: Filament settings → Shrinkage&nbsp;&nbsp;

Dimensional Accuracy Test&nbsp;This straightforward test aims to compensate for filament shrinkage.&nbsp;Using my Bambu Lab A1 with Sunlu PETG, the discrepancy over 10cm measures approximately 0.5mm&nbsp;&nbsp;Method 1:Target: 100mm to Actual: 99.5mmThis value must be computed for each filament and adjusted for every object prior to printing.&nbsp;Target length of the printed object = 100mm (100% scaling)&nbsp;Calculation:100% / Printed object length (mm) * Target object length (mm) = Scaling factor (%)&nbsp;Example:100% / 99.5mm * 100mm = 100.50%&nbsp;Input this value under: New project → Prepare → Select object → Scale&nbsp;&nbsp;Method 2:Target: 100mm to Actual: 99.5mmThis value must be calculated for each filament.&nbsp;Actual length (mm) ≙ Shrinkage (%)Actual: 99.5mm ≙ shrinkage 99.5%&nbsp;Input this value under: Filament settings → Shrinkage&nbsp;&nbsp;
