Stackable Coaster and Wall Art System

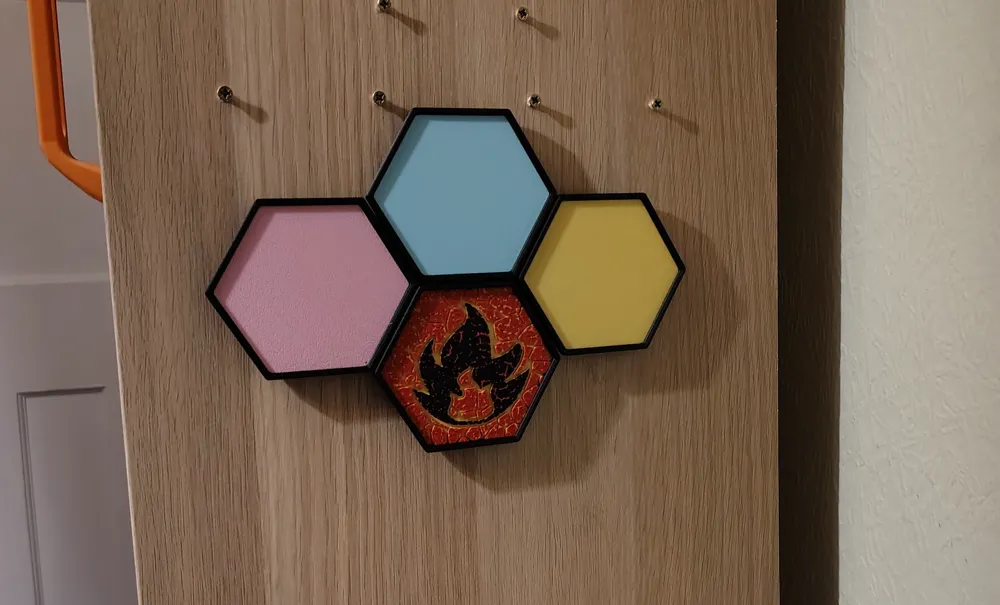

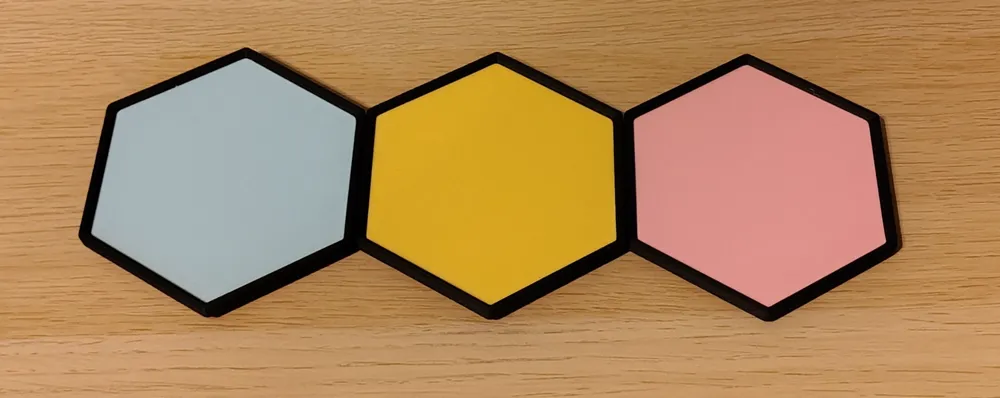

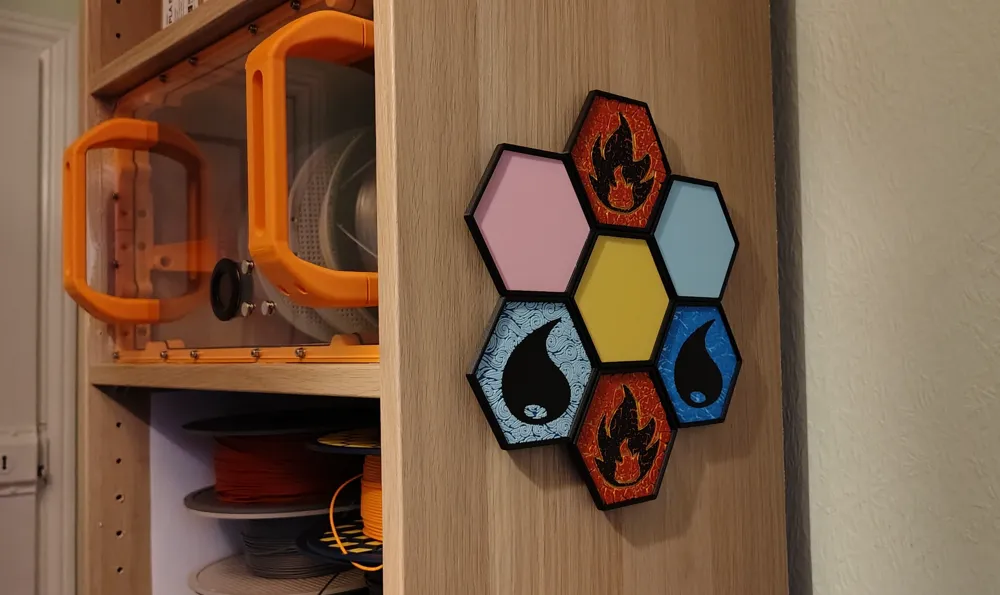

Stackable coasters that can easily be mounted to a wall as an art piece using the integrated screw slots. You could use these to show off your favourite filament colors, or maybe a new build plate effect. Or you could make your own artwork to easily mount onto the wall. I have included simple single color blanks.

Please see some of my compatible artwork below (more to come):

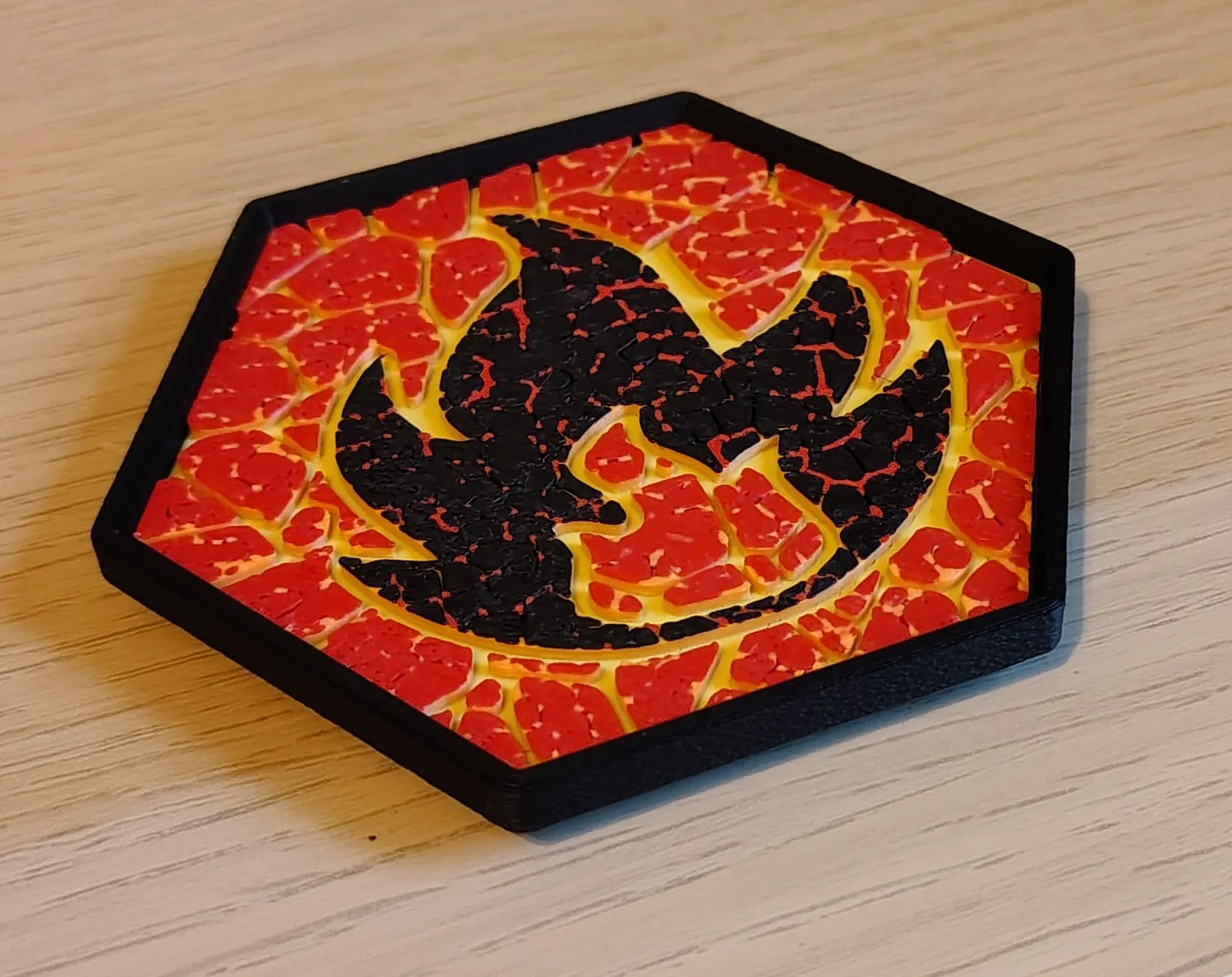

• Pokémon Fire Element

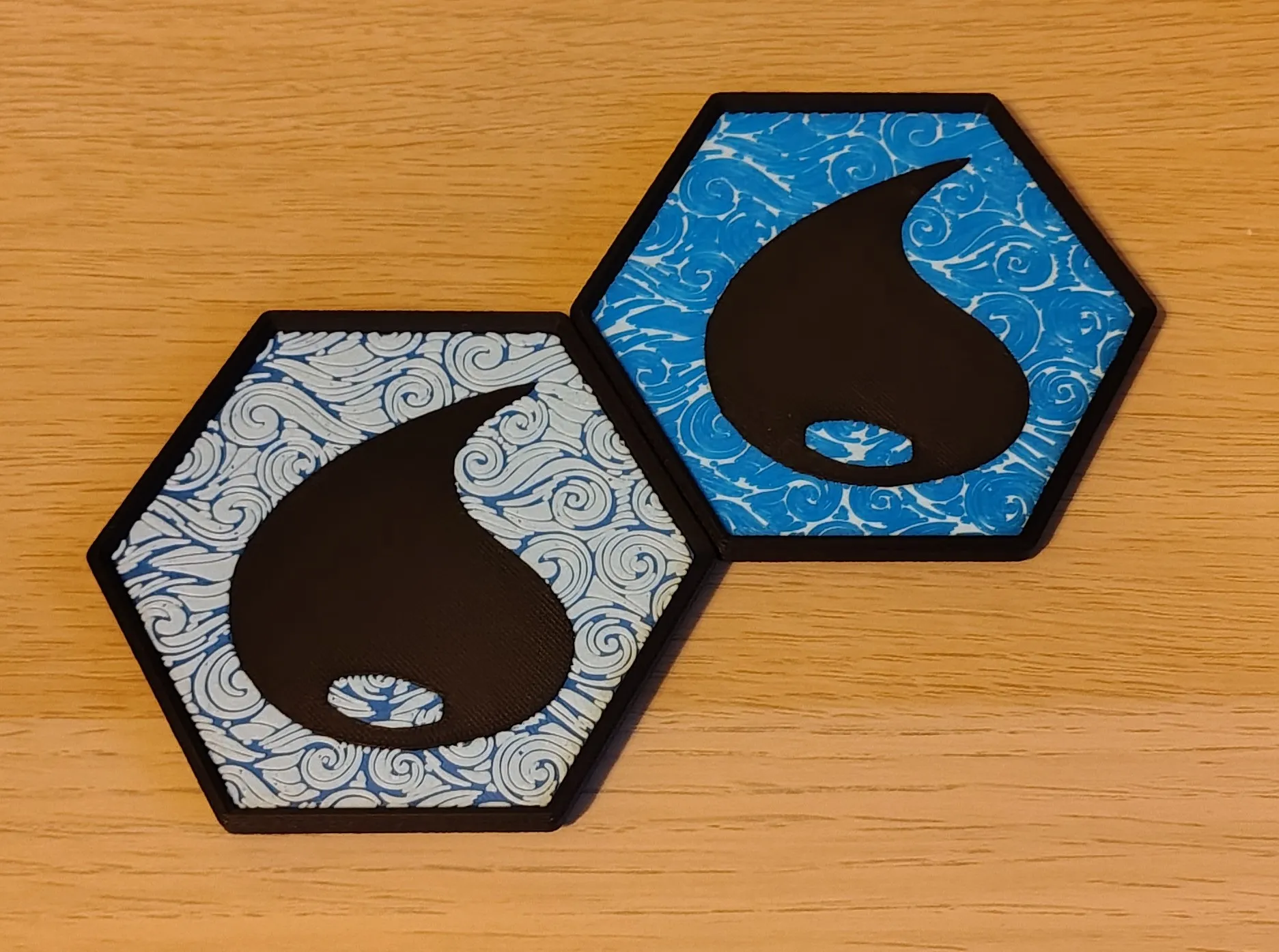

• Pokémon Water Element



Features

Universal mounting system

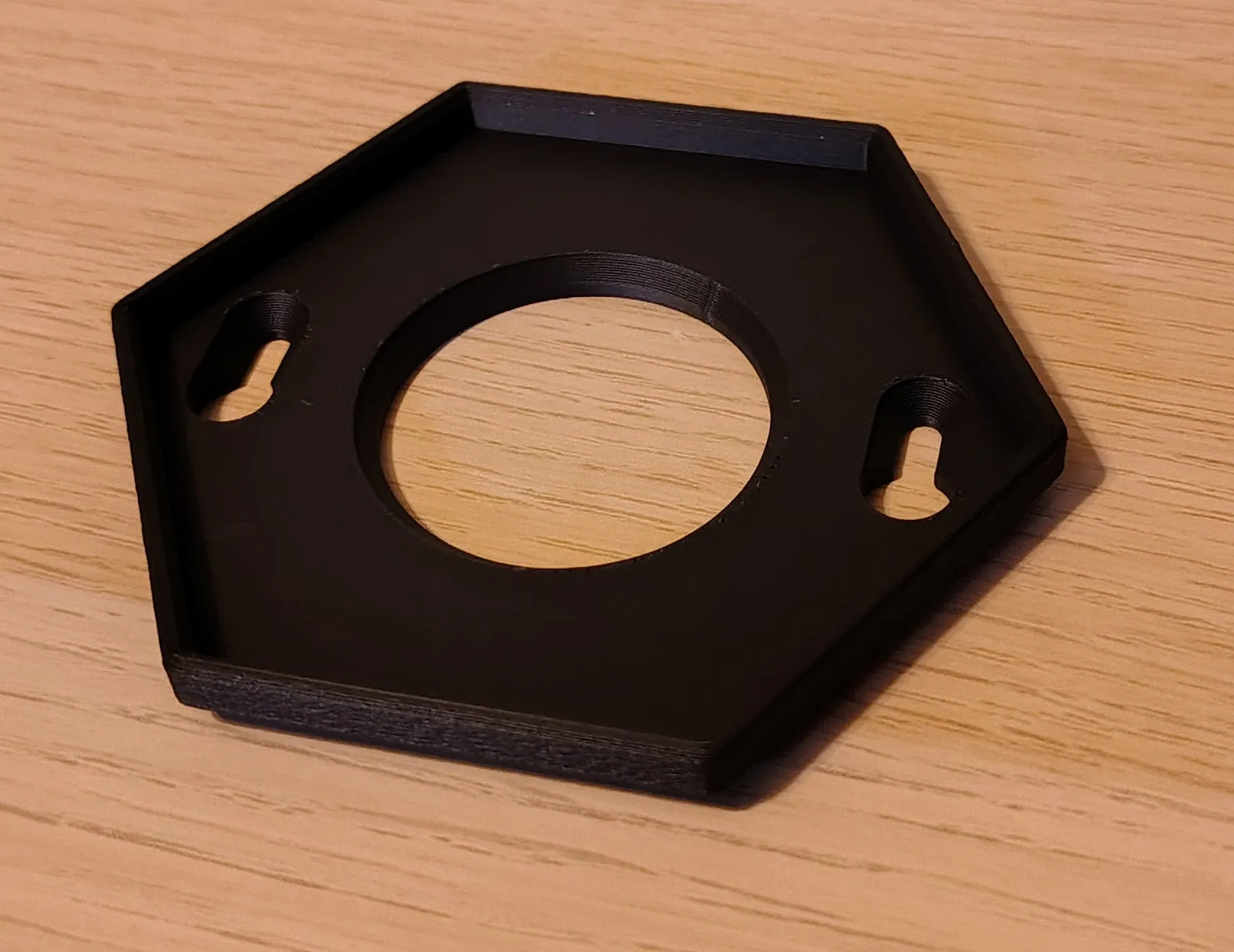

My universal mounting system lets you mount any artwork, to be used as either a coaster or wall art. Any artwork that is hexagon shaped, 80mm edge to edge, 2.5mm thick, can be placed into the mount. The mount has slots to hang from two 3.5mm screws. The artwork is usually loose, use glue for a permeant bond, or something like double sided tape if you want to swap artwork.

Optional TPU feet

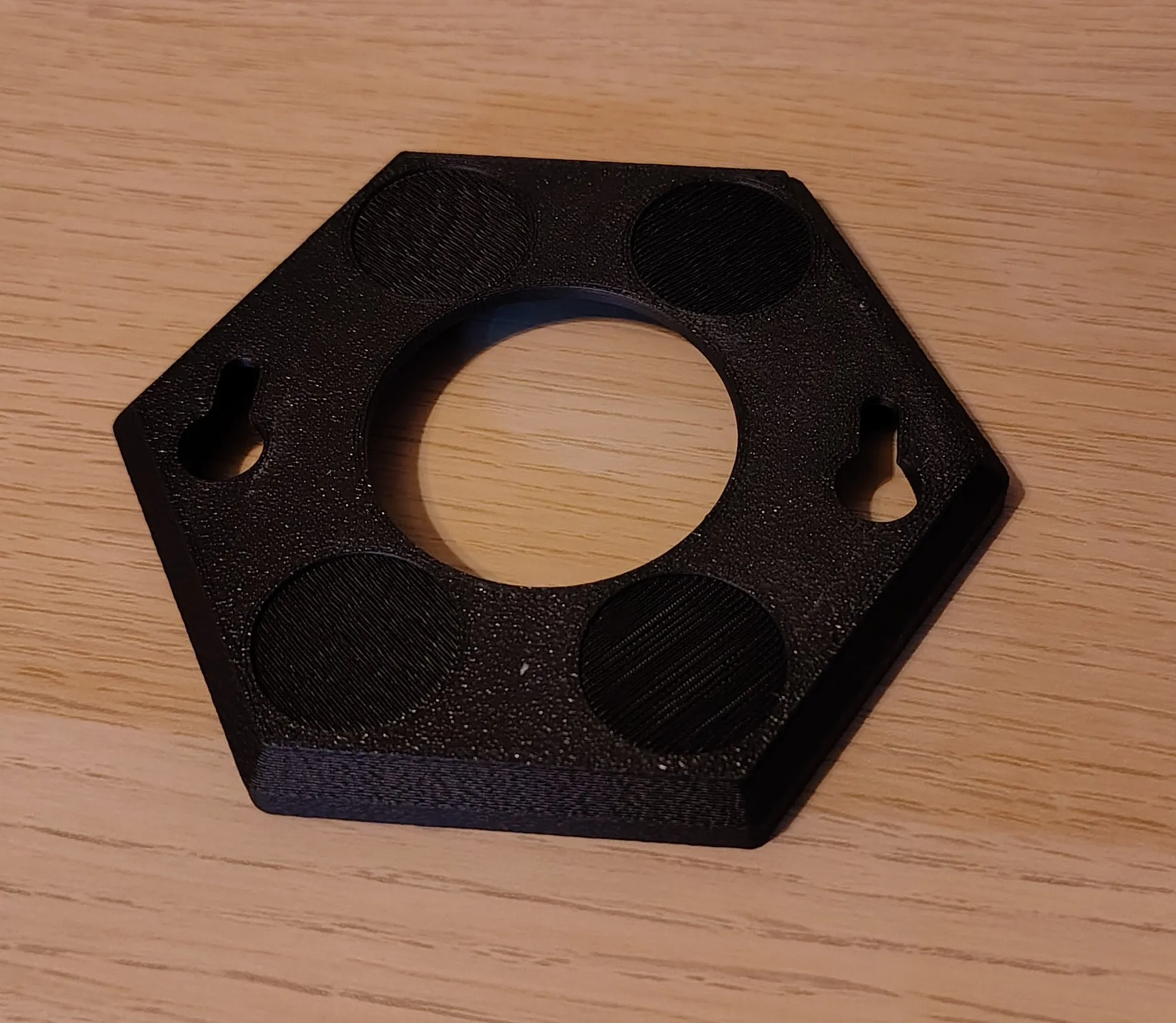

The back comes with spaces to mount 4 TPU feet. These are included in the print profiles but if you want to make your own then they are 20mm diameter and 1mm thick (the cut out is 0.6mm deep). I don't find that you need these but they could help to protect the wall.

Stackable

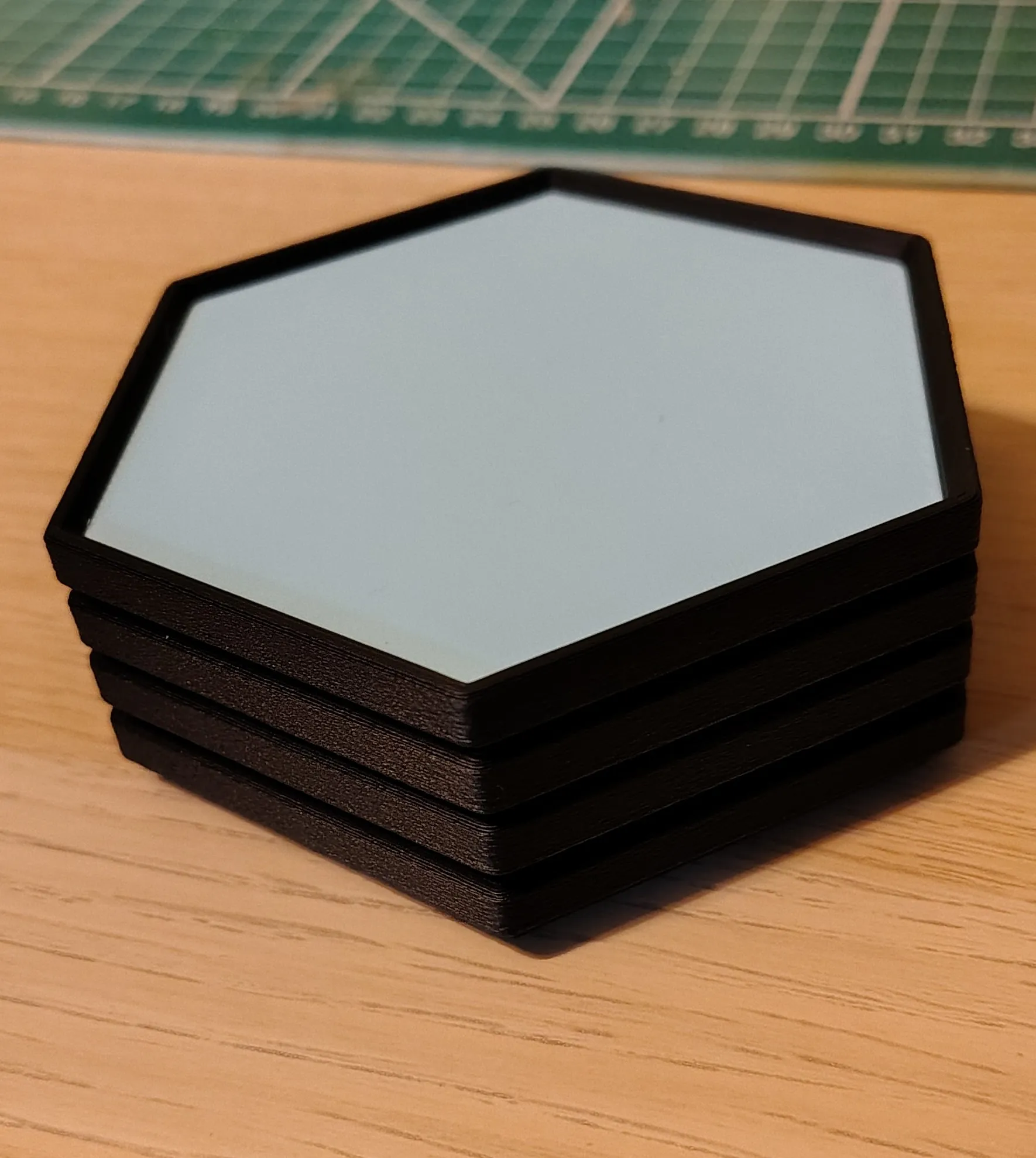

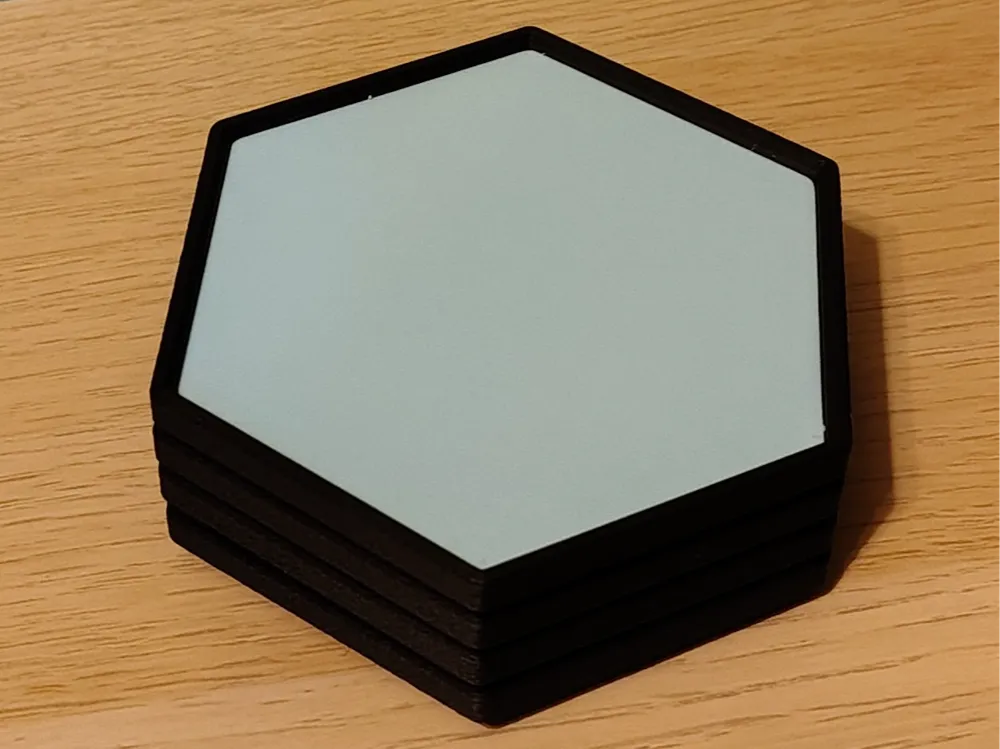

The coasters will stack securely inside each other.

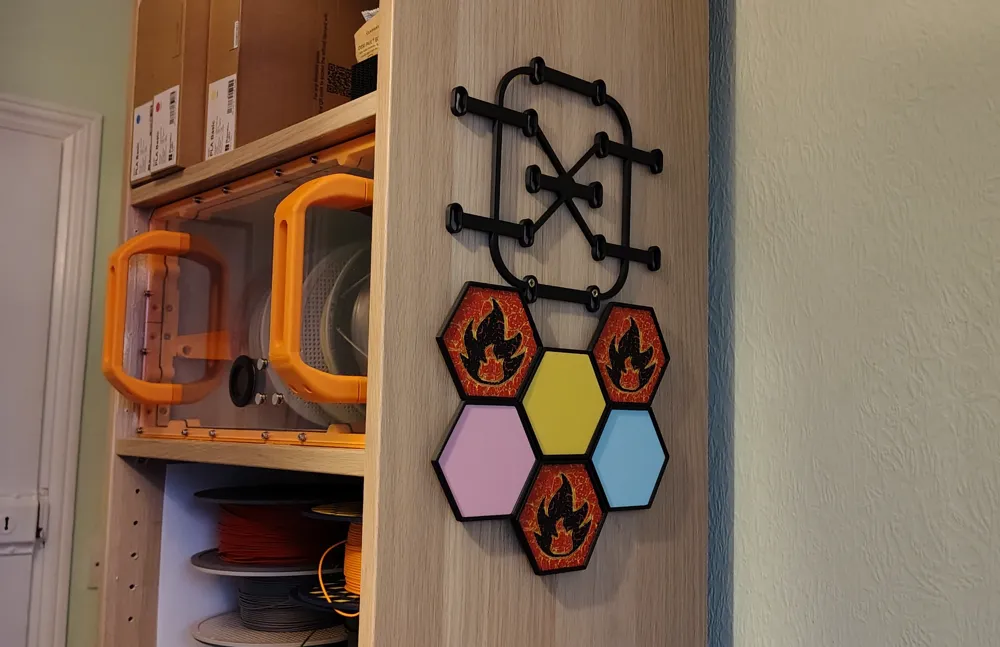

Wall Mount hole Jig

I have included jig that can be used to place holes for wall mounting.

1. Find a spot on the wall for your first hex.
2. Use the centre hole pair to mark the holes on the wall. (you can use a spirit level on top of the jig)
3. Drill out the holes and add screws, don't drive the screws all the way in.
4. Hang the jig on the two screws.
5. Adjust the screws so that they secure the jig but you can still slide it off.
6. Use the other holes on the jig to mark out other holes around the first. This will result in perfect alignment every time.

Get in touch

I am happy to support any issues you may have with any of my models. Let me know if you have any ideas for improvements, or you would like any changes.
