Training Cleat

Hello everyone,

this is my first selfmade and uploaded 3D model (I'm excited 😉🥳).

If you need a training cleat for your boat-license, you can quickly print it out here.

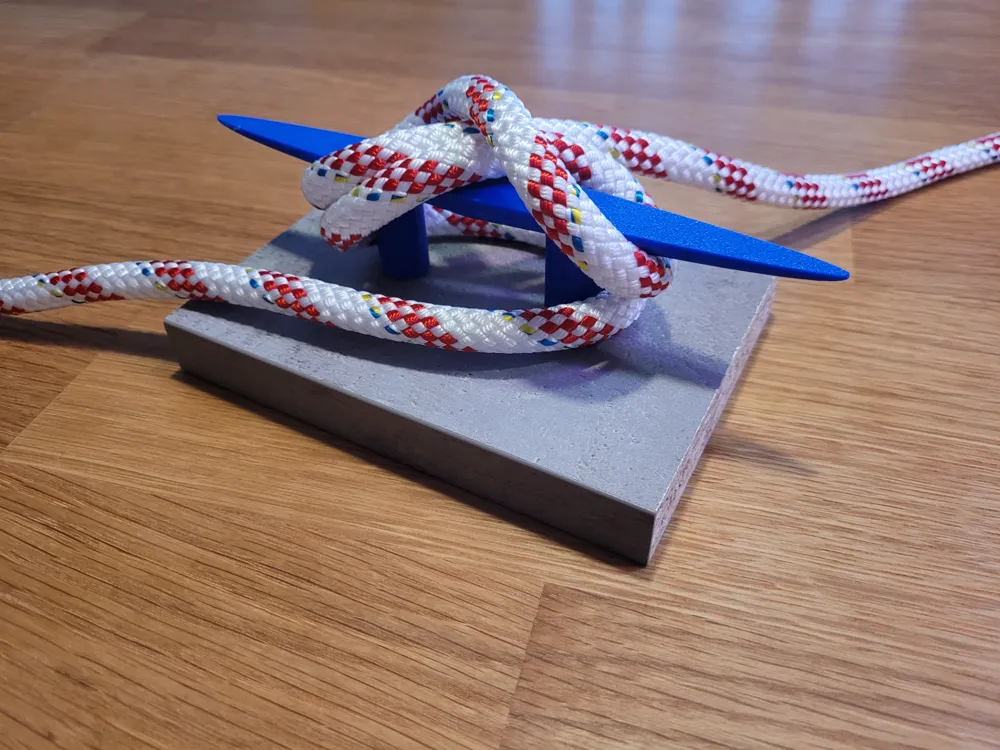

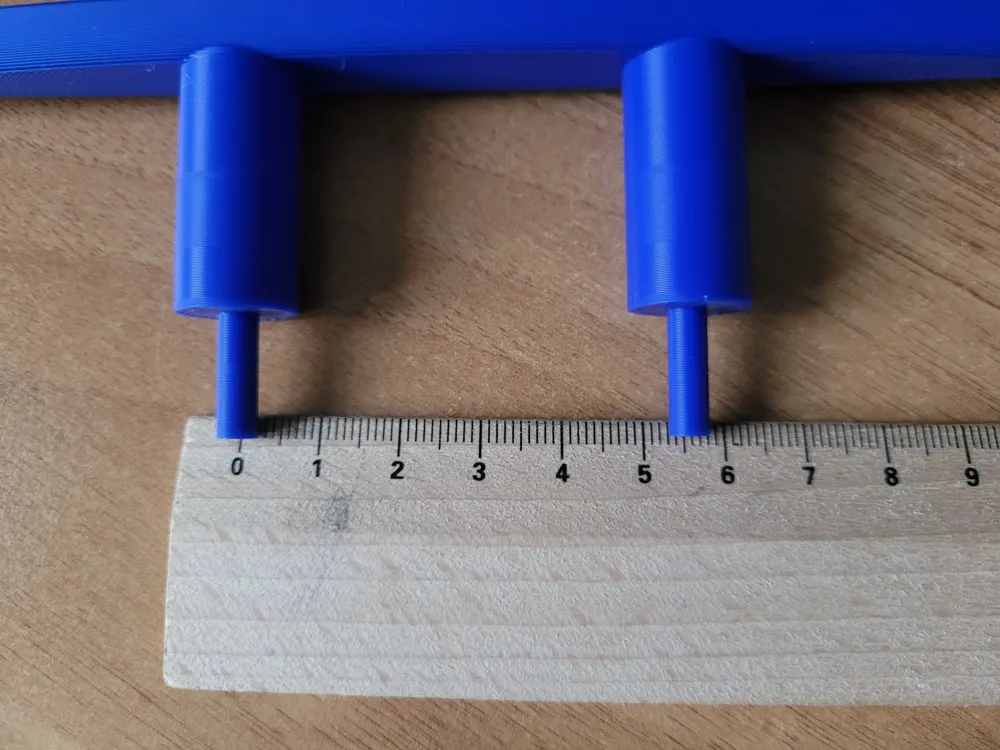

I simply printed out the cleat, drilled two holes (5mm) in a piece of wood (55mm distance) and attached both with the thicker (blue) dowels.

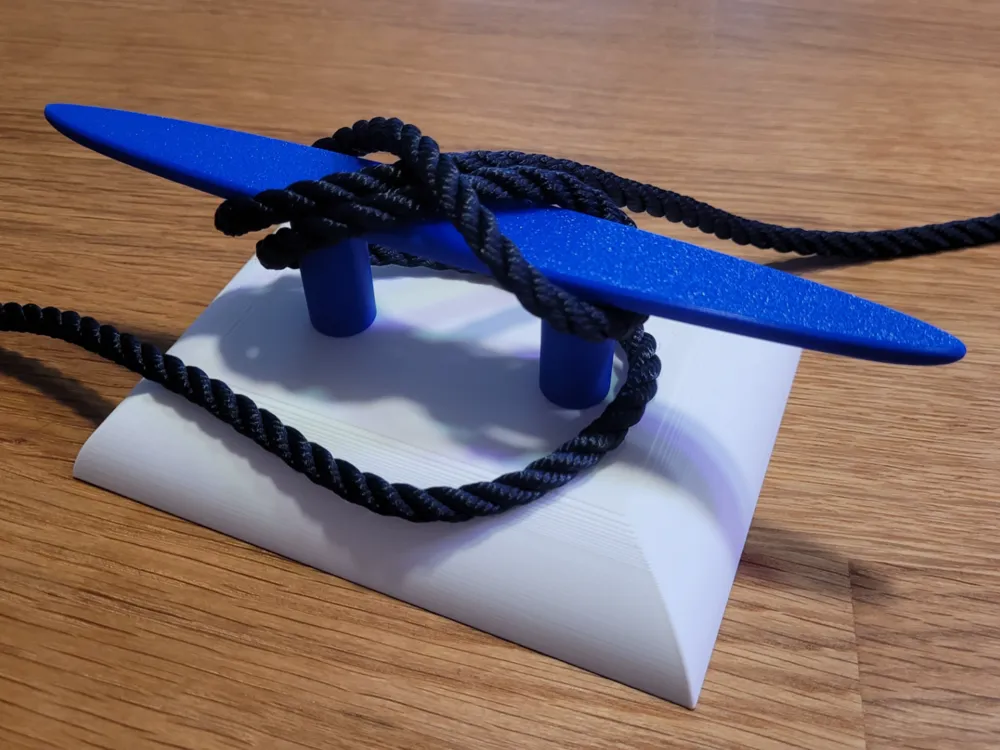

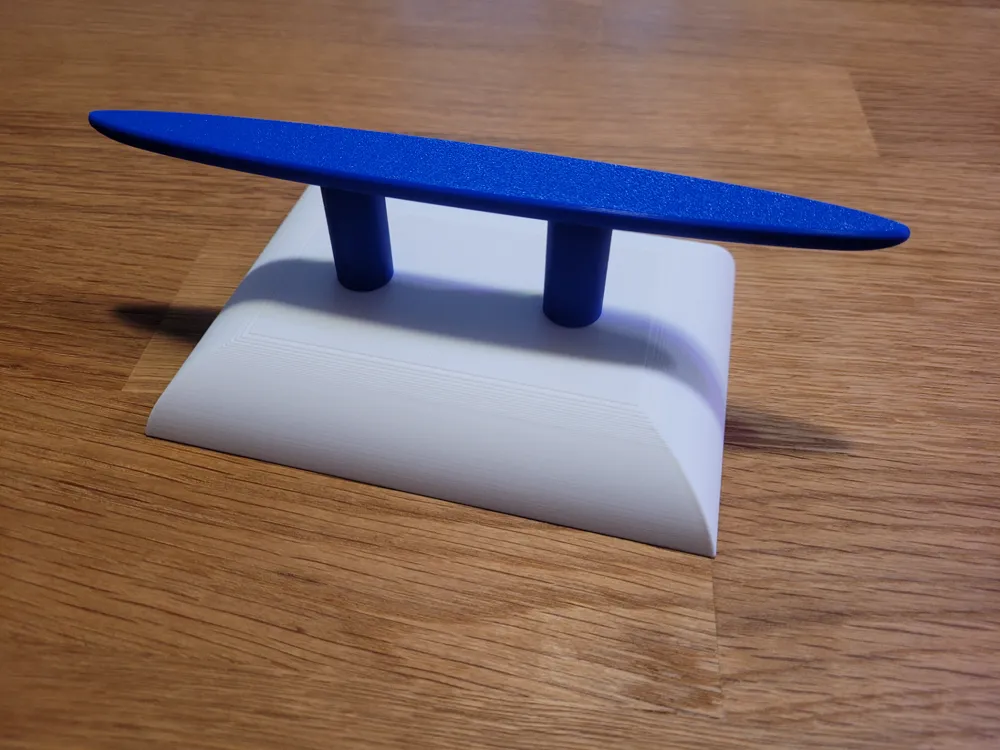

For those who don't have a piece of wood to hand, there is the option of printing a base plate.

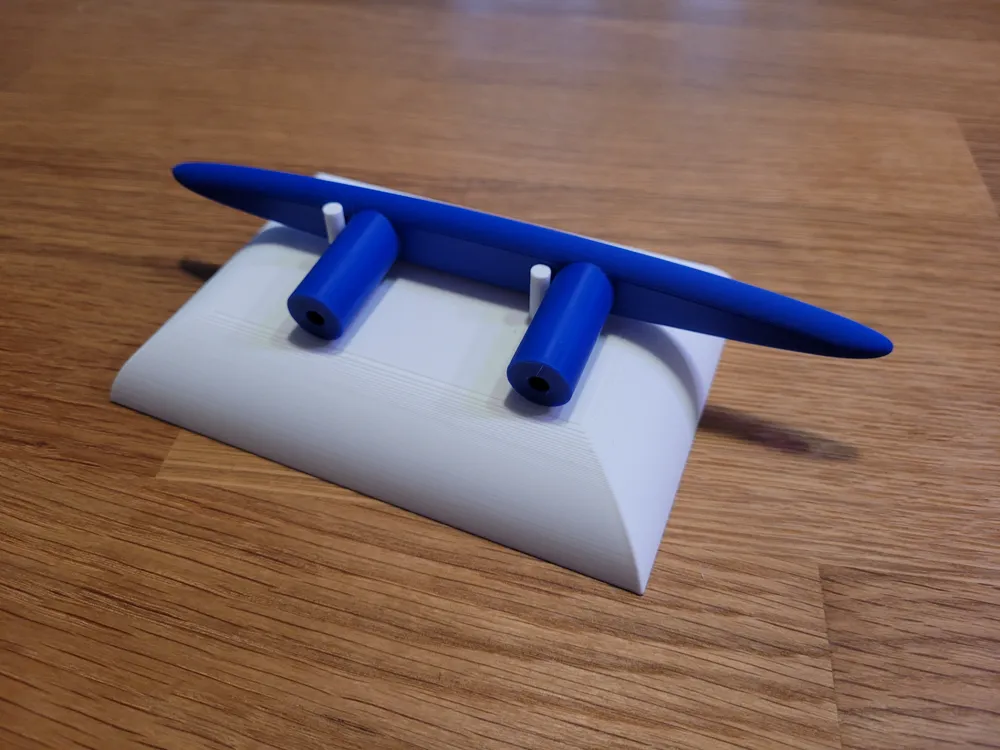

If the cleat should be transported (e.g. to a theory course), I recommend the white dowels. These are slightly smaller and thinner, making the cleat easy to remove from the base plate. However, the white dowels are also less resilient - so don't tighten the knot too tightly ;-)
The blue dowels are very tight. Once these have been assembled, it is difficult to disassemble the structure again.

---

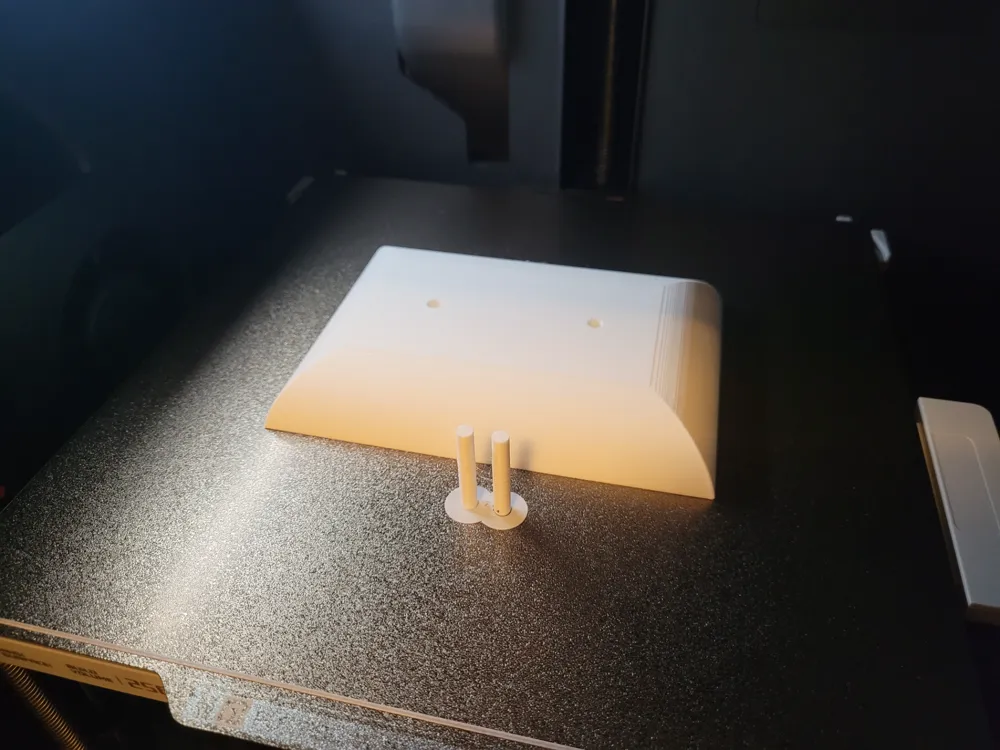

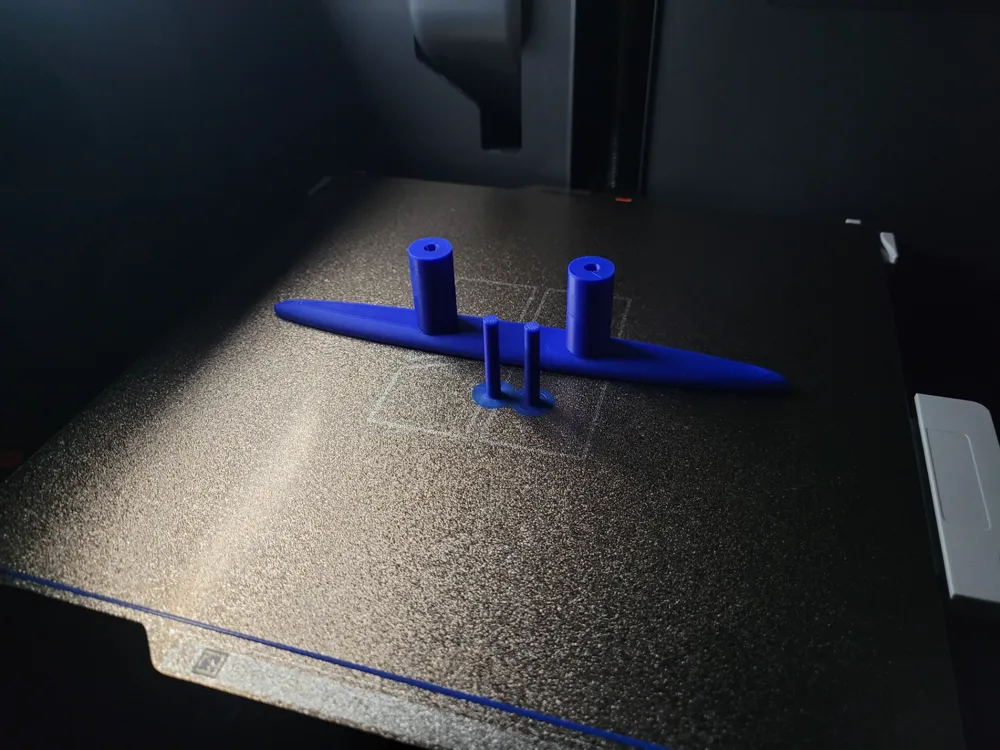

The prints do not require support.

Printed in Bambu PLA Basic (blue) / Bambu PLA Matte (White).

---
