Spring Trigger
Print Profile(1)
Bill of Materials
- Spring x 1: approx. 6 x 25 mm, taken from a pen
Description

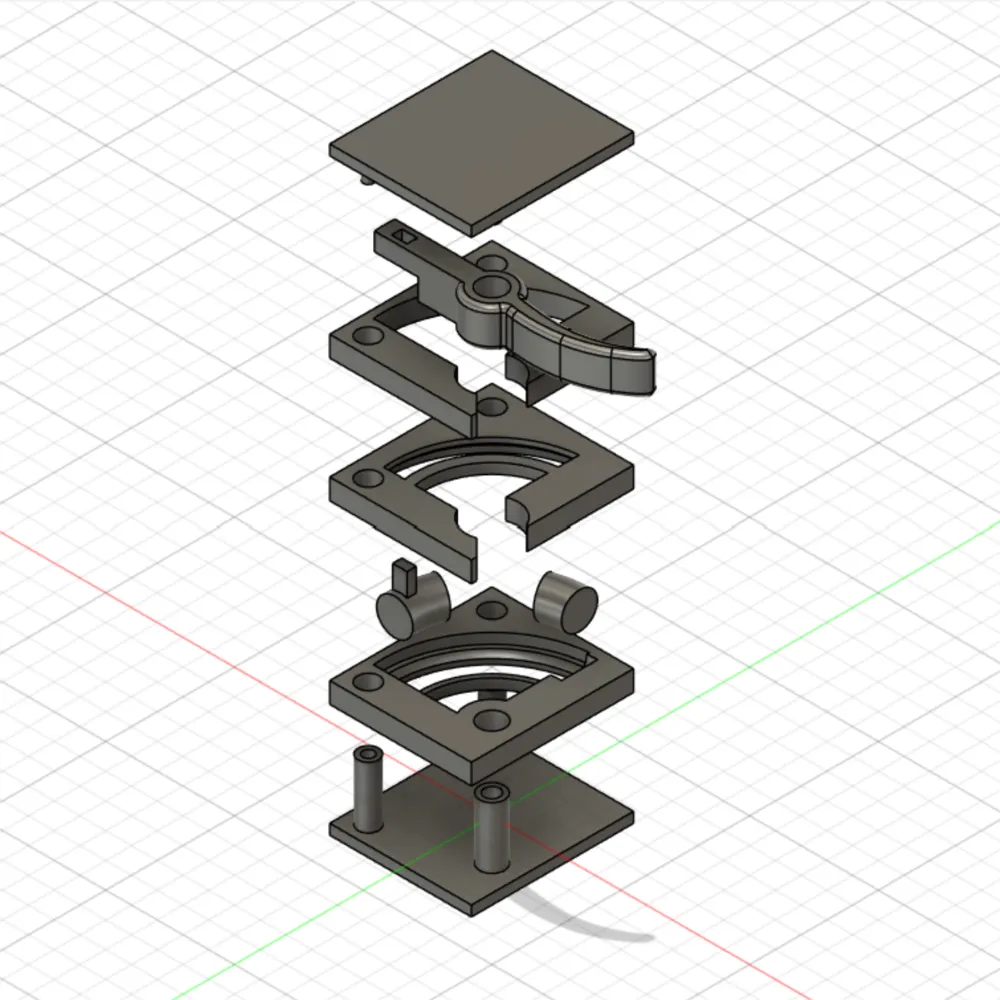

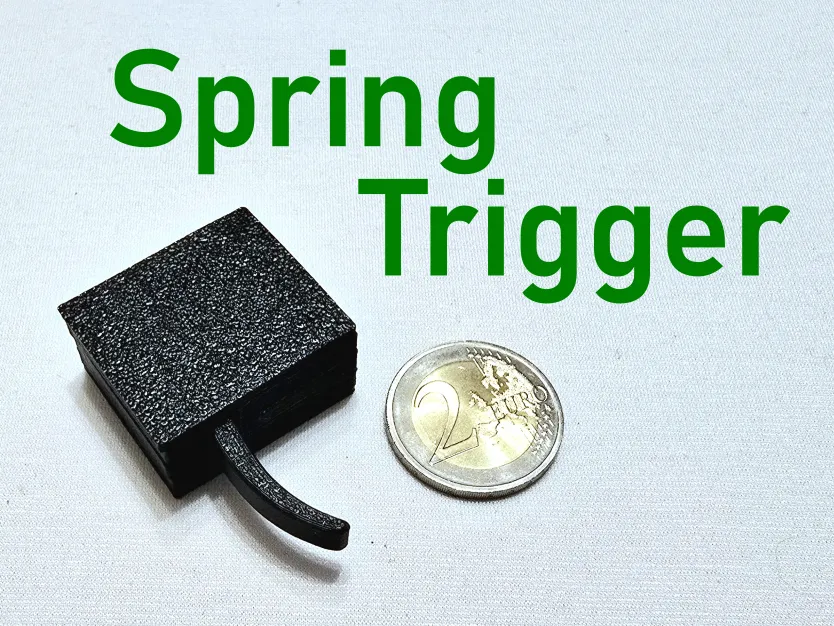

Small spring trigger mechanism for prop guns. Designed for cosplayers and prop makers to fit in (most) props. More robust than trigger fidgets that use a 3d printed spring. Can be disassembled to replace any broken parts. All parts fit together, only need a spring (and possibly sandpaper) to assemble. Most springs from pens should fit, I used one approx. 6 x 25mm in size.

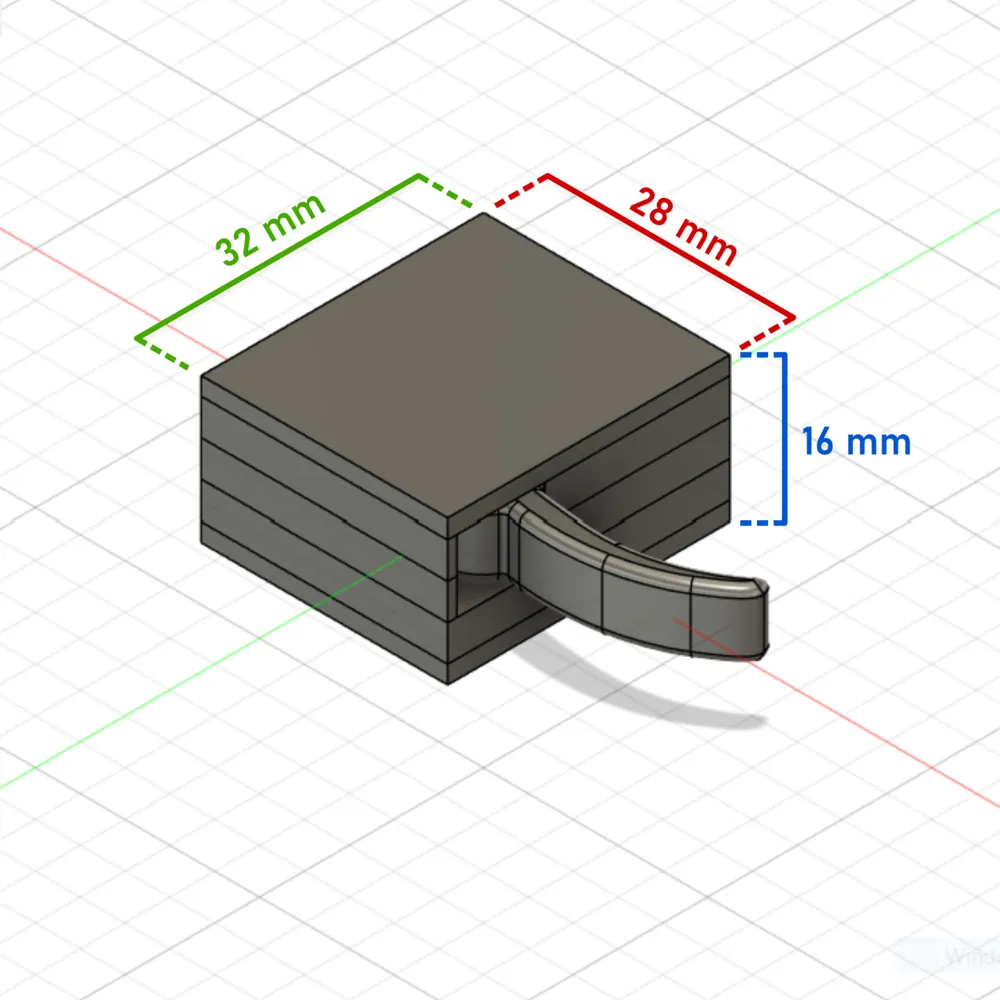

Box model size is 28 x 32 x 16 mm. Printed in PETG with a 0.4 nozzle, recommended 3-4 walls. Model was designed with 0.1mm tolerance, so please check your printer’s tolerances first!
Assembly video guide: https://youtu.be/5tFkf7ue3ws
Contact me on Instagram @a.bri.cos if you have any questions or requests. This is my first ever functional model, so please let me know if there is anything I can improve. Please consider giving me a boost if this print helped you! Would also love to see any props you make with this print! <3
