Bobby the Benchy Buzzer Benchmark Test
Print Profile(1)
Description
“Bobby” buzzes “Benchy” while briskly bouncing between bushes, bobbling beside babbling brooks, boldly bypassing big boulders, & bravely battling brisk breezes.

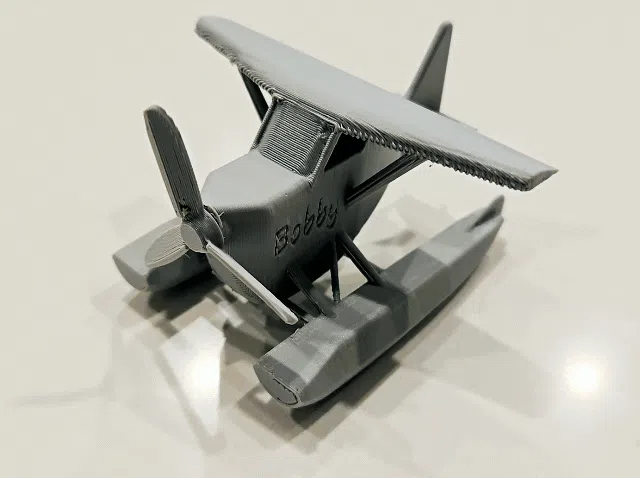

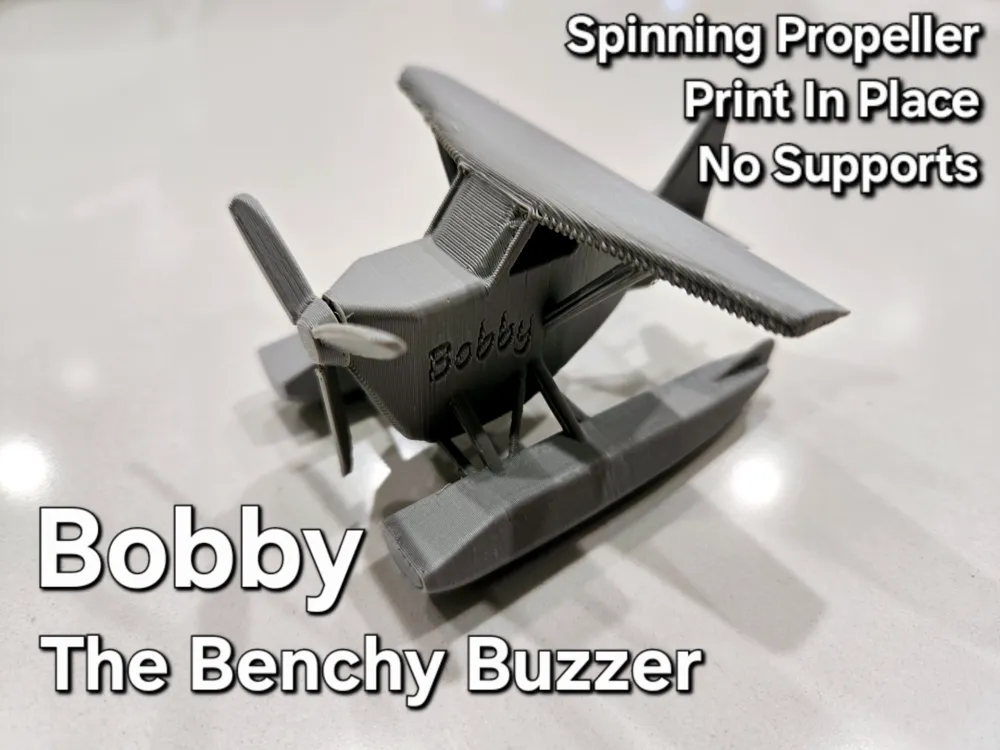

I now present “Bobby”, the Benchmark Puddle-jumper Benchy Buzzer!
Bobby may not be a fighter jet… but he's got aggressive overhangs and gnarly bridge testing!!
Spinning Propeller:
- I recommend carefully cutting around the base of the propeller top pop it loose rather than twisting.
No Supports:
- How?? This little guy is designed to be printed on his nose.

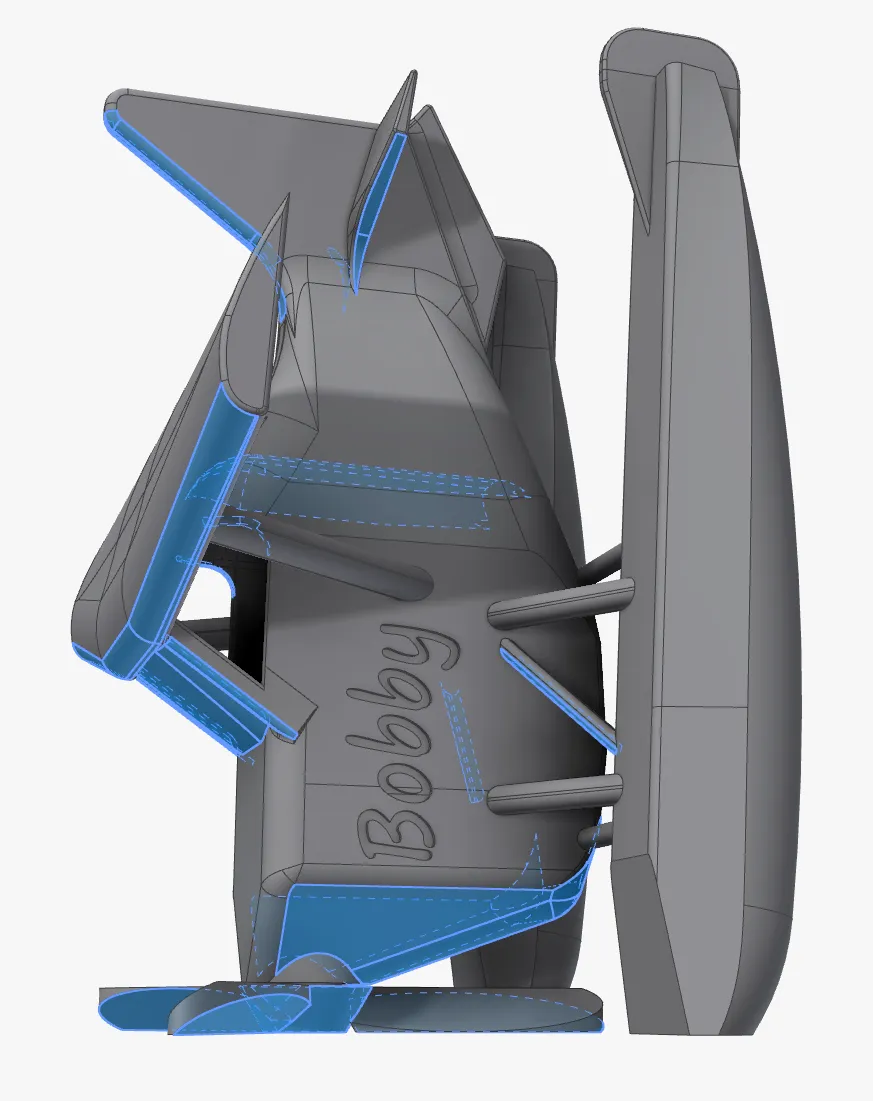

Part-Cooling Performance and Overhang Capability are tested by these (see image below) highlighted features:

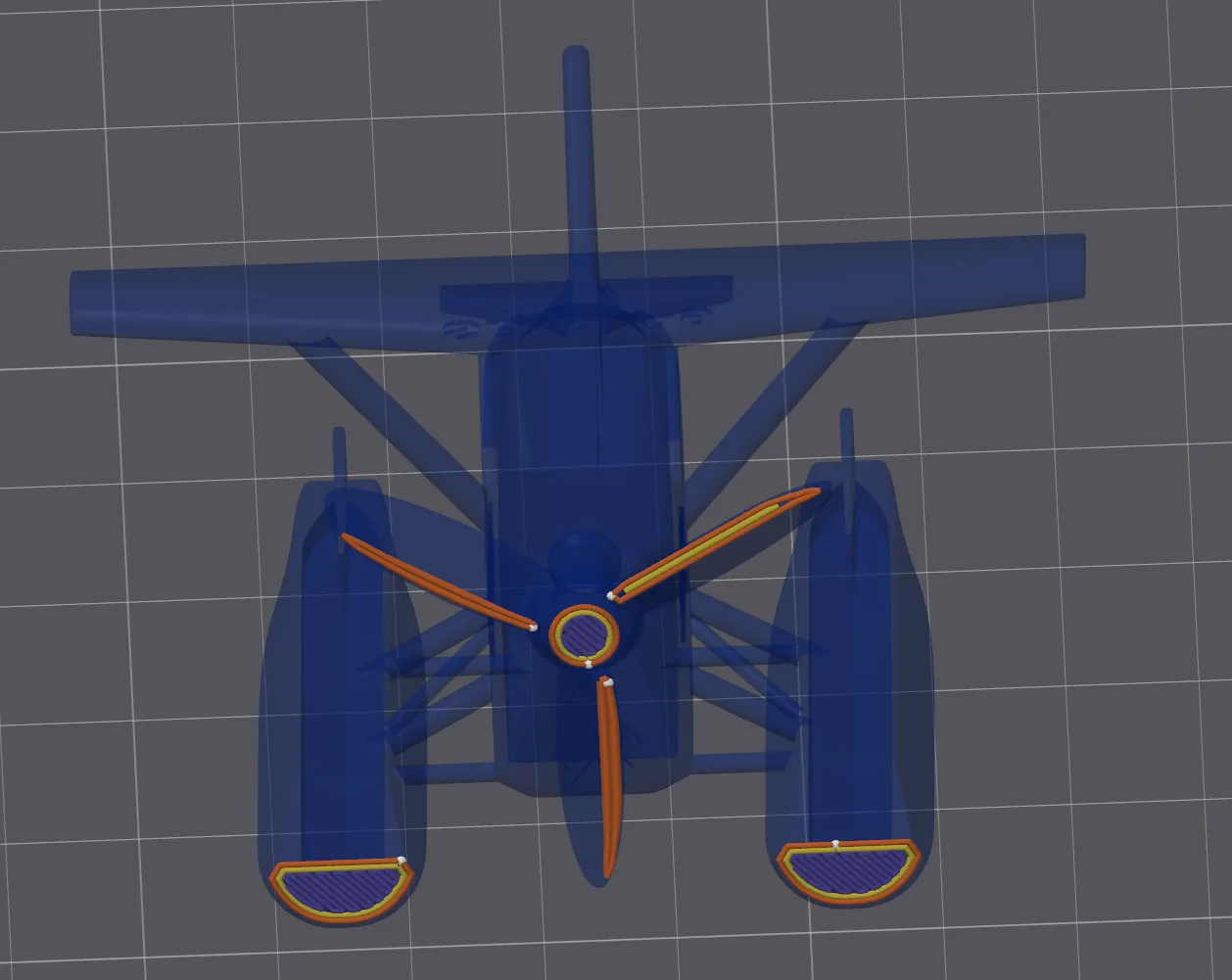

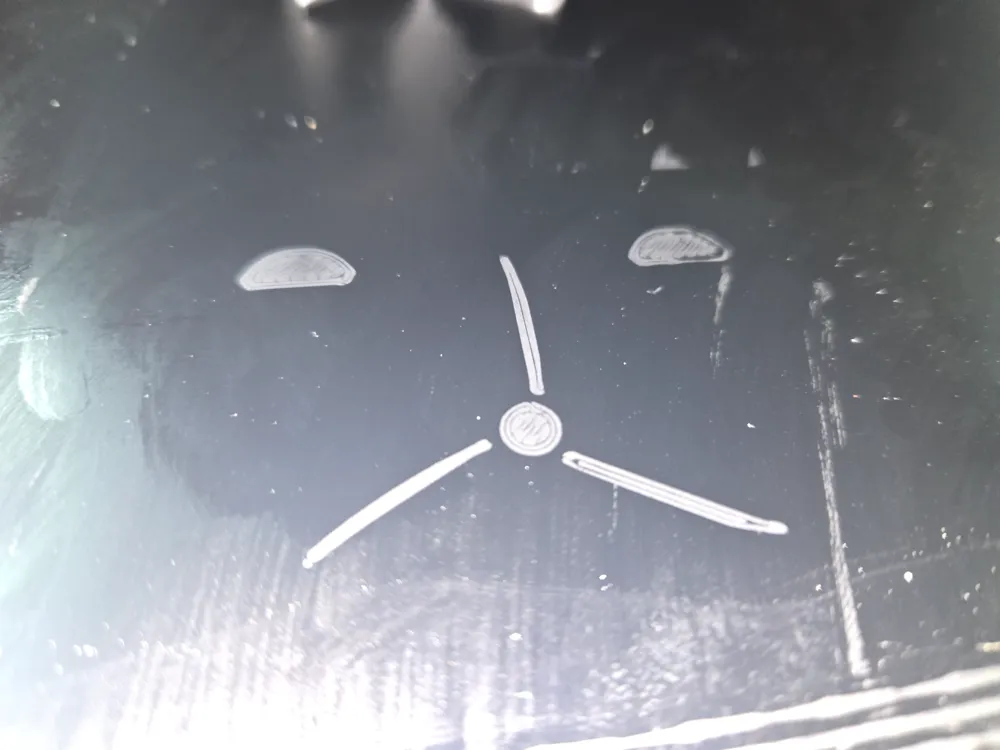

Bed adhesion is tested by having minimal surface in contact with the build plate:
- SERIOUSLY. You might want to consider using a build plate adhesive; cause you're about to find out how reliable your first layer stick is!
- Bed adhesion is arguably the most important component of 3D printing; that's why it's included in this benchmark test.
- If you just want the plane, feel free to add a raft, brim, or recess the plane into the build plate a little to give yourself a larger starting surface area.👍

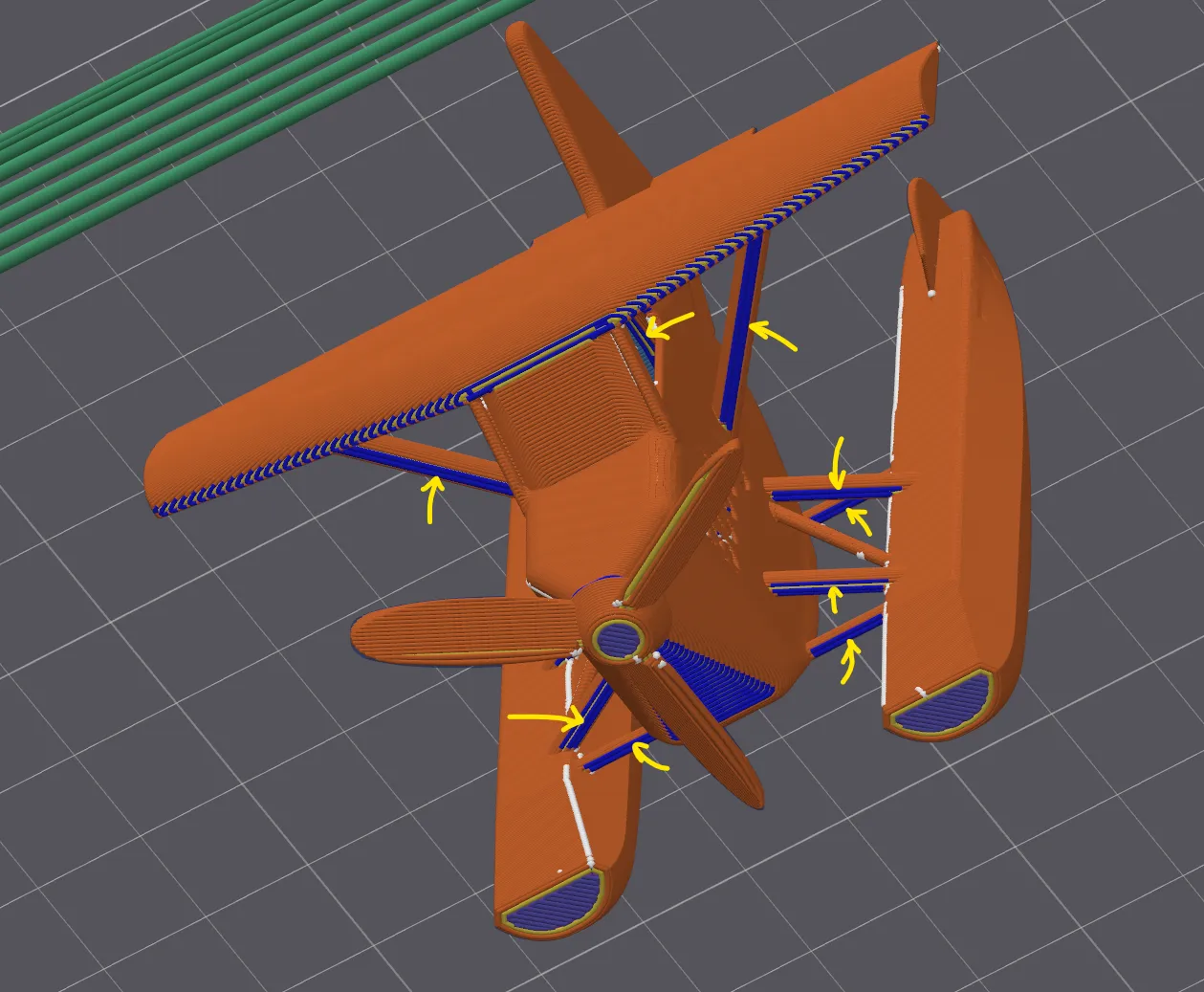

Bridging quality is tested in the locations indicated:

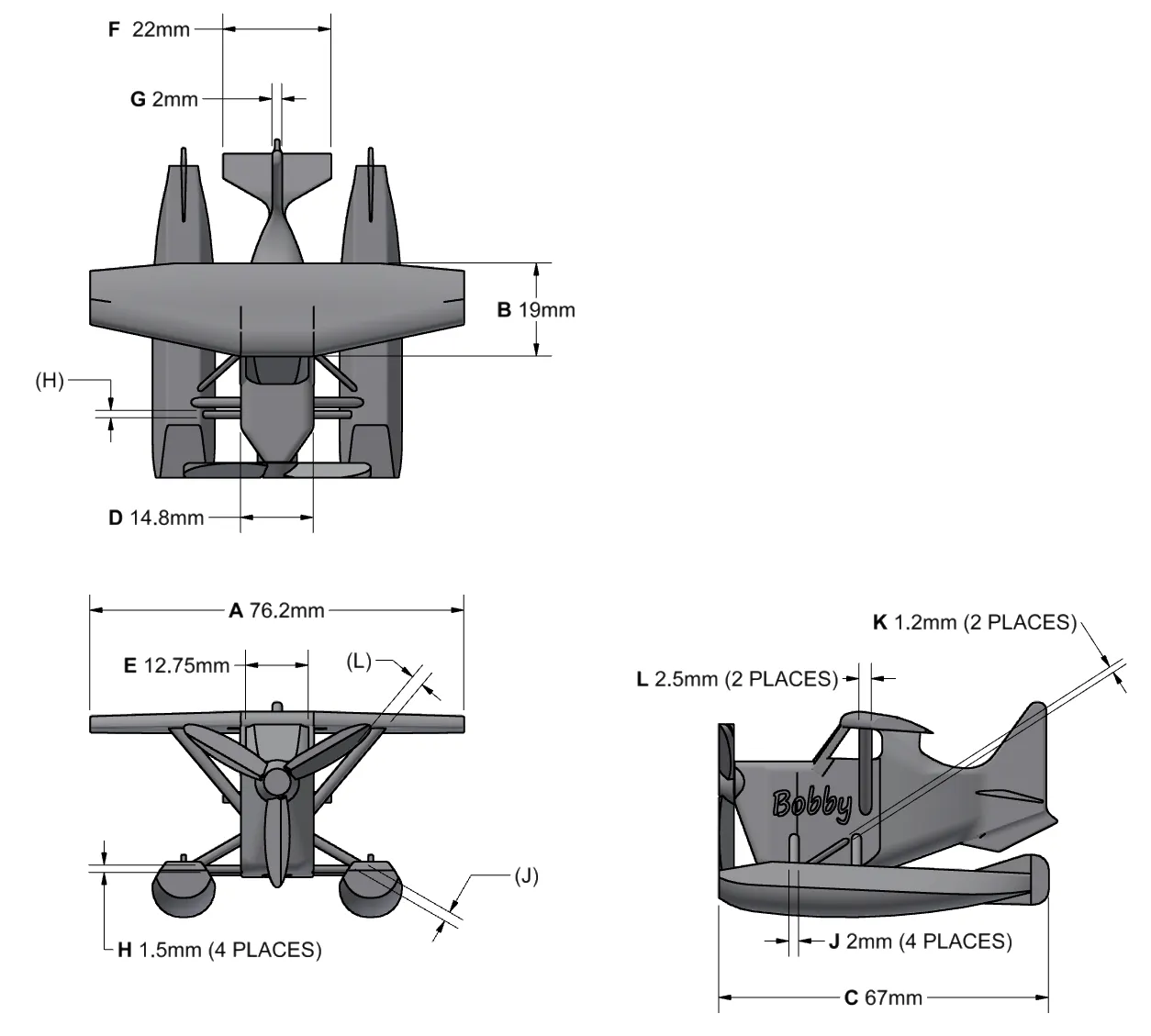

Geometric accuracy:
- A = 76.2mm
- B = 19mm
- C = 67mm
- D = 14.8mm
- E = 12.75mm
- F = 22mm
- G = 2mm
- H = 1.5mm
- J = 2mm (yes, “i” is skipped intentionally)
- L = 2.5mm
The beloved 3DBenchy has a special place in all our hearts. Why? It's cute, it's quick, it's useful, it's repeatable, it's comparable, it's measurable; and it will always WOW a toddler and grandparents alike. Thank you, Daniel Norée, for creating the 3DBenchy which we've all come to love; but alas, even legends fade.
I think it's time we consider another contestant who's a little younger than ye olde tugboat…
As always, feedback is welcome!
ENJOY!
