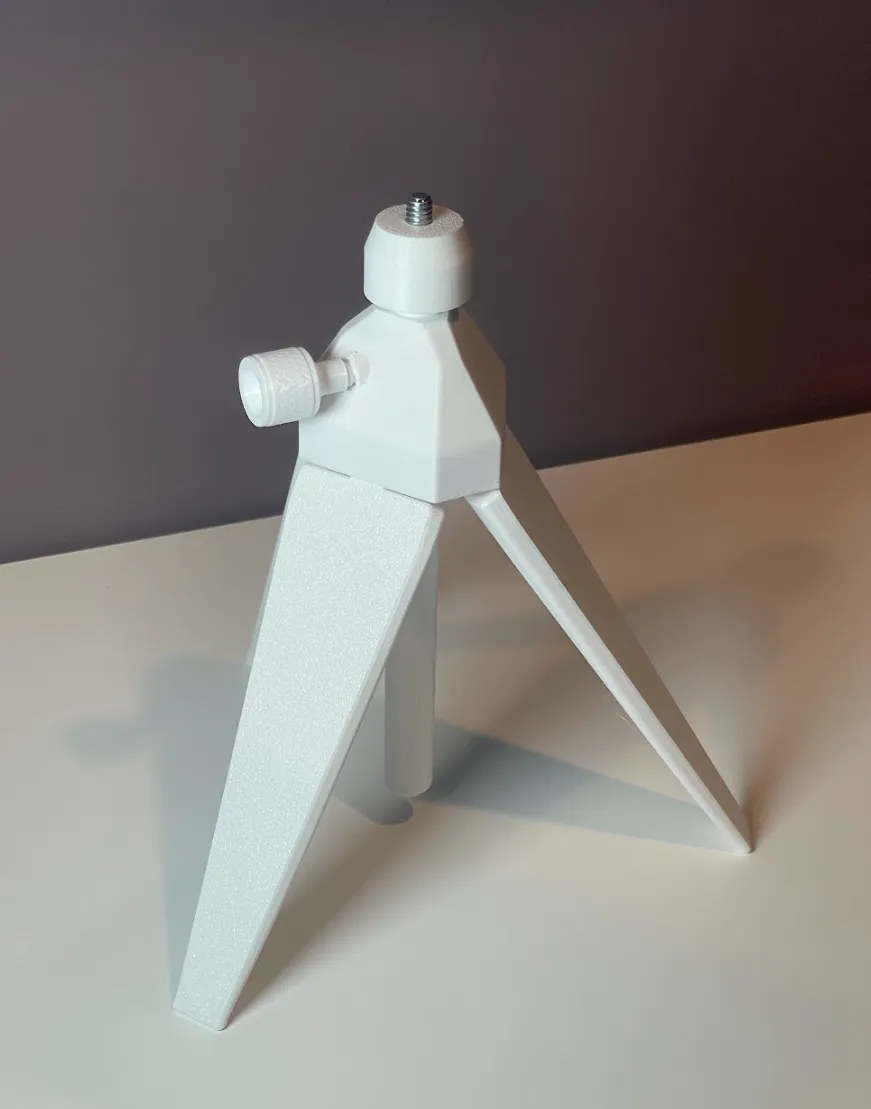

Mini Tripod

Small Tripod for use with anything that uses a standard ¼-20 thread. Camera, Go-Pro, LED lighting, microphone, etc…

Material Needed:

Quantity 1 - ¼"-20 x ½" Hex Head Capscrew

To assemble:

    1.) insert legs into the bottom of the inside hub piece first.

    2.) Then insert the three pins with threaded ends. Note the pins are direction specific, the square end goes in the side that has locating features for the square end.

    3.) Cap each pin with the 3x nuts.

    4.) Slide the outer shroud over the inner hub piece that holds the legs.

    5.) Insert the the thumb screw that locks the vertical riser.

    6.) Insert the Hex Head bolt into the top piece with the hex cutout.

    7.) Screw the vertical riser post into the top piece with the hex bolt in place.

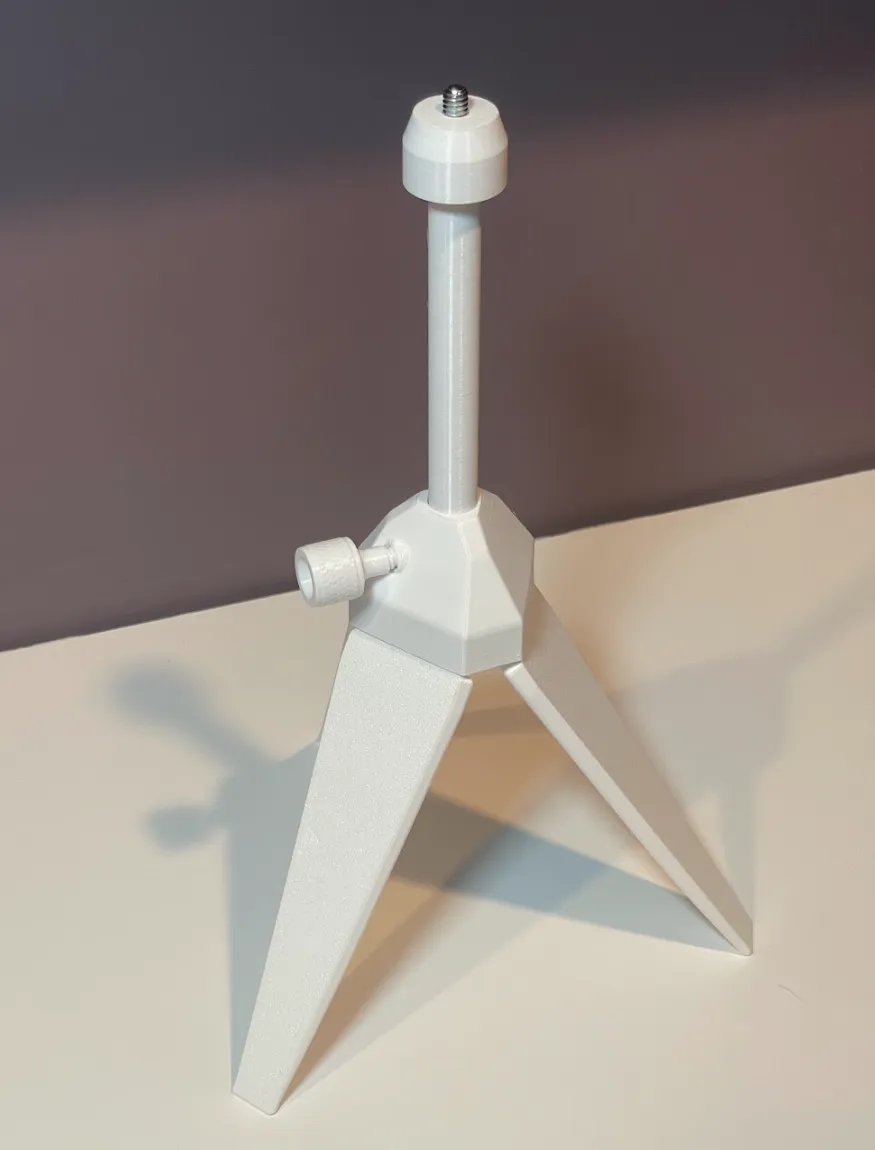

    8.) Insert the riser post into the tripod.

I will be making a photo mount for this in the near future so keep an eye out for that.
