A1 LED Bar V2
IP Report
Print Profile(3)
0.2mm layer, 2 walls, 15% infill
Designer
2 h
1 plate
Bar only 0.2mm layer, 2 walls, 15% infill
Designer
46 min
1 plate
Bracket´s only 0.2mm layer, 2 walls, 15% infill
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
271
673
176
61
974
712
Released
Description

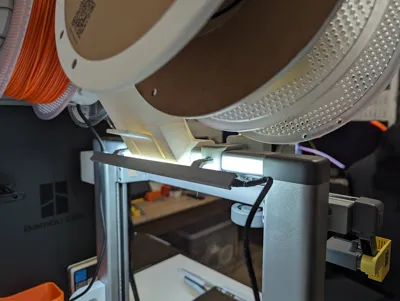

V2 is for mounting on the back. Mounting the LED bar on the front can lead to problems with the Z-axis.Assembly is at your own risk.
Update from December 31, 2023:

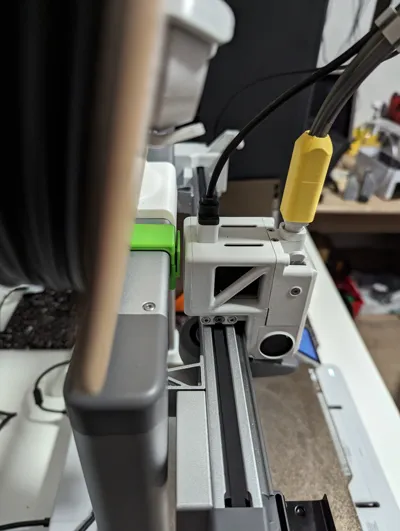

I revised the design again to create more space between the print head and the clamp.
I tested this in advance. There were no problems for me. But please also test it for freedom of movement.
You can simply exchange the revised brackets for the old ones.
