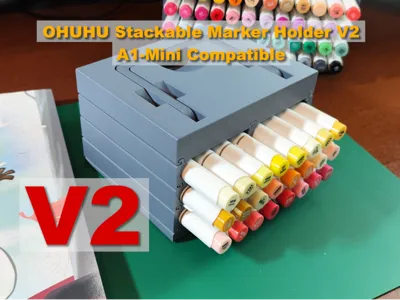

OHUHU Stackable Marker Pen Holder V2 - A1-Mini

Hello and welcome to the revision of my OHUHU Marker holder, this time also for printing on an A1-Mini!

Just as with my Tooli-Art Stackable Holder and my Full size OHUHU Stackable Holder I had ideas to improve the first version of the holder now I have a bit more printing and designing experience.

Main wishes for improvements: use less filament (since this is the first smaller size it does not apply to this one) and make them connect in a way that keeps them connected even when moving. I even had the idea of making it portable. I was able to hit these marks!

Changes:
- One tray of the A1-mini compatible print is about 52gr

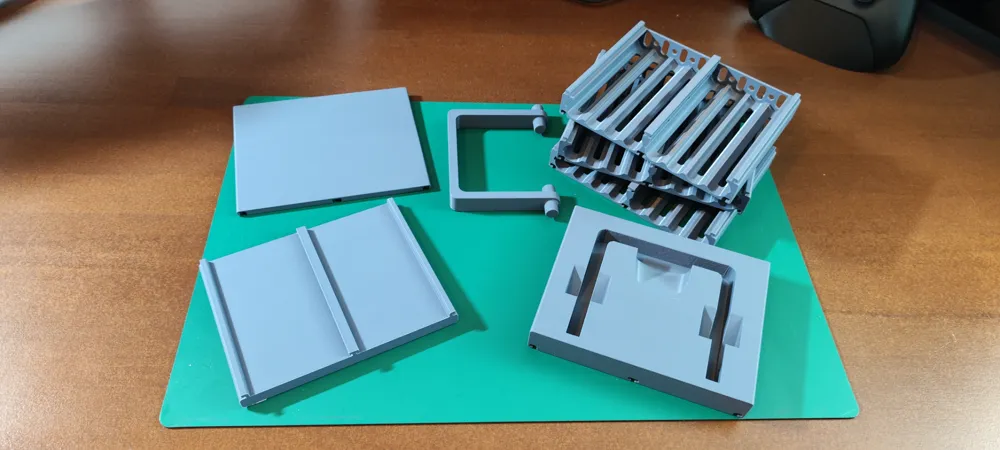

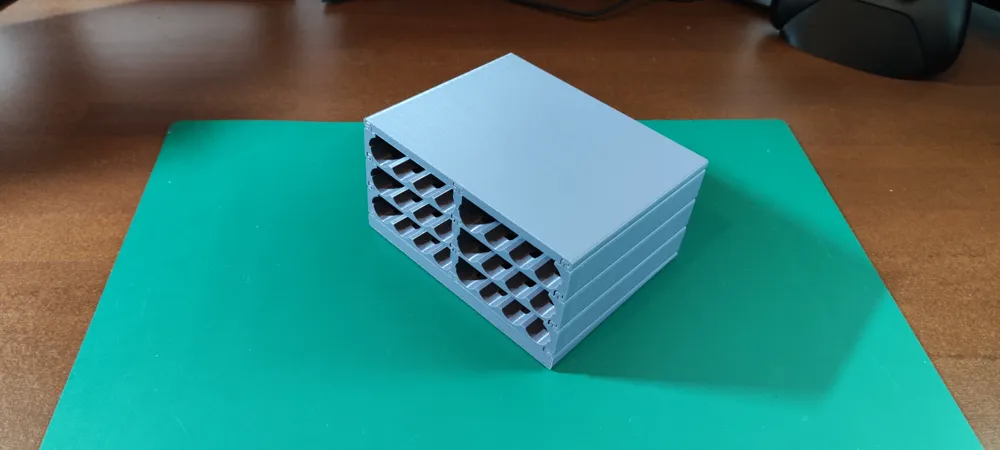

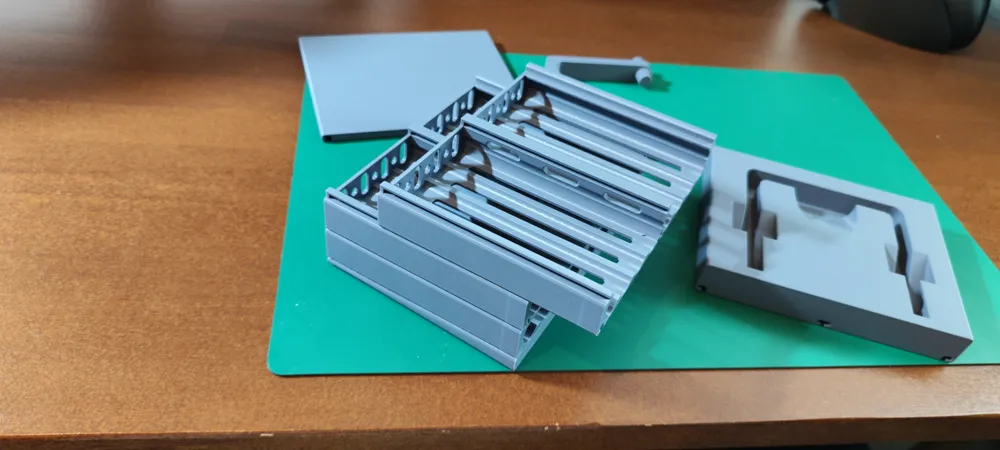

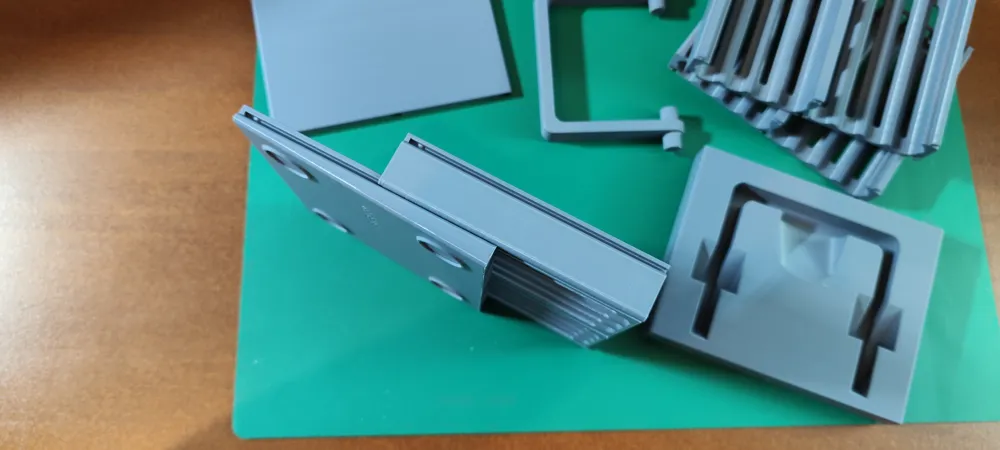

- Parts now slide click together

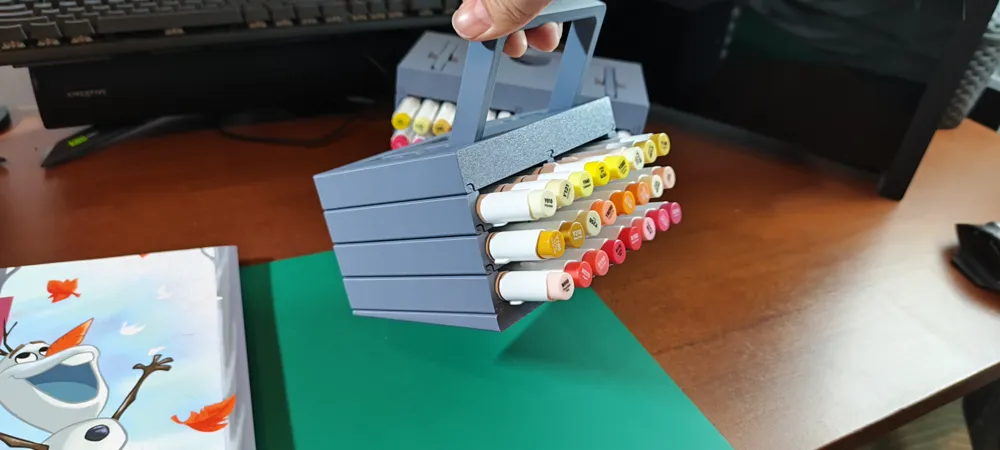

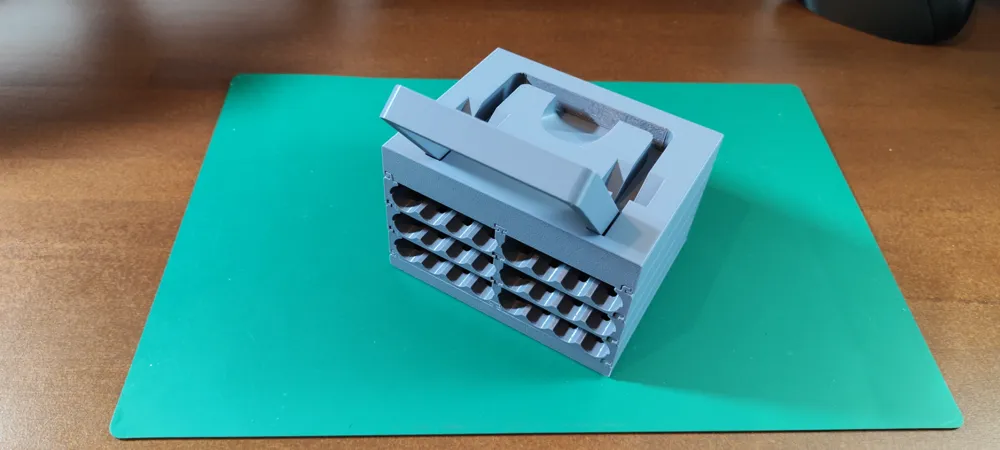

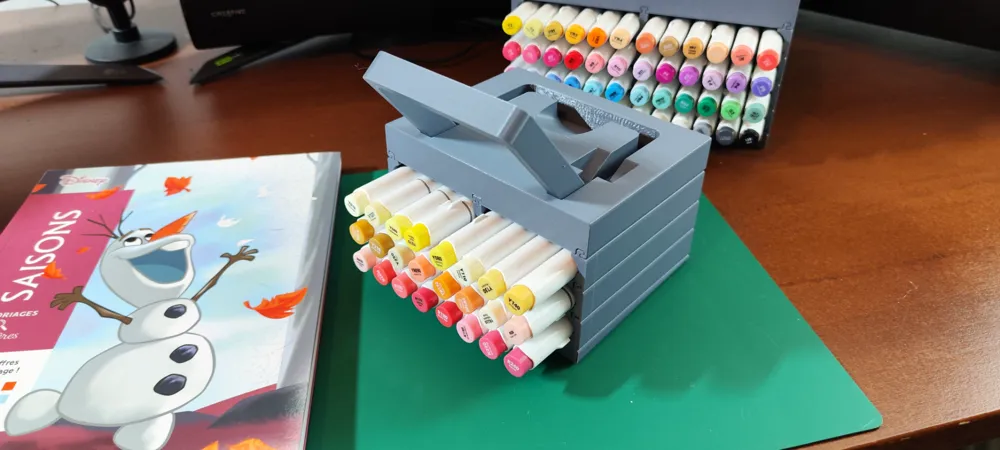

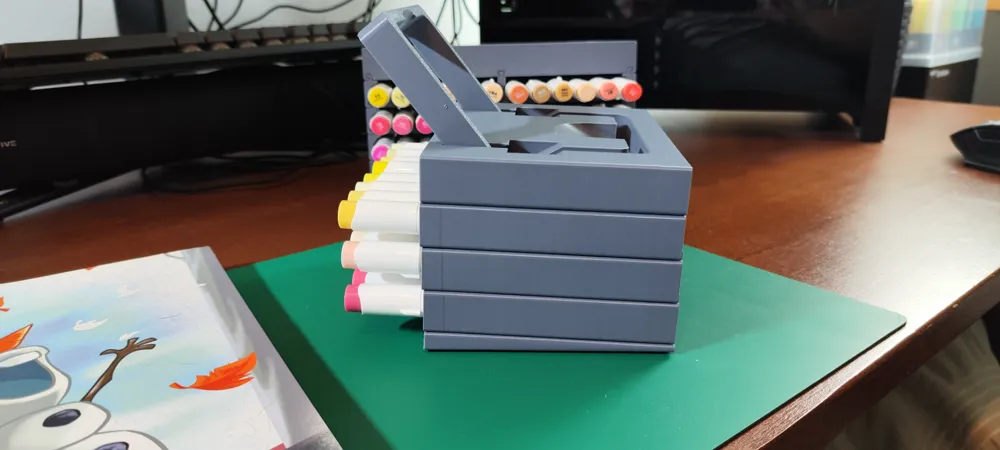

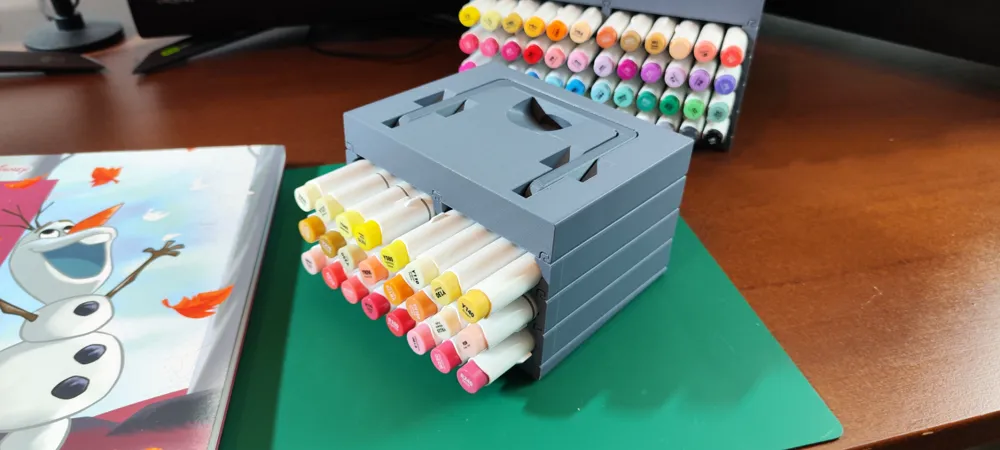

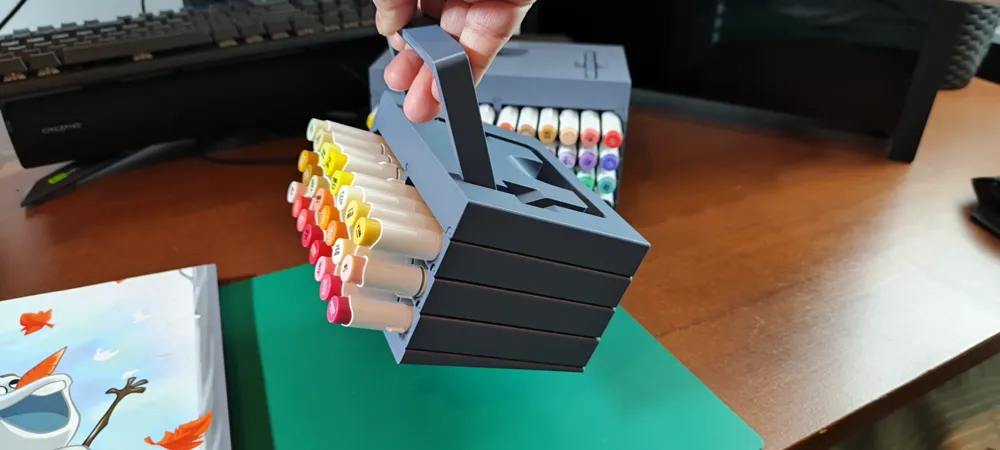

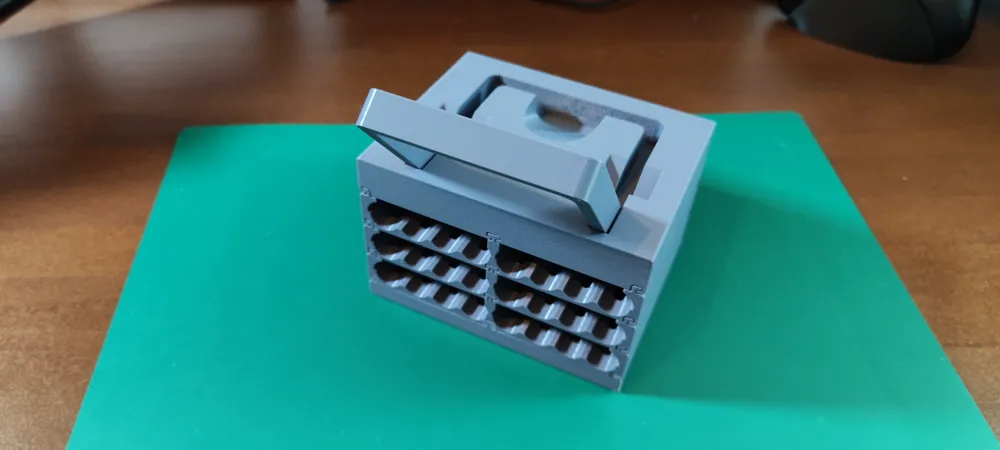

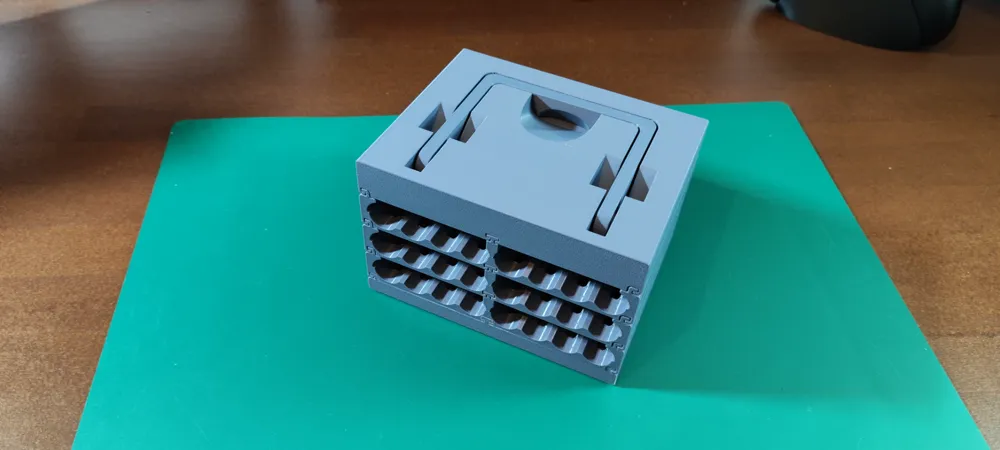

- Created a lid with carrying handle, that because of gravity pivots the markers backward so you can carry them without having to worry about them falling out. But there is also a normal lid.

I've made a complete printing profile. With different settings for each plate and/or object. For me this prints perfectly. NOTE: I've printed this on my P1, I do not have a A1 mini. I'm quite confident it will work just fine. If not contact me or upload a better profile!

IMPORTANT NOTE: Because of the printing orientation, keeping your print bed clean is very important. I made it so it has a bit more surface area to connect than the V1 version, but it is still a tall print. Keep your bed clean and if you're not confident add a brim on the outside. I printed this many times without fail.

On that subject, I kept the printing orientation like this so the slide connecting parts are dimensionally accurate and don't need any support, yes…it takes longer to print 1 model and ‘could’ be safer when laying flat but this way it works best in my opinion. You can always print more trays in one go.

Final notes: I made these in mind with OHUHU markers in mind. The diameter of those markers are approximately 15mm. It will probably fit other markers with the same diameter, but length wise it might be too long or short, depending.

I have a version for Tooli-Art markers and a larger size for OHUHU Markers.
