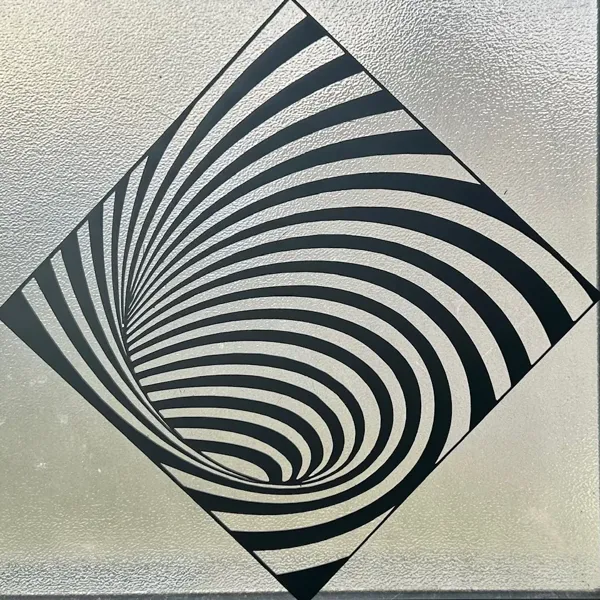

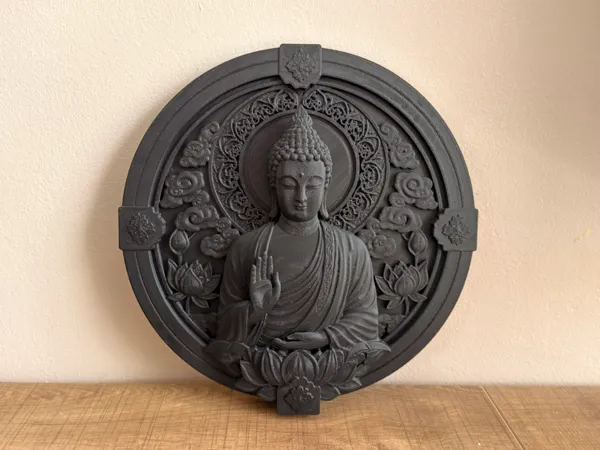

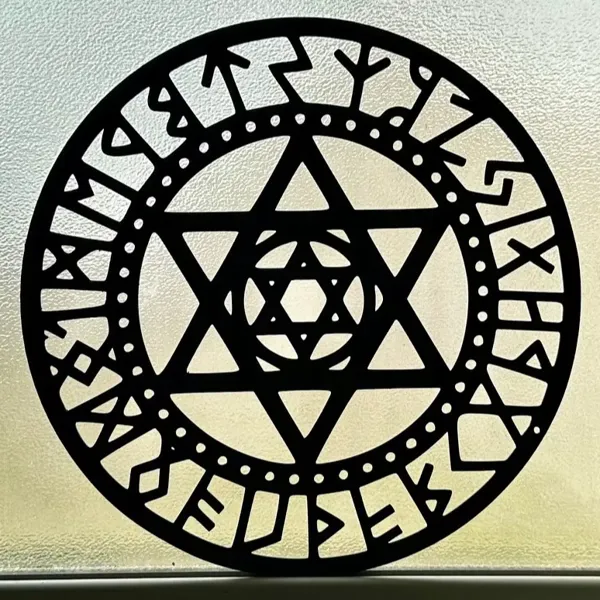

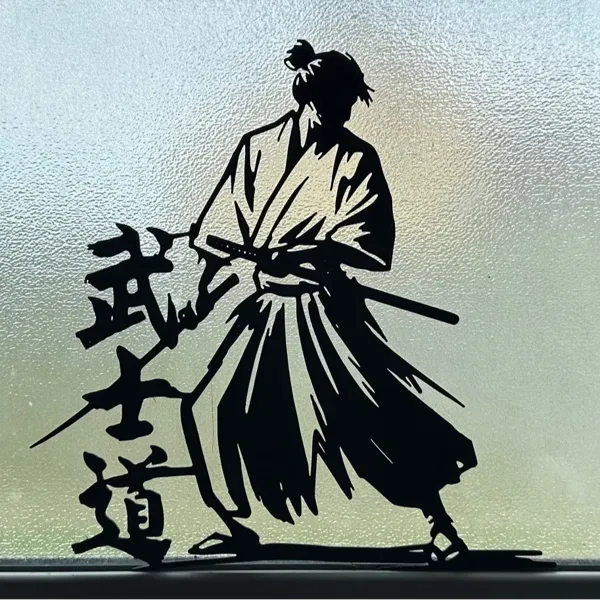

Overview.A Ring Lamp that can be changed to different situations. I designed base with various panels which can adapt to various style and occasion. You can simply change color of it as well as pattern on it, by changing color of diffuser and changing different panels.WARNINGSLed strips can emits some heat depends on what type of led you and voltage you use. In my case temperature of Main Ring achieve 60 °C . Due to this I recommend use filament that can resist that temperature especially for Main Ring. I tested ASA and it works well. Other high temperature filaments should work too (ABS, PETG but I didn&#39;t test it) PLA in this case can bend over time especially if you use heavy panel like budha.So in summary I tested and recommend :Main Ring - ASABase, Diffuser - PLAPanels- ASA ( PLA is possible but can bend )If you want change panel, always wait to cool down the ring lamp, otherwise PLA cover can bend during take off.&nbsp;Two Versions.There are two versions of Ring LampV1  - version 1 - First version of Ring Lamp. It is designed for 8 mm LED stripe.V2  - version 2 - Second version of Ring Lamp. It is designed for both 8mm and 12 mm LED stripes. I enlarged each piece by 110% so it now better takes advantage of bed size of the Bambu Lab printers.&nbsp;In the meantime, some designers created their own fronts for version 1. If you want to use fronts from other designers, make sure they are the right size. If they are too small, simply enlarge them to 110% in the X and Y axis as in the image below.&nbsp;<figure class="image image_resized" style="width: 38.09%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/2024-03-28_867e2b9fbfc93.png">&#34;</figure>&nbsp;Electric parts you need.The easiest way is to buy electrical parts designed specifically for a ring light. Provides easy installation without the need for soldering.It is available on Amazon <a target="_blank" href="https://amzn.to/3zAnd6c" rel="nofollow noopener">https://amzn.to/3zAnd6c</a>It works with V1 and V2. <figure class="image image_resized" style="width: 37.08%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/2024-06-30_880ecf419c351.jpg">&#34;</figure>You can also buy only the LED Strip from Bambu Lab Store<a target="_blank" href="https://store.bambulab.com/collections/led-strip-light/products/white-cct-tunable-cob-led-strip-light?skr=yes" rel="nofollow noopener">https://store.bambulab.com/collections/led-strip-light/products/white-cct-tunable-cob-led-strip-light?skr=yes</a>It works only with larger V2&nbsp;<figure class="image image_resized" style="width: 30.92%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/2024-06-30_4c071b0333c11.jpg">&#34;</figure>&nbsp;&nbsp;By purchasing the above products, you support my work&nbsp;&nbsp;Of course, you can also search for each part separately and solder it yourself. You will need<ul><li>led stripe - best are LED COB </li><li>charger for LED strip</li><li>dc connector - I used 2.1/5,5 mm , the diameter of the mounting hole is 11.5 mm</li></ul><figure class="image image_resized" style="width: 21.19%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/8867176f-a9e4-4554-8087-7b1fd3a6b430.webp">&#34;</figure><ul><li>OFF-ON SWITCH</li></ul><figure class="image image_resized" style="width: 18.17%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/5cf1687e-913a-4186-92f2-75d8d2bac909.png">&#34;</figure>&nbsp;Printed PartsMain Ring, Base and Panels can be printed in draft mode 0.28-0.30 mm layer height with no issue.Diffuser should be printed with 0.2 mm layer height.<ol><li>After print, glue led strip to inner side of Main Ring</li></ol><figure class="image image_resized" style="width: 539.361px"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/55f0a8a9-5b68-4a7a-b60e-def1c0cf337a.webp"></figure>Start from hole on bottom side<figure class="image image_resized image-style-align-center" style="width: 537.429px"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/8f453fdd-01d6-476e-baaa-f03826eac490.webp"></figure>2. Put Main Ring into base. It should fit tight without glue.<figure class="image image_resized image-style-align-center" style="width: 538.864px"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/f03a229b-e68e-4835-9d5f-37f66a2677d0.webp"></figure>3. Insert the electric part into the base and connect them by soldering<figure class="image image_resized" style="width: 535.014px"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/2e73757c-be70-46f0-8fbb-ebc700b2e62a.webp"></figure><figure class="image image_resized" style="width: 531.08px"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/75ca1515-ddbf-47b2-ab0d-34d6c3b795b9.webp"></figure>4. Insert Diffuser to Main Ring”. The Main Ring has a groove into which the Diffuser should be inserted and sit steadily. The flat side to the back.<figure class="image image_resized" style="width: 529.148px"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/dd5e9b3f-84e4-47dc-8964-6b93b4f6ee46.webp"></figure><figure class="image image_resized" style="width: 527.23px"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/3fc14977-a473-4279-b0d1-25f667c08fba.webp"></figure>5. Insert Panel into Main ring. The Panel has cuts at the bottom to avoid cutting the cables<figure class="image image_resized" style="width: 531.08px"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/f414f9b5-fc71-4e83-af57-faf01b92199e.webp"></figure><figure class="image image_resized" style="width: 529.148px"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000163227/design/d3004065-f61c-4175-b595-6235c7b8ead8.webp"></figure>&nbsp;If you any question or suggestion write to me&nbsp;Have fun
