user_841092506

魂直大叔

作为一个超级机器人大战的狂热爱好者，很遗憾很多机体都没有模型实体化，借由fdm3d打印技术，将自己设计的各机体图纸分享给大家，希望大家能够喜欢。作为第一弹图纸分享，制作的是本人很喜欢的伊甸王，此次分享的图纸为50%大小比例，需要使用0.2mm喷嘴进行打印。如果需要使用0.4mm喷嘴进行打印100%放大版本，可将我分享的3mf里的部件放大。因为所以零件的组装采用方块定位，不论打印任何大小比例，大家可以先将除去定位方块的零件打印出来，使用卡尺测量空洞尺寸，再合理缩放定位方块，这样不论什么比例的大小，都可以尽可能的缩小打印公差。&nbsp;As an avid fan of Super Robot Wars, I regret that many of the mecha designs lack physical models. Leveraging FDM 3D printing technology, I’ve decided to share my own designed blueprints for various mecha with everyone. I hope you all enjoy them.For this first blueprint sharing, I’ve created a model of the Eden King, a personal favorite of mine. The shared blueprint is at a 50% scale, and it requires a 0.2mm nozzle for printing. If you wish to print a 100% enlarged version using a 0.4mm nozzle, you can scale up the components within the 3MF file that I’ve provided.Since the assembly of all parts utilizes square positioning, regardless of the print size ratio, you can start by printing the parts without the positioning squares. Then, use calipers to measure the dimensions of the cavities and adjust the positioning squares accordingly. This way, regardless of the chosen scale, you can minimize printing tolerances as much as possible.<figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000445893/design/2024-04-28_21e9d340fa61a.png"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000445893/design/2024-04-28_ba6f095366053.png"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000445893/design/2024-04-28_1efefb0af0d9e.png"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000445893/design/2024-04-28_f58514a229696.png"></figure><figure class="image image_resized" style="width:100%;"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000445893/design/2024-04-28_c4c911ae6cca6.png"></figure>

Space Runaway Ideon no support (50% Scale)

生活类别

BENOengineering

Protect your beer with this can cover against wasps, bugs and other co-drinking persons :)The bottom snaps onto the top of a 0,5L - 0,33L (short) - 0,33L (long) can. If you want it to work with a 0,25L can, scale both parts to 0.96.Easiest way to assemble is by gently squeezing together the circle of the bottom part and slide the top into the hinge-part.&nbsp;Check out the alphabet-version as well:<a target="_blank" href="https://makerworld.com/en/models/458456" rel="nofollow noopener">https://makerworld.com/en/models/458456</a>&nbsp;Commercial license you can get here:https://buymeacoffee.com/benoengineering/e/265720

Beer protector

创意类型

page7

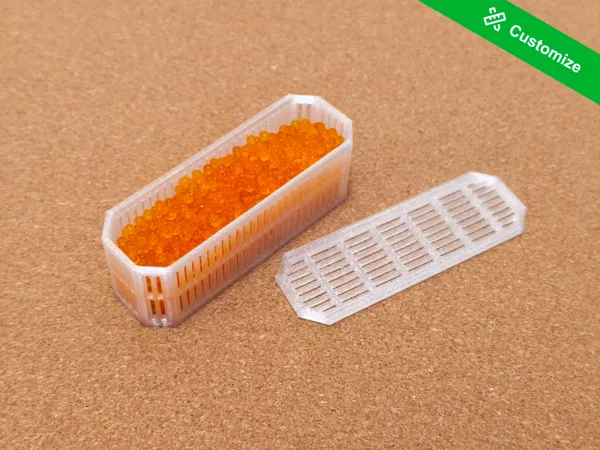

适配多种干燥桶设计，推拉卡槽式盖板尺寸 88x29xh32mm&nbsp;update: v2 增大了卡扣体积，增加防滑锁扣，防止滑开

干燥盒 drybox v2

打印机配件

3DPmom

<figure class="media"></figure><img class="image_resized" style="width: 30.59%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000000149136/design/b50369d8-d175-46ad-80d6-b86a1393e919">These are fun rockets with boosters that extend on take-off. I designed two sizes and each contain two parts: the main rocket body and the boosters. The larger rocket has four small boosters and the smaller rocket has one large booster.  These make great little gifts or party favors 🚀&nbsp;<img class="image_resized" style="width: 30.5%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000000149136/design/41d3f34e-0eac-43be-ba01-6c384316d3ca">Layer Height 0.2mmPLA works great15-20% InfillSupports needed for the area around the boosters on the Large Rocket&nbsp;Dimensions of Large Rocket: 4in x 2 3/8inDimensions of Small Rocket: 3 1/4in x 1 7/8in&nbsp;There are two ways you can print these rockets (I included both in their print profiles):<ol><li>Print the complete rocket: this prints great but if you want multi-color for the boosters (and/or fins) it’s going to take some time (I found 8-10hrs)</li><li>Print the boosters first, print the rocket second pausing at layer height 15.6mm for the large rocket and 30.6mm for the small rocket, drop the boosters in and then continue printing. This method is much faster:)</li></ol>&nbsp;In the print profile for the small rocket I included the complete rocket to print on plate #1. On plates #2 &amp; #3 I separated the rocket from the boosters, so they can be printed separately (make sure to print the boosters first:)&nbsp;In the print profile for the larger rocket I included the complete rocket to print on plate #1. On plates #2 &amp; #3 I separated the rocket from the 4 sets of small boosters so they can be printed separately (again make sure to print the boosters first:)&nbsp;Note: supports are needed for the larger rocket at the base around the rings for the boosters. I have included those supports in my print profile. (Also note if you are printing plate #3, I did not include supports in the booster chambers so that they are clear to drop the boosters in:)&nbsp;<img class="image_resized" style="width: 30.6%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000000149136/design/5e3a3622-4ff3-47e6-adc2-303a5155681a">My designs are free for personal and non-commercial use. If you would like to sell them for commercial use, send me a message and we can discuss the details:)&nbsp;<img class="image_resized" style="width: 30.54%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000000149136/design/e757d34e-1fcd-4b04-b6fe-8c0d913c3a49">If you like my work and want to help support it, you can buy me a Diet Coke at <a target="_blank" href="https://www.buymeacoffee.com/3dpmom" rel="nofollow noopener">https://www.buymeacoffee.com/3dpmom</a> Thanks so much!&nbsp;Have fun printing these…they’re a blast 🚀

生活类别

创意类型

打印机配件

玩具
