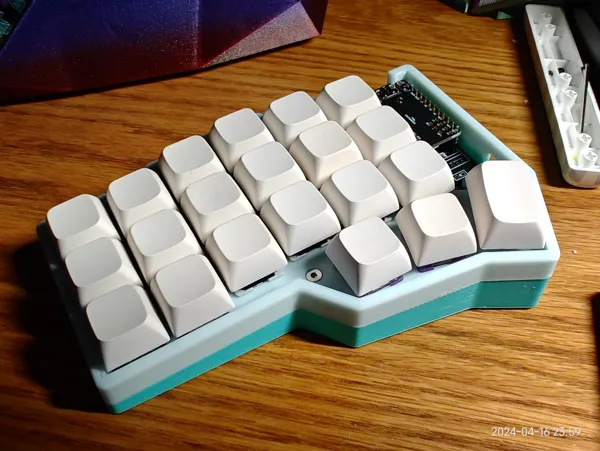

分享我为睫毛哥Corne 3x6 zmk pcb设计的轻微倾角外壳。&nbsp;因为是带有rgb的pcb，我考虑尽量放一个大一点的电池。&nbsp;我设计了这个横向倾角5°，纵向倾角2°的corne外壳。&nbsp;可以放下一枚103450尺寸，2000mah锂电池。&nbsp;整体比较小巧，也尽量紧凑。&nbsp;结构上采用了咬合结构，让两个部分结合更紧密，也更美观，当然这也会考验你的打印精度。&nbsp;BOM清单：m2.5x8平头螺丝103450锂电池&nbsp;Update：更新了墨水屏上盖。增加了支撑注释图，请按图中方式绘制支撑。&nbsp;I designed this case  for jiemao Corne 3x6 ZMK PCB.&nbsp;cause it is a  RGBPCB , I consider trying to put a larger battery as much as possible.&nbsp;I designed the Corne CASE with a horizontal inclination of 5 ° and a longitudinal inclination angle of 2 °.&nbsp;You can put a 103450 size  2000mAh  battery in.&nbsp;The overall is relatively small and as compact as possible.&nbsp;The structure adopts a bite structure, which makes the two parts close and more beautiful. Of course, this will also test your printing accuracy.&nbsp;BOM list：m2.5x8 flat head screw103450 2000 mAh battery&nbsp;&nbsp;
