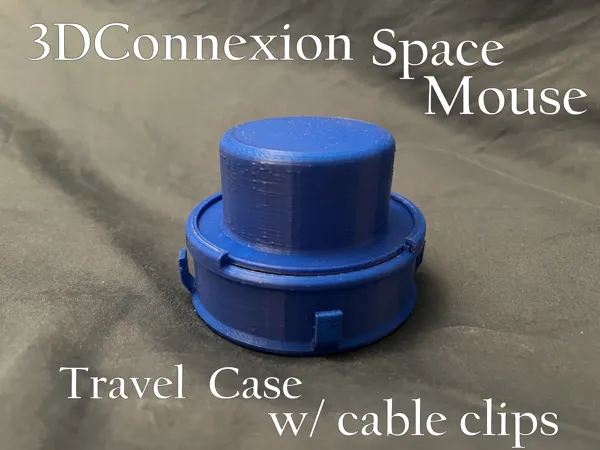

<p>I remixed the original design to add some cable clips around the outside for storing the cable.</p><p>I re-created the parts instead of modifying the original files, so they might not be perfectly intercompatible.</p>
