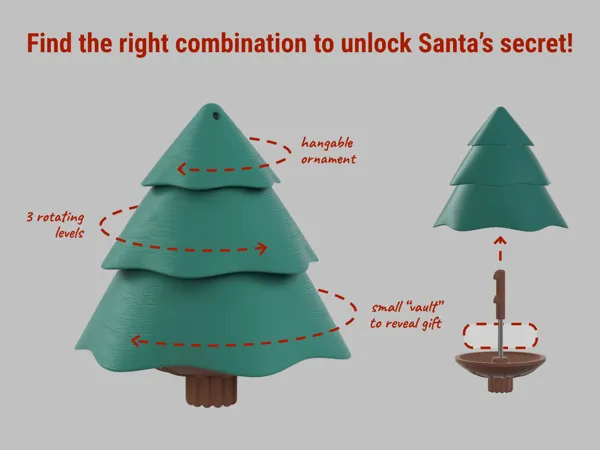

<h3>Unlock a little joy this season with this tree ornament that conceals a locked compartment.</h3><p>Rotate the tree levels to find the combination that unlocks Santa's secret compartment. Great for small gifts (cash, other 3D-printed wonders, etc).</p><p>&nbsp;</p><p><strong>How it Works</strong></p><ul><li>Tree has 3 rotating levels</li><li>User needs to align branches on bottom and middle levels with base (36 possible combinations) to unlock the secret compartment</li><li>The top level also rotates, but it's just a red herring / isn't needed to unlock the compartment 😉</li><li>Design is ready to remix and add some more flair:<ul><li>Add some snow to the tree sections if you have multi-color printing</li><li>Draw some additional decorations on each section to orient yourself</li></ul></li></ul><p><strong>🧩 Parts List</strong></p><ul><li>🟢 Tree, Top</li><li>🟢 Tree, Middle</li><li>🟢 Tree, Bottom</li><li>🟤 Base</li><li>🟤 Key</li><li>📏 Aluminum Shaft: ø3mm (1/8") x 70mm (2 ¾")</li><li>💧 Glue (2-part epoxy or superglue)</li></ul><p><strong>🛠 Assembly</strong></p><ol><li>👐Carefully snap the tree sections together. Locking features should keep the pieces assembled but let them rotate independently.</li><li>🪛 Chase the holes in the base and key to ensure a snug fit with the locking shaft - a hand vise and drill bit work well for this</li><li>👐 Dry fit the base, shaft, and key and check to make sure the shaft length is correct to engage the lock on the upper tree section</li><li>💧 Glue shaft to base and key with glue - make sure that key tangs are aligned with dot on bottom of base</li><li>🎁 Load up with your secret gift, assemble base and tree, and rotate to securely lock</li><li>🎄 Hang in your tree with fishing line or ribbon!</li></ol><h4>Have feedback?</h4><p>Please add a comment as I continue to refine the design to ease printing, assembly, and use!</p>

Santa's Pine Puzzle Surprise
