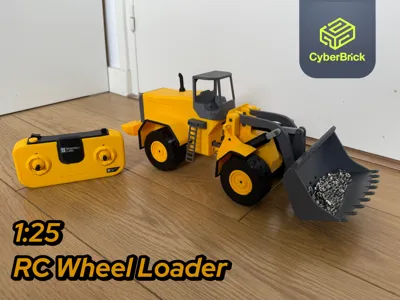

Cyberbrick RC Wheel Loader
Cyberbrick RC Wheel Loader
847
152
888
237
Cyberbrick RC Dumptruck
Cyberbrick RC Dumptruck
432
86
372
100
Recent Models
Vector Buggy - Cyberbrick RC car platform
Vector Buggy - Cyberbrick RC car platform
145
13
103
25
Cyberbrick RC Dumptruck
Cyberbrick RC Dumptruck
432
86
372
100
Cyberbrick RC Wheel Loader
Cyberbrick RC Wheel Loader
847
152
888
237
Recent Article

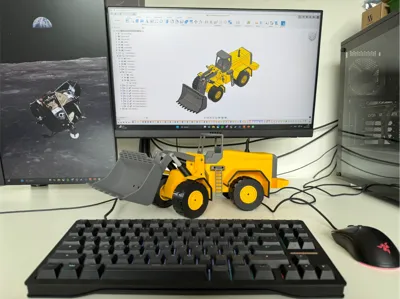

RC wheel loader, Cyberbrick powered!
RC wheel loader, Cyberbrick powered!RC wheel loaderI wanted to build a functional scale model of a large vehicle, with plenty of features but still feasible to make using Cyberbrick components. That’s why I decided to recreate a wheel loader.Scale 1:25My design was inspired by the Volvo L350F wheel loader. While it was challenging to capture all the details of the real machine and still keep it fully functional, I did my best to achieve both. Working ‘hydraulic’ CylindersOne of the most challenging parts of this design was the cylinders. I ultimately created a solution using threaded N20 motors (available from Maker’s Supply). By combining an M3 nut with the motor’s rotating shaft, the mechanism pushes a rod up or down.These cylinders make it possible to achieve realistic bucket movement.Other features4 Wheel driveFront and rear differentialRealistic Articulated Steering using a servoReleasing soon on makerworld!I’m still working on the assembly guide and fine tuning some allowances, but once that’s finished I hope to release it next week. If you have any questions or suggestions, please let me know, I’m curious to hear what you think.
