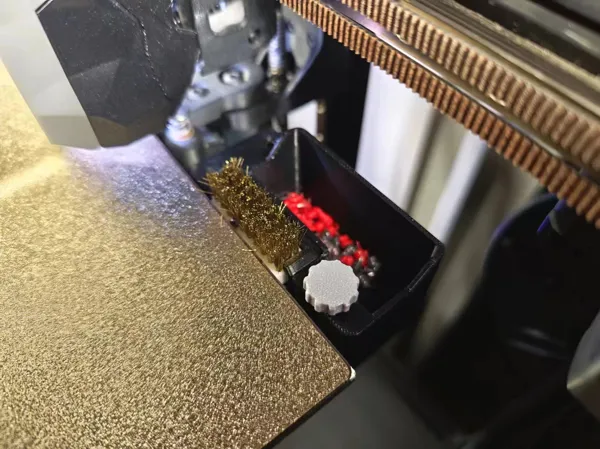

<h3>Motivation</h3><p>The X1C printer has a good and well-working nozzle wiper that is easy to source. I want to implement a similar system for Voron Trident and 2.4 using the Bambu lab wiper accessory.</p><p>The Bambu lab wiper accessory is a simple and effective way to clean nozzles. It is made of a durable material and can be easily mounted to the printer. I believe that this system would be a valuable addition to the Voron Trident and 2.4, as it would help to keep the nozzles clean and Z offsets spot on.</p><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/user/1939759783/draft/2023-09-25_7x2bcx7ciird.png"></figure><p><strong>Here are some of the benefits of using the Bambu lab wiper accessory for Voron Trident and 2.4:</strong></p><ul><li><strong>Easy to source:</strong> The wipers are readily available on Bambu lab stores in EU, US, INT.</li><li><strong>Simple to install</strong>: The wiper is easy to mount to the printer and requires no permanent modifications.</li><li><strong>Effective</strong>: The wipers are made of a durable material and can effectively clean nozzle without risking damaging the nozzle or silicone sock.</li><li><strong>Affordable</strong>: The wipers are relatively inexpensive, making them a cost-effective way to improve your printer.</li></ul><h3>How it works</h3><figure class="media"></figure><h3><br>Feedback</h3><p>This is a <strong>BETA</strong> mod, any feedback and PR will be much appreciated.<br>PM me in <strong>Printables</strong> or <strong>@iconicfab </strong>at Discord.<br><br>STEP file will be released as soon as testing will be completed.</p><p><strong>Things to look at:</strong></p><ul><li>General fit</li><li>How easy/painful is printing</li><li>Height of the wiper vs its mounting position</li></ul><h3>BOM</h3><ul><li>1 x <a href="https://store.bambulab.com/collections/accessories/products/nozzle-wiper" rel="nofollow">Nozzle Wiper accessory </a>by Bambu lab</li><li>1 x M3x (16-20mm) SHCS bolt * 1 <i>- attaching to the frame</i></li><li>1 x M3 x (6-8mm) SHCS bolt * 1 <i>- attaching wiper to printed part</i></li><li>1 x M3 (4 x 5 mm) heat-set insert ("Voron standard")</li><li>1 x HFSB5-2020-232-LTP spring ball nut (<i>preferably</i>) or T-Nut</li></ul><h3>Print instructions</h3><ul><li><strong>ASA or ABS</strong> | PETG for non-enclosed only, not recommended as the part is close to the heated bed.</li><li>Layer height: 0.2mm</li><li>Extrusion width: 0.4mm, forced</li><li>Infill percentage: > = 40%</li><li>Infill type: grid, gyroid, honeycomb, triangle, or cubic</li><li>Wall count: 4</li><li>Solid top/bottom layers: 5</li><li>Supports: None</li></ul><h3><strong>To-Do</strong></h3><ul><li>Testing and adjustments</li><li>STEP release</li><li>Klipper macros</li><li><i>TBS: </i>Addon(s): Purge bucket.</li></ul><p><br><strong>As seen on Discord:</strong></p><blockquote><h3>nice. stealing this. time to toss the ol brass brush</h3><h3><i>The Ol Bamboozler V2.2587</i></h3></blockquote><p><strong>Change log</strong></p><ul><li><strong>20.08.2023</strong> - Beta 1.2. Added <strong>support for wiper ears</strong>, no need to cut them off anymore. Added M3 (4 x 5mm) <strong>heat-set insert</strong> providing a more stable mounting of the Wiper. Updated BOM.<br> </li><li><strong>06.08.2023</strong> - Beta 1.1. The screw hole for fixing the wiper is changed to ø 2.8, the recommendation is to use SCHS/BCHS self-tapping M3 bolt to secure it. Standard (Bambu lab) bolt will not provide satisfactory results. Few other minor model tweaks. Material recommendations added. In-action video from tests added.<br> </li><li><strong>05.08.2023</strong> - Initial version.<br> </li></ul><p><strong>Attribution</strong></p><p>The wiper mount base is derivative from <a href="https://mods.vorondesign.com/detail/t1DBVlcUBbdEK6habEsVzg" rel="nofollow">Voron2.4 SexBolt ZEndstop</a> by <strong>hartk1213</strong></p>
