Google Pixel 7a Protective Case / Cover

I acquired a new mobile phone and immediately wanted to print a protective case for it.

I selected this model and adapted the corners to my liking.

Unfortunately, I was dissatisfied with the result and set about improving it.

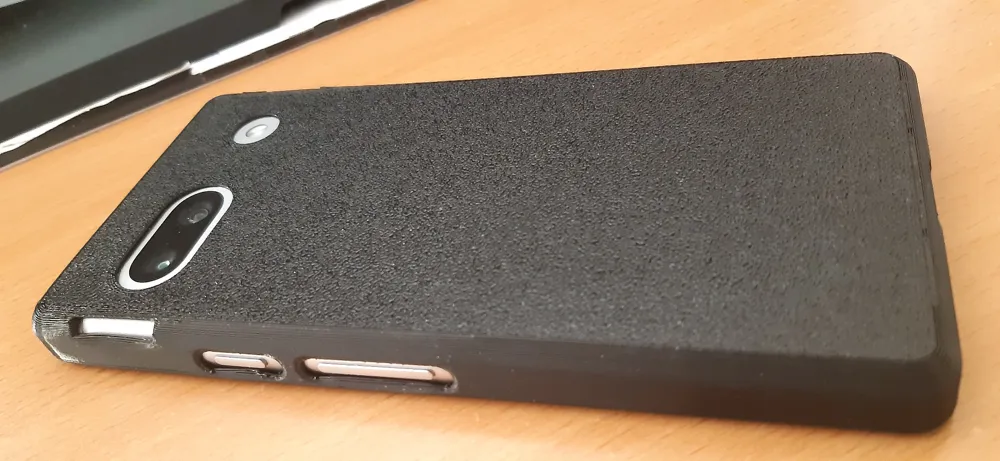

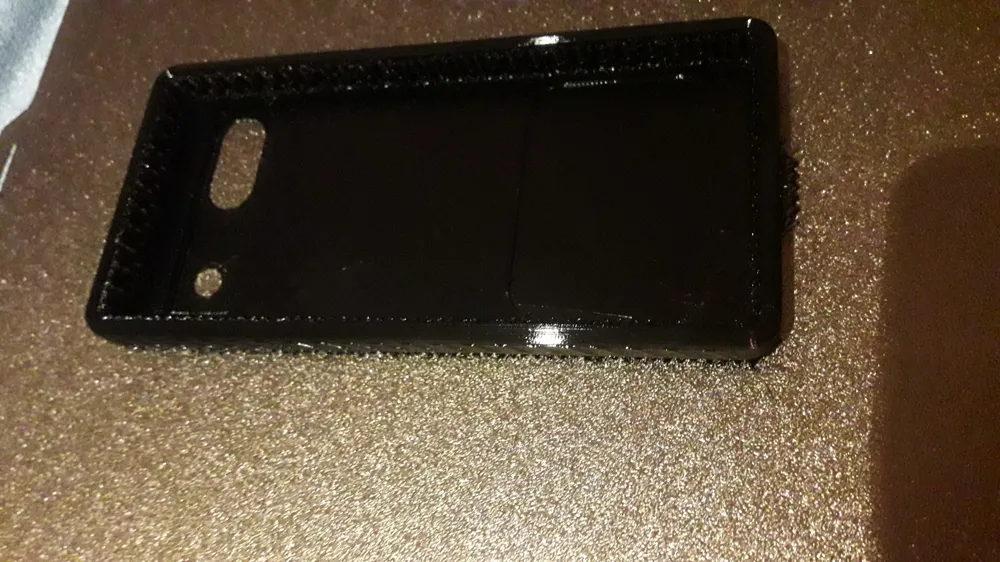

This is the resulting model, and it fits like a glove. It offers a secure hold with no slippage.

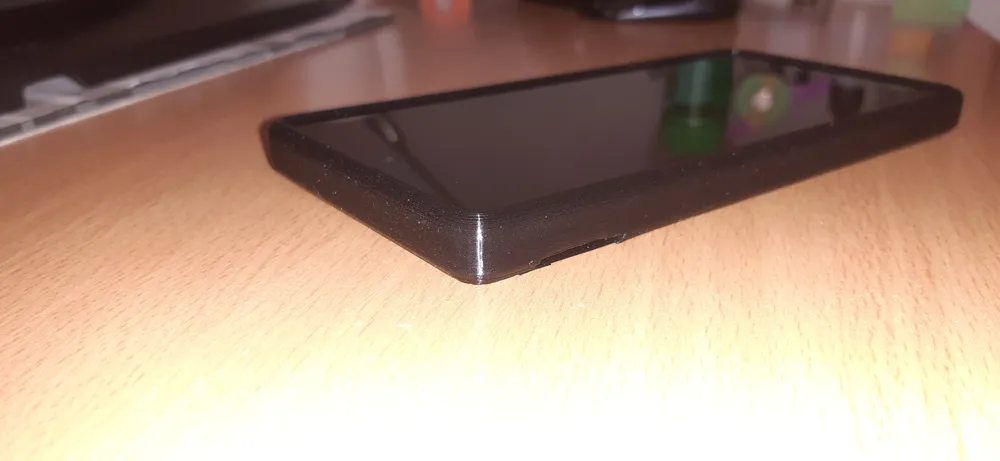

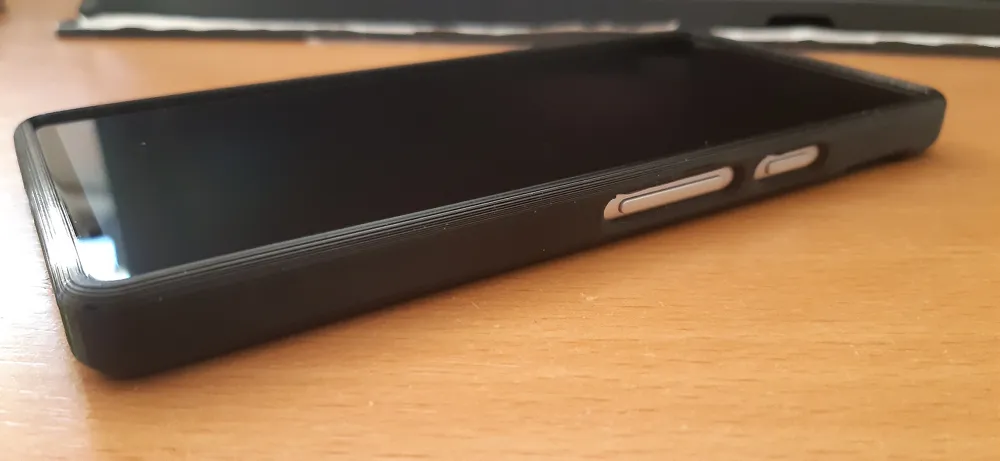

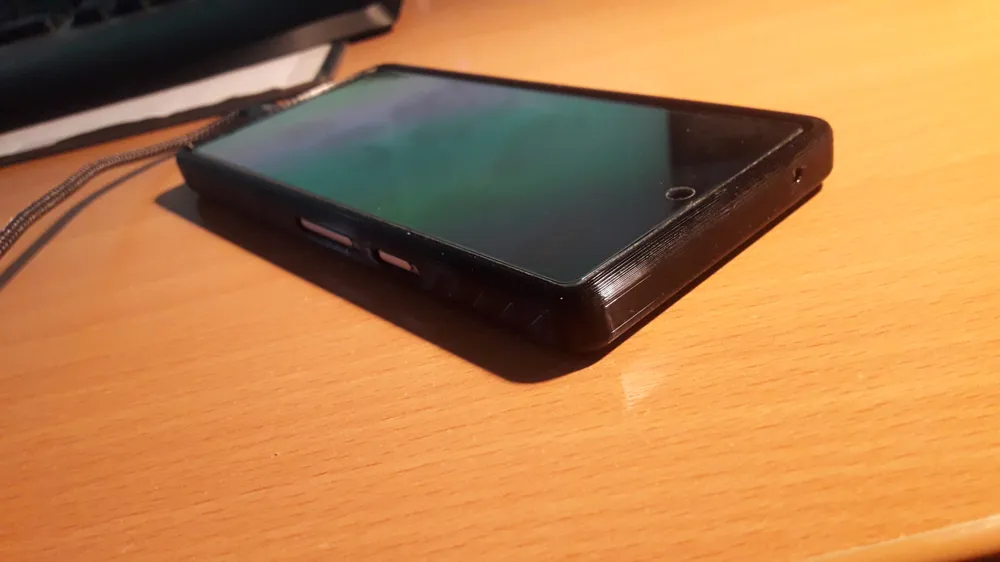

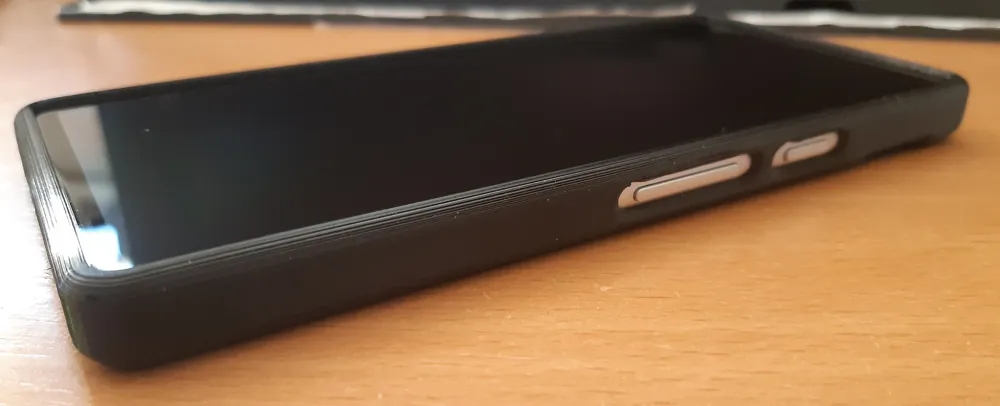

The TPU material provides excellent grip. The case’s slightly increased height offers additional display protection without hindering usability.

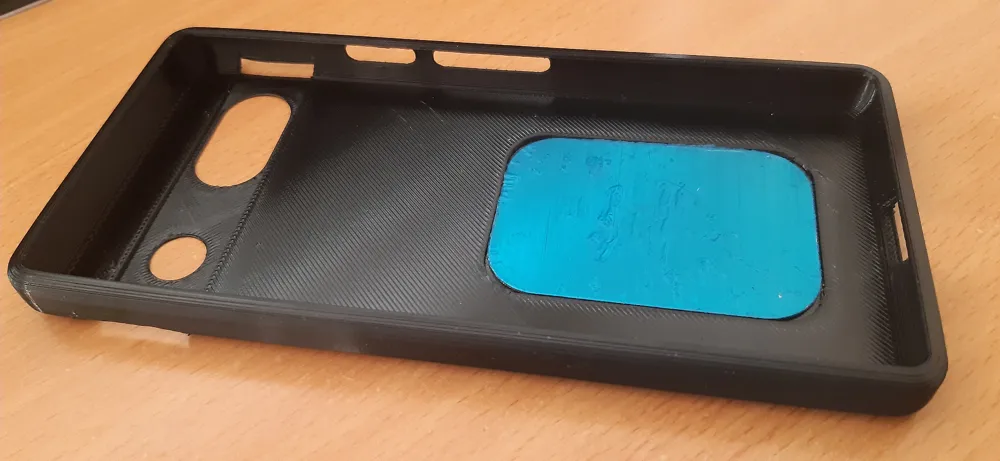

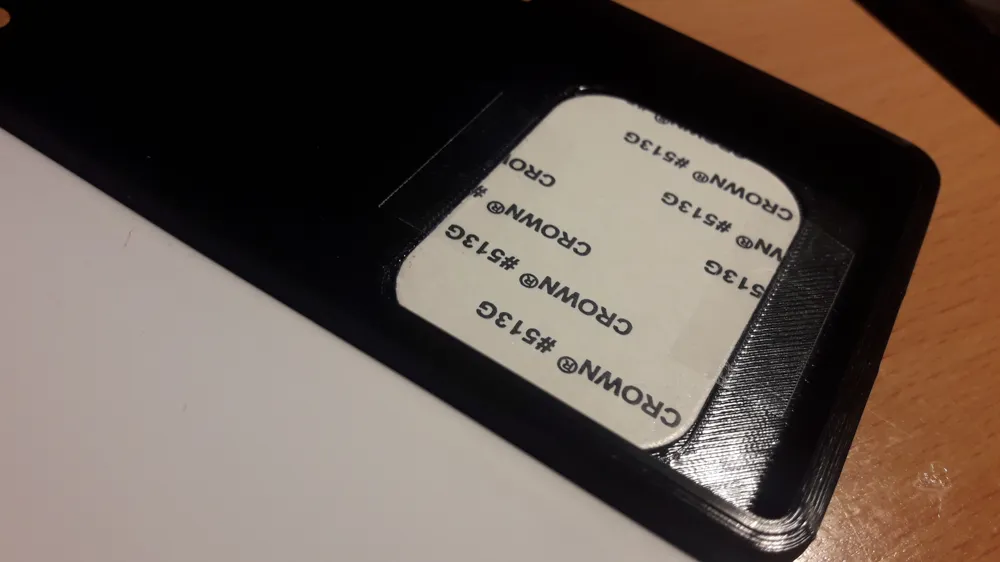

Since I own a magnetic car mount, I integrated a recess to accommodate my metal plate without increasing the case's thickness.

It can also store small items such as cash or notes. I am unable to confirm the impact on wireless charging, as I lack the means to test it.

0.2mm layer height, 20% infill, support structures

The support structures were easily removed.

If you appreciate my work, a like or boost would be greatly appreciated.

Feel free to contact me with any questions.

A corresponding belt pouch is available here….

Update 02.12.24

After two phone calls, I realised my conversation partners experienced significant audibility issues.

This was due to the original design's lack of a microphone opening.

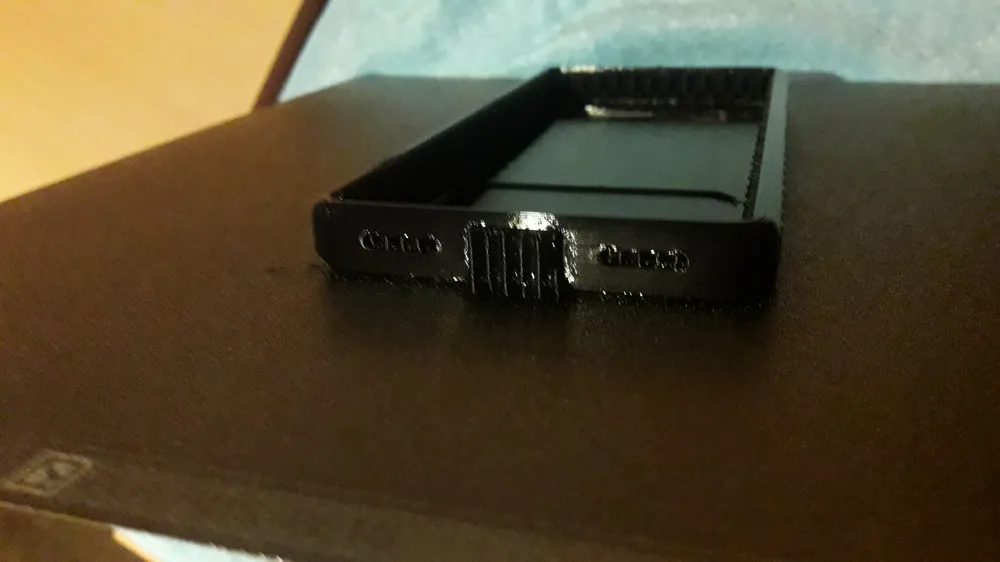

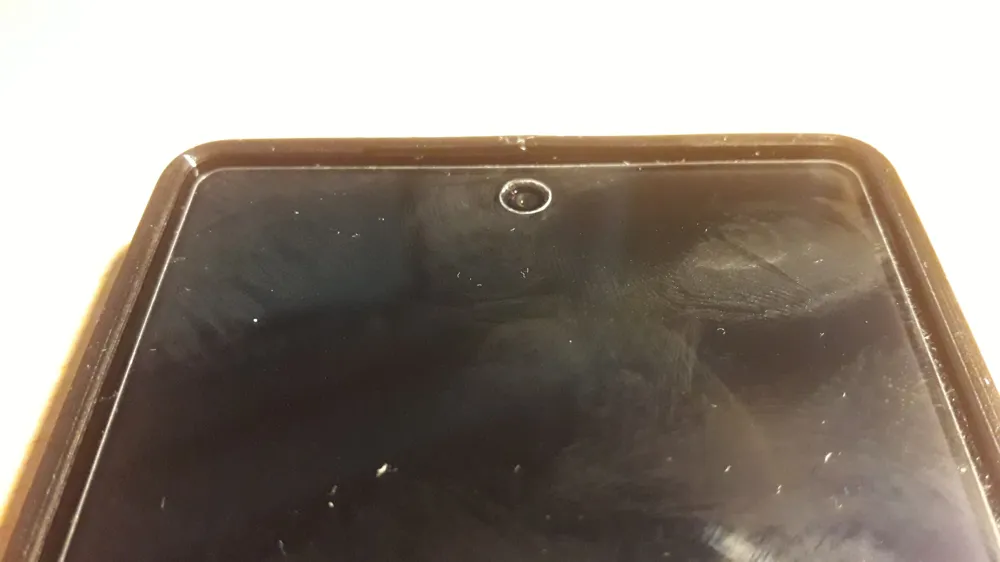

I subsequently refined the upper edge near the speaker to optimise sound wave propagation.

I have revised and replaced the print file with the updated version.

Update 05.02.25

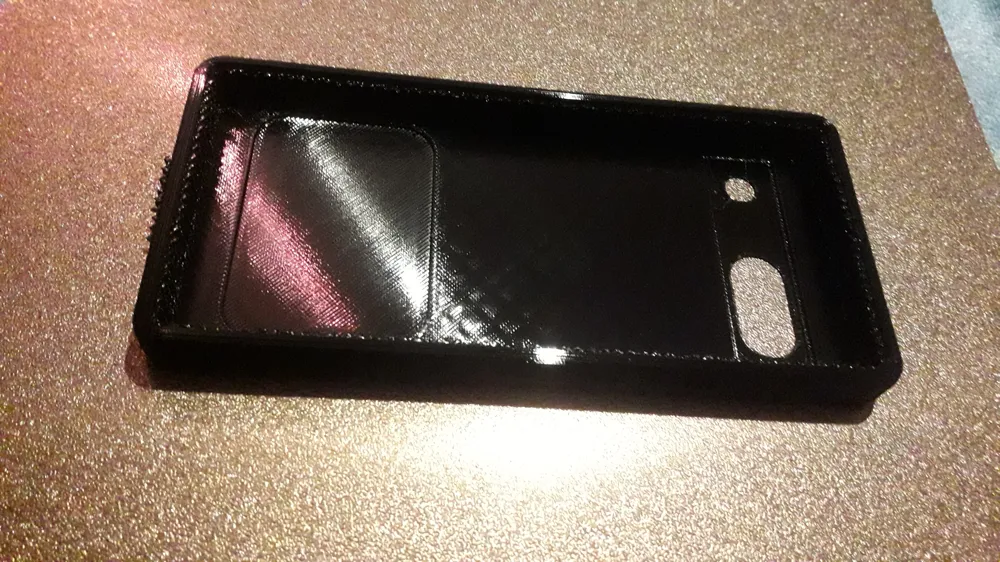

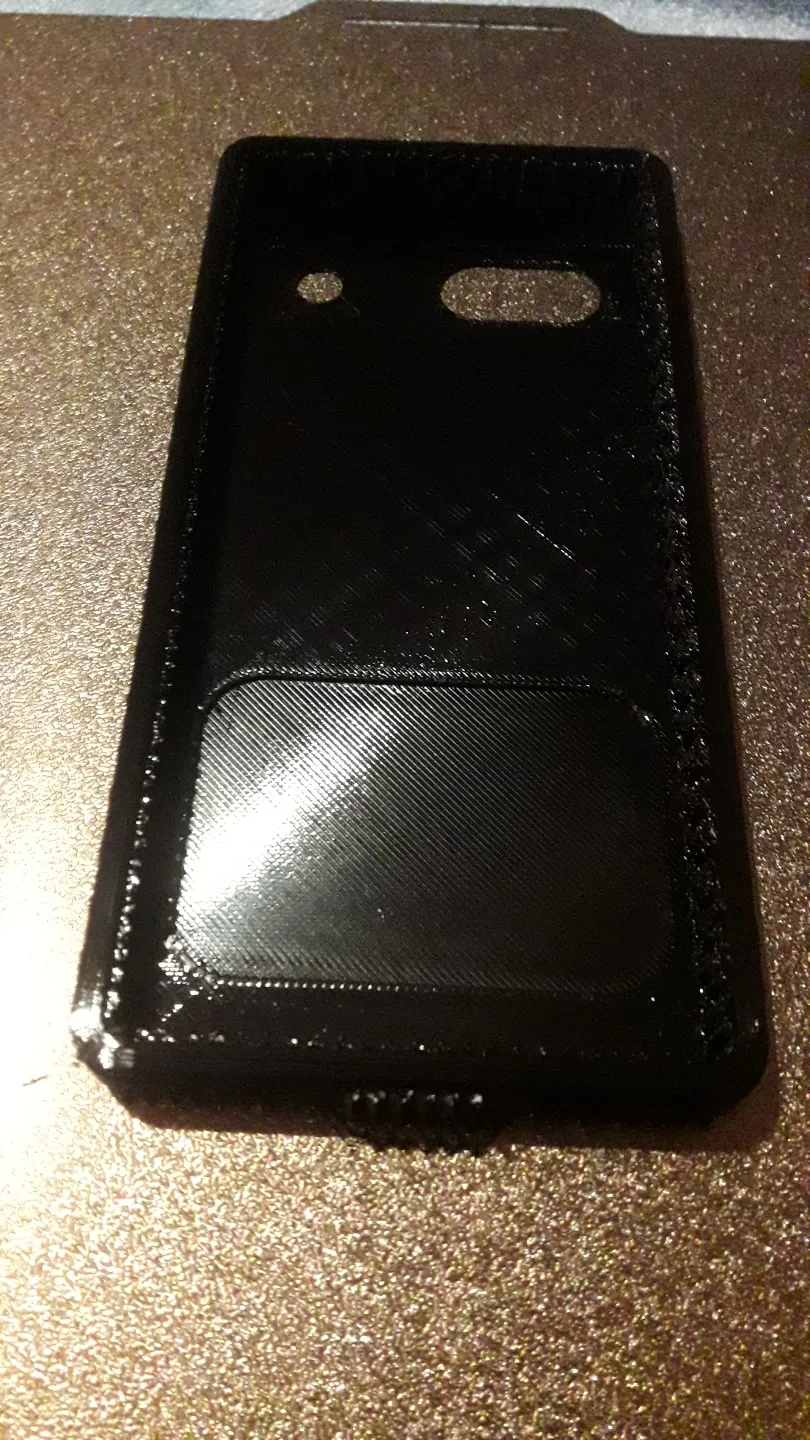

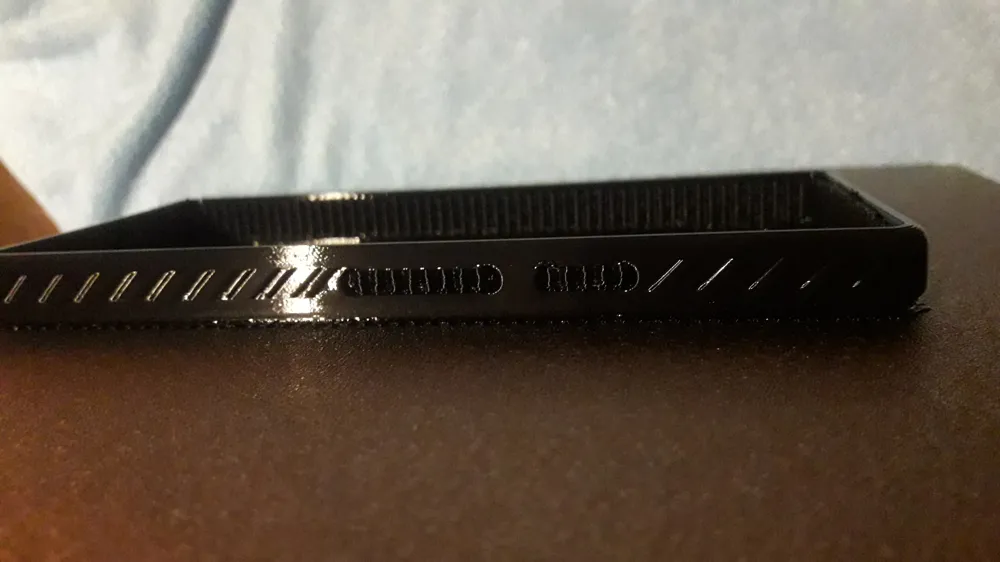

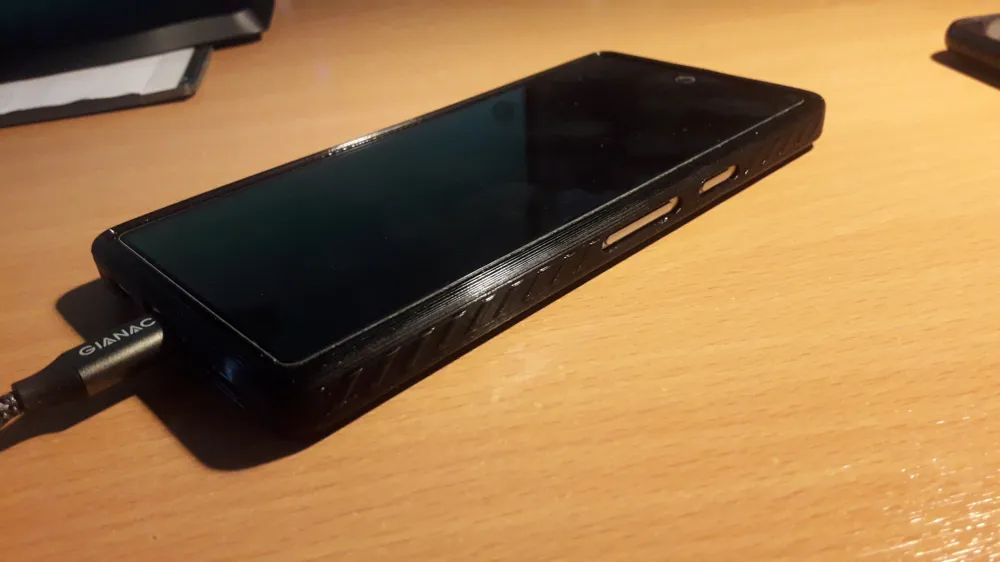

I have added three further models and enhanced the case's grip.

• Pixel 7a Phone Case—No Additions: A minimalist case design

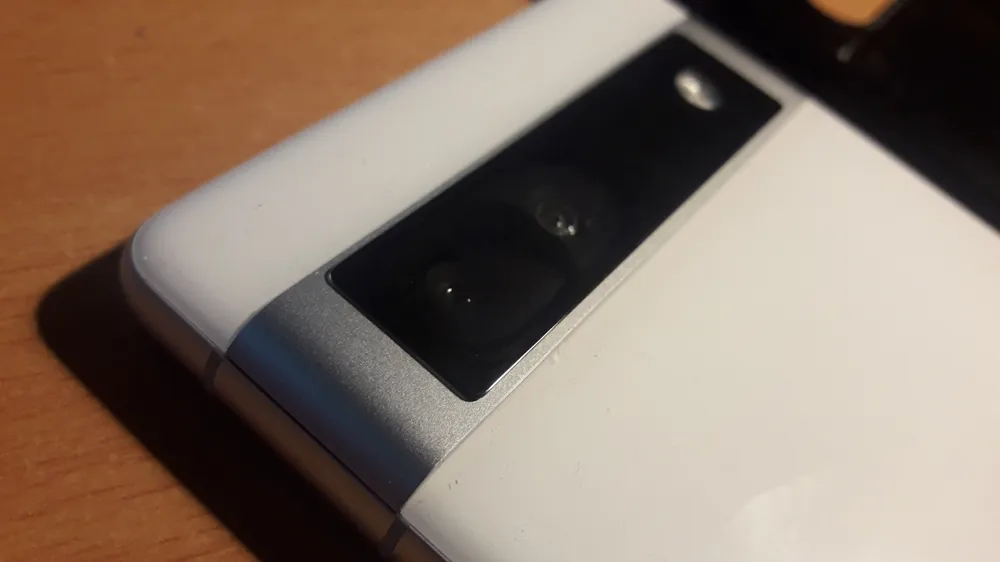

• Pixel 7a Phone Case—No Magnet, with Camera Film: A case accommodating a camera lens protector
• Pixel 7a Phone Case—Camera Film & Magnetic Plate 4125v35: A case incorporating both a camera lens protector and magnetic plate

Case Cutouts:

Magnetic plate cutout: 59mm x 41mm x 0.8mm

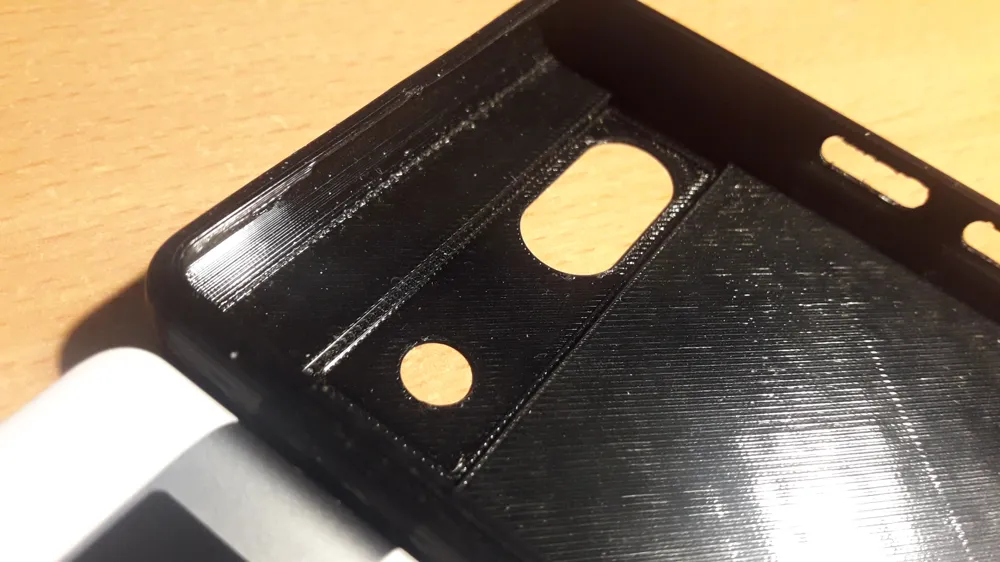

Camera film cutout: 56mm x 16mm x 0.6mm

_______________________________________________

Use at your own risk !

Small parts can be swallowed. Use only under adult supervision.

I assume no responsibility !
