Banana Claw Knife

Banana Claw Knife

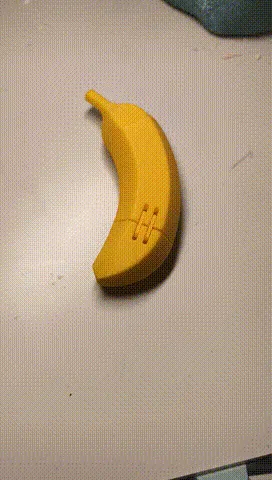

Summary: This is a banana claw knife based on the banana prototype, combined with the telescopic claw knife design. It does not require support and is easy to print. In addition to the 3D printed parts, it also needs two magnets with a diameter of 10mm and a thickness of 2mm.

Abstract: This is a banana claw knife based on the prototype, combined with the design of the telescopic claw knife, which is convenient for printing without support, in addition to the 3D printed parts, it also needs two magnets with a diameter of 10mm and a thickness of 2mm.

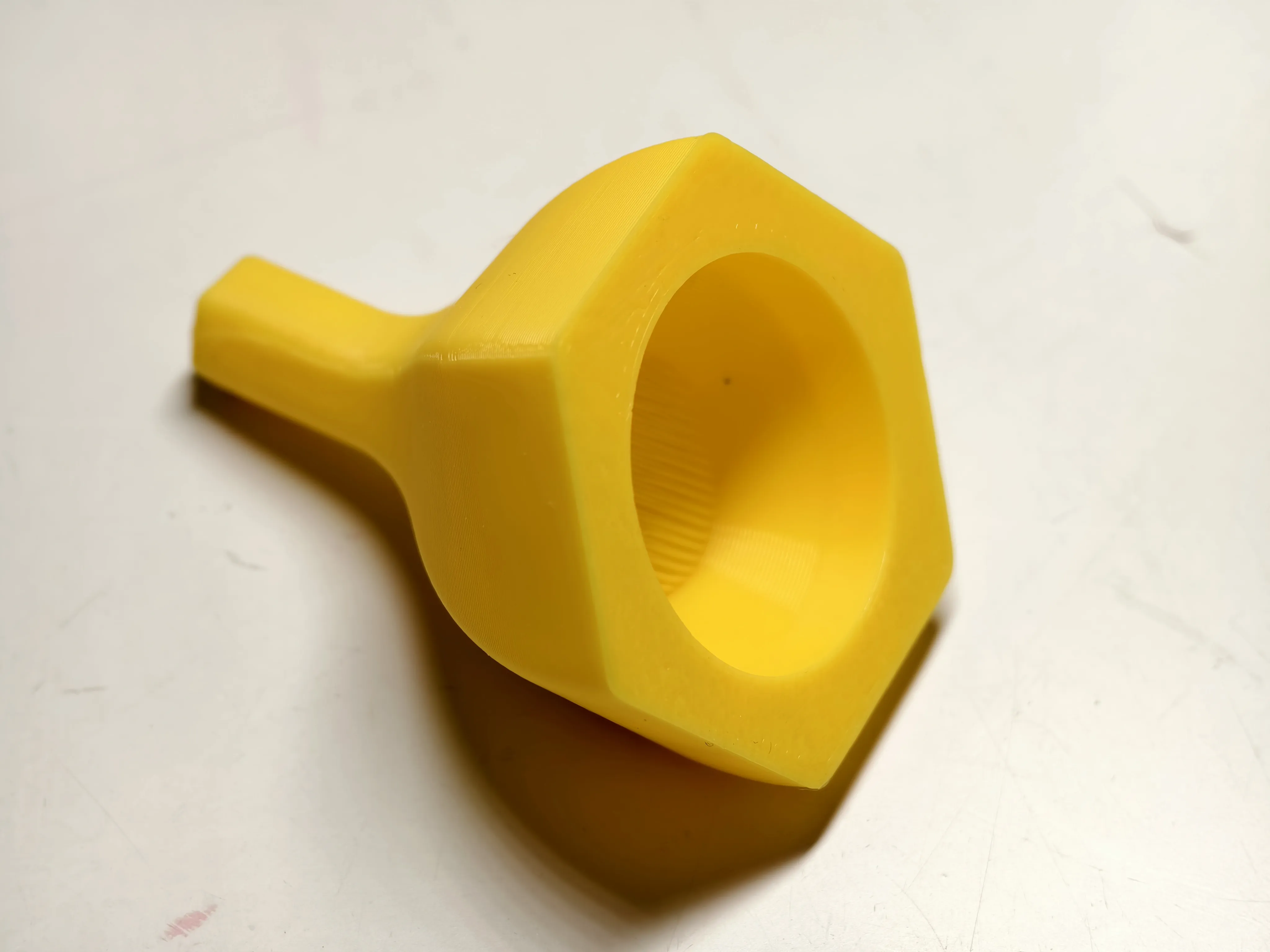

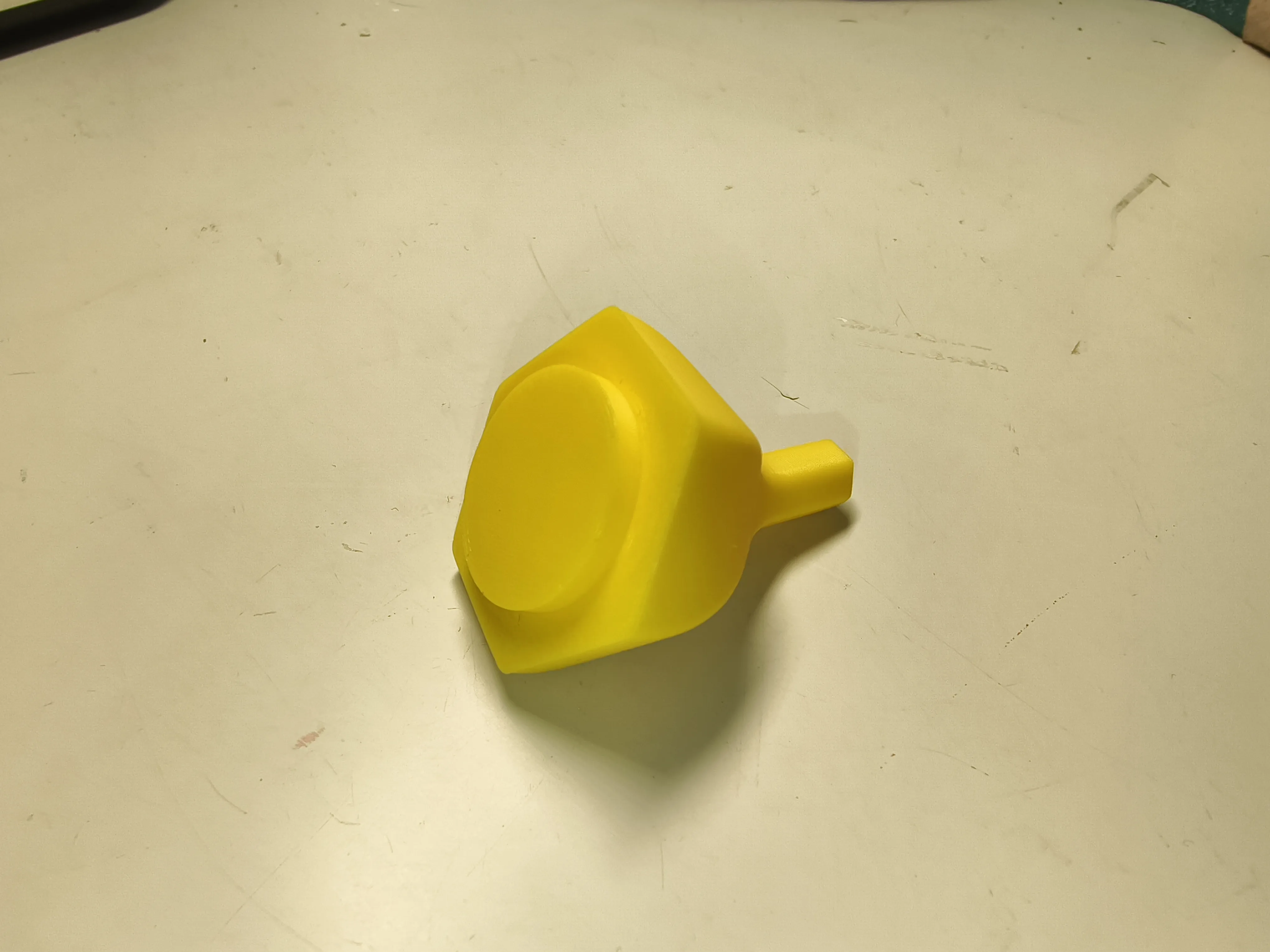

Main parts: banana 1*1, banana 2*2, banana blade*1, connecting block*1, diameter 10mm thickness 2mm magnet*2 as shown in the figure below:

Main parts: banana 1*1, banana 2*2, banana blade*1, connecting block*1, diameter 10mm thickness 2mm magnet*2 as shown in the figure below:

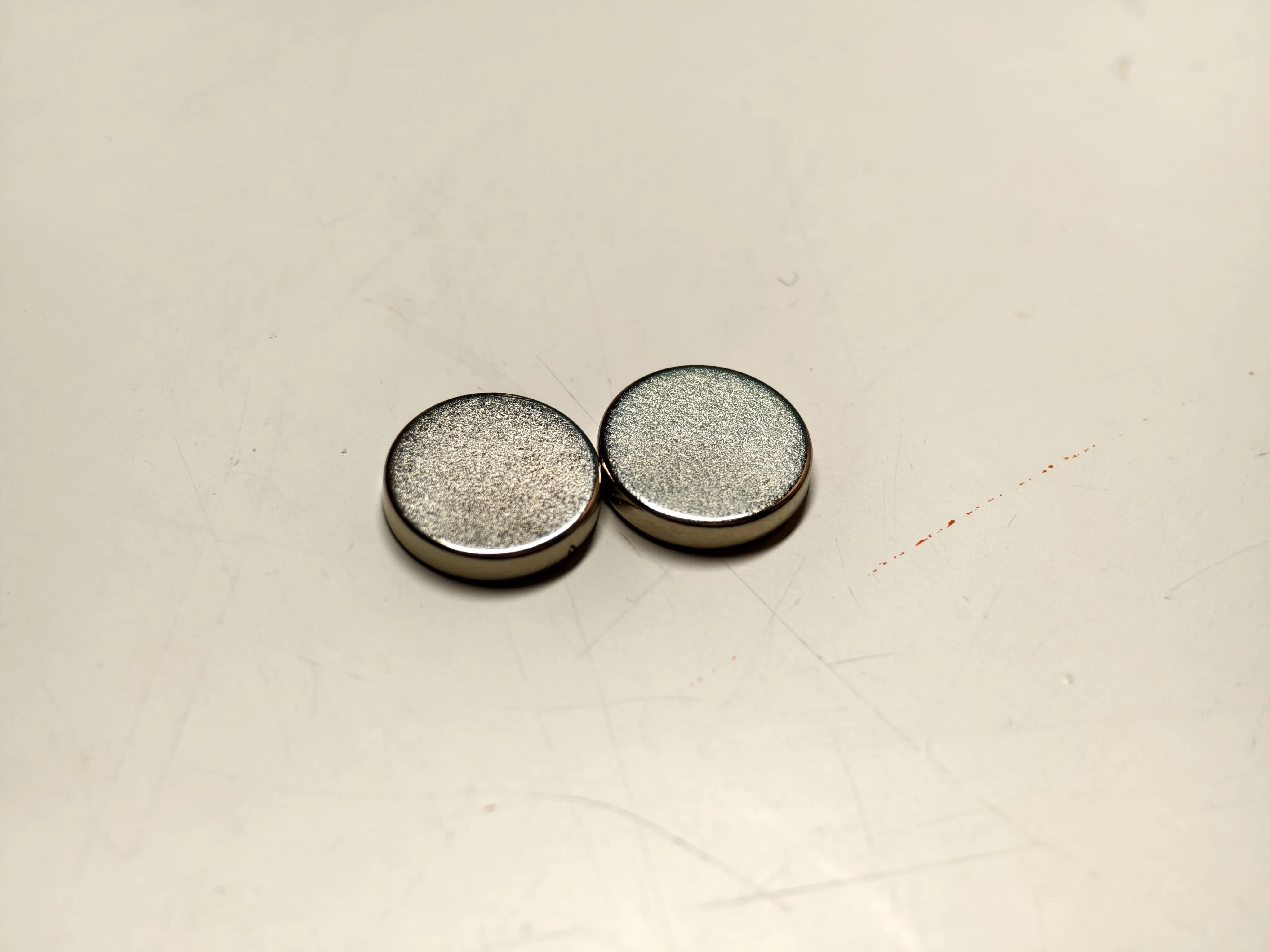

Assembly process: 1. Load the magnet into the 2 pits of the banana 1 parts and fix it with glue. Note: Make sure the two magnets attract!

Assembly process: 1. Load the magnet into the 2 pits of the banana 1 parts and fix it with glue. Note: Make sure the two magnets attract!

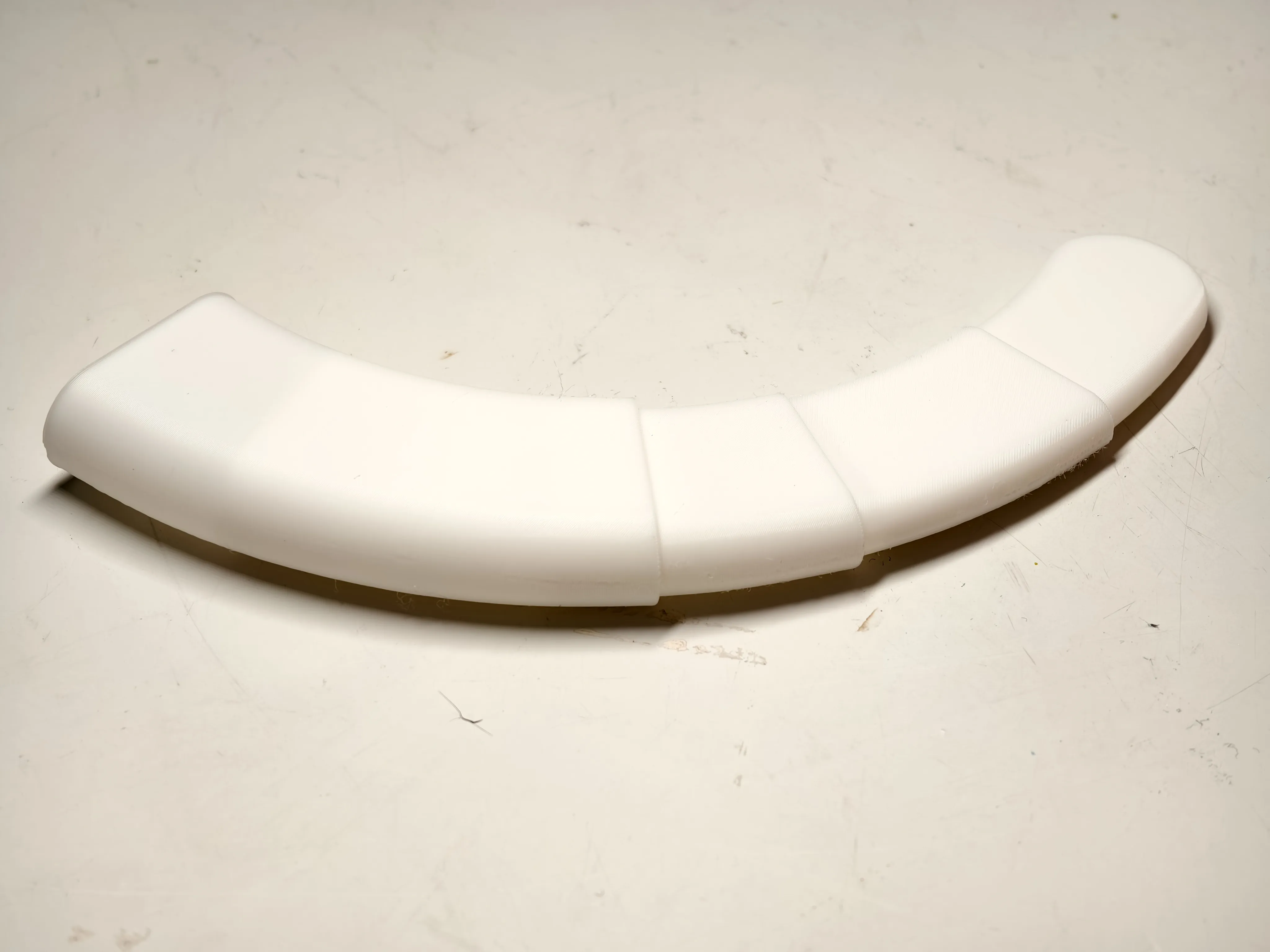

2. Load the banana blade into the banana 1 part and make sure the blade slides properly.

2. Load the banana blade into the banana 1 part and make sure the blade slides properly.

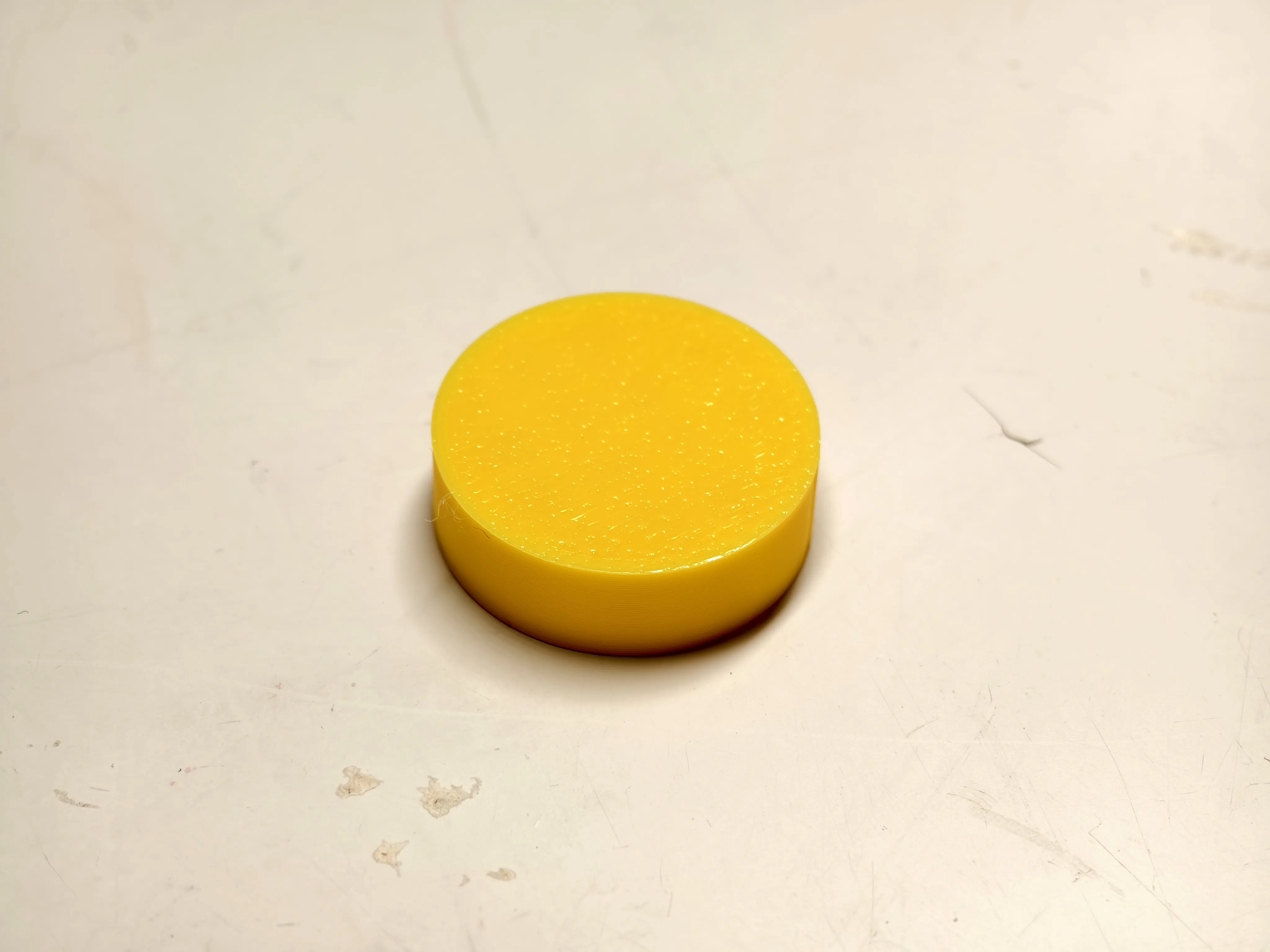

3. Snap the connecting block into the banana 2 parts and fix it with glue. (The latest connecting block adds chamfers at both ends for easy installation).

3. Snap the connecting block into the banana 2 parts and fix it with glue. (The latest connecting block adds chamfers at both ends for easy installation).

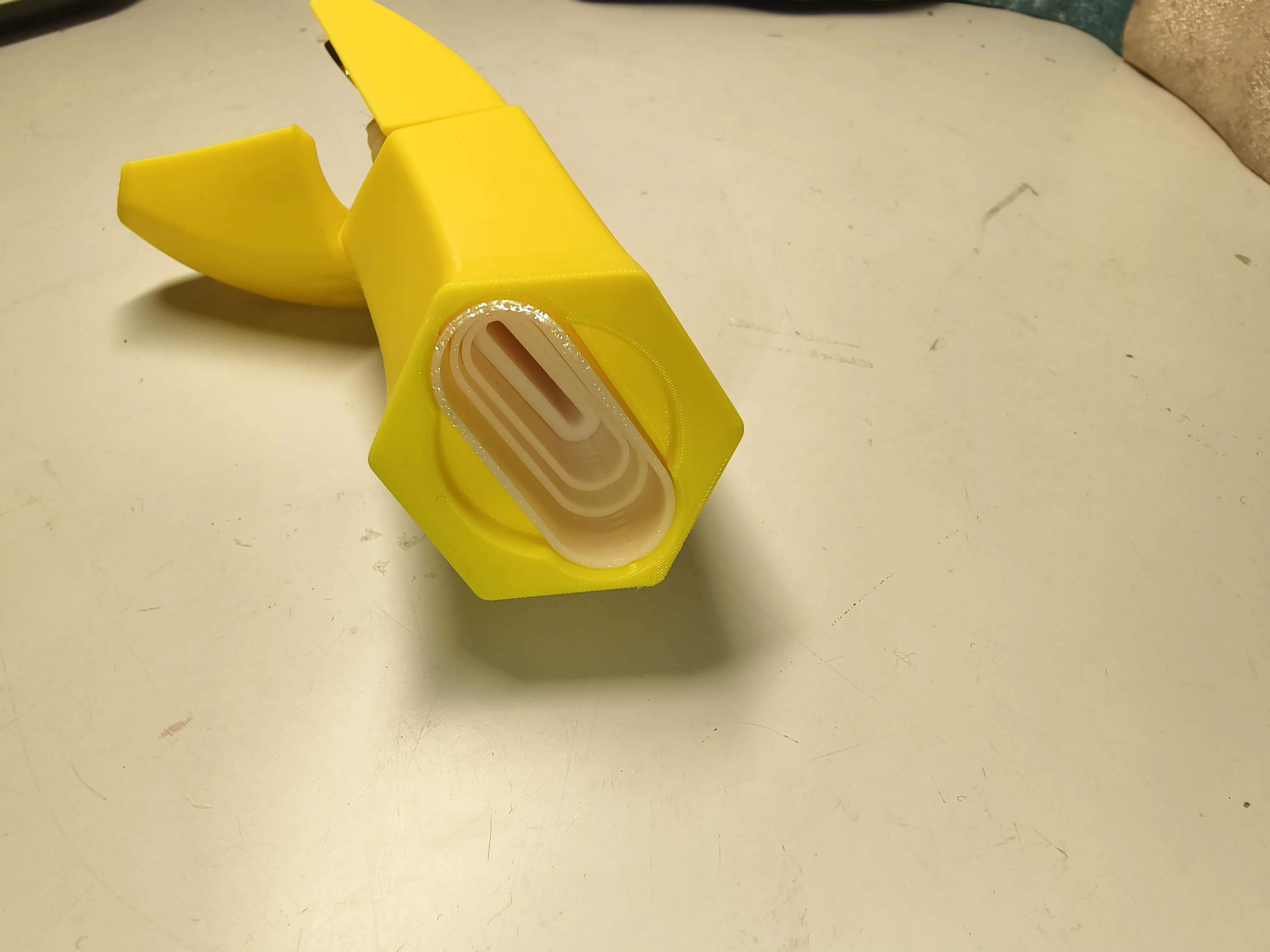

4. Assemble Banana 2 with Banana 1 parts and fix them with glue. Note: Do not use excessive glue, it may cause the blade to stick！

4. Assemble Banana 2 with Banana 1 parts and fix them with glue. Note: Do not use excessive glue, it may cause the blade to stick！
