0.16mm layer, 4 walls, 50% infill
Designer
39 min
1 plate
Open in Bambu Studio
Boost
4
11
1
0
9
3
Released
Description

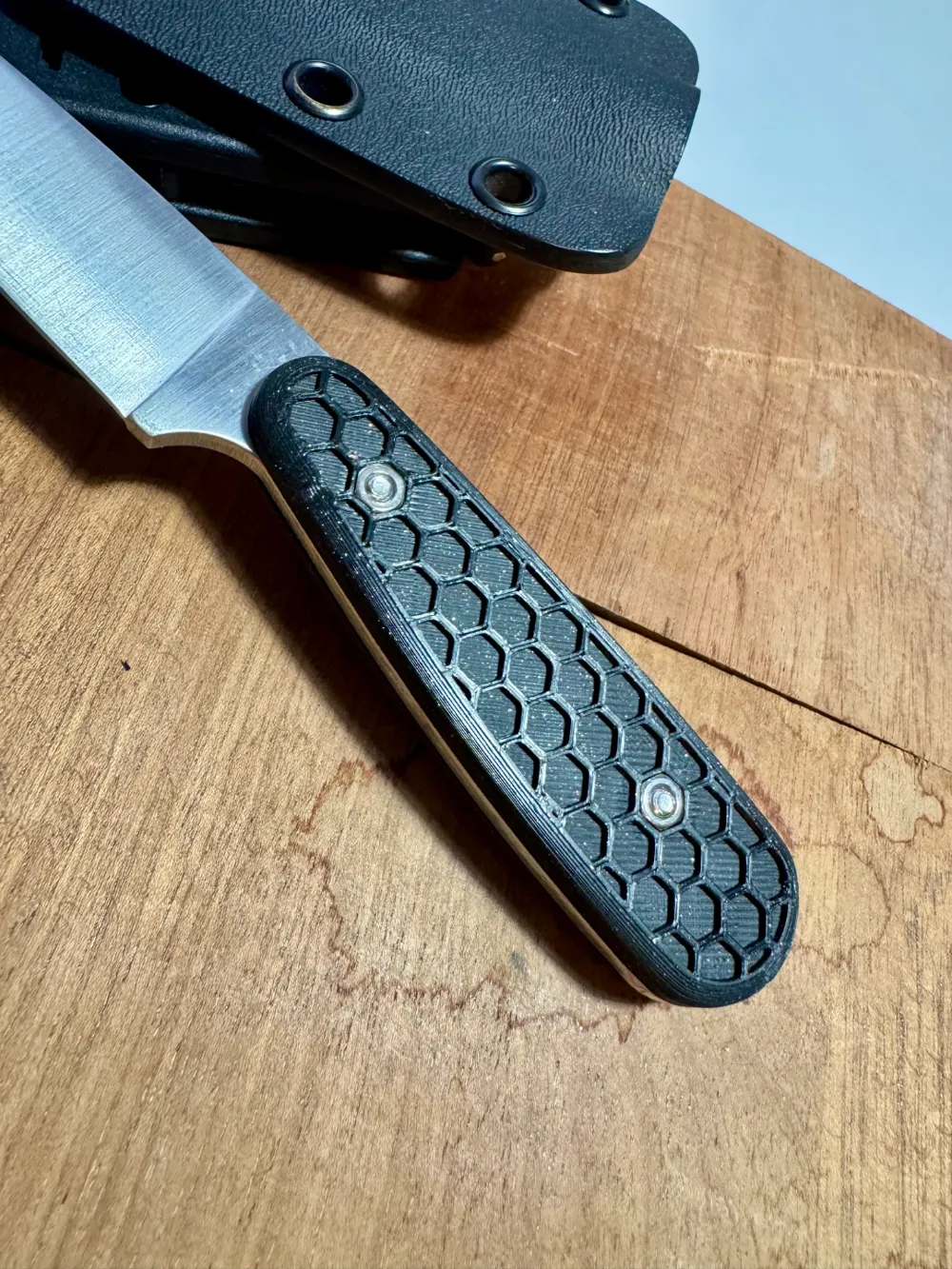

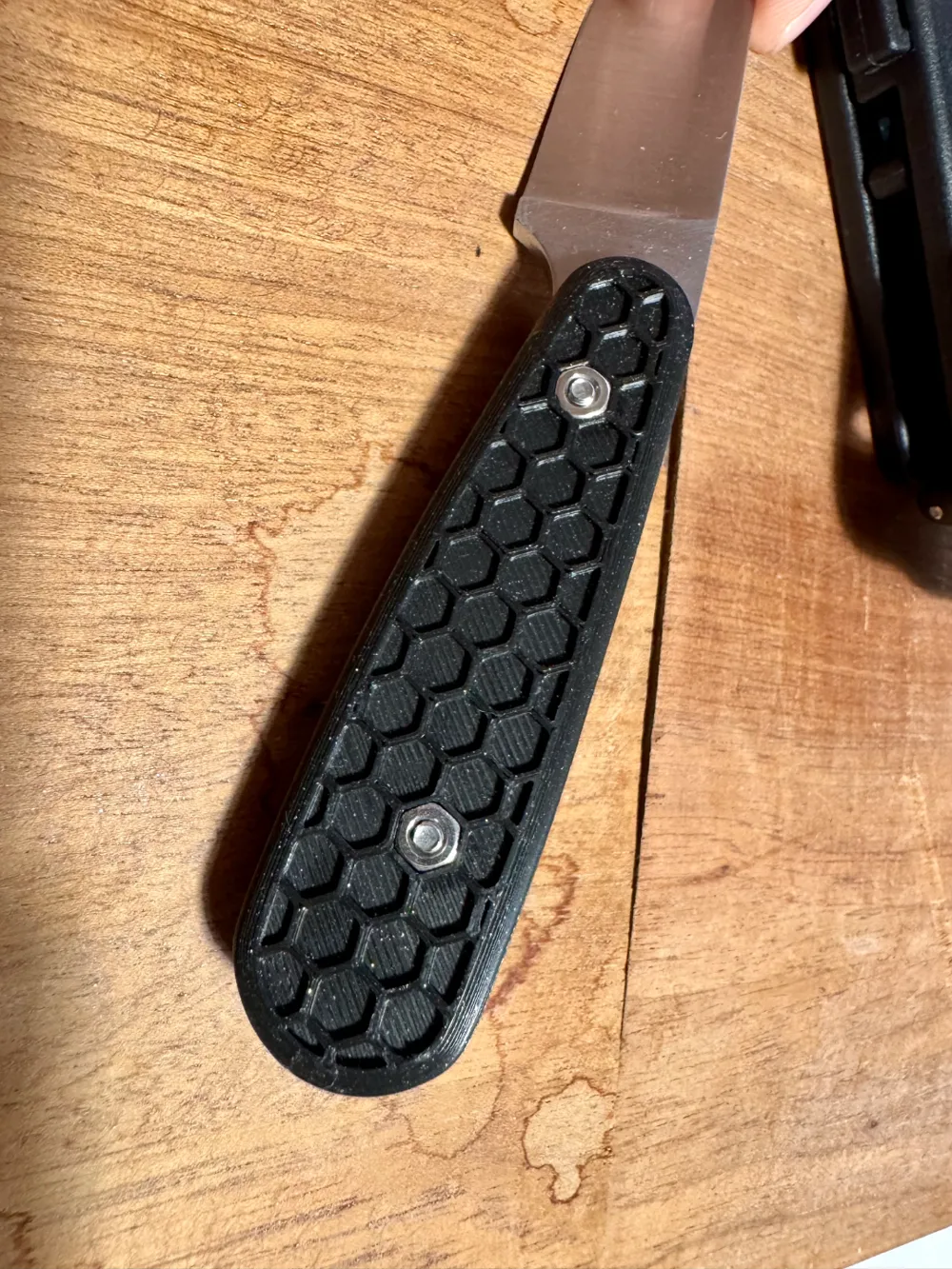

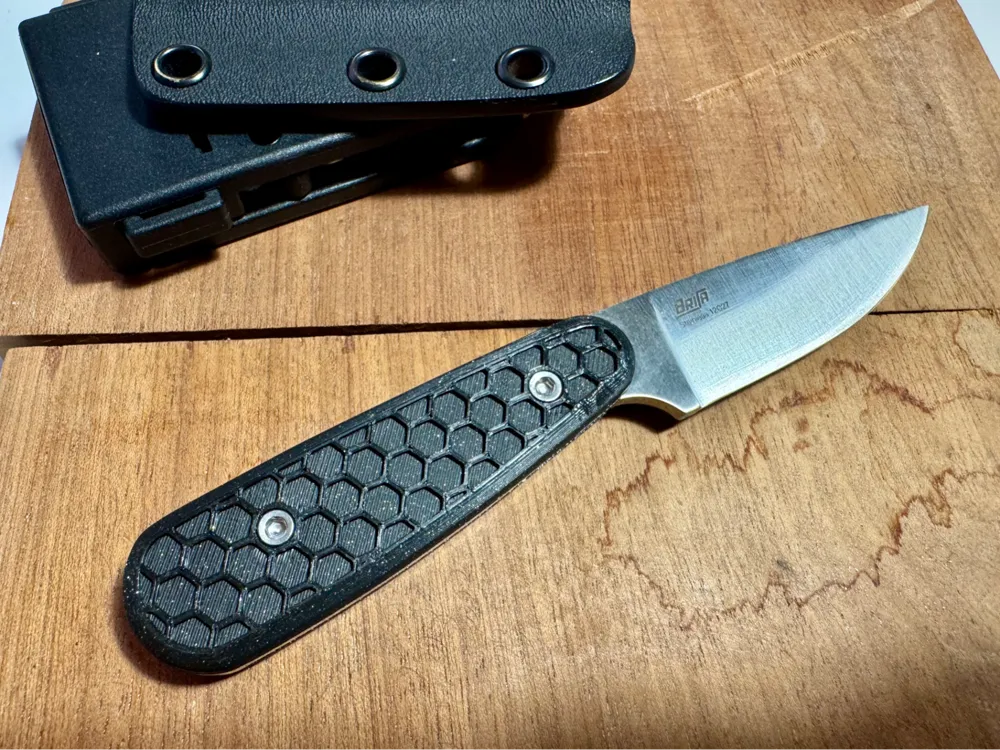

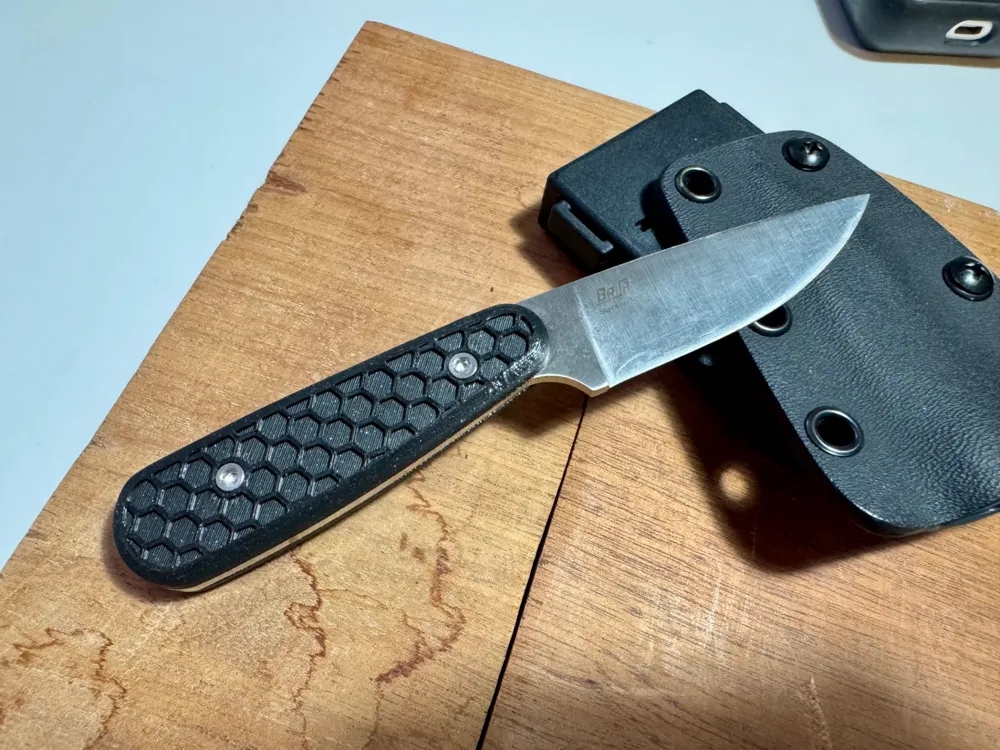

Simple octagon knifehandle for a Brisa Necker 70 Neckknife.
Had not time to make a proper wooden handle yet, so I took it as a CAD challenge to design one.
Chosen the octagon design to integrate the M3 nuts.

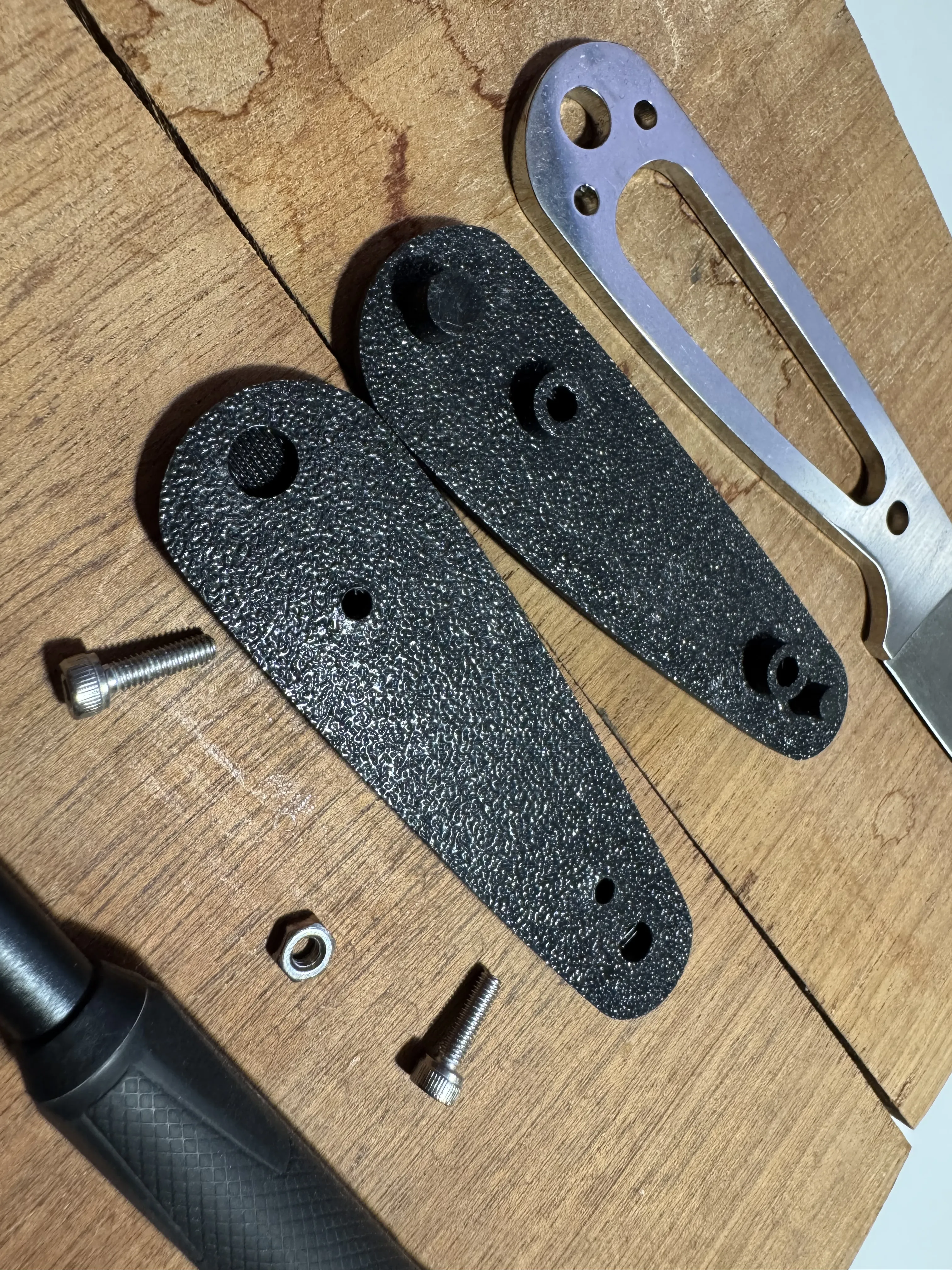

Parts needed:
- 2x M3 nuts
- 2x M3 10mm screws
- Brisa Necker 70 blade (there are different types of the blade, with the same dimensions but different blade type)
For assembling:
- Press fit the nuts in one half.
- Press the two cylinders in the matching holes.
- Put the blade on it.
- Put the two rings over the screw holes.
- Put the other half on top.
- Insert the screws. Dont use to much force.
