CopyKnight

Screws M5x16

Self Locking Hex Nut M5

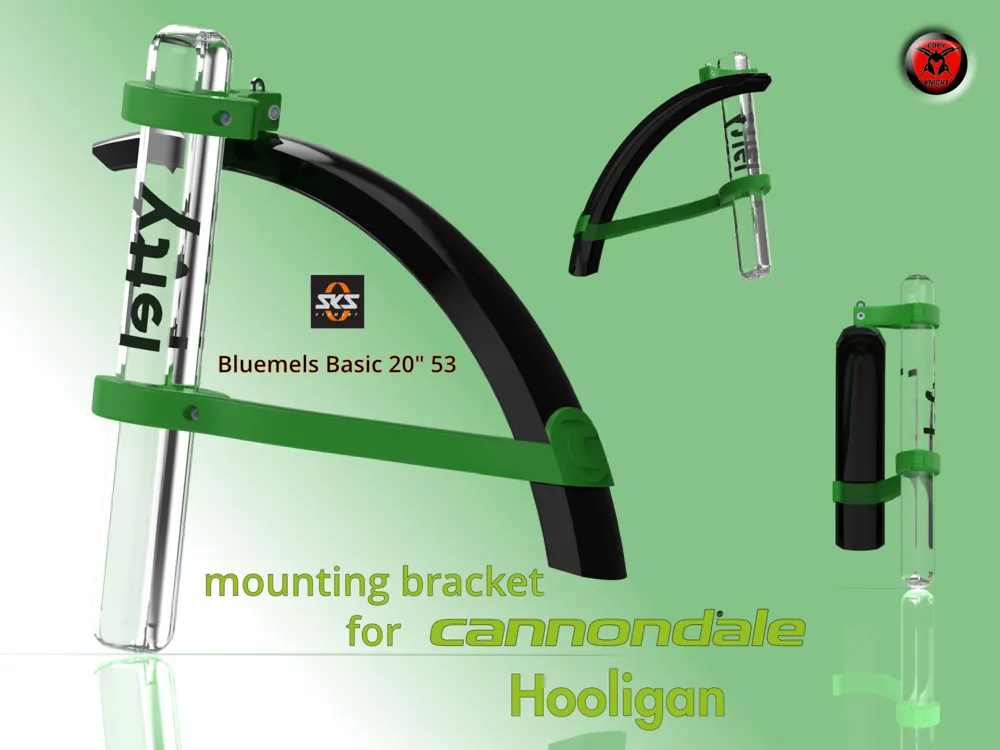

cover

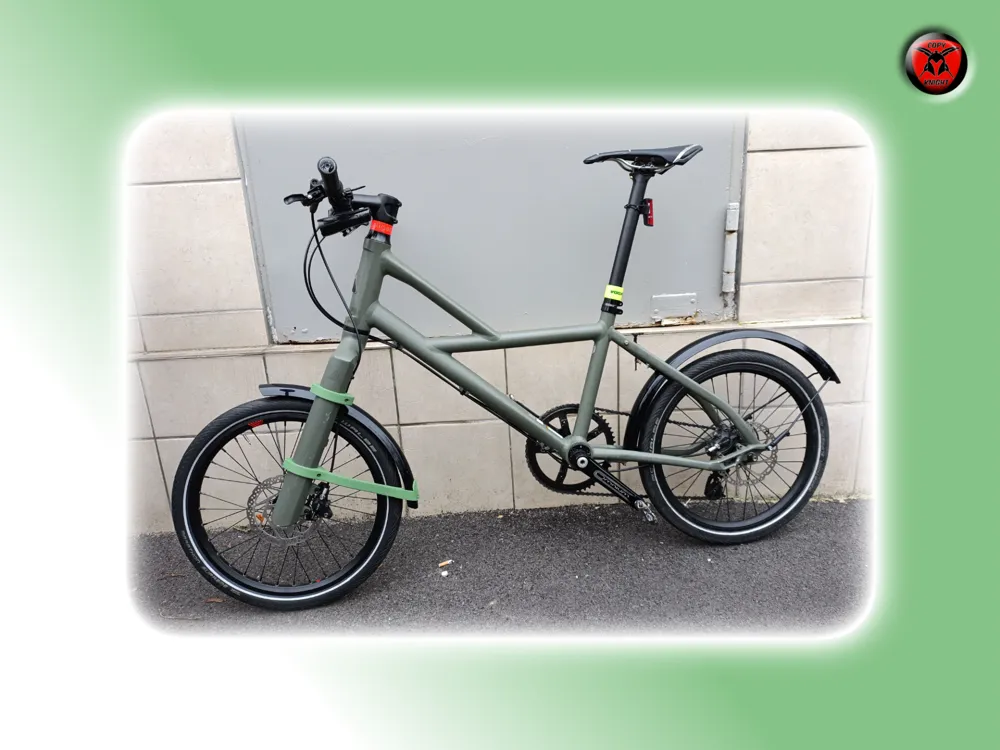

hooligan 1.jpg

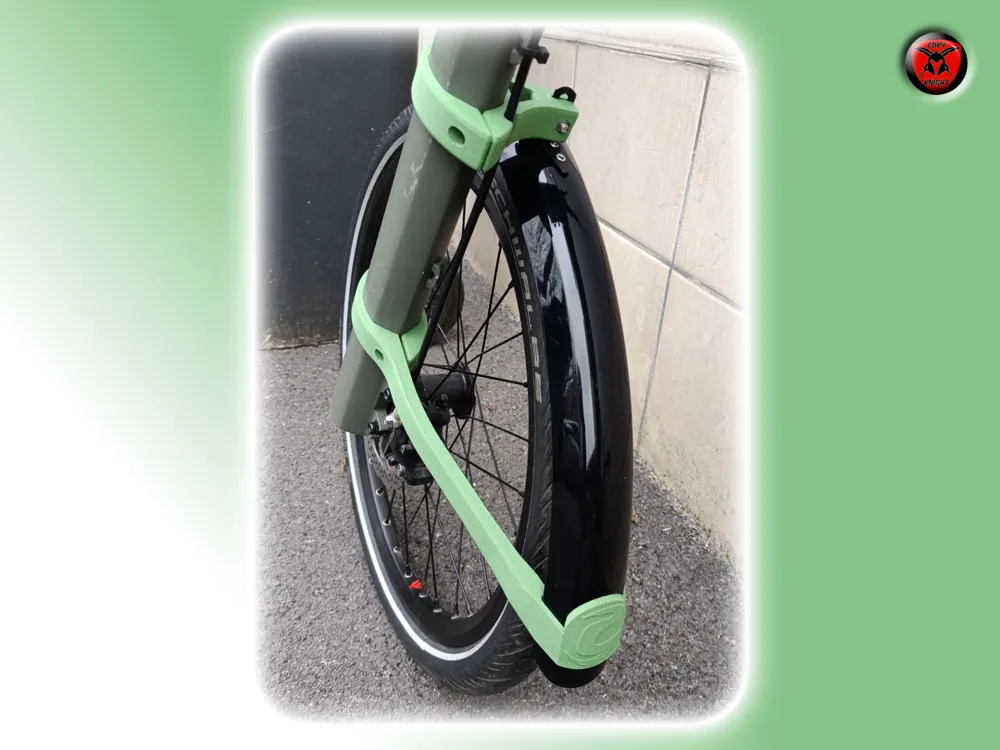

hooligan 2.jpg

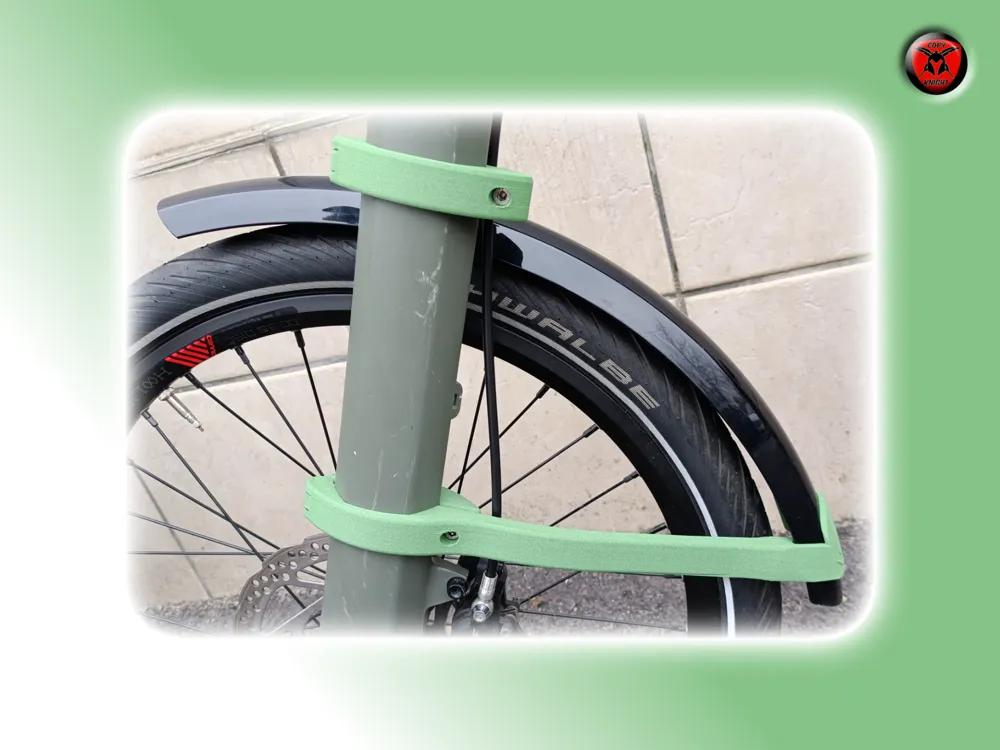

hooligan 3.jpg



0.2mm layer, 3 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Every boost helps further development! Jeder Boost hilft der weiteren Entwicklung</boostcontent></boostme>&nbsp;These mounting brackets are designed exclusively for a Cannondale Hooligan, which has a hexagonal Lefty fork. But that will probably only work with SKS Bluemels 20&#34; 53 mudguards. There are other manufacturers who use the same profile in 53 mm width. That may well be possible, but is not a given. Therefore, mounting with other mudguards is at your own risk. M5 nuts are countersunk into the bracket and corresponding M5x16 mm hexagon socket screws pull the bracket tightly onto the fork. The slot provided at the opening should not close; the bracket should already be tight enough beforehand, otherwise the joint may break if the screws are tightened too much.&nbsp;Diese Montagewinkel sind ausschließlich für ein Cannondale Hooligan gedacht, dass eine im Querschnitt sechseckige Lefty-Gabel hat. Das jedoch wahrscheinlich nur mit SKS Schutzblechen Bluemels 20&#34; 53. Es sei es gibt andere hersteller die quasi dasselbe Profil in 53 mm Breite benutzen. Was gut möglich sein kann, jedoch nicht muss. Daher ist die Montage mit anderen Schutzblechen auf eigenes gut Glück. M5 Muttern werden in die Halterung versenkt und entsprechende Innensechskantschrauben M5x16 mm ziehen die Halterung fest an die Gabel. Der vorgesehene Schlitz bei der Öffnung sollte sich nicht schließen, sondern die Halterung sollte zuvor schon fest genug sein, anderenfalls kann es sein, dass das Gelenk bricht, wenn die Schrauben zu stark angezogen werden.&nbsp;&nbsp;&nbsp;

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Every boost facilitates continued development</boostcontent></boostme>&nbsp;These mounting brackets are designed specifically for a Cannondale Hooligan bicycle equipped with a hexagonal Lefty fork. However, compatibility is largely contingent upon using SKS Bluemels 20” 53 mudguards. While other manufacturers may utilize a similar 53 mm profile, this is not guaranteed. Consequently, installation with alternative mudguards is undertaken at the user's sole risk. Countersunk M5 nuts are embedded within the bracket; corresponding M5x16 mm hex socket head cap screws secure the bracket firmly to the fork. The integrated slot at the opening should remain open; the bracket should already be sufficiently tight before tightening the screws; otherwise, excessive tightening may fracture the joint.&nbsp;

Cannondale Hooligan lefty SKS mounting bracket
