AUTOMOTIVE 8mm CLIP

**EDITED**

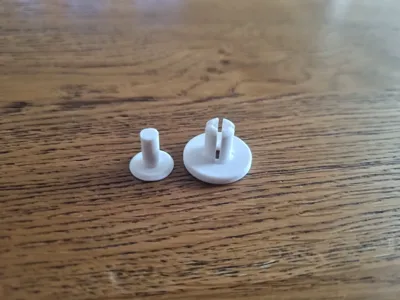

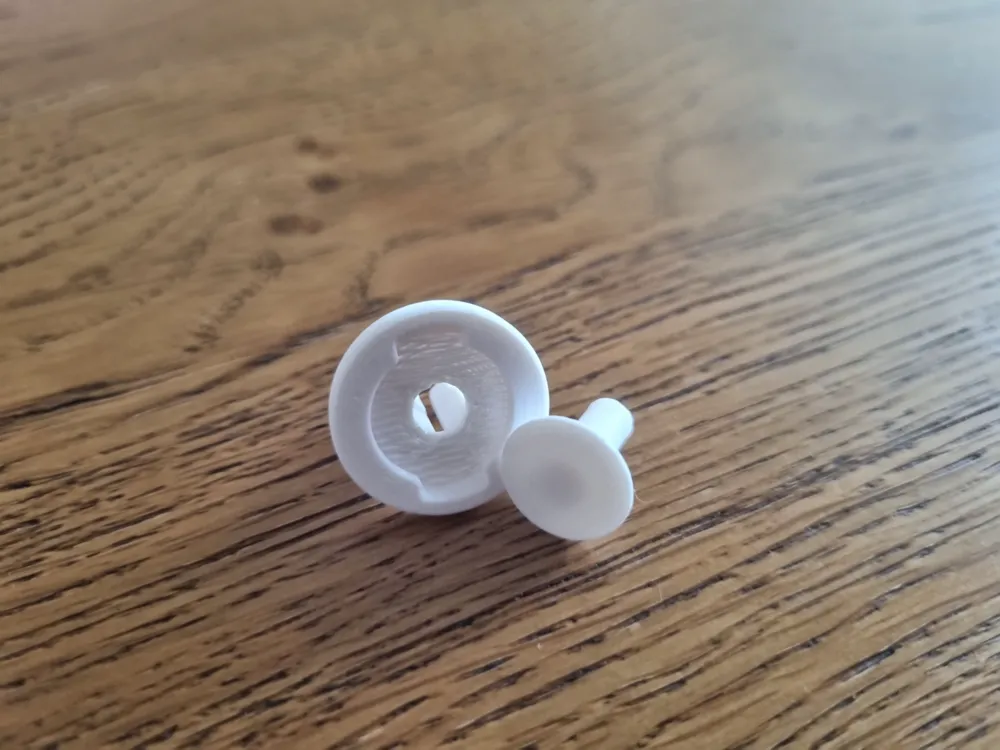

After receiving feedback on the prongs breaking and difficulty printing on the face, I have added V2 (pictured in white PETG). This includes a less intricate face and added more material to the prongs. I also printed version 2 with .12mm layer height and seams alot more robust.

*****

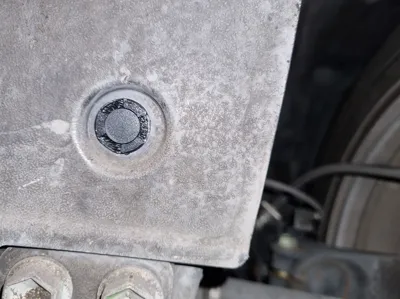

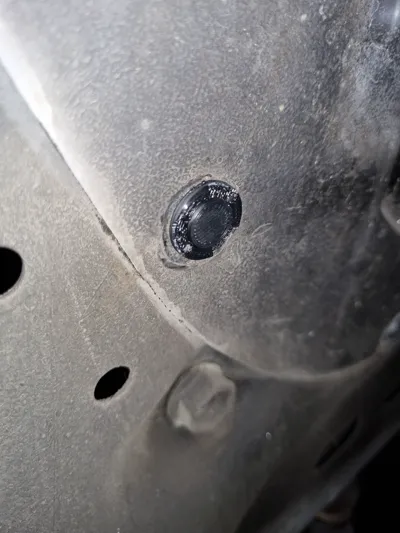

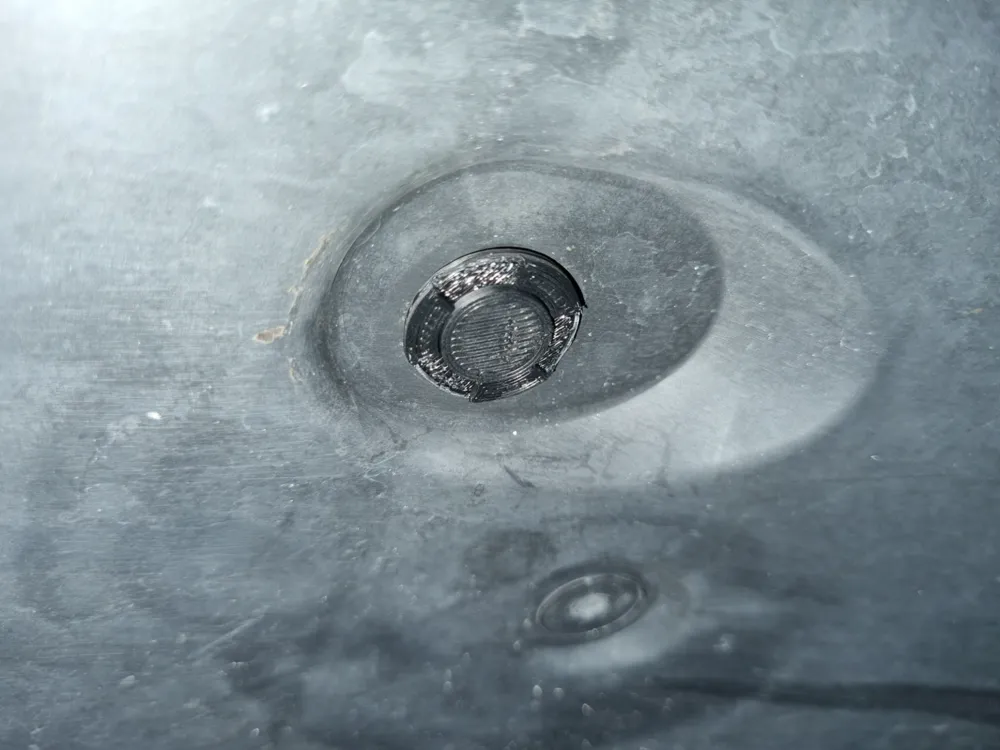

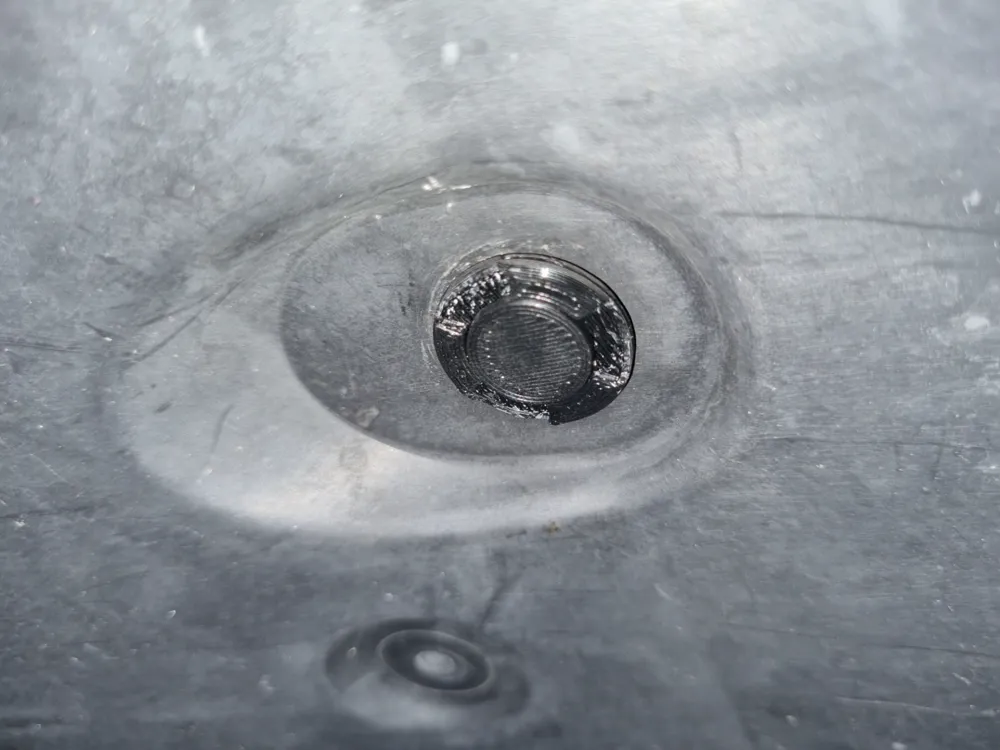

After breaking numerous automotive trim clips whilst working on my car, I have designed an 8mm trim clip as a replacement.

Save time and money at an auto parts store and print as many as you like, as they a generally a one-use item in the first place.

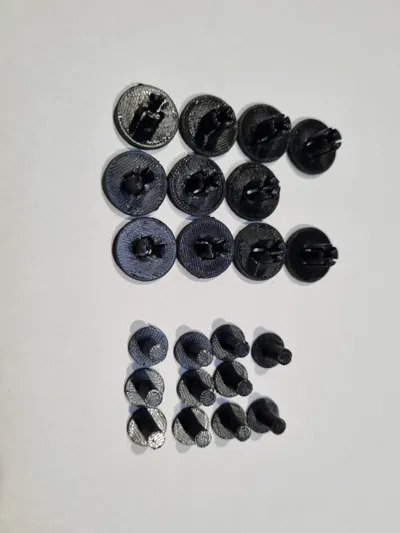

I printed in PETG, but i believe ASA, or ABS may be the better choice of material in this application.

Measurements as follows (approx.):

• head of clip 20mm (¾")
• fixing hole 8mm (5/16)
• length of pin 10.5mm (7/16)
