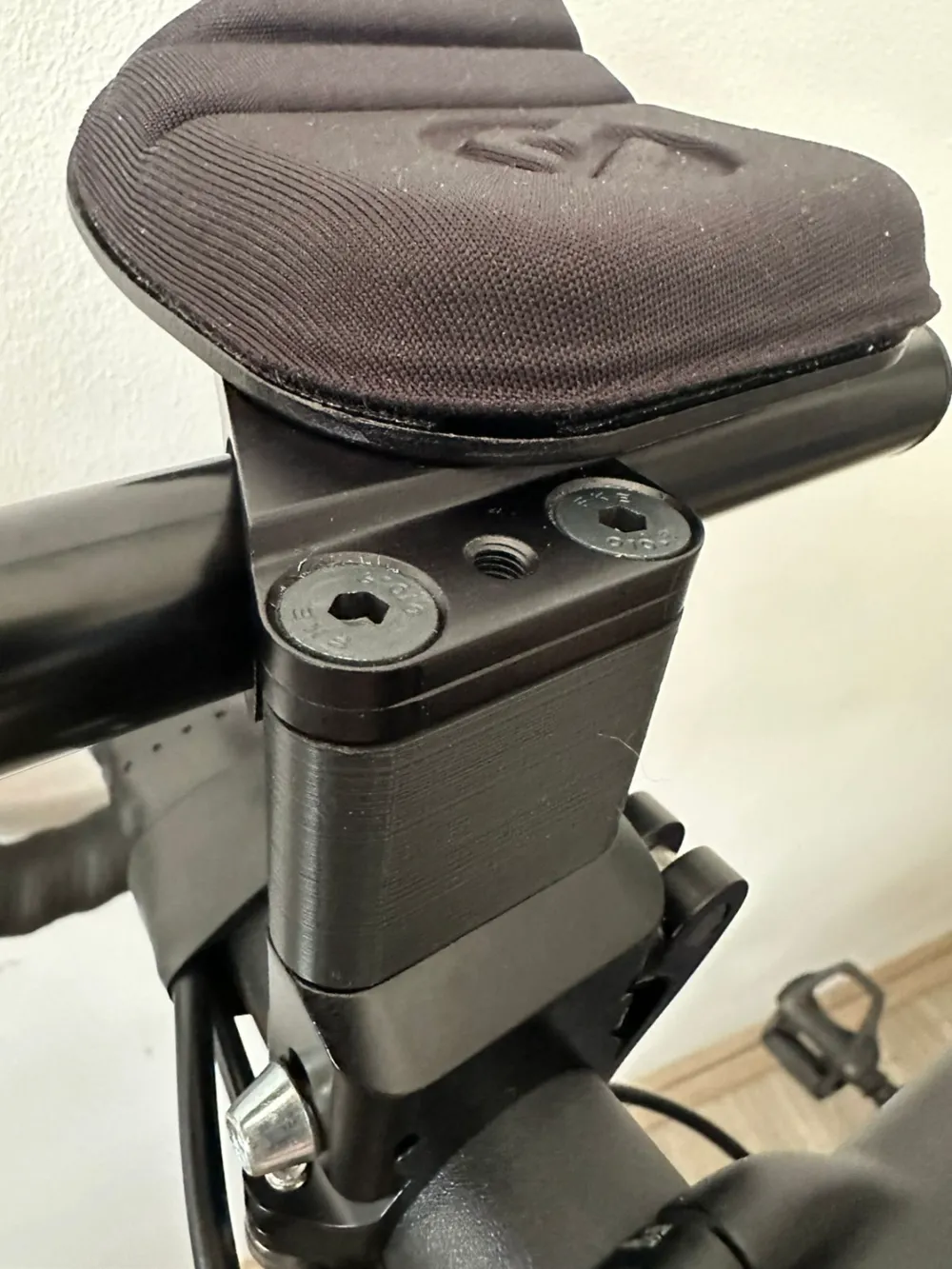

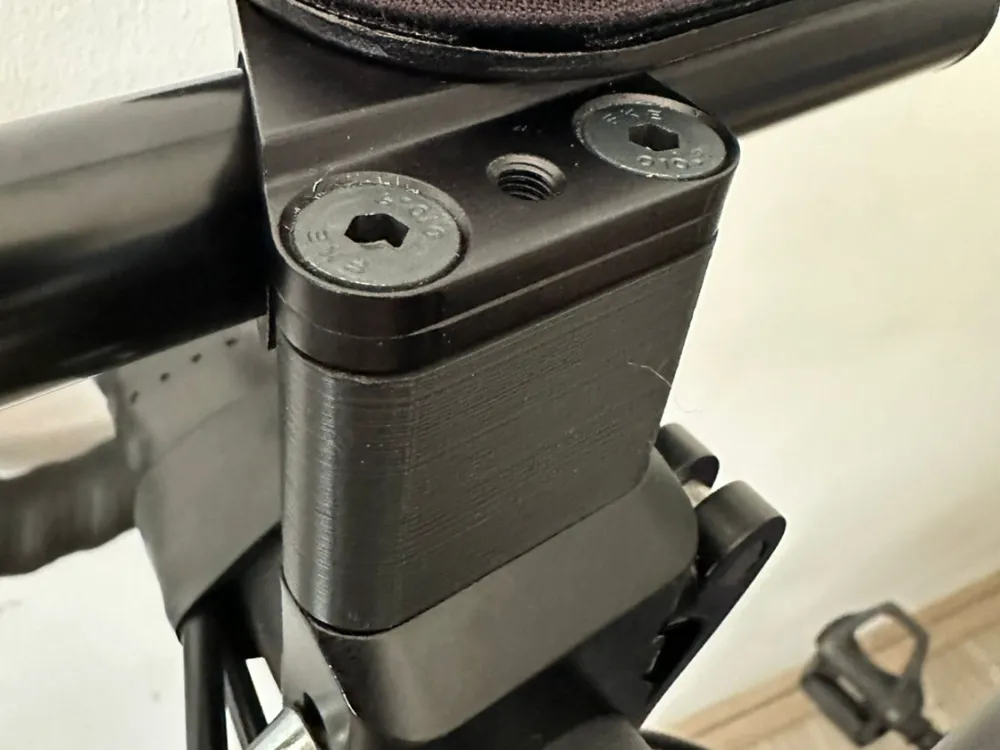

Extension Riser for Redshift Aerobars

Simple, useful and functional design to raise the redshift quick release aerobars.


I printed it in PLA and I had no problems in assembly, if you need more security you can use PETG or ABS.

It is 15mm high, if you want to raise it to 30mm simply scale it on your laminator. I do not recommend overlapping two 15mm

Printing recommendations

-PLA
- 100% filling (for more security)
- 4 top and bottom layers
- no supports required
- layer height 0.2
- perimeter loop: 3
- 30mm/s

You will need:

15mm spacer = M6 x 30 mm bolts
30mm spacers = M6 x 45 mm bolts

The model it was made by me, please dont sell it.
