Modular Filament Rack (36 Spool Max)
Print Profile(1)
Description
Boost Me (for free)
If you enjoyed this model, please consider boosting it to support the creator. Thank you!

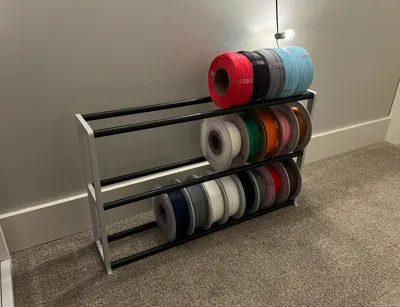

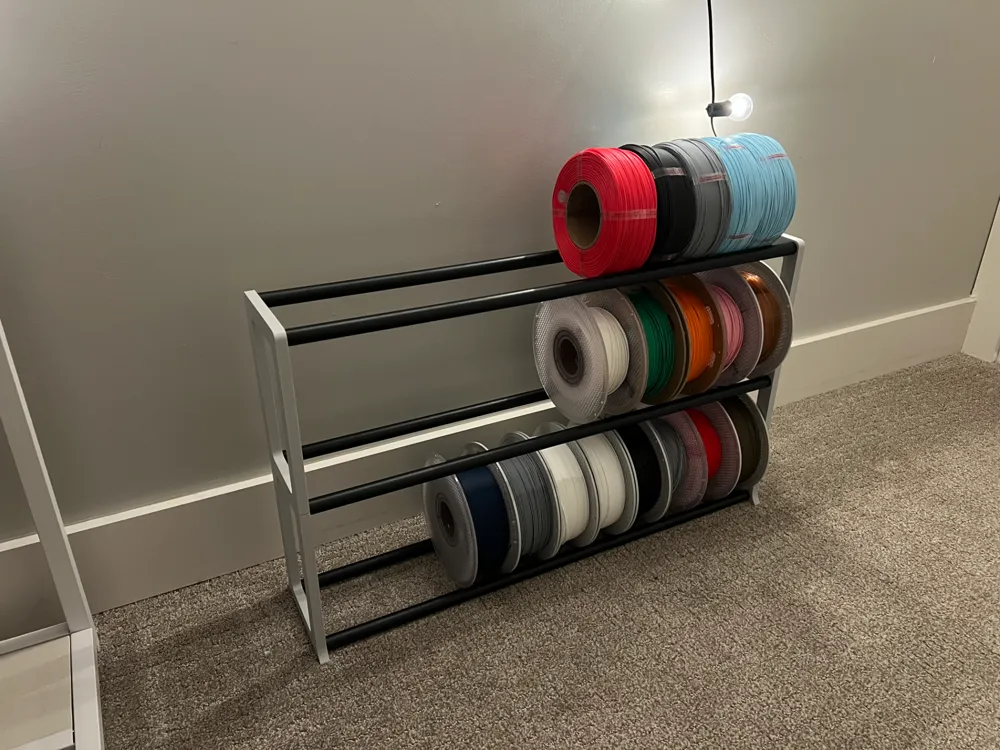

This filament rack is designed to hold 36 spools of filament. It uses minimal material and prints super quick! (Total print time for all parts is 5 hours and 9 minutes) The simple design looks and feels strong, sturdy and elegant. I am keeping mine right next to my desk as a way to see all the colors and types of filaments I have. Previously, I kept my filament in a box in the closet and that led to me forgetting what colors and materials I had. Now, I can easily see what I have available and remind myself if I need to reorder extra spools of filament.

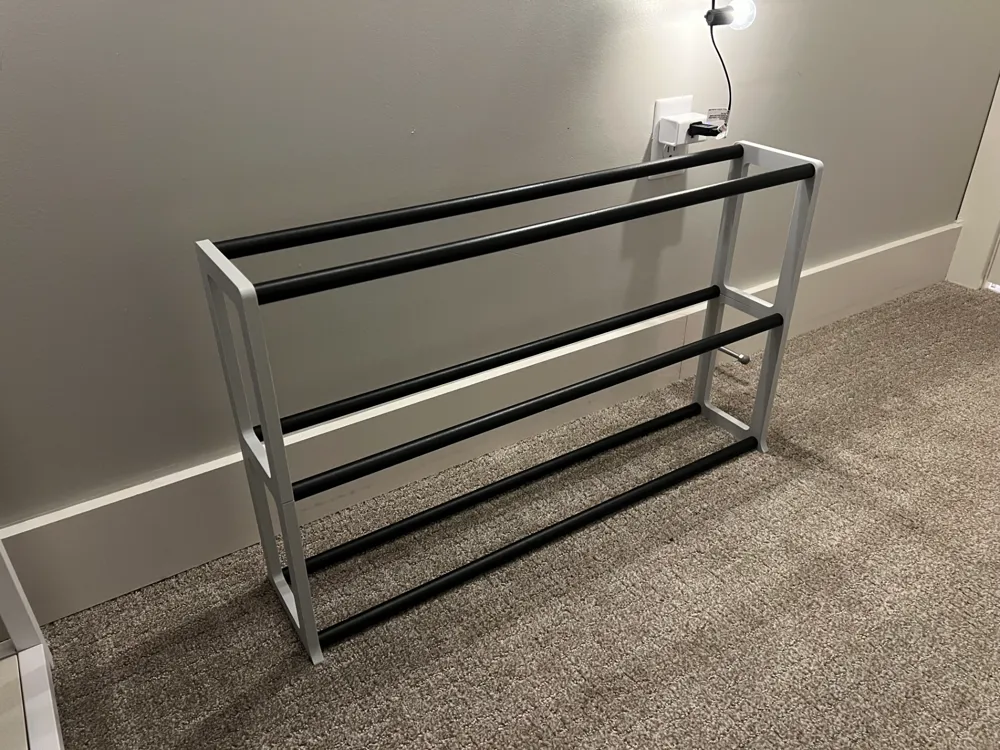

I chose to make the holder three rows tall in order to save horizontal space. This has proven to be effective since the footprint is only 36 inches wide, 9 inches deep and 19 inches tall.
TOTAL DIMENSIONS:
- 36 inches wide
- 9 inches deep
- 19 inches tall
DOWEL DIMENSIONS:
- 36 inches long
- 0.875 inch diameter

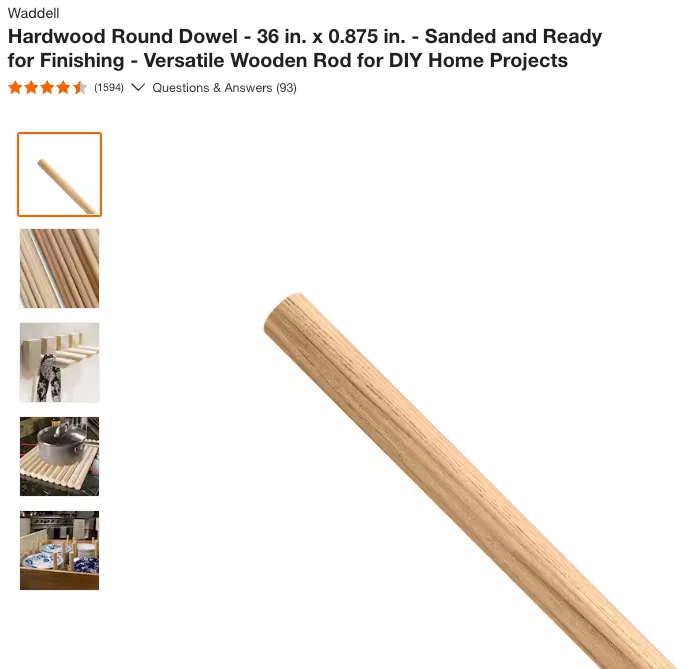

DOWEL LINK TO HOME DEPOT ($5.98 a piece x6)
- https://www.homedepot.com/p/Waddell-Hardwood-Round-Dowel-36-in-x-0-875-in-Sanded-and-Ready-for-Finishing-Versatile-Wooden-Rod-for-DIY-Home-Projects-6314U/100556152
- Hardwood Round Dowel - 36 in. x 0.875 in. - Sanded and Ready for Finishing - Versatile Wooden Rod for DIY Home Projects
Please don't hesitate to contact me if you would like to change the dowel dimensions.
