Helix 7 Cover - Free 3D Print Model

Search models, users, collections, and posts

BeastDevastator

Hobby & DIY>Vehicles

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 2 walls, 15% infill

Designer

10.2 h

2 plates

4.5(4)

Open in Bambu Studio

Boost

164

Released

Description

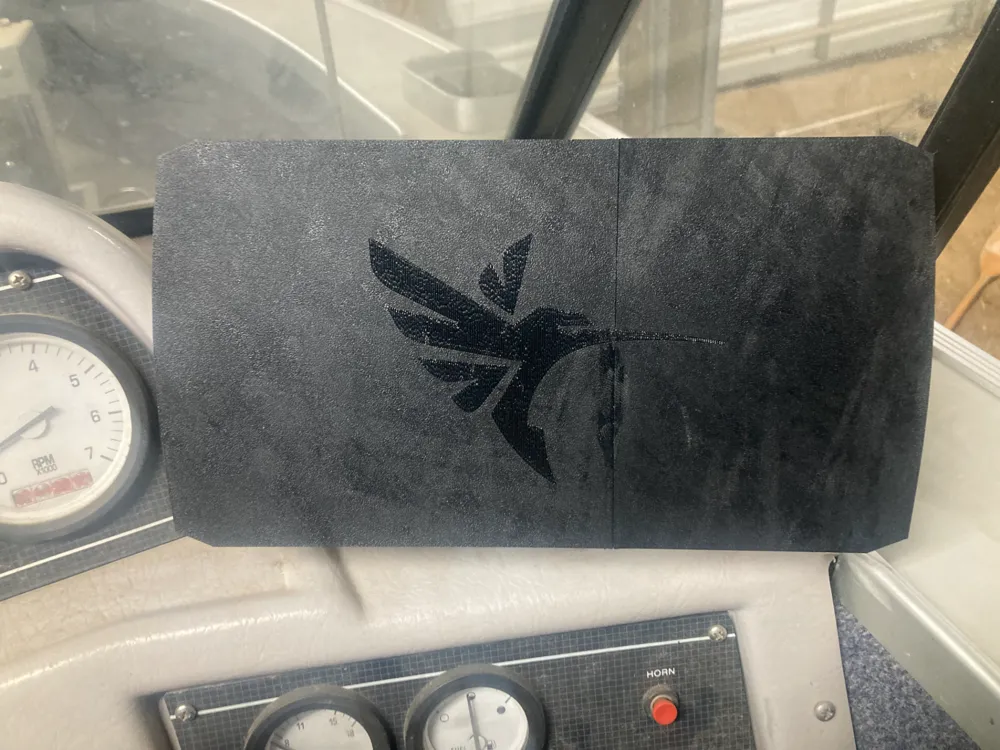

This is a cover for a Humminbird Helix 7. It should fit all Helix 7 models but I only have the G4N to test it on. I printed it in tpu and it fits snugly. It is in 2 parts and I used super glue to connect them. I did use supports on the over hangs so it would have a clean surface to fit together, but not on the logo. It is only .2mm recessed and printed nicely without supports. Just let the glue dry before test fitting, it does stretch a little and may pull a freshly glued joint apart.

humminbird

鱼探仪

helix

Comment & Rating (20)

@user_3838633577

Print Profile

0.2mm layer, 2 walls, 15% infill

Work fantastic a little bit of opinion to assemble , but worth it

The profile uploader has replied

@williamtdawes

Glad you like it!

@Cives7022

Turned out great!

The designer has replied

@williamtdawes

Thanks Looks great!!

@user_2605326180

do you know if I can print this in petg hf?

The designer has replied

@williamtdawes

This profile will only work with tpu. I started working on a PETG version. but haven’t perfected it yet. This model needs to stretch just a bit to fit. I will get on it!

@user_410167098

Replying to @williamtdawes :

any progress on that PETG version?

@user_518824991

is it possible to print with PLA or ABS for a hard cover?

The designer has replied

@williamtdawes

I haven't tried it, There is a very small amount of stretch when putting it on but you could just scale the model up by a small amount. I am interested I will print one and see. Thanks!

@user_3286862135

Replying to @williamtdawes :

Any results here for hard cover?

@user_3110285952

what kind of glue works best for this?

The designer has replied

@williamtdawes

I used CA glue and it worked great!

@user_3110285952

Replying to @williamtdawes :

Awesome! Thanks for getting back to me.

@user_850301801

I have been looking for a file to print just the humminbird does anyone have the file?

The designer has replied

@williamtdawes

I made on, you can find it here it is the same size as the logo on the cover of this model. or search my only other model on my page. Thanks! https://makerworld.com/en/models/2049507-humminbird-logo#profileId-2211793

@kadoperetto

Would it not be possible to make it in one piece and print it tilted at 45 degrees with supports

(Edited)

The designer has replied

Show original

@williamtdawes

Potentially, I wanted the face to be smooth so the logo would be prevalent. Not sure if the logo would show up well or not if the print was angled up. I also haven't had much experience with that tall of support with tpu. I wasn't positive that would be a reliable way to print.
