DeWalt 624719-00 Miter Saw dust Duct Assembly DW718 DW718-AR DW718-B2

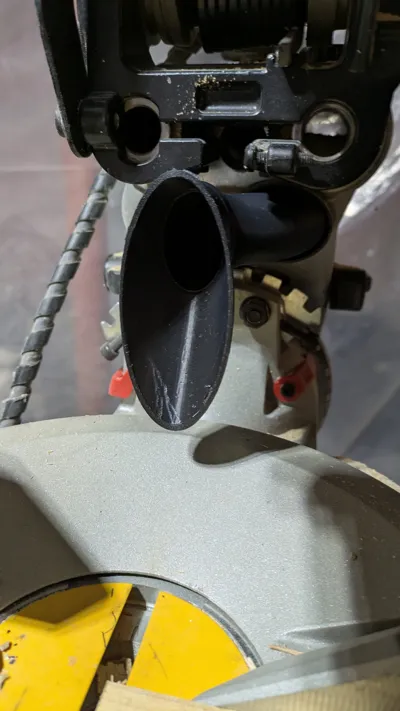

This is my idea to fix the issues with the original dust saw dust Duct. It has wider space for dust collection and closer to the blade.

Added Vac Attachment

DeWalt part# 624719-00. Compatible with: DW718 Type 1, DW718 Type 2, DW718 Type 3, DW718-AR Type 1, DW718-AR Type 2, DW718-AR Type 3, DW718-AR Type 4, DW718-B2 Type 1, DW718-B2 Type 2, DW718-B2 Type 3, DW718-B2 Type 4, DW718 Type 1, DW718 Type 2, DW718 Type 3, DW718-AR Type 1, DW718-AR Type 2, DW718-AR Type 3, DW718-AR Type 4, DW718-B2 Type 1, DW718-B2 Type 2, DW718-B2 Type 3, DW718-B2 Type 4

dw718

dw718 mitre saw duct assemblt

better design

dewalt oem 624719-00 miter saw dust duct assembly dw718 dw718-ar dw718-b2

Comment & Rating (9)

@Red33

Boosted

Do you have the output end connected to a vac hose at all? Printing to my dad's and wondering about adapter/ connection for that end.

The designer has replied

@Creatingash

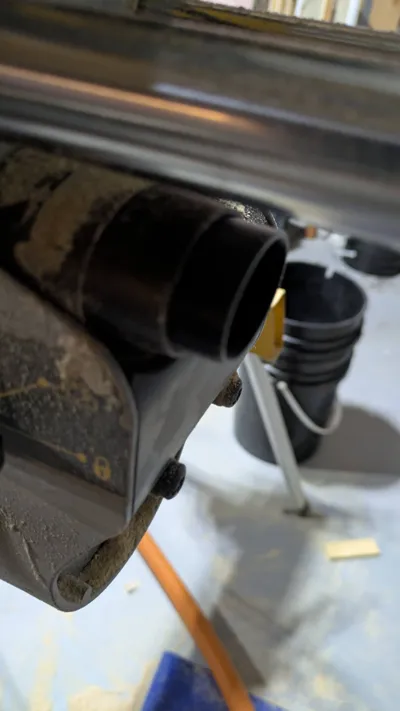

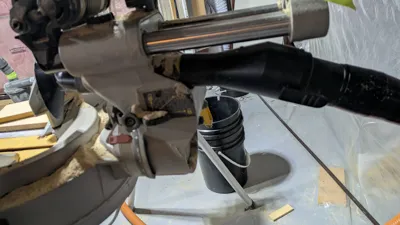

I added the shop vac attachment and print profile,

@Red33

Boosted

Replying to @Creatingash :

Thank you, does not look like it's published, only see mine. Which I can remove if you want. Appreciate you doing that, was just about to try and design an adapter.

@Creatingash

Replying to @Red33 :

I reloaded the attachment, hopefully it gets released soon.

@Mudckr

The print came out very well overall. Had to file down a piece of the wide dust port for it not to hit the back of the saw and heat it up slightly with a heat gun for fine adjustment. Unfortunately overall it doesn’t actually work without the factor tab and mounting screw hole. Without them it won’t attach attach to the saw and defeats the purpose of the slide on the mitre saw. I saw that someone else also made this comment, it would be amazing if you could possibly add that piece.

@perm_fam

Print Profile

0.12mm layer, 2 walls, 15% infill
