Rubber damping feet tilt limitation for X1 P1

tilt limitation for the generic rubber anti vibration feet

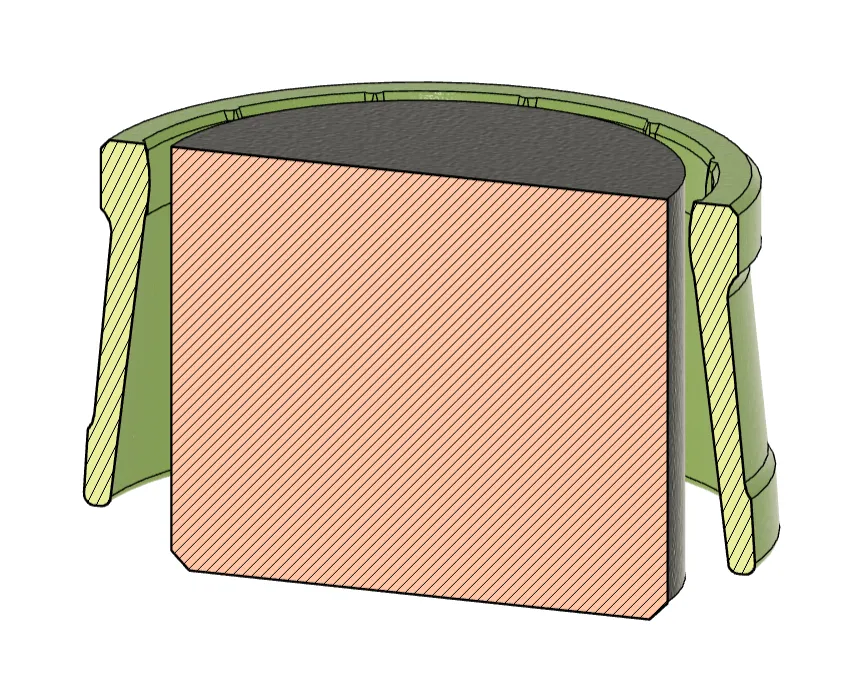

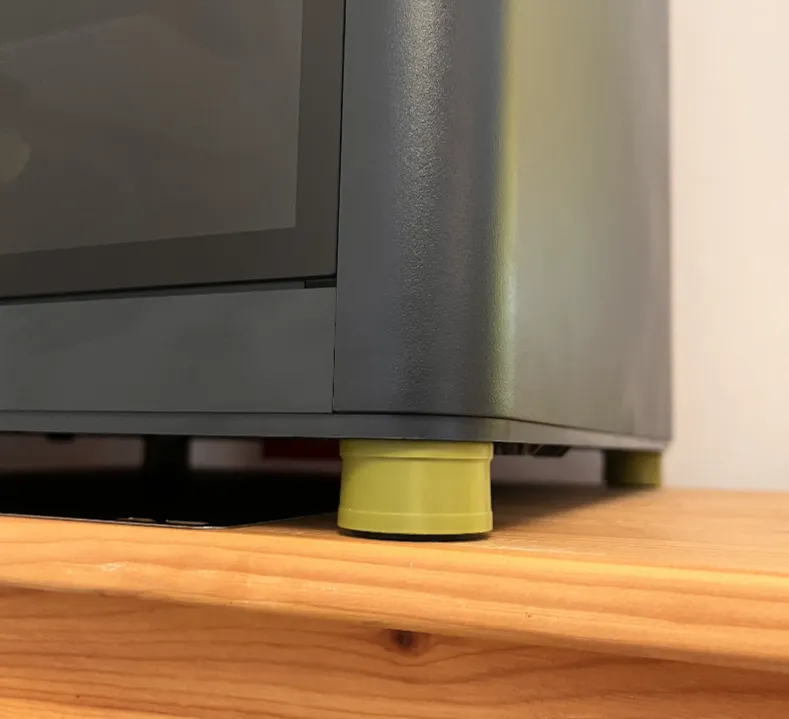

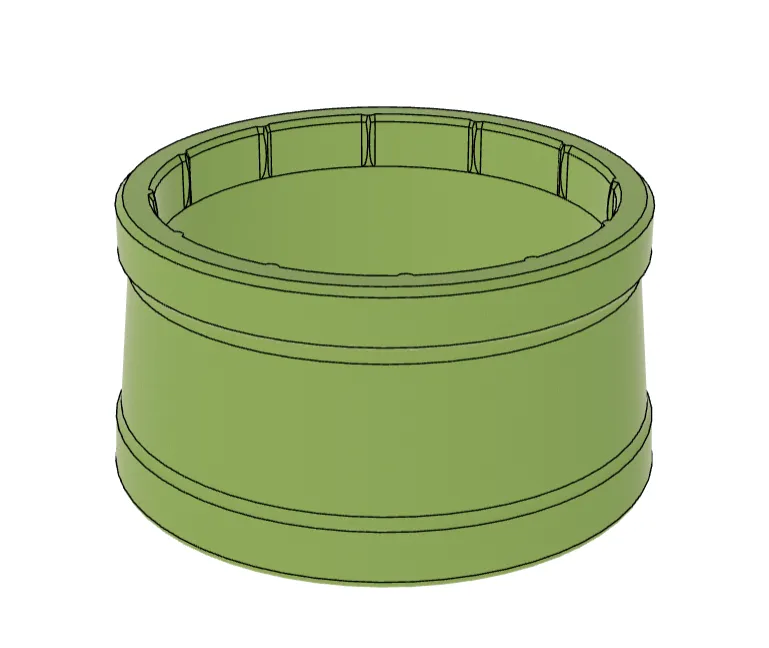

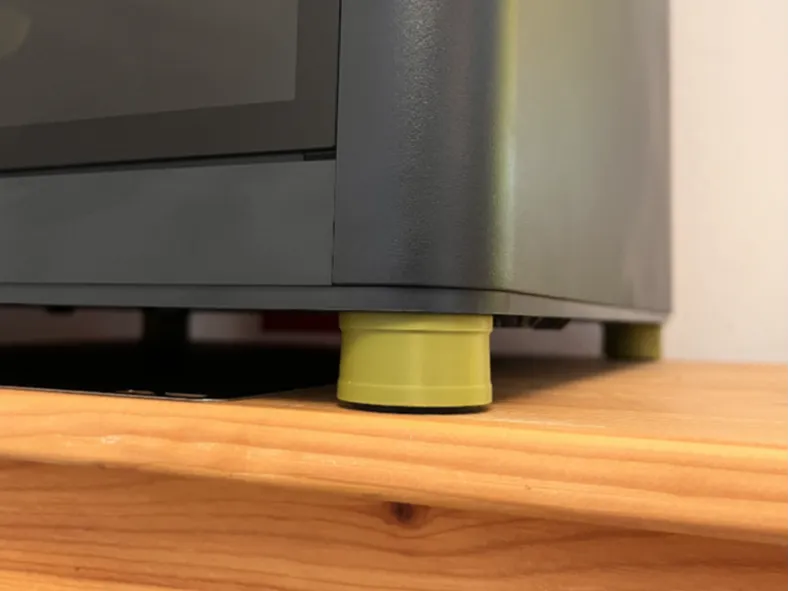

I made this simple upgrade to prevent the aftermarket rubber feet from tilting over when too much shift or force is applied or when moving the printer around. The limiters simply press onto the sockets and allow the rubber feet a certain travel distance before they make contact with the limiters. Also when too much force is applied from above the printer will sit on the limiters and not squeeze the feet too much.

If you find the limit is too close you can change the lower distance value in the fusion construction to enlarge the angle . You can also change the heigth if you find the clearance to the table is not enough.
