ESP32-S3 Tiny Breadboard 面包板

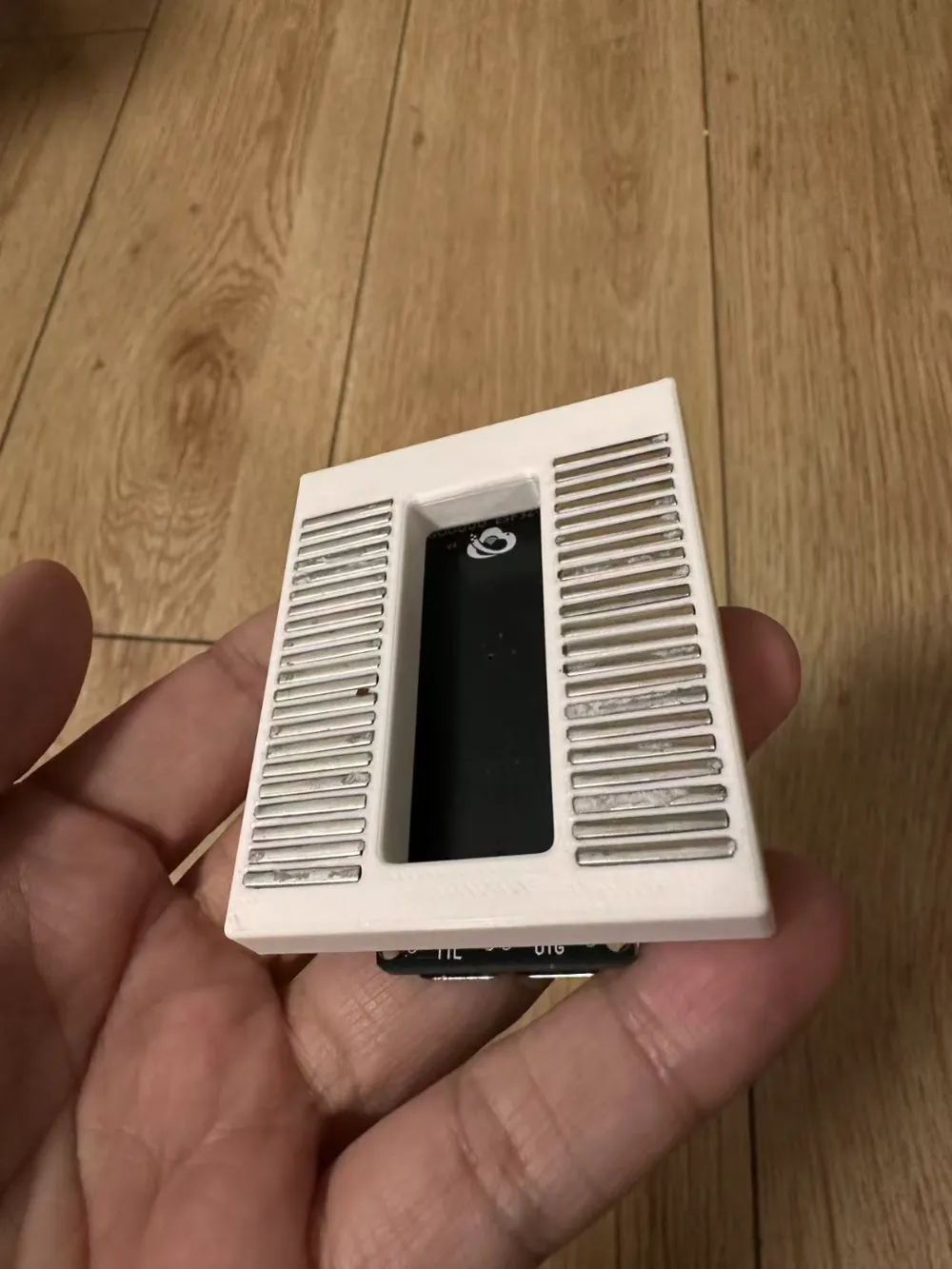

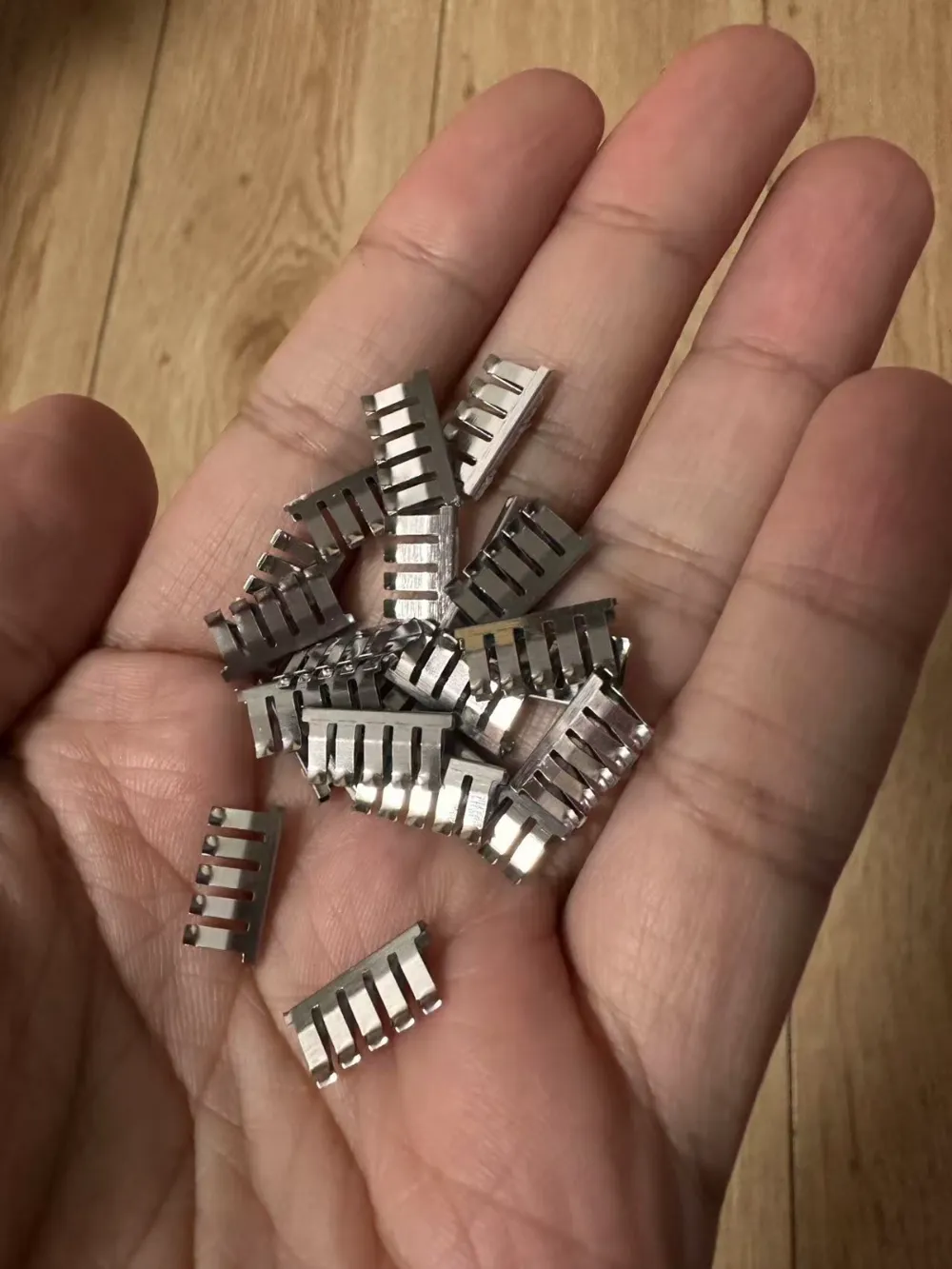

This is a DIY breadboard designed to support the ESP32-S3 development board, with a total of 42 pin slots, each providing 4 wiring holes for each pin.

The spacing between the pins on both sides of the ESP32 development board has been increased compared to traditional breadboards.

To reduce the size, no extra pins have been reserved for VCC and GND beyond those for other GPIOs.

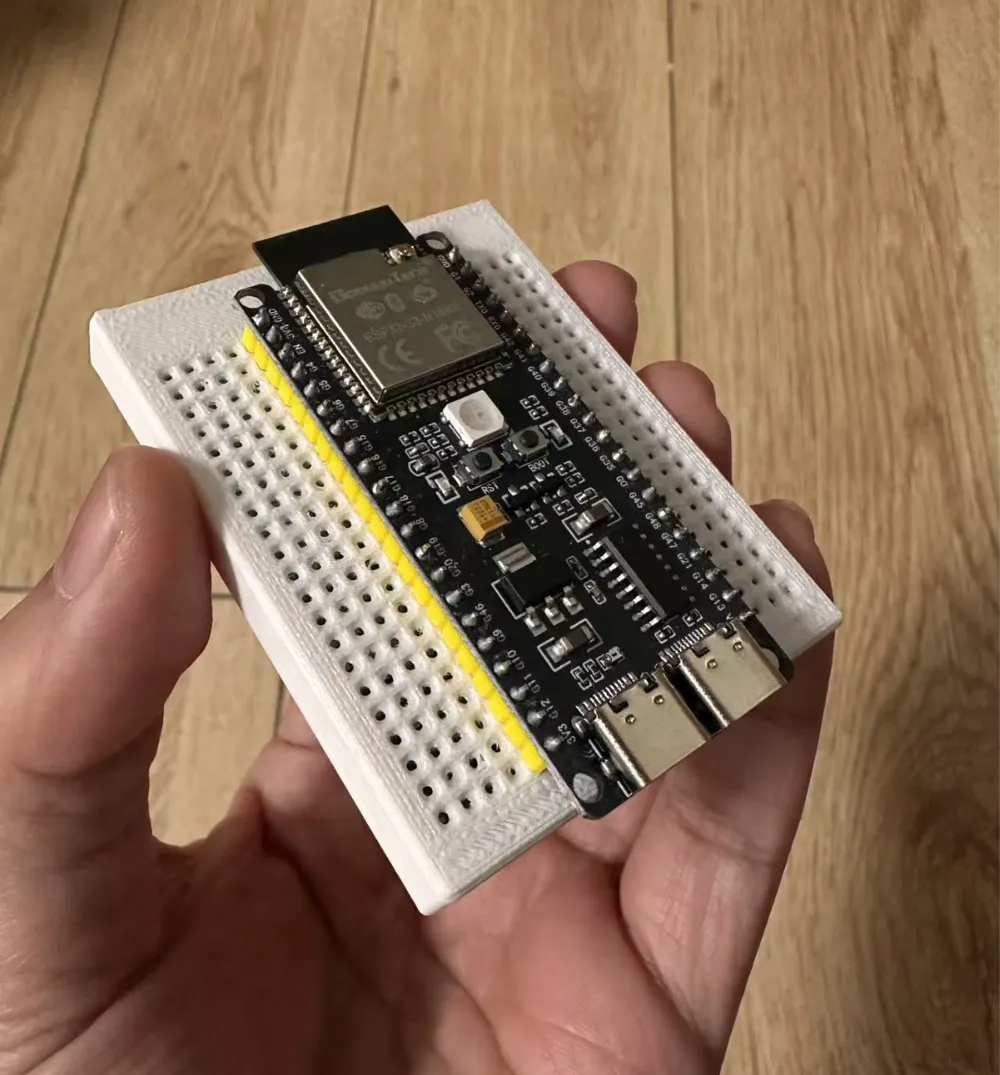

A protective gap has been added on one side to prevent damage to the protruding part of the ESP32 module. The USB port is easy to plug and unplug.

Feel free to leave any improvement suggestions.

这是一款DIY的面包板，支持ESP32-S3开发板，两侧共42个引脚插槽，为每个引脚留4个接线孔位。

比传统的面包板增加了ESP32开发板两侧引脚的间距。

为了减小体积，没有为VCC和GND预留比其他GPIO更多的引脚。

为防止ESP32模组突出的部位受损，在一侧增加了距离用来保护该零件。USB方便插拔。

如果有改进建议欢迎随时留言。
