Description

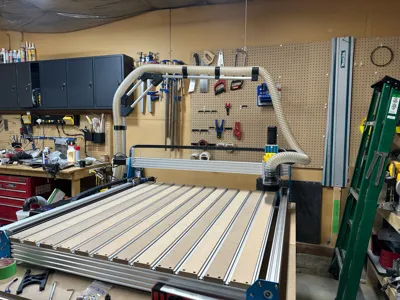

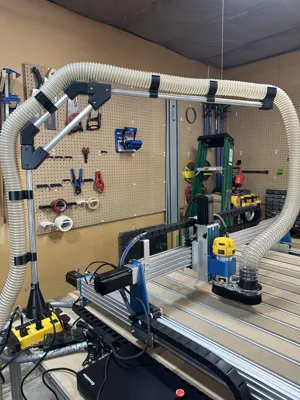

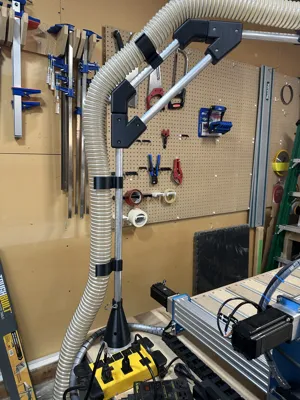

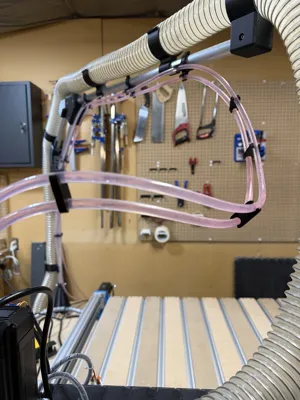

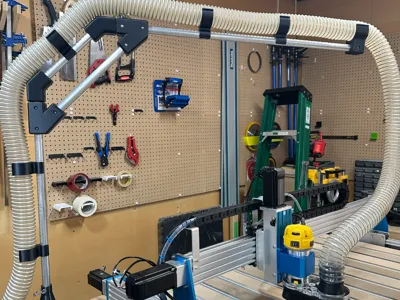

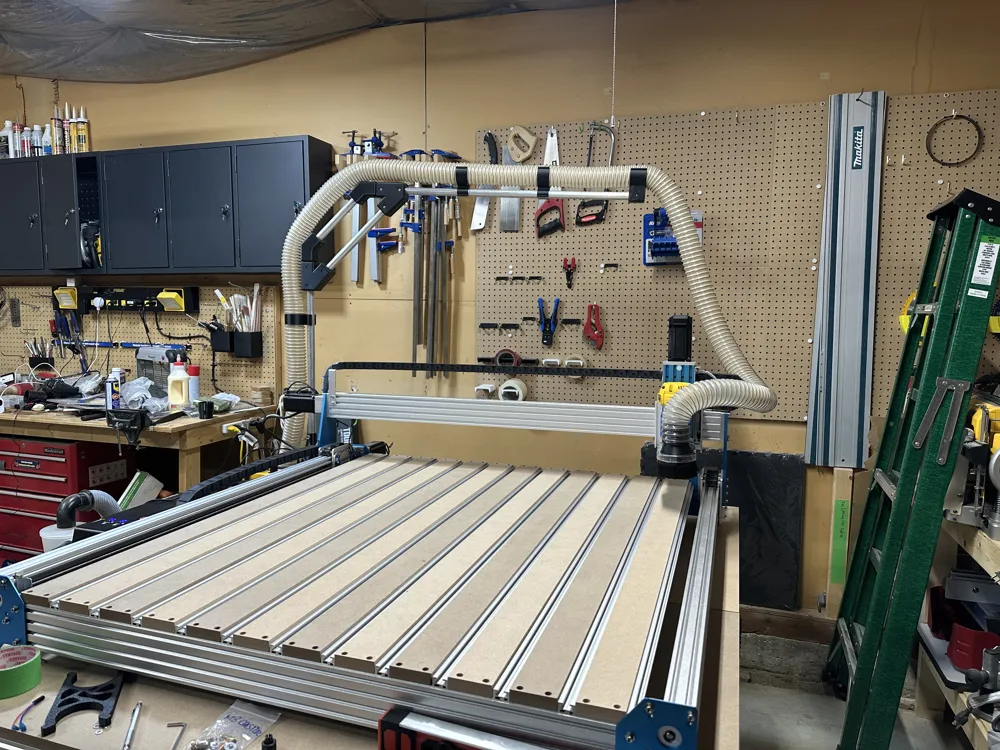

I made a Vacuum Boom Arm for my CNC Dust Collection. It is made from 1 inch aluminum tubing with 3D Printed joints and mounting brackets for the hose.

BOM:

Required:

1" Aluminum Tubing cut to your machine size

11x M5 x 40mm Round Head Screws

11x M5 Hex Nuts

4x M5 Heat Insert (for the base to fasten the lazy susan hardware)

4x M5 x 20mm countersunk screw

4x #8 screws to mount the lazy susan hardware to your table

4x Flat Washer as a spacer between the lazy susan hardware and the table surface

1x 4" Lazy Susan Hardware

Swivel Turntable, 4inch Rotating Bearing Turntable Lazy Susan Round Dining Table Smooth Swivel Plate for Kaleidoscopes Tabletop Serving Trade Show Displays : Amazon.ca: Home

Optional:

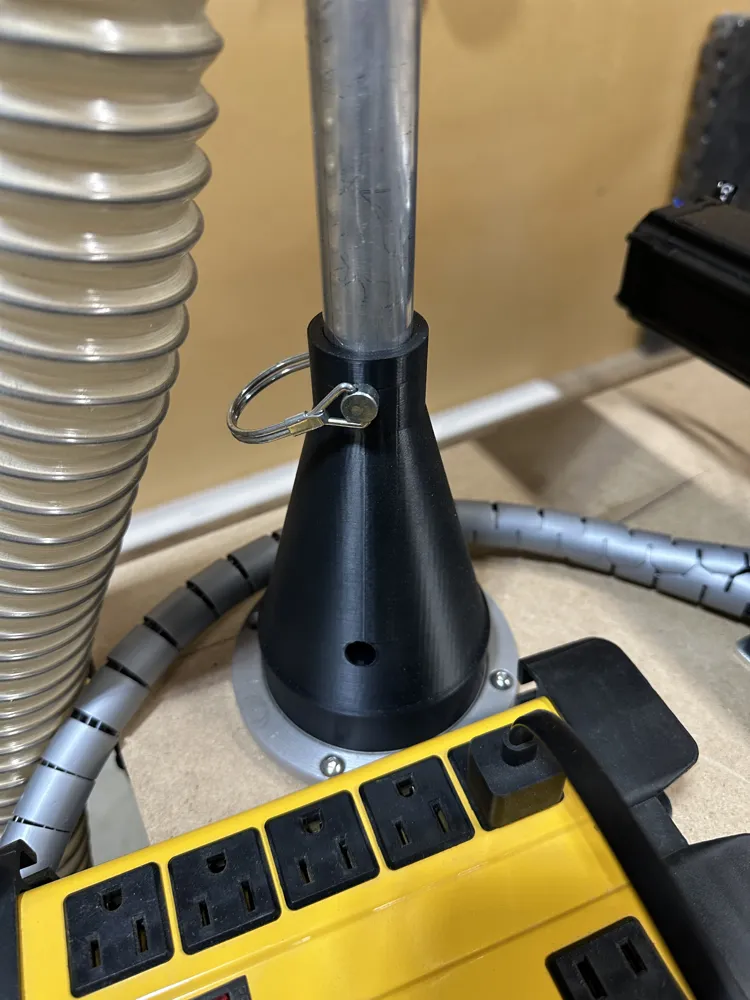

1x ¼" bike trailer pin for quick removal from the base or you can just use a ¼" bolt to fasten the tubing

INCREWAY 4pcs Wire Lock Pin, 1/4" Heavy Duty Safety Coupler Shaft Locking Pin Hitch Pto Pin Round Loop Wire Lock Trailers Pin for Farm Lawn Garden : Amazon.ca: Tools & Home Improvement
