Useful closure lid that reuses a soda bottle cap for the Regular mouth Mason jar (tempered glass jars).

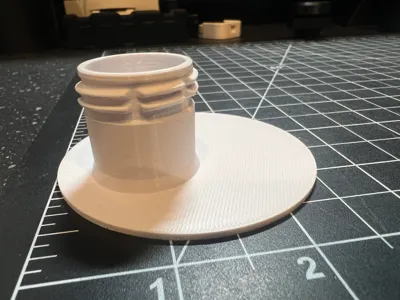

The lid has a built-in extended pouring neck with threads to reuse a typical soda bottle cap.

To determine your type of jar, the Regular mouth has a diameter of 2-3/8 inches (60 mm) *inside* of the glass jar neck.

Need a cap? Check my 28mm cap models -> https://makerworld.com/@sylva/collections/4546564

Boost Me (for free)

You like my jar lid? ->> Say thank you by sending a Boost <<- it's free and simple

Reuse your soda pop bottle cap : The pouring neck has threads for a typical soda bottle cap commonly found on the 2L bottles (The exact type of cap is PCO-1881 (Newer version of the PCO-1880).

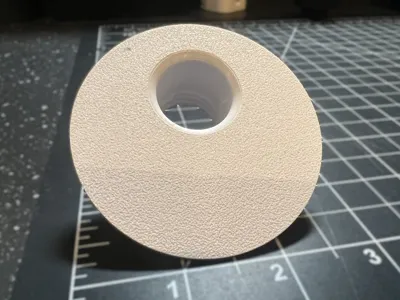

Dimensions : Lid cap diameter is ⌀ 68mm Pouring Neck is about 20mm long plus the threads for the PCO-1881 cap.

Lid is 1.6mm thick (makes it useful to print on 8 layers of 0.20mm).

Need the wide one ? Link to wide lid → https://makerworld.com/en/models/969285?from=search#profileId-940598

Not Watertight : My print does not leak if turned upside down for a short pouring time, but the lid is not liquid tight if jar is upside down for a long period.

Mounting: To hold the lid in place, suse a common jar metal band.

Printing: Can be printed with No supports, but the threads overhand (underneath) will not produce a visually perfect print, but the threads works fine with no support. Must be printed on the flat the side. Add a brim if it curls up.
