Small Flute (C6)

This is a small flute tuned to C6.

I have designed it from scratch myself.

I hope you like it!

The flute has 6 playable tones:

C6, D6, E6, F6, G6, A6

The holes for the notes have been placed in a slight angle on both sides to make it easier for your fingers to fit.

Assembly

The flute is printed as two separate parts. See provided picture.

• A short mouthpiece
• A longer pipe.

1. Insert the pipe into the mouthpiece. It may be a tight fit.
2. Make sure you push and twist it all the way in, until it doesn’t go any further (approximately 1cm).
3. If there are any rough or sharp edges around the holes you can use a small file or sandpaper to make it smooth.

How to play

• Use both of your hands.
• Place your fingers so the can cover all the 5 holes comfortably.
• Put your mouth on on the small flat end of the mouthpiece and blow into it.
• Lift one or several fingers from the hole they cover on the pipe depending on what tone you wish to play.

Notes

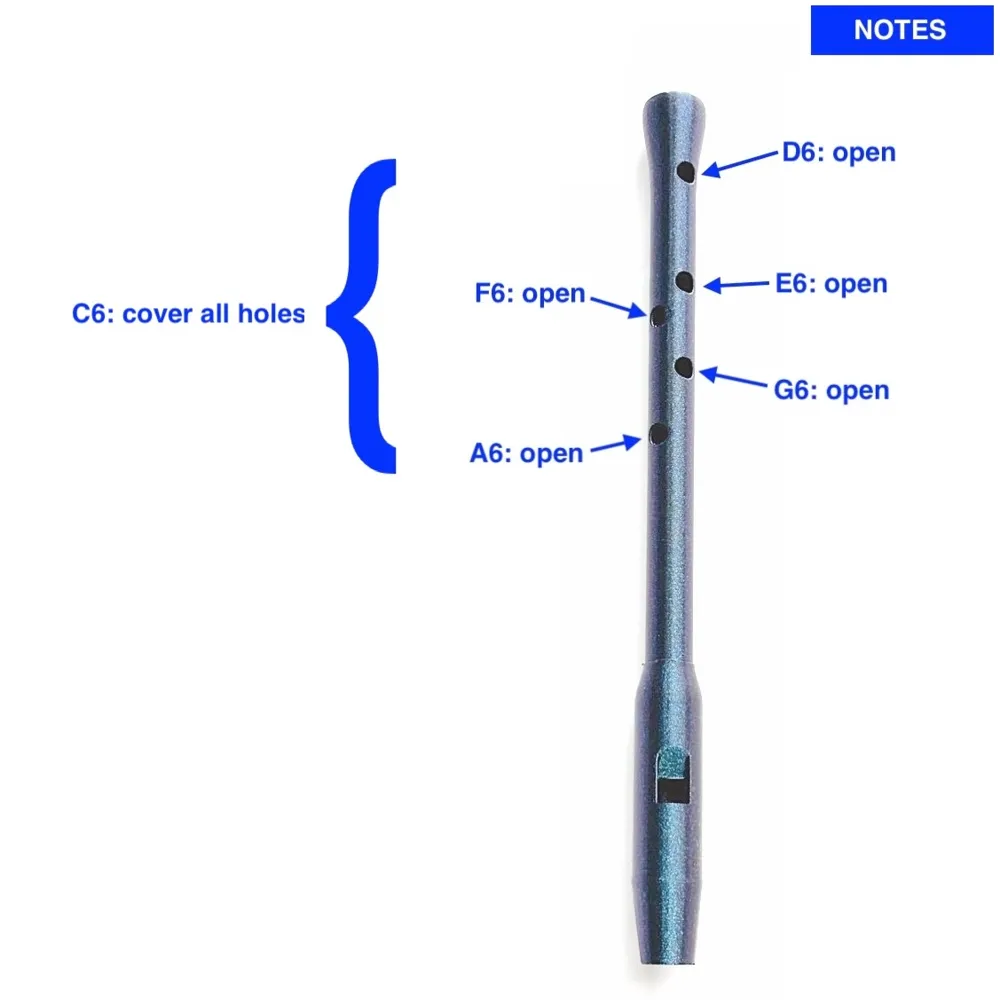

See provided picture (NOTES).

Have fun :)
