Description

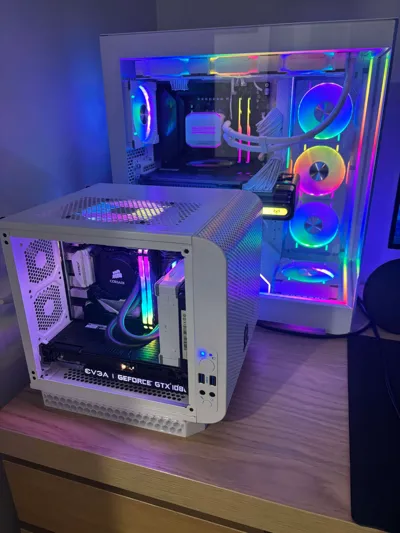

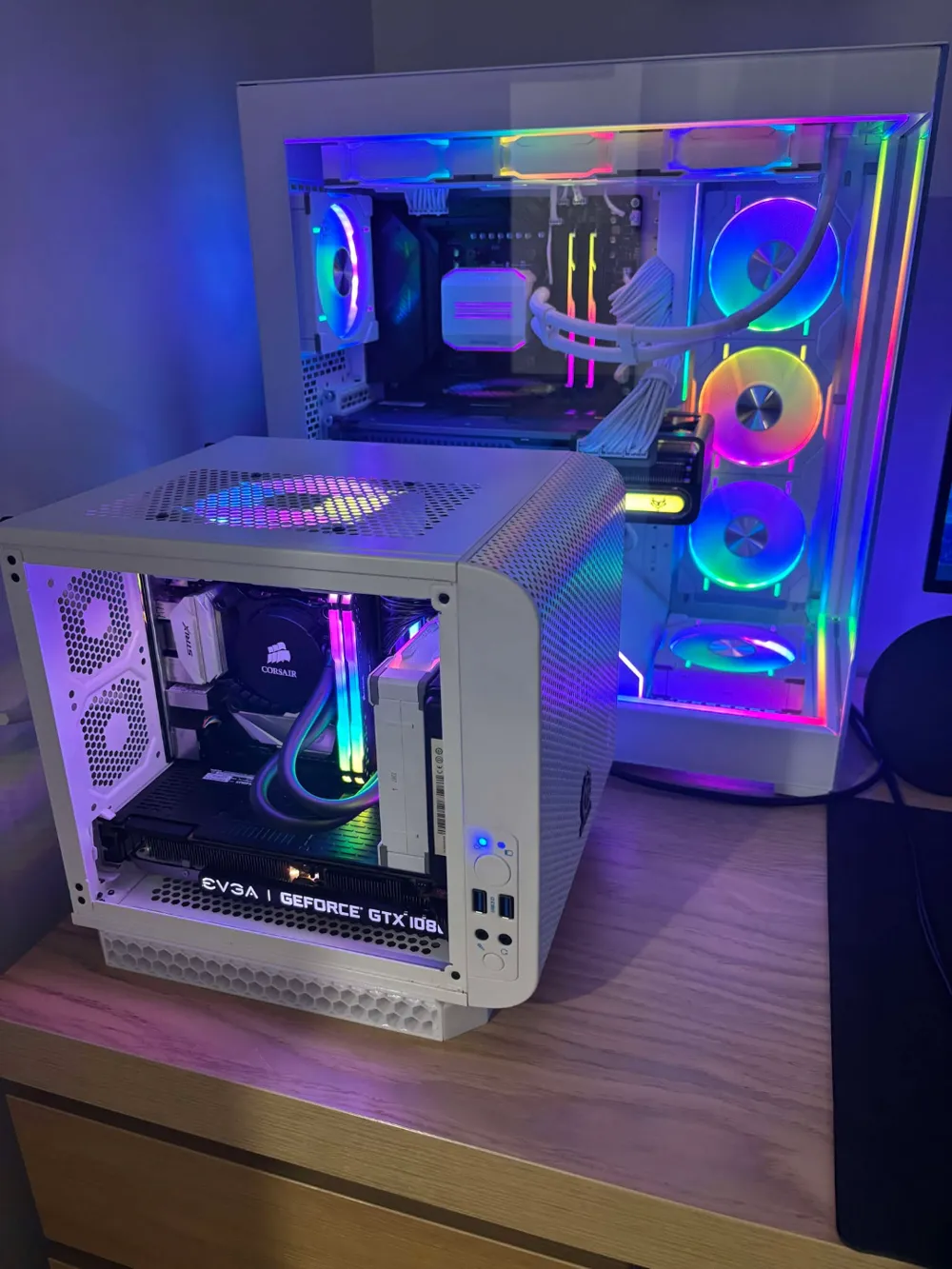

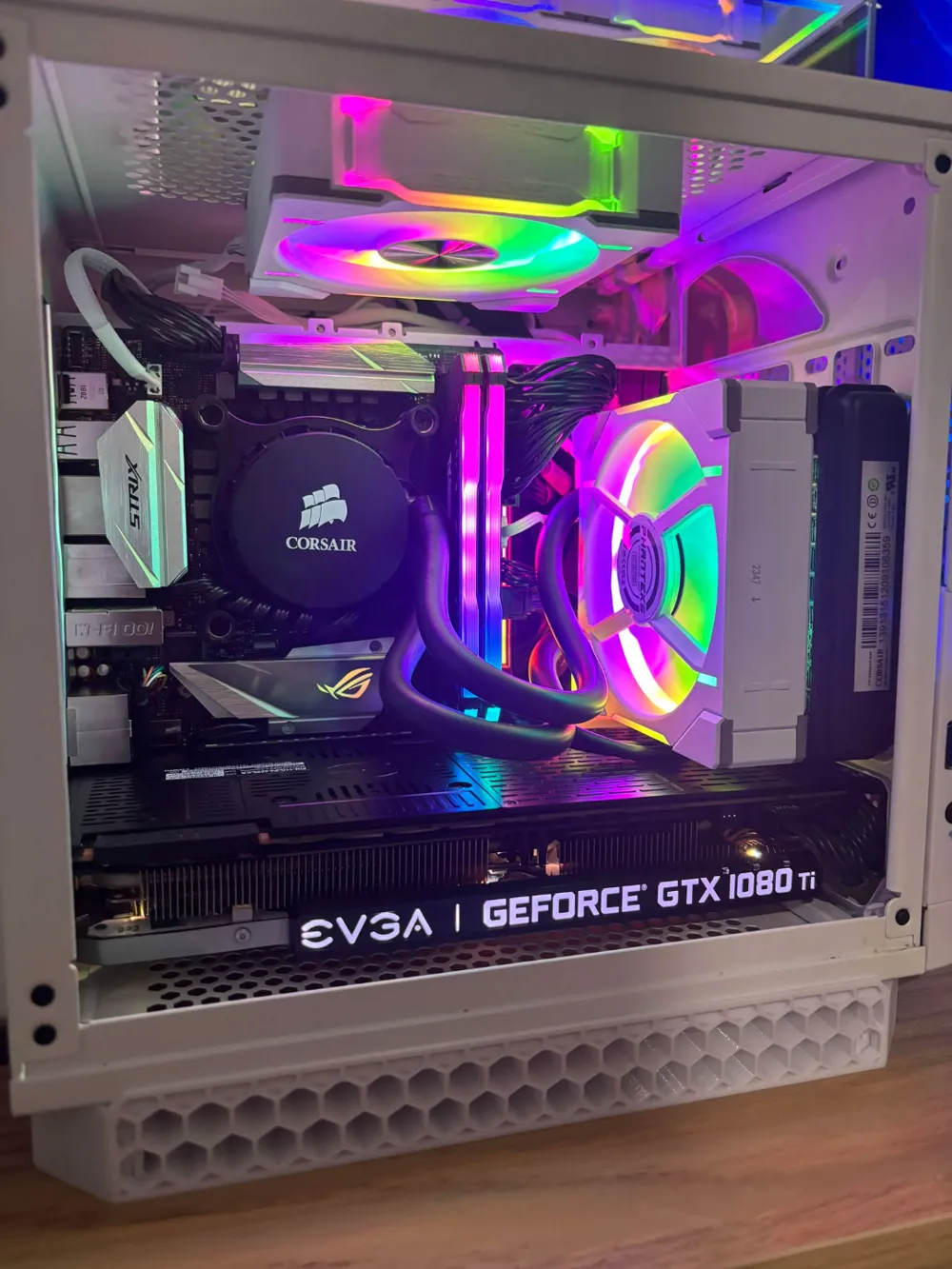

This is a simple riser to allow airflow to the GPU if the Thermaltake Core V1 is mounted on its side.

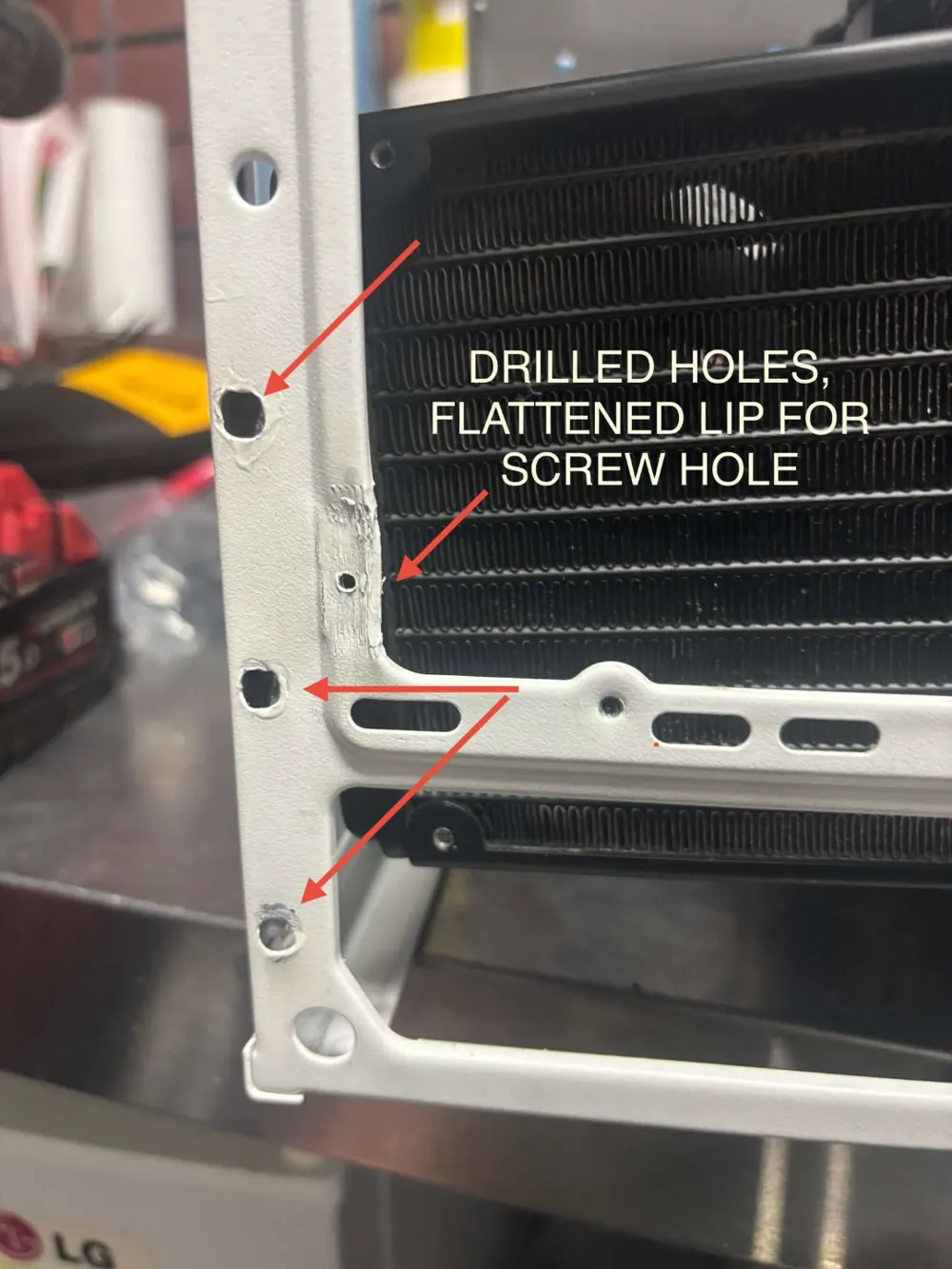

To achieve this i also had to move the power button, which was just drilling a couple holes - pictures included!

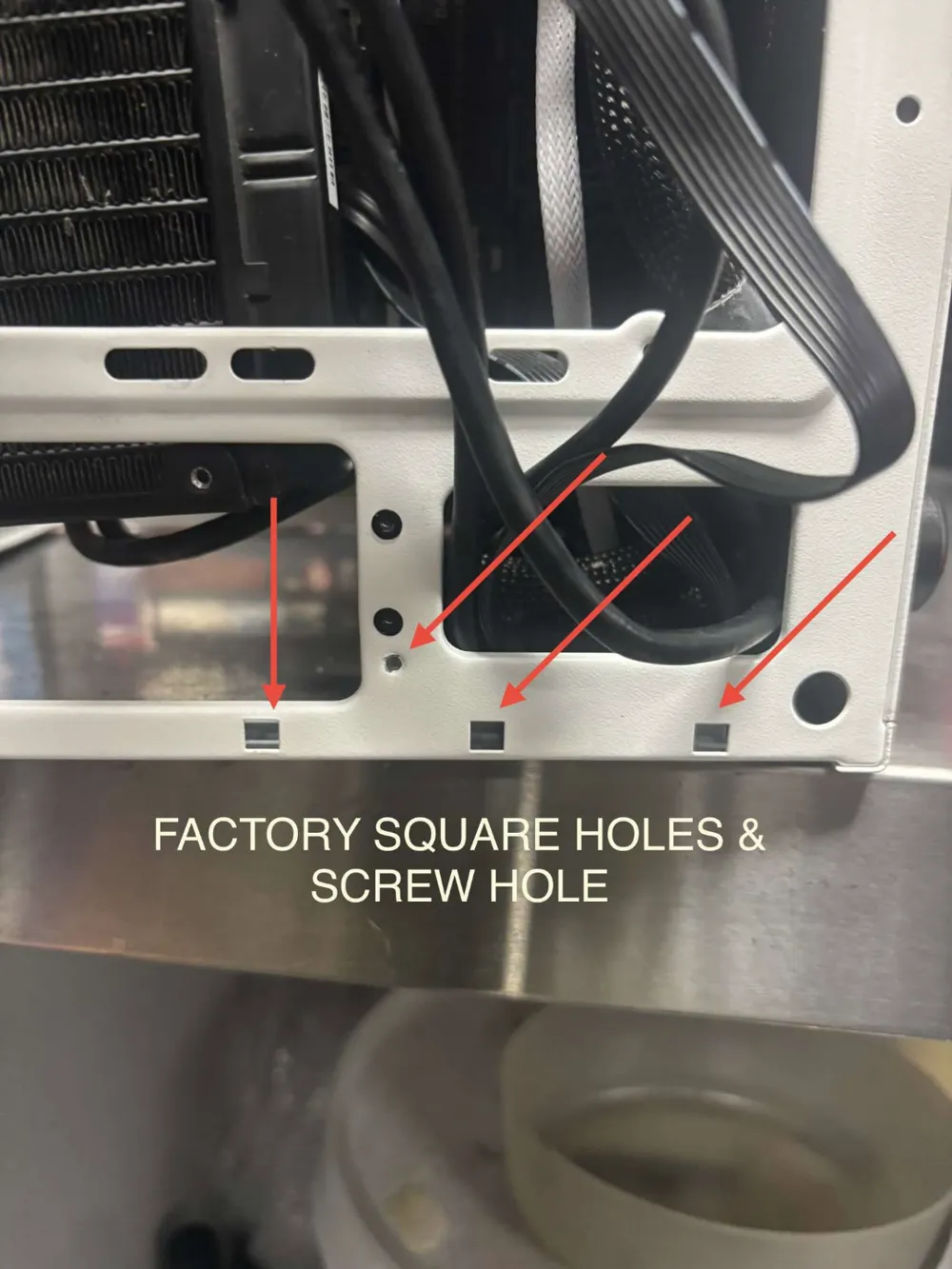

(make sure you test fit with the cover before drilling, dont rely soley on the factory hole dimensions..)
Parts split into 2 as the corners cant have the same shell settings as the sides.
I couldn't figure out how to have 2 plates slice differently so I just uploaded the parts as 2 different profiles.

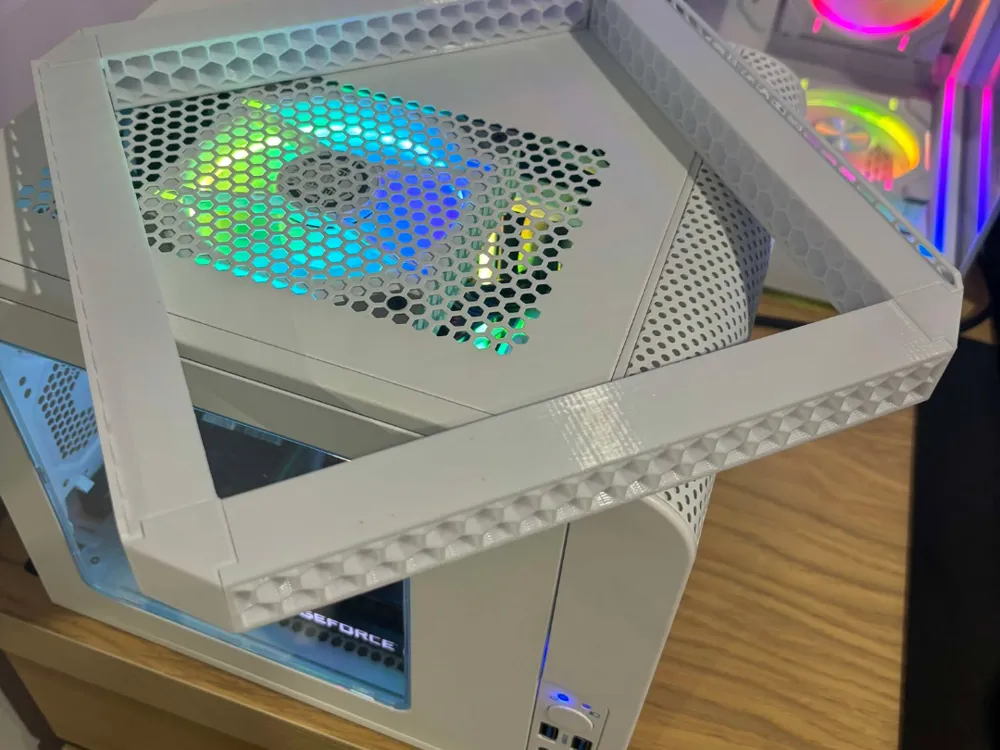

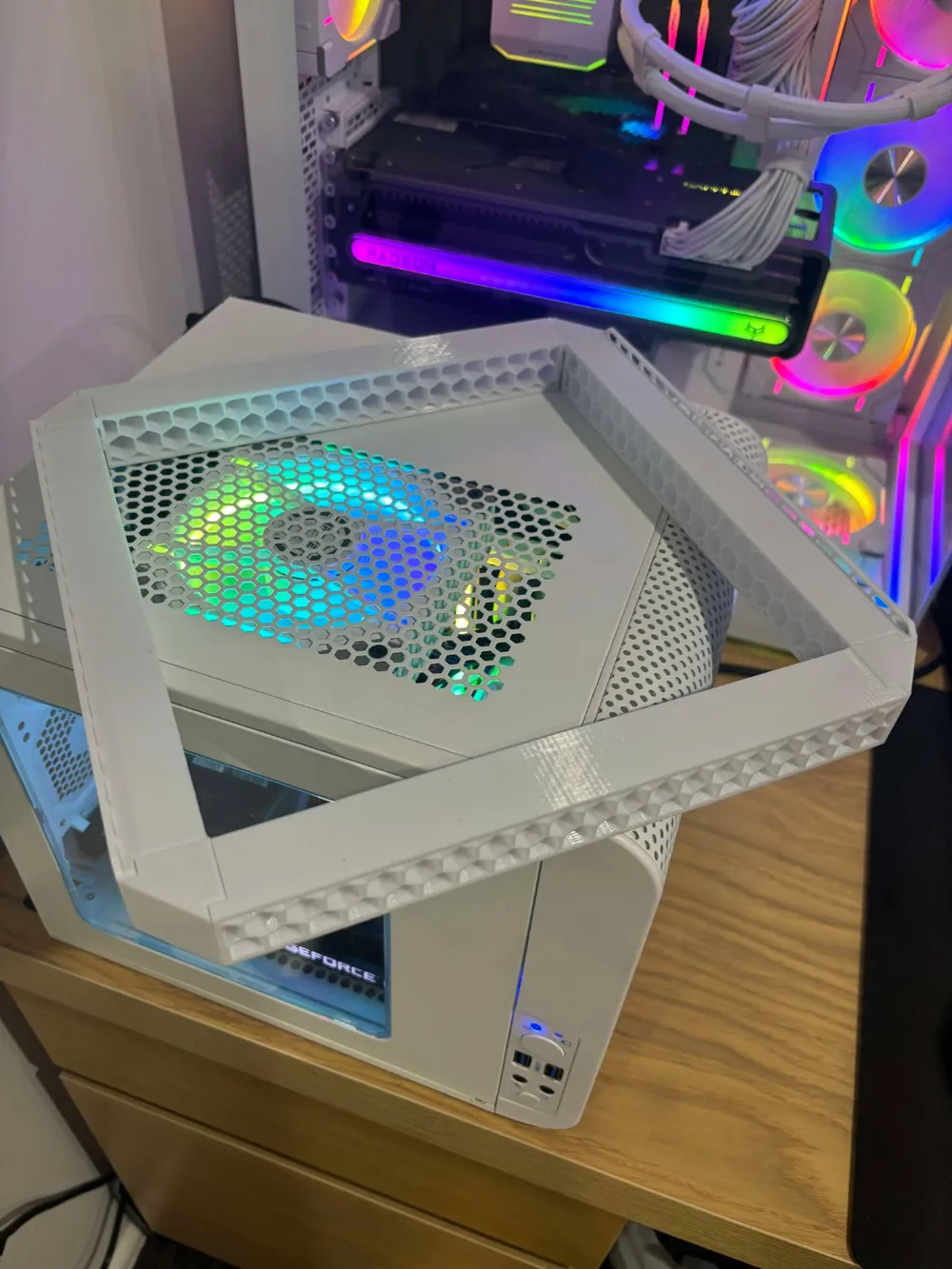

The corners simply slide in using a dovetail, no tools or glue required.
RAW file included to remix for different dimensions if you have a similar problem on a different case!
Riser dimensions = 260x260x25mm
Recommended PETG
Profiles - P1S using 0.4 Nozzle
SIDE SETTINGS
Top Shell Layers - 0
Bottom Shell Layers - 0
Sparse Infill Density - 7%
Sparse Infill Pattern - Honeycomb
Infill Direction - 0*
CORNER SETTINGS
Top Shell Layers - 3
Bottom Shell Layers - 3
Sparse Infill Density - 5%
Sparse Infill Pattern - Rectilinear
