Mean Well LRS-75 case
Print Profile(1)
Description

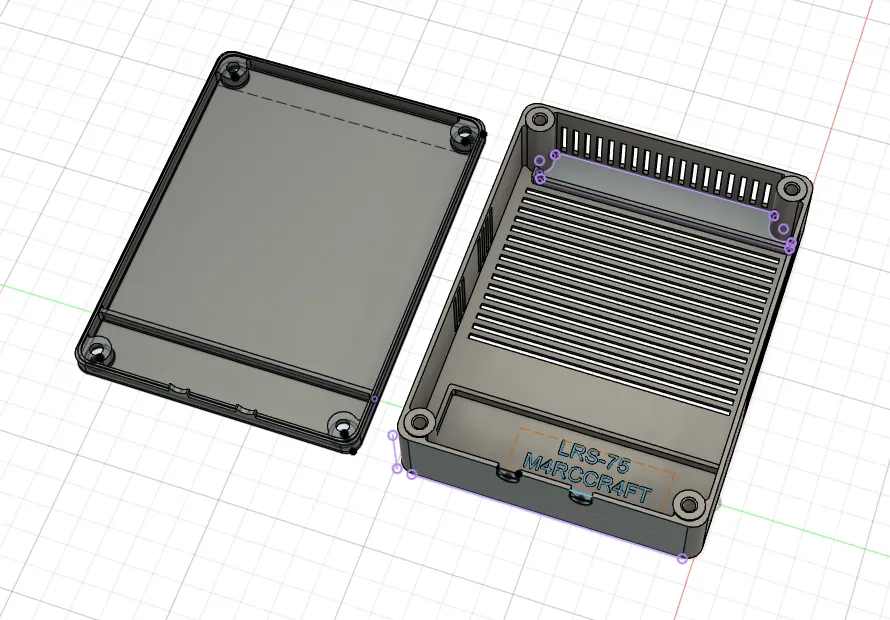

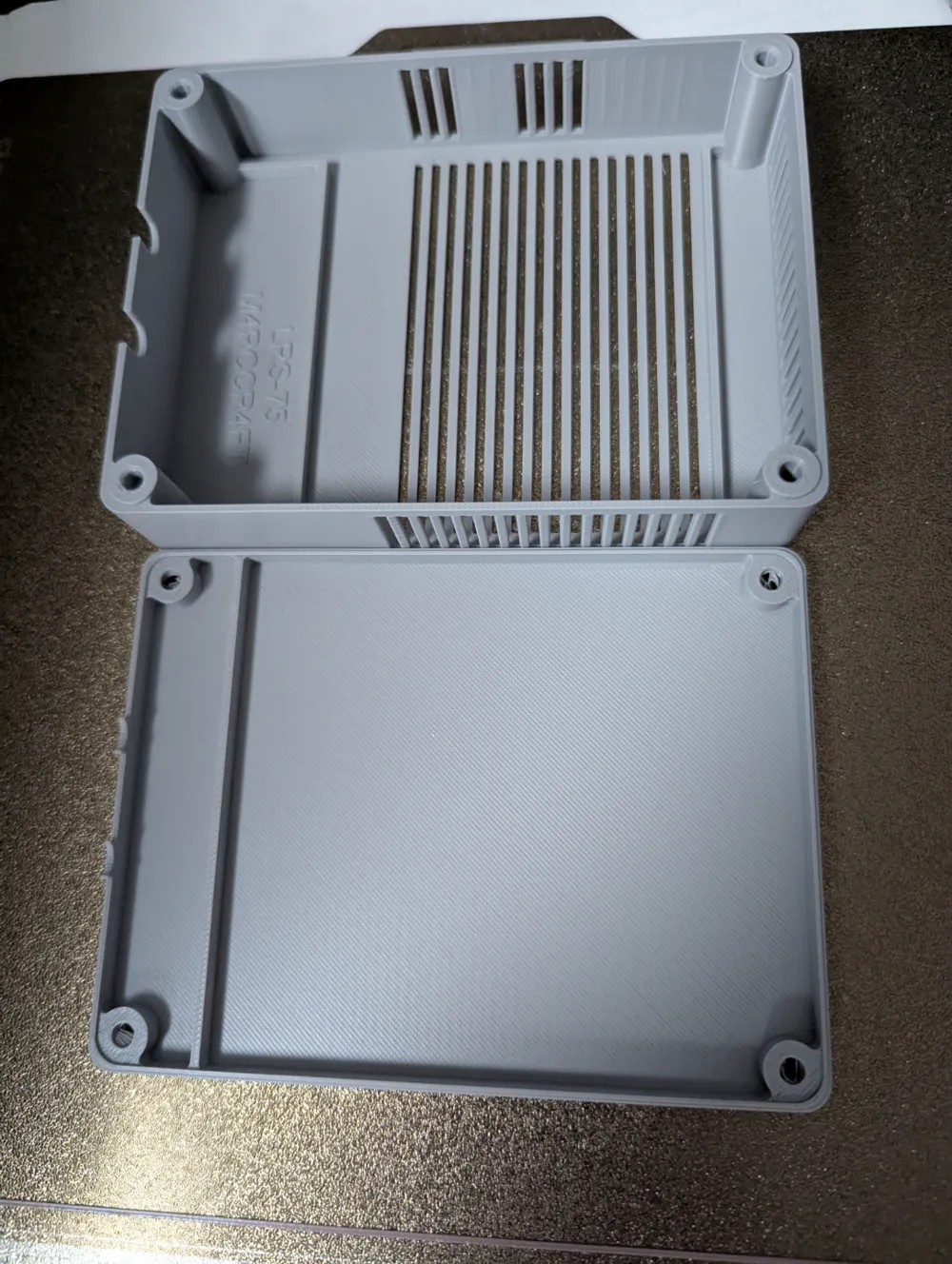

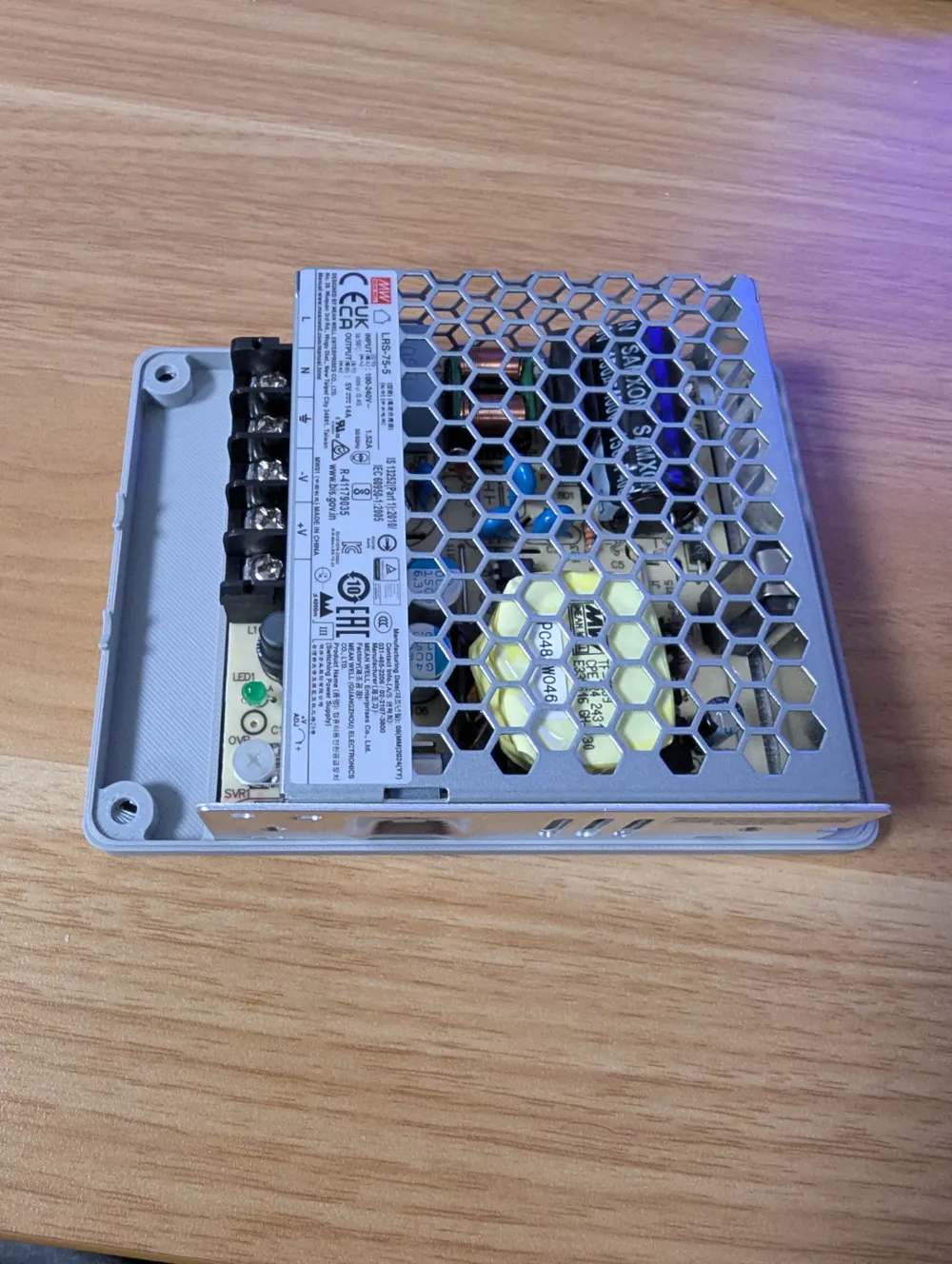

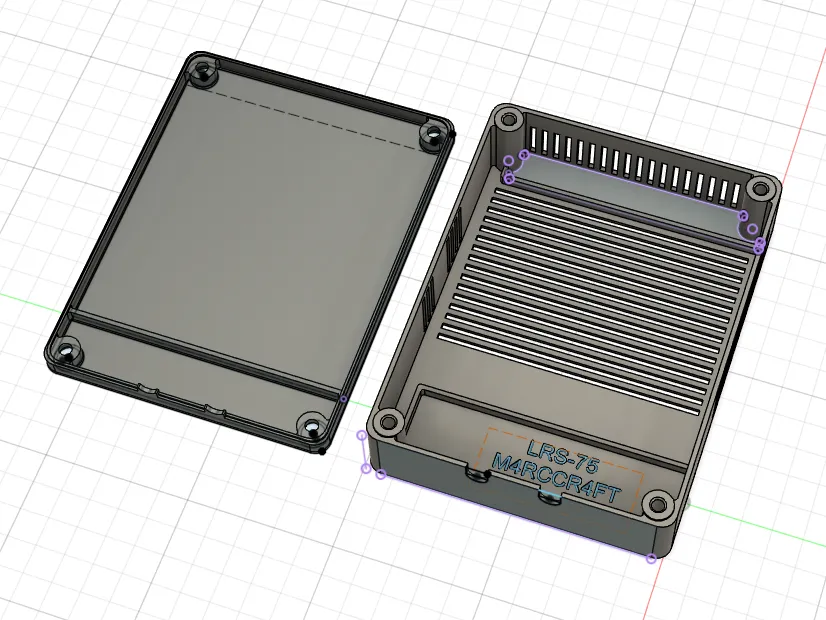

This is a case for a Mean Well LRS-75 power supply, see https://www.meanwell-web.com/en-gb/ac-dc-single-output-enclosed-power-supply-lrs--75--5. They are available in different voltages, but all deliver around 75 Watt of power.
Make sure to add tie wraps (tyraps) around the outgoing cables, to add some stress relieve on the connections. The holes have a diameter of 7mm.

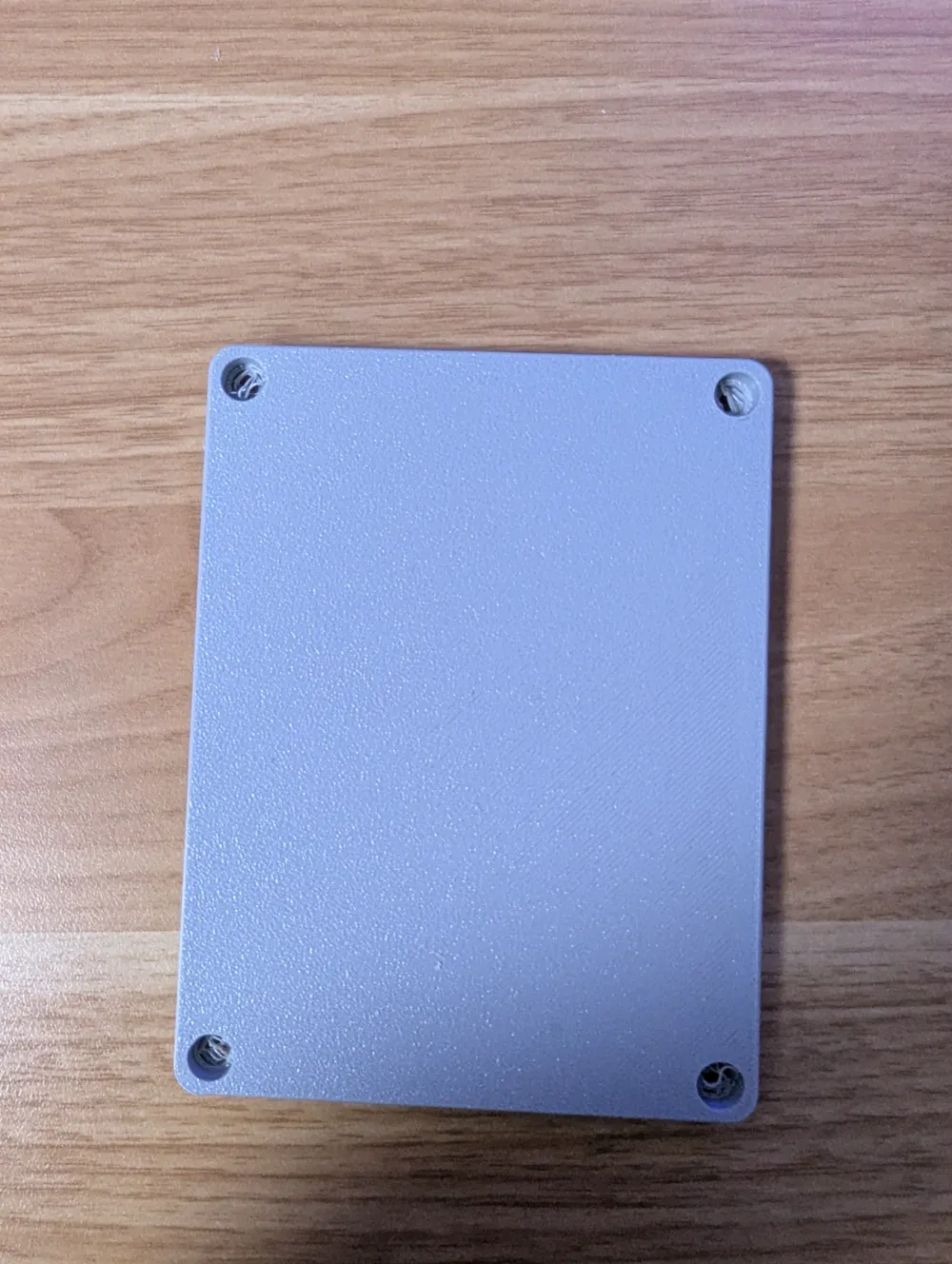

To close the case use 4 M4x12, M4x16 or M4x20 bolts, I used inbus but torx would work as well. The top cover will self-tap, the holes are 4mm.
I've not printed this model myself, but made it on request on the comments of my LRS-50 case.
