Idle pully 22 teeth 20mm belt width 5mm pitch
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
3
13
1
2
14
4
Released
Bill of Materials
List other parts
- ballbearing_5mm_shaft_16mm_diameter x 2:
Description

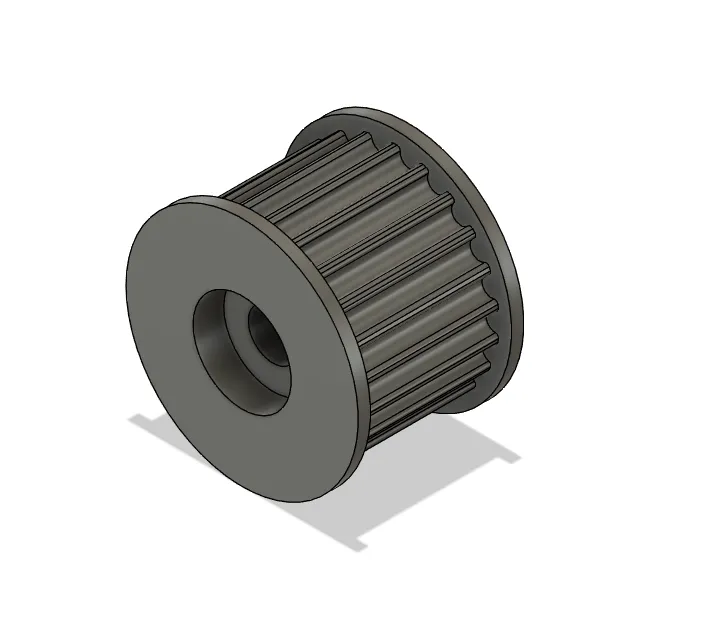

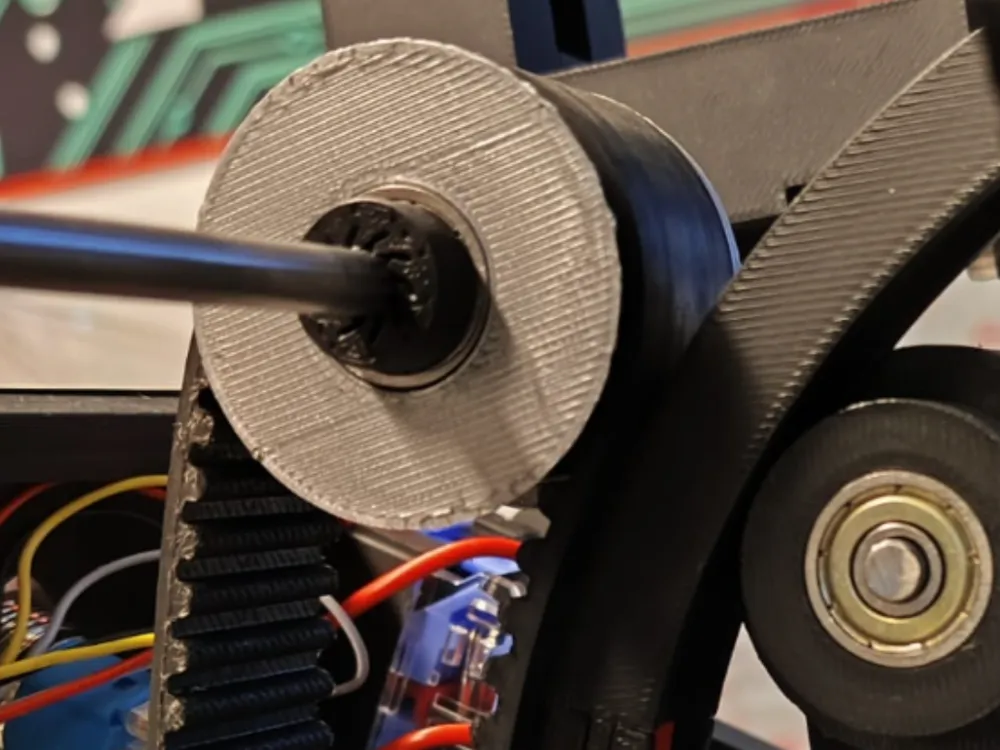

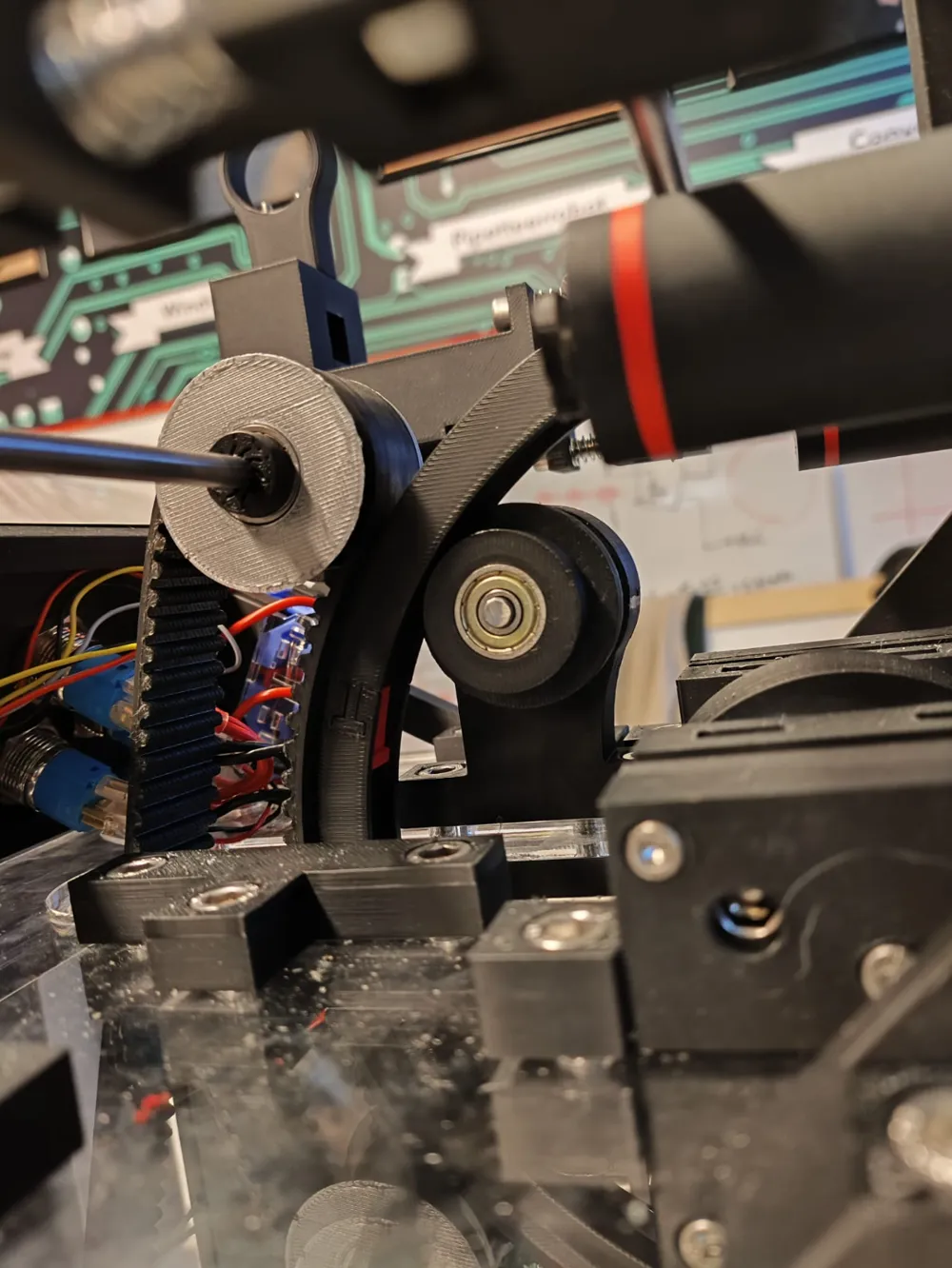

This is a 22 teeth pully i made for a school project it works perfectly as a idle belt pully when used with 16mm ball bearings with a 5mm hole with a 5mm axle (you can modify the design if you download the step file and open it in cad software)

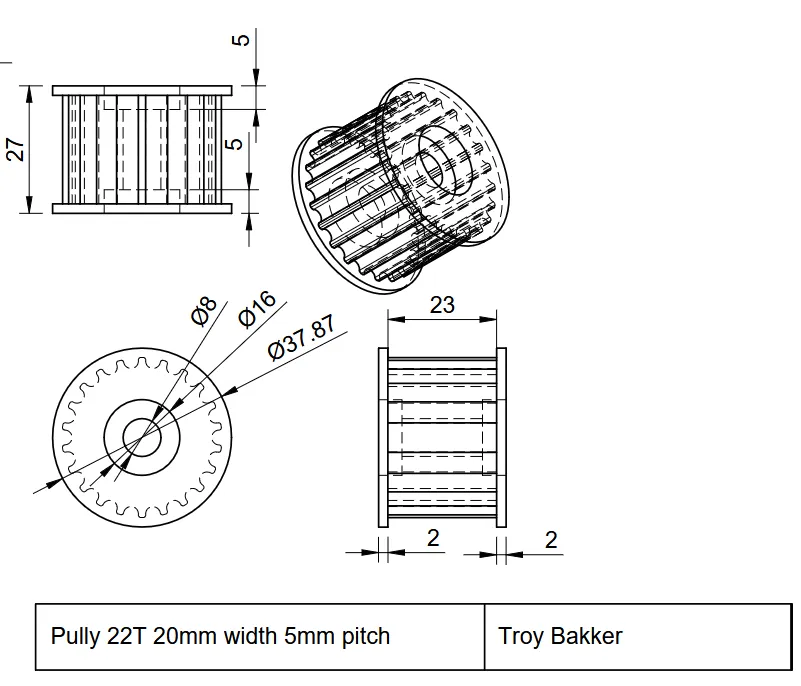

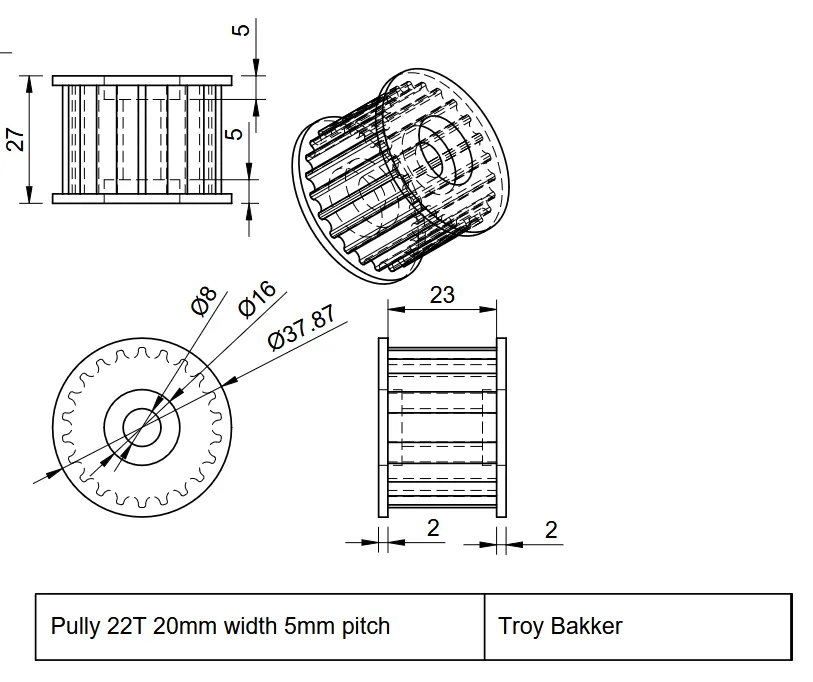

here are more specific dimensions
