Self Levelling Guitar Wall Hanger
Print Profile(1)
Description

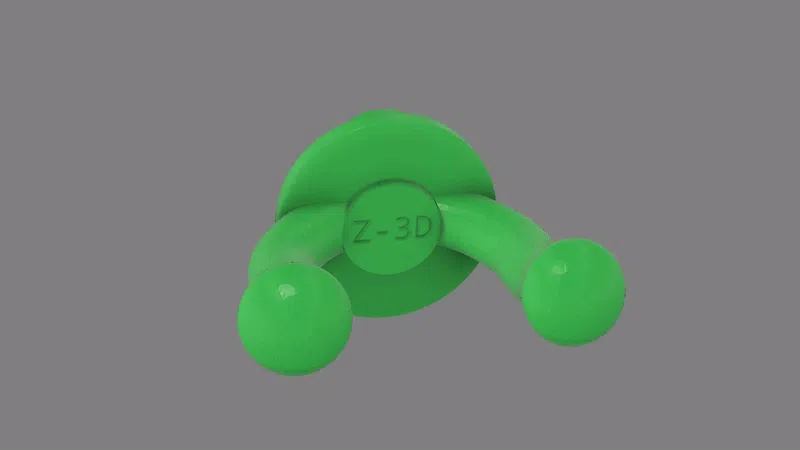

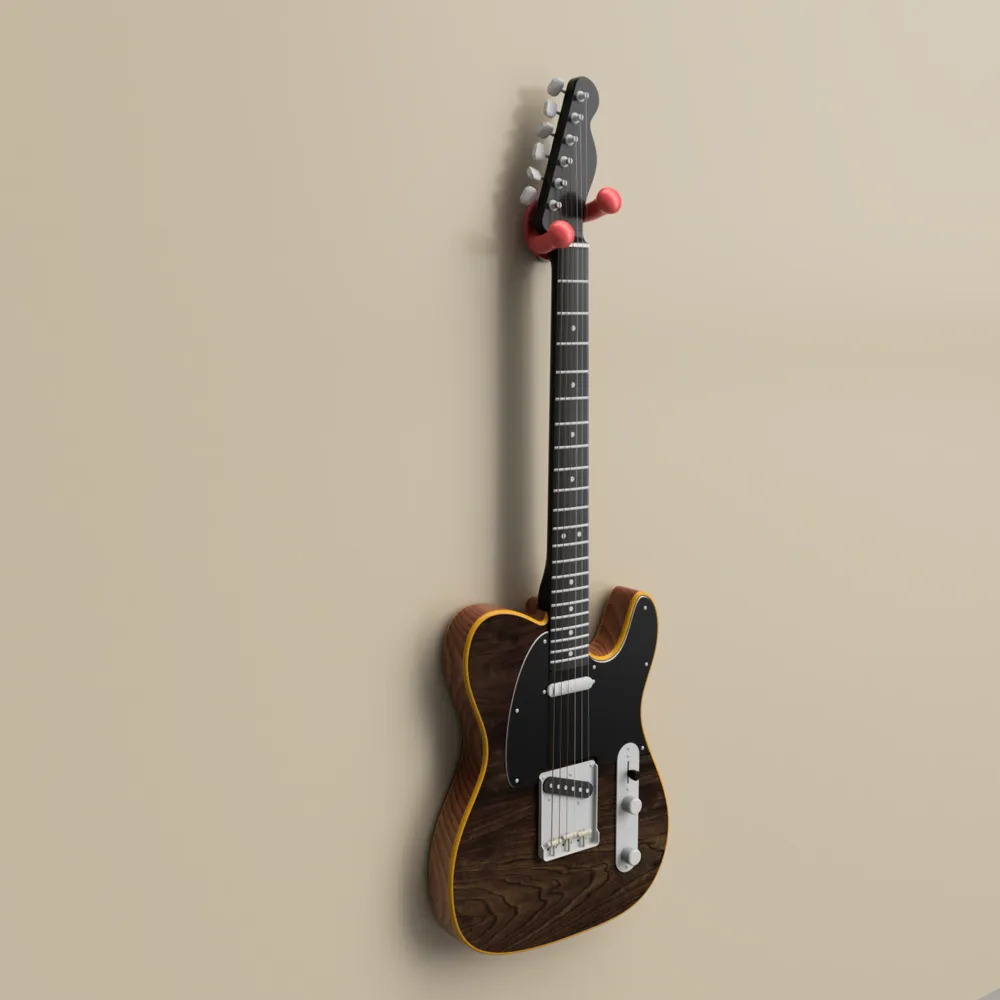

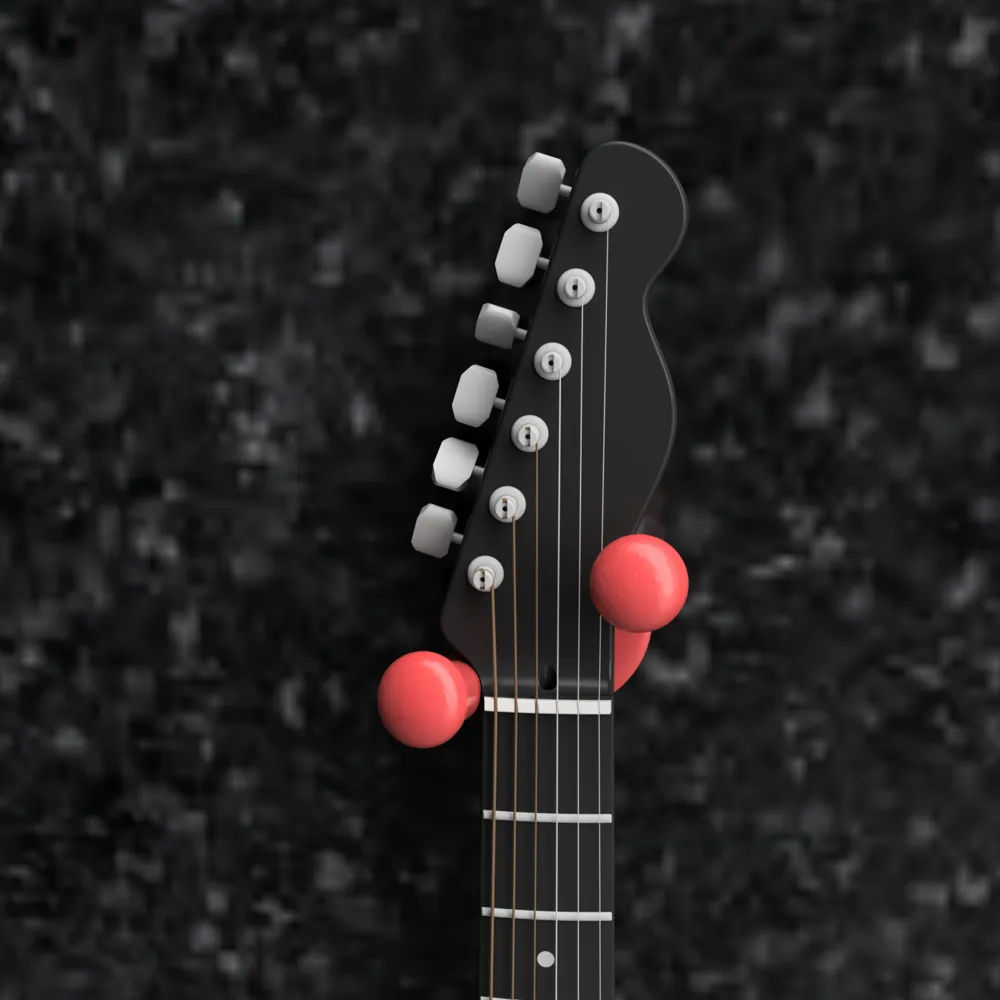

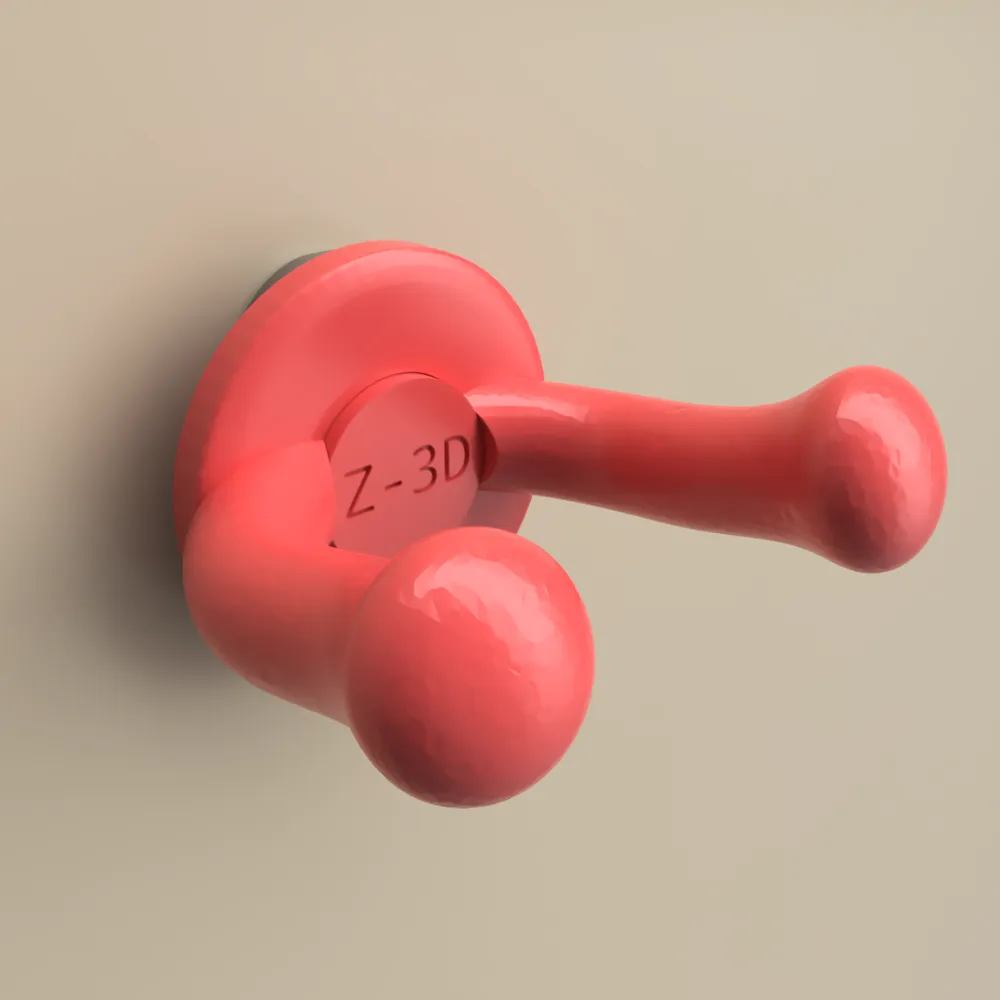

A self levelling wall hanger for guitars, basses and other stringed instruments.
Simple to mount, stylish and super sturdy, this is the perfect solution to display your instruments.
It is a universal fit, and should work with 99% of headstocks spanning most manufacturers.
Installation:
- Fix the 'Wall plate' to the wall using two 4mm diameter screws.
- Line the centre of the 'Hook' piece up, with the centre of the 'wall plate'
- Push the 'Spindle' through both holes until it sits firmly against the wall
- Use two 4mm diameter x 16mm length screws (other sizes will fit if close enough) to secure the 'spindle' to the 'wall plate'
Tip: If the hook doesn't spin freely after assembly, then back off the 2 side screws in the wall plate ¼ of a turn each. Also, if you assemble the hanger and spin the hook in your hands, you can ‘wear it in’ for a few minutes to get a really smooth feel.
Print Settings:
Really easy to print.
- 5 perimeters
- 20%+ gyroid infill
- 5 Top and bottom layers
- Layer height is up to you.
Any questions just leave a comment below and I'll get back to you asap.
Thank for looking :) - Don't forget to post your makes and review your experience
