Description

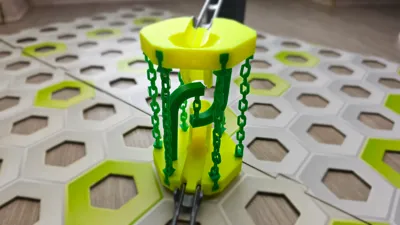

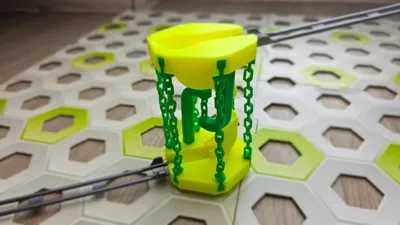

This Gravitrax custom tile resembles a tensegrity table. It has 1 entrance, 1 exit and a slide. The ring, which is printed separately, has to be glued to the main part. For the other connecting parts I did not use glue because they seem to fit together nicely even unglued.
Assembly:
- connect the middle chain to both the top and the bottom part (it doesn't matter in which order)
- connect all the margin chains to the bottom part
- connect the other side of the margin chains to the top part
- be careful not to put too much pressure on the chains during assembly. There is more than enough tolerance on the chains, but the links are still fragile and may break.
