Wedge Generator (Parametric Stepped or Flat)
Print Profile(1)
Description
This customizable parametric wedge is perfect for a variety of projects, whether you need a simple inclined plane or a precise step design. The model allows full customization of key dimensions, making it highly versatile for different applications.
Key Features

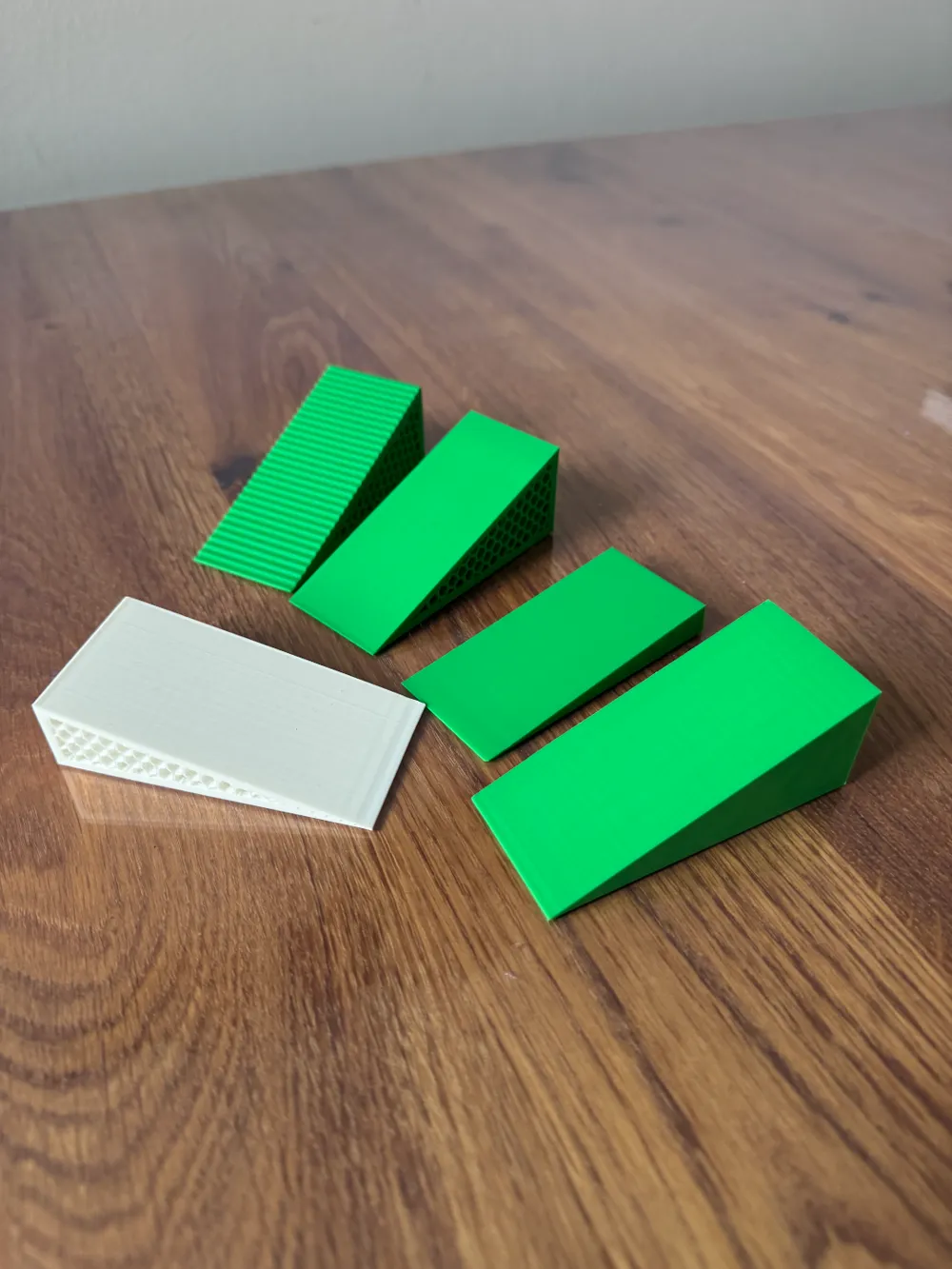

- Adjustable Dimensions:
- Width, length, and height can be modified to fit your specific requirements.
- Customizable angle: Alternatively to height you can set a custom angle.
- Flat or Step Design:

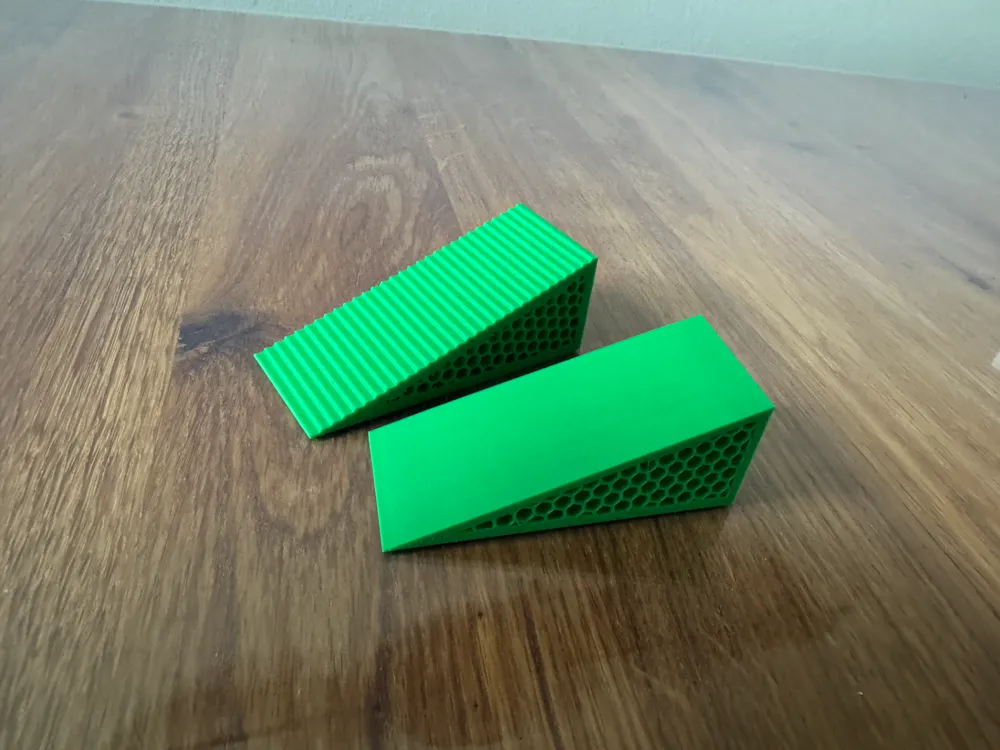

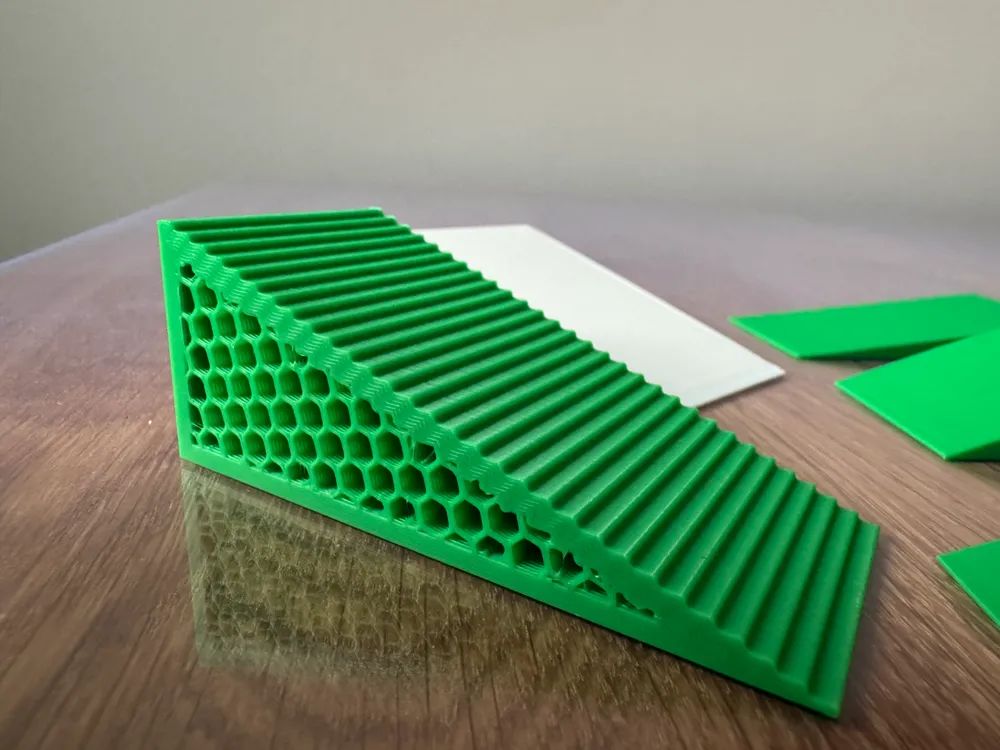

- Choose between a flat surface on the incline or a stepped surface with customizable step height.
- Parametric Capabilities:
- This model leverages the Parametric Model Maker feature of MakerWorld
- No CAD Skills Required. Adjust parameters and instantly visualize changes without needing to learn complex 3D design software.
Use Cases
- Creating precise supports for angled objects.
- Custom wedges for woodworking, assembly, or leveling.
