MIC Arm with VESA Mount - Free 3D Print Model

Search models, users, collections, and posts

Tender Defender

Hobby & DIY>Electronics

IP Report

Print Profile(2)

All

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

A1 mini

MIC Arm VESA Mount with two arms

Designer

4 h

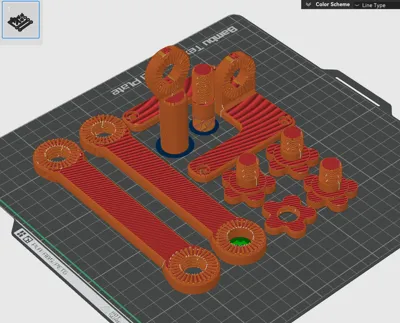

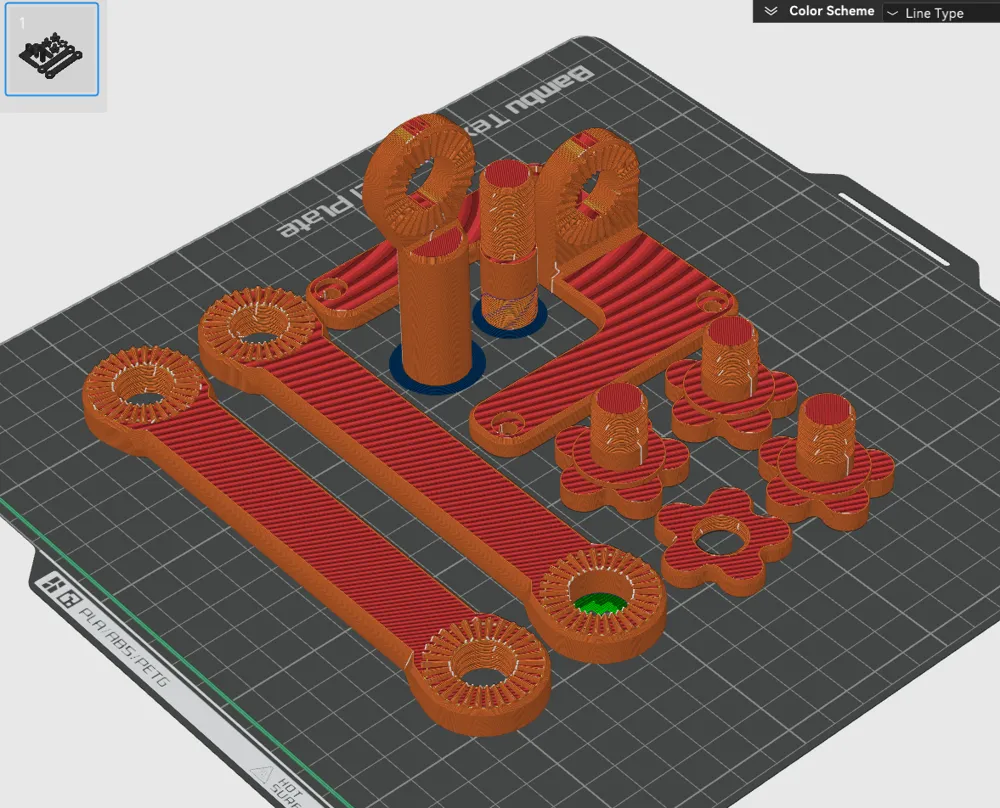

1 plate

4.7(19)

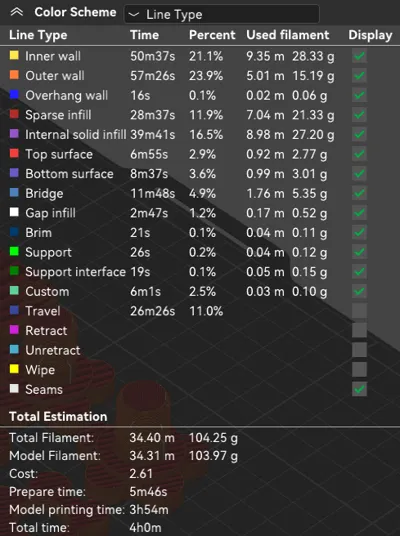

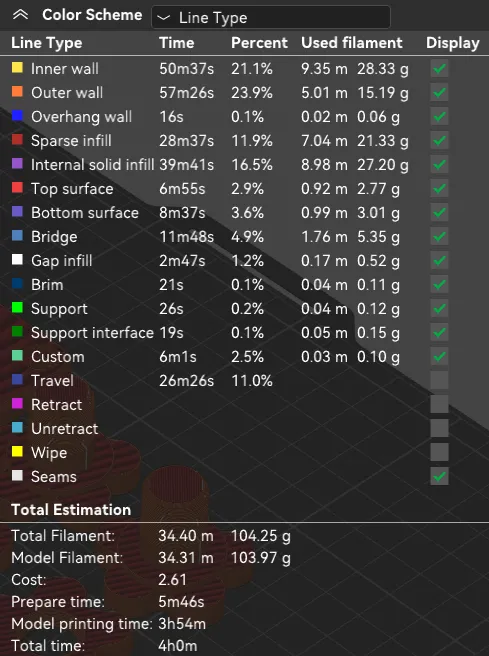

0.2mm layer, 3 walls, 30% infill

1.8 h

1 plate

5.0(1)

Open in Bambu Studio

Boost

188

497

503

250

Released

Description

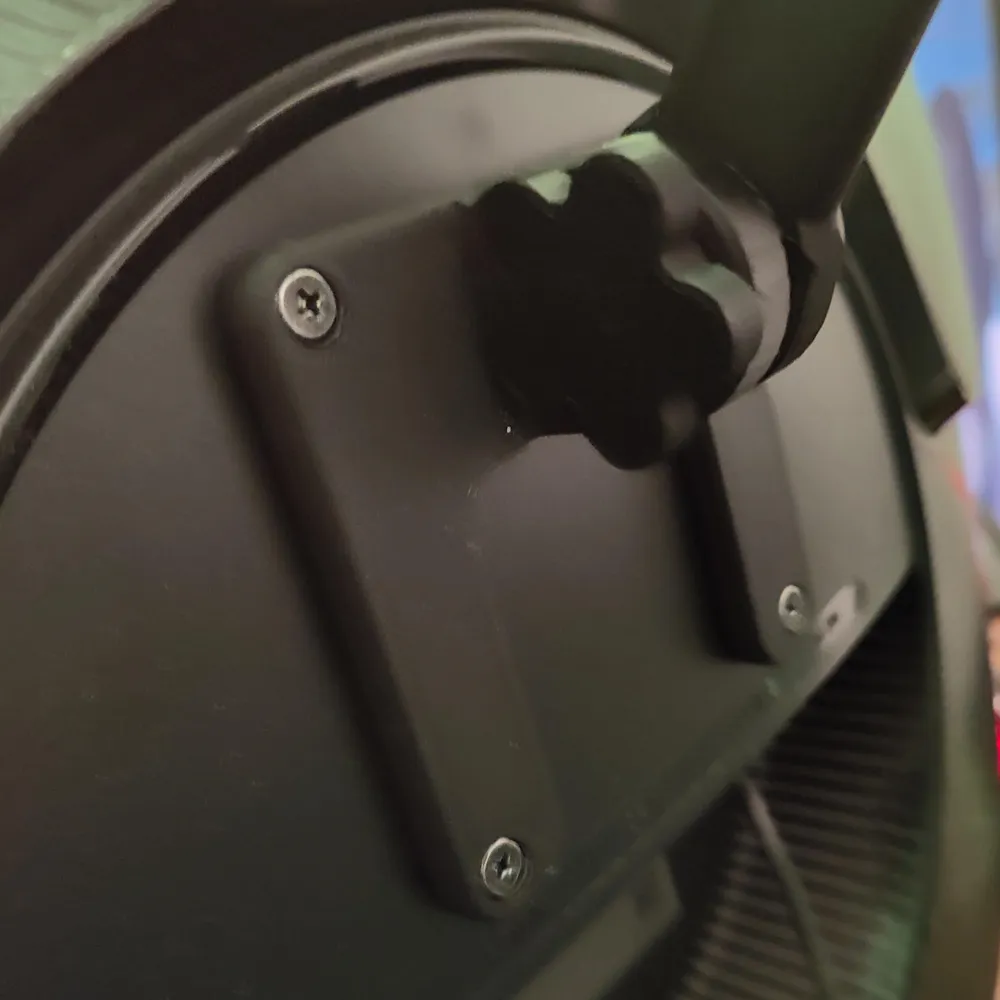

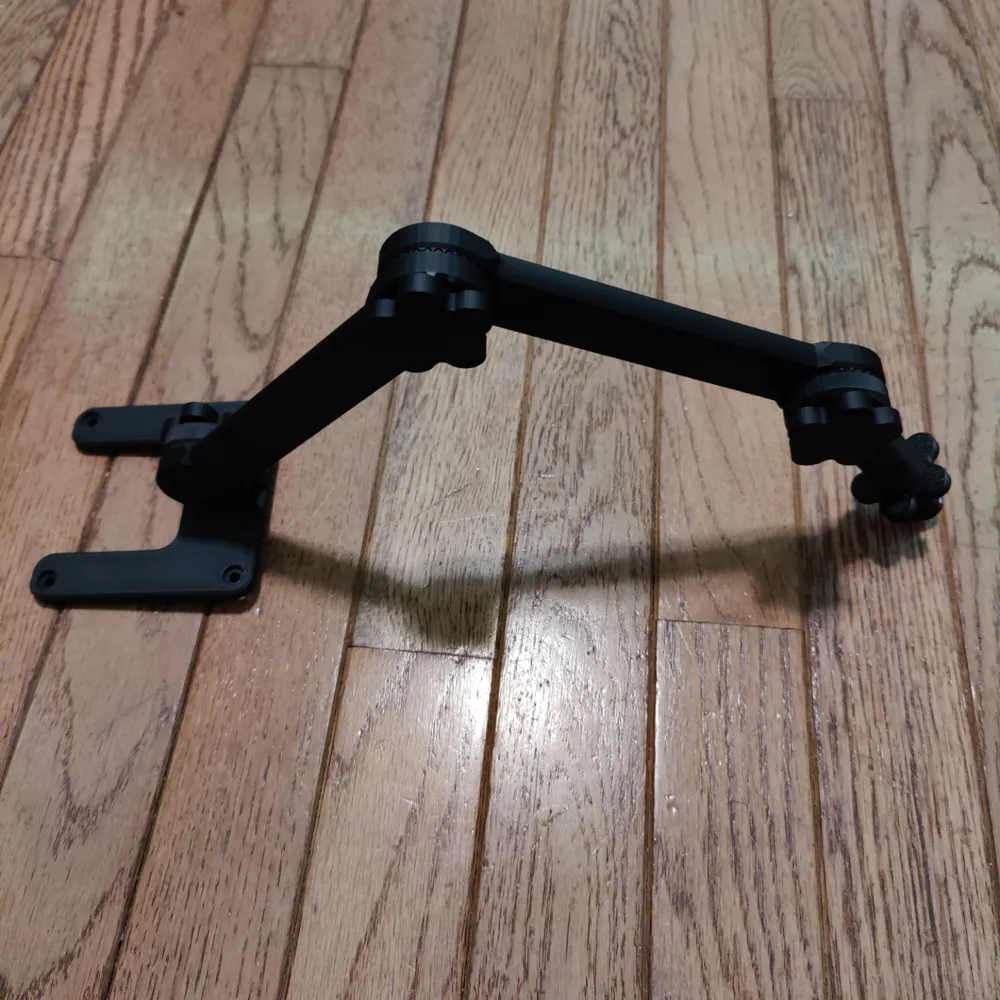

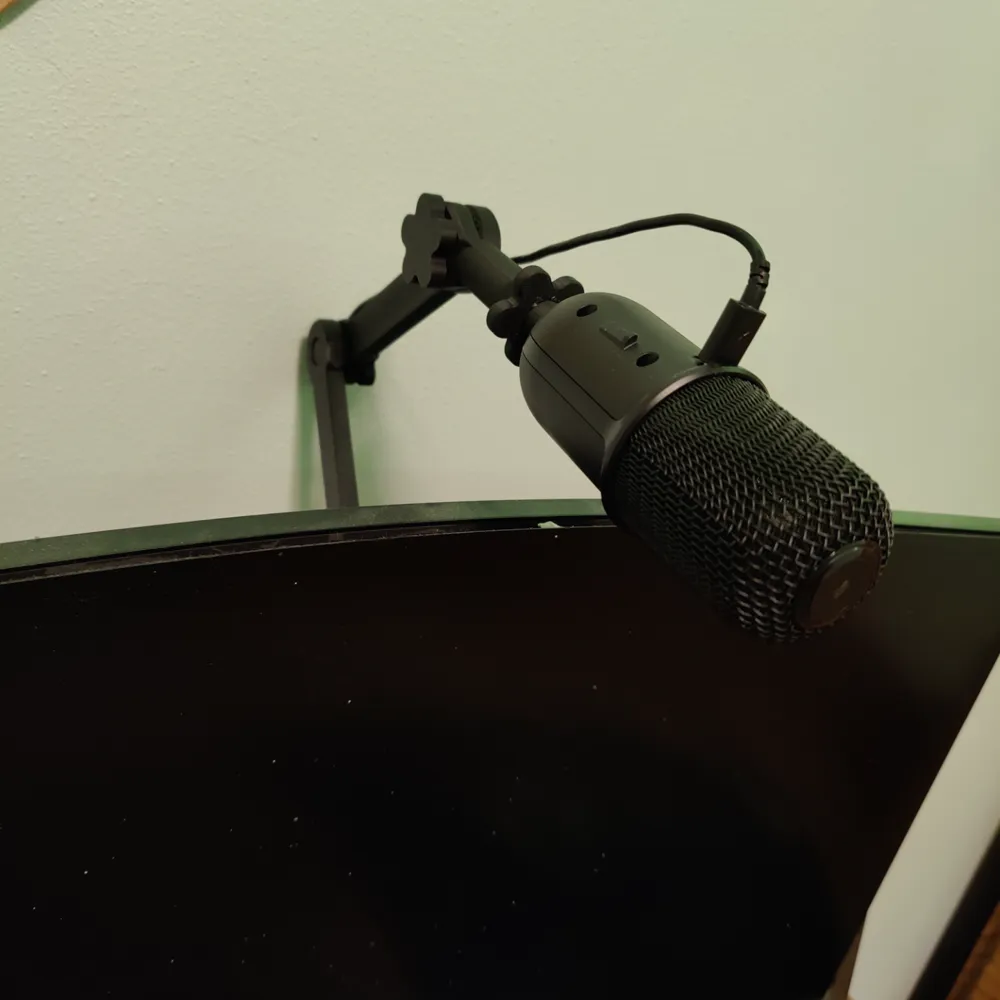

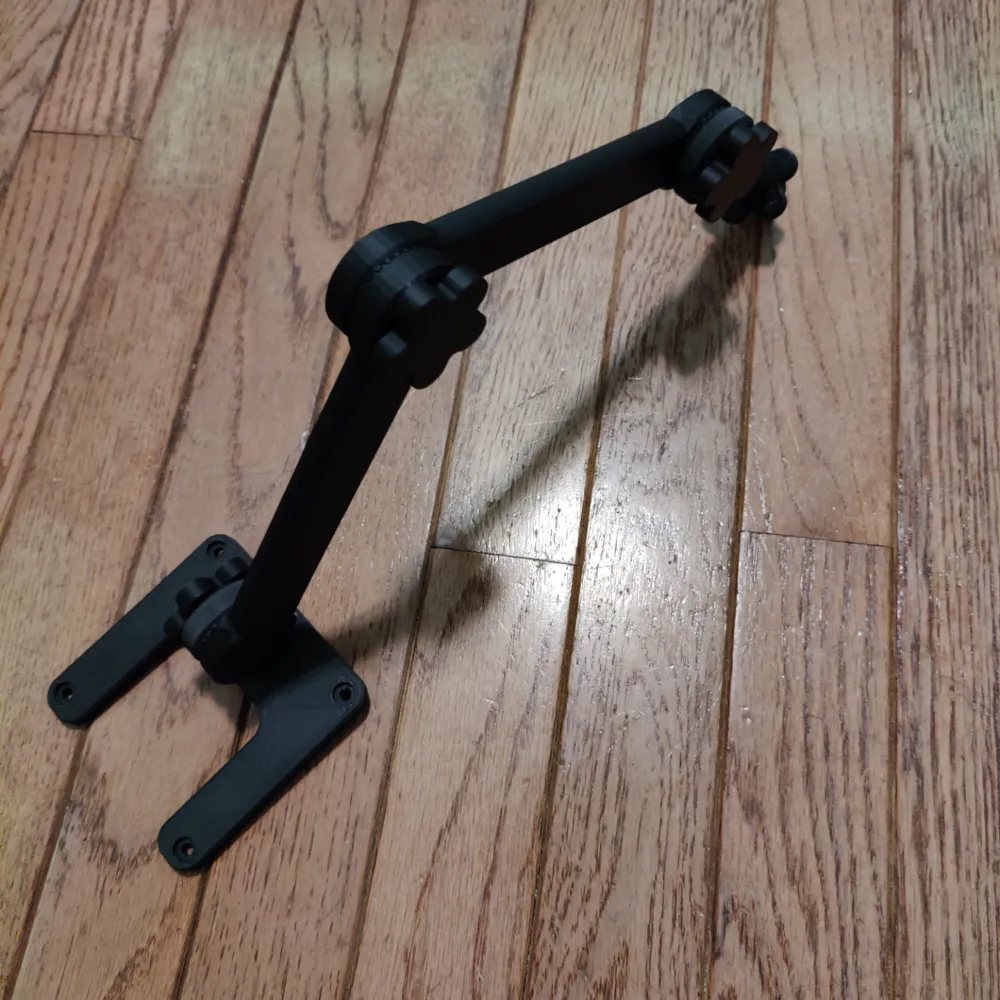

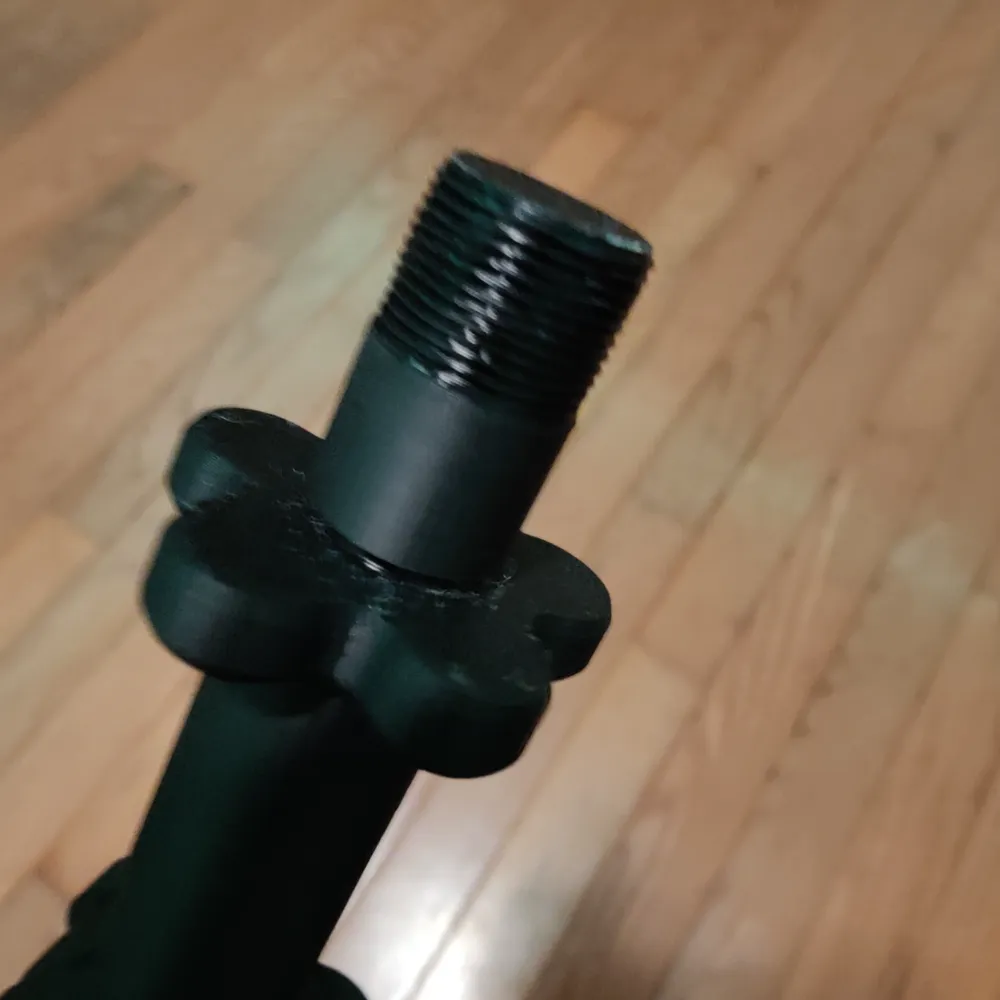

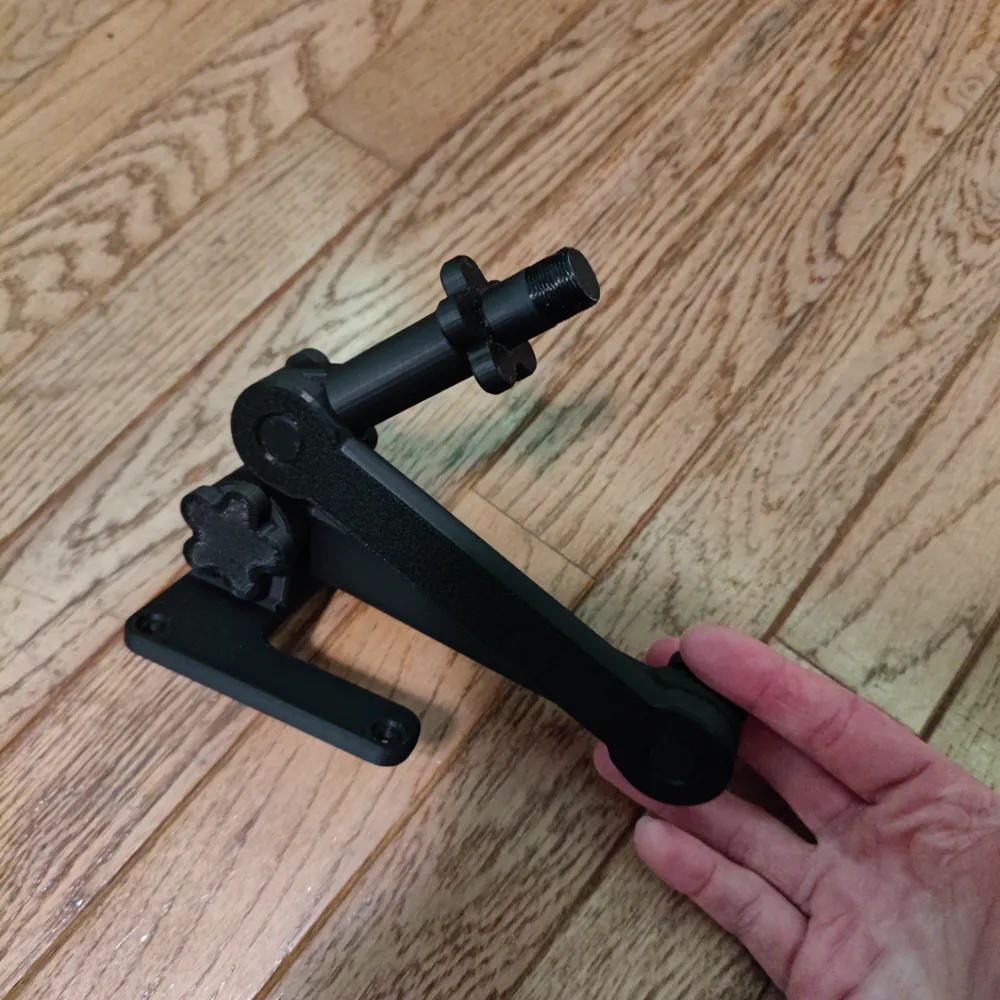

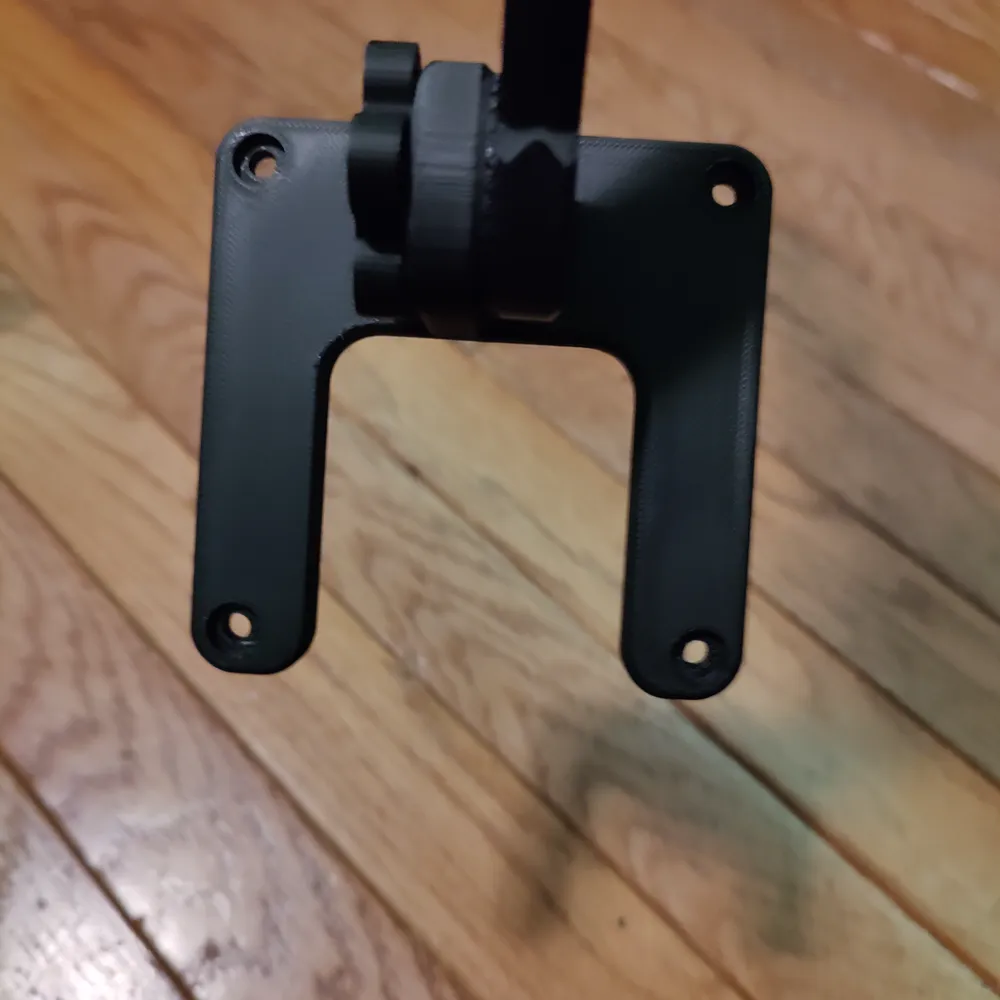

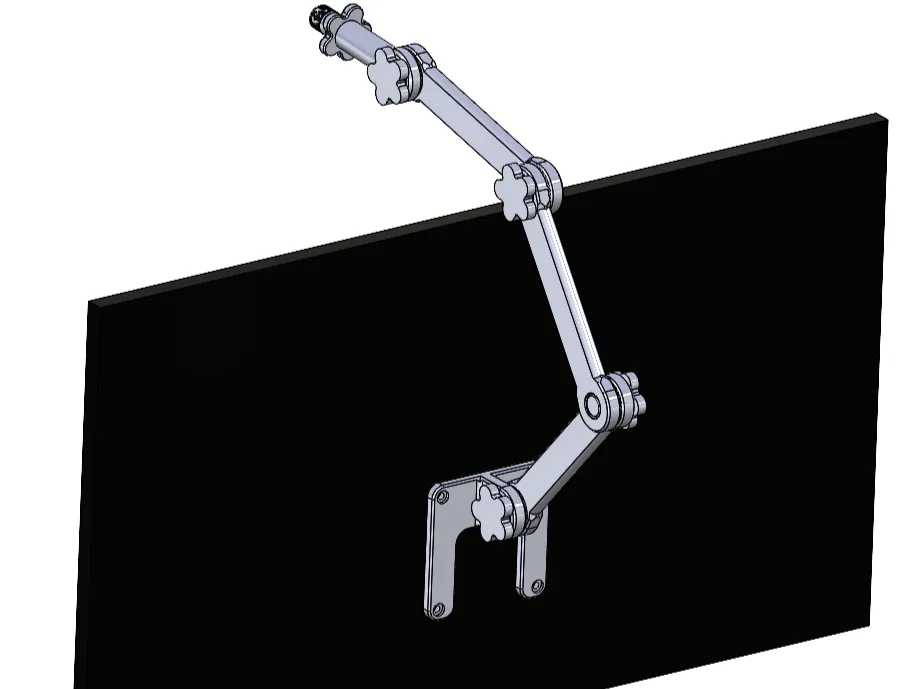

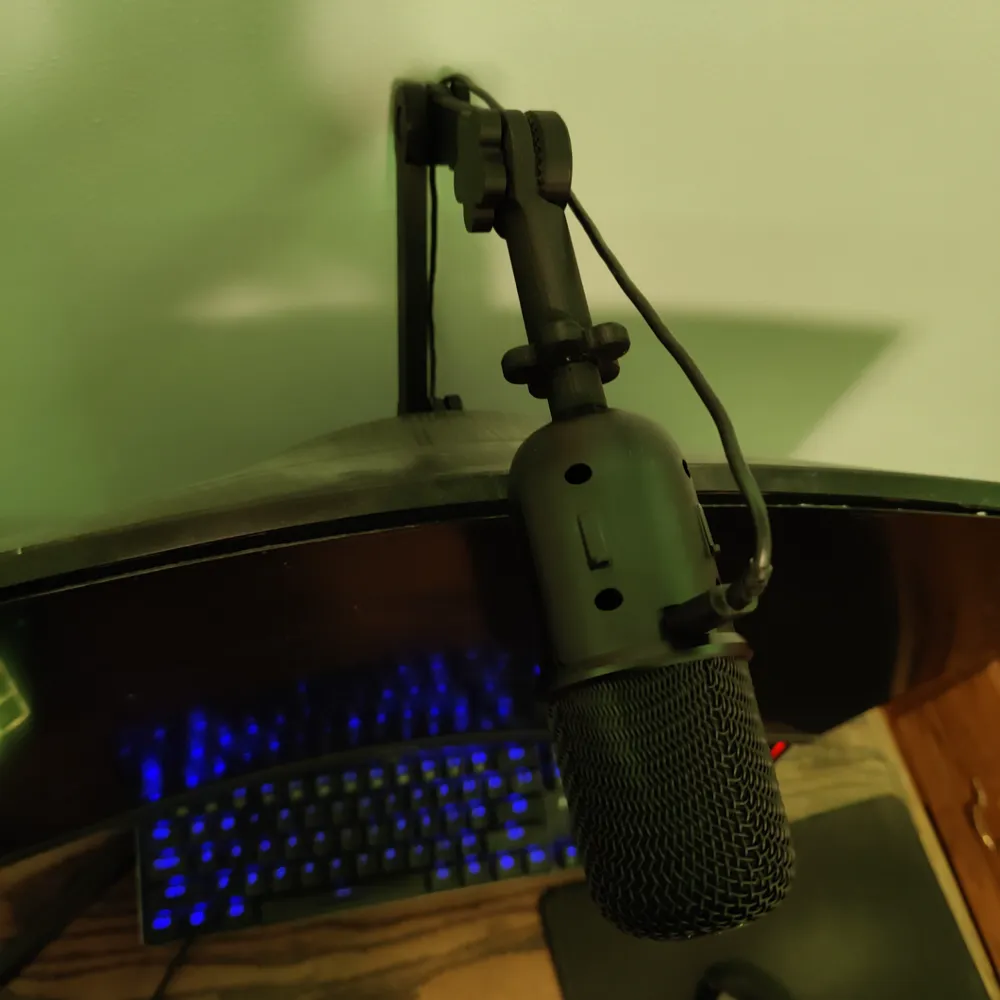

This print is an adjustable MIC arm that will fit on most microphones (5/8"-27 thread). It has a VESA mount, so it will attach to the back of your monitor with (4) M4 screws 10mm long. That is the only hardware that is needed. The arm has three joints that can be adjusted in 12 degree increments. The rotation of the bolt that screws into the MIC can be adjusted by using the nut. It is printed in PLA, but other stiff materials should work too.

Comment & Rating (45)

@pepegrillo1992

Many thanks, it worked perfectly, the only thing I had to do was create a new thread to connect the microphone as it is not compatible with the Fifine f800 model I am new to this if anyone needs the adapter please ask me I have no idea if I can share it here

Show original

@user_4032206428

hey man, i need to make a different adapter, how did you make yours? i have an AKG D5 mic which has a considerably smaller screw size inside of it.

@pepegrillo1992

Replying to @user_4032206428 :

M9 X 1.25

@manjai

Boosted

Thanks for your mic arm, and I modified the mic base to fit into my monitor stand.

(Edited)

@echo3d.ar

Boosted

Would you be able to share the file as I possess the identical monitor stand and it would prove immensely useful

Show original

@manjai

Boosted

Replying to @echo3d.ar :

no problem, uploaded

@kickwriteteach

hi! I'd love to use this to add stuff above and below my monitor, that's already using a vesa mount. is it possible to: 1. make this usable with 100x100 vesa mounting holes? I think this is currently for 75x75 2. redesign it to sandwich between the monitor and the vesa mounting arm? 3. give the mounting points on 1, 2, or all 4 sides? I've been looking at a lot of different solutions but I think your is the most flexible and sturdiest. the interfacing teeth look beefy as heck!

@dethdeks

Print Profile

MIC Arm VESA Mount with two arms

came out good

The profile uploader has replied

@TenderDefender

Great! Glad it's working out for you.

@user_729008194

Boosted

This was what I really needed. The print quality is great and works perfectly. Thank you for the great model.

@footprints

Boosted

Print Profile

MIC Arm VESA Mount with two arms

works great, printed great

The profile uploader has replied

@TenderDefender

Thanks. I never tested it with a monitor stand, but I am glad it is working well.

@THEuda

Print Profile

MIC Arm VESA Mount with two arms

Like a ass to a pot. PERFECT work !!!

Show original

@bolt2013

Hey @TenderDefender , thanks a lot for sharing your model! I’m using an Ergotron LX Premium, which needs a small adaptation on the Mic Base. The VESA plate has a 72 mm circle (4 mm thick), and the hook is 54 mm, which prevents your base from fitting. Would it be possible for you to either create a version compatible with the Ergotron LX Premium, or share the step file so I can adjust it myself? I’d really appreciate it!

(Edited)

@user_556563921

Has anyone redesigned this to accomodate the VESA 100 X 100 mounting please

@echo3d.ar

Boosted

Excellent design, I used the design that allows the arm to be inserted into the holder, I printed with 20% infill

Show original
