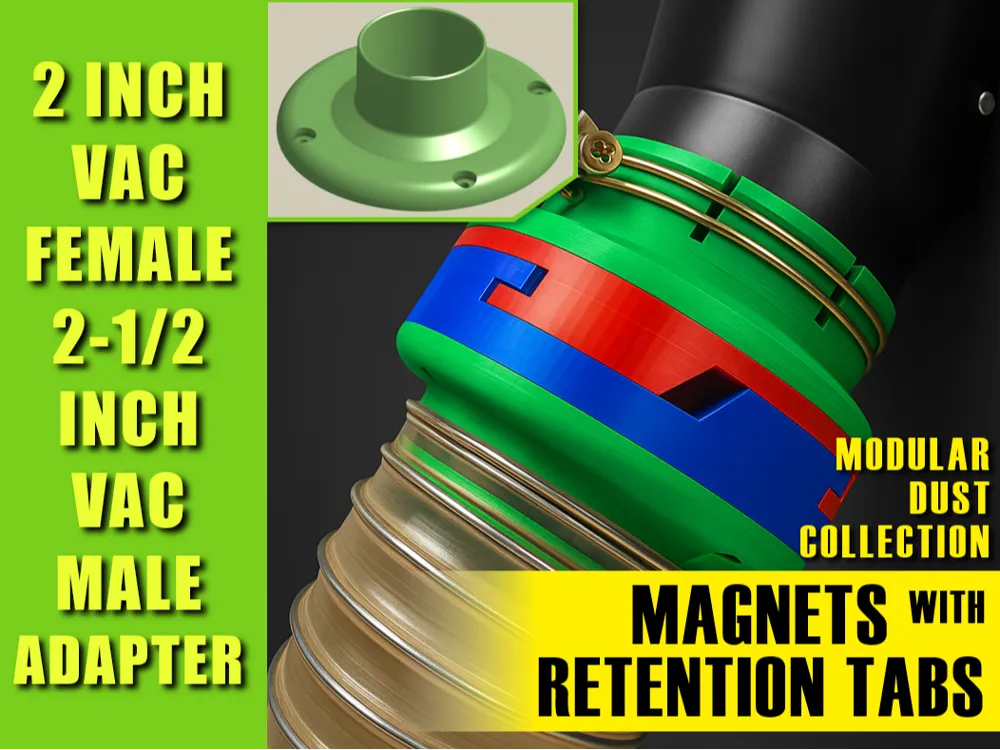

2in Vac (F) & 2.5in (M) Adapter | Modular Dust Col

This is a new take on Shop Dust Collection Fitting Connectors:

Enjoy Convenience of magnets, Retention security of interlocking tabs, and Modularity capability to adapt to any interface

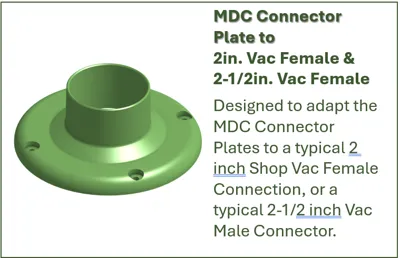

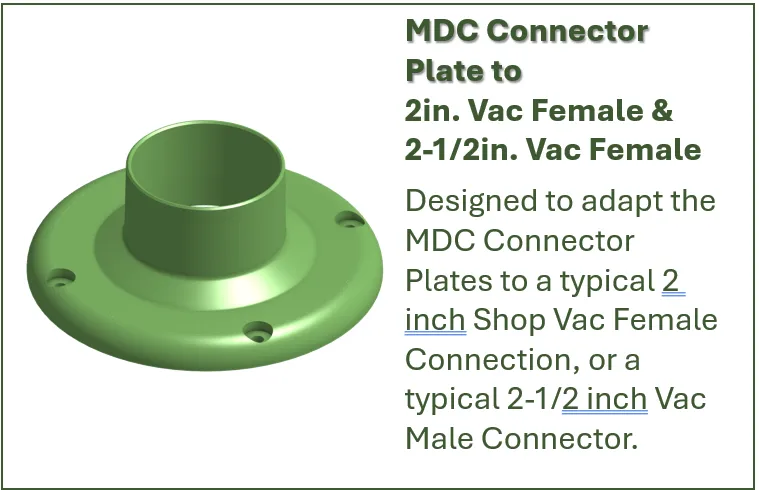

***This file is for the Combined 2-inch Vacuum Female Adapter & 2-½ inch Male Adapter, from the Complete Collection here »  Modular Cust Collection [MDC]

These Adapter plates were developed as part of my Modular Dust Collection Series, to adapt from the Connection Plates to any various purposes or tools I needed. Full details below:

These were developed to have a more robust connection when latched, single-handed operation, and a new modular approach compared to any others I have seen.

I have spent countless hours perfecting and testing this design. After having used it extensively in my own shop for over 2 years now, I'm confident it will be the best Dust Collection Connector System you will ever use.

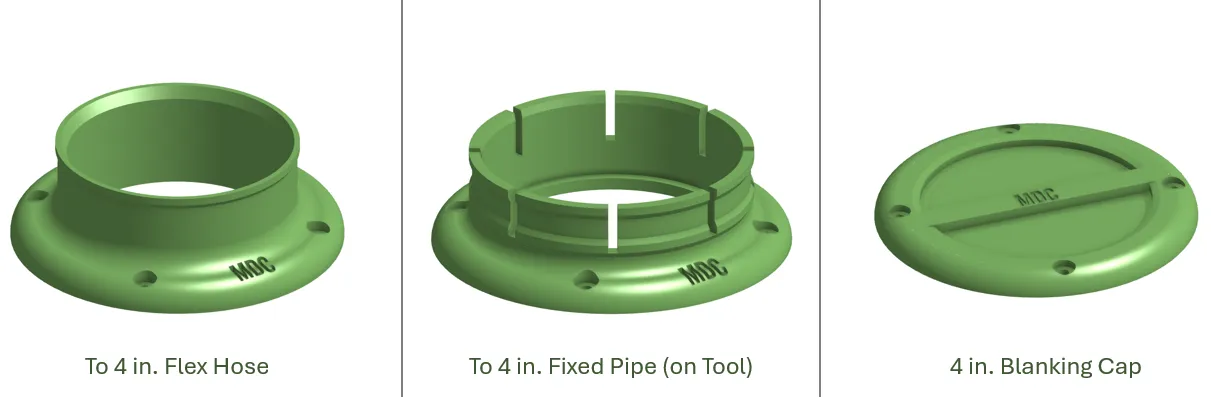

Adapter Plate Features:

• The Adapter Plates can be easily interchanged with the Connector Plates, fitting universally on either the ‘Vac Side’ or ‘Tool Side’
• Designed to eliminate needing any supports/ post processing
• Current connector interfaces which I have made adapters for are all captured in this collection Modular Cust Collection [MDC]
  • Feel free to request any other Adapters!! #WillWorkForABoost

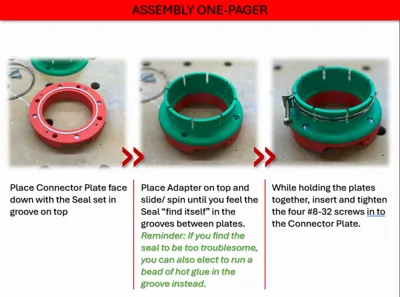

Hardware needed:

• 4x #8-32 Machine screws and Nuts per connector
  • Note: If you are going to purchase these, purchase in ¾" length to work with both sides of connectors without cutting

• 8x 12mm x 3mm Neodymium Disc Magnets per connector. Link to the ones I purchase

   https://www.amazon.com/gp/product/B09XVBL8SK/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8
