MILWAUKEE Packout 2 Drawer Tool Box Roller Mod - Free 3D Print Model

Search models, users, collections, and posts

Jerry_K

Hobby & DIY>Other Hobby & DIY

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

All Parts | 0.28mm layer, 5 walls, 20% infill

41.1 h

6 plates

4.3(4)

Open in Bambu Studio

Boost

225

581

335

Released

Description

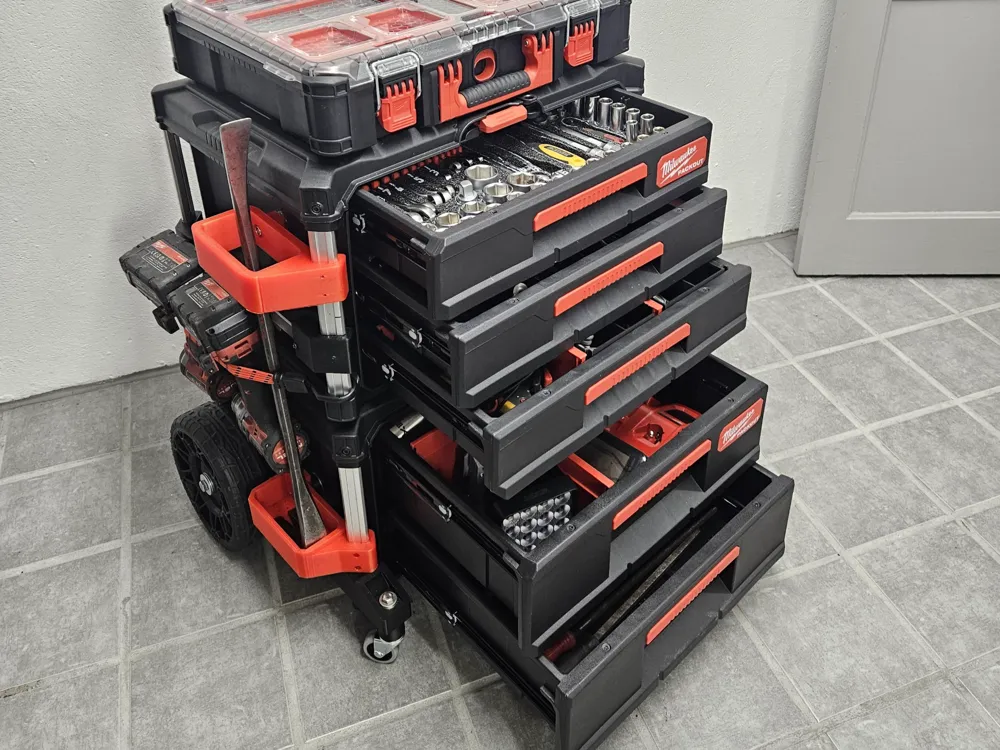

This is a mod to make a MILWAUKEE Packout 2 Drawer Tool Box into a roller.

no more unstacking boxes to reach tools in the bottom box.

4932472129 Packout 2 Drawer Tool Box was the one i used ,not sure if the parts will fit other models….

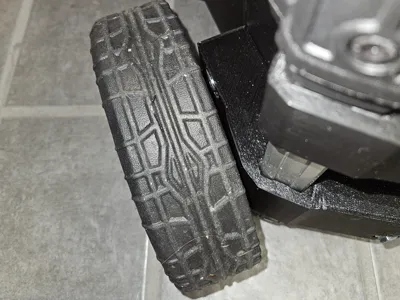

Wheels and handle are from the original Rolling storage box.

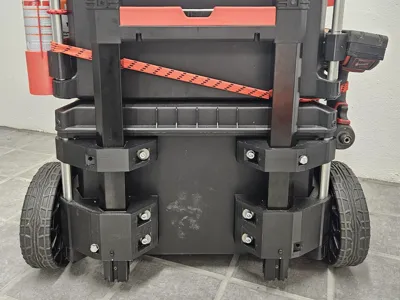

The parts wheel_handle_mount_RIGHT , handle_mount_upper_RIGHT and front wheel mount needs to be mirrored in slicer and printed to get both sides.

The fit for the parts going on the rails is very tight and need some filing.

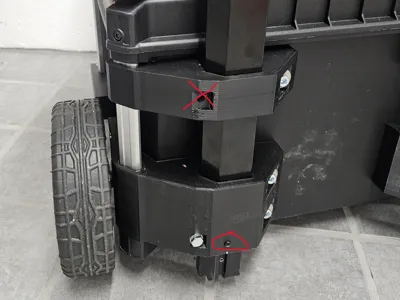

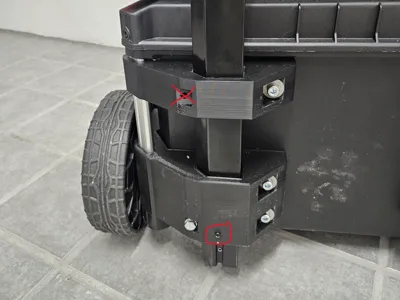

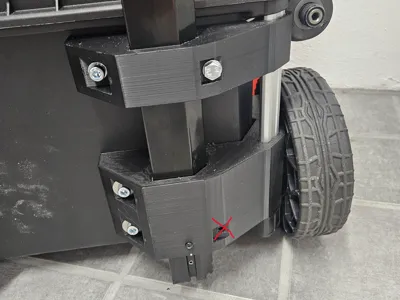

The holes that are crossed out in the pics is not used…all bolts except for the wheels are M8 , M10 for the wheels.

use as short bolts as possible ,just enough to fit a large washer and nyloc nut inside the box.

drill and reuse the screw to secure the handle to the bottom part.

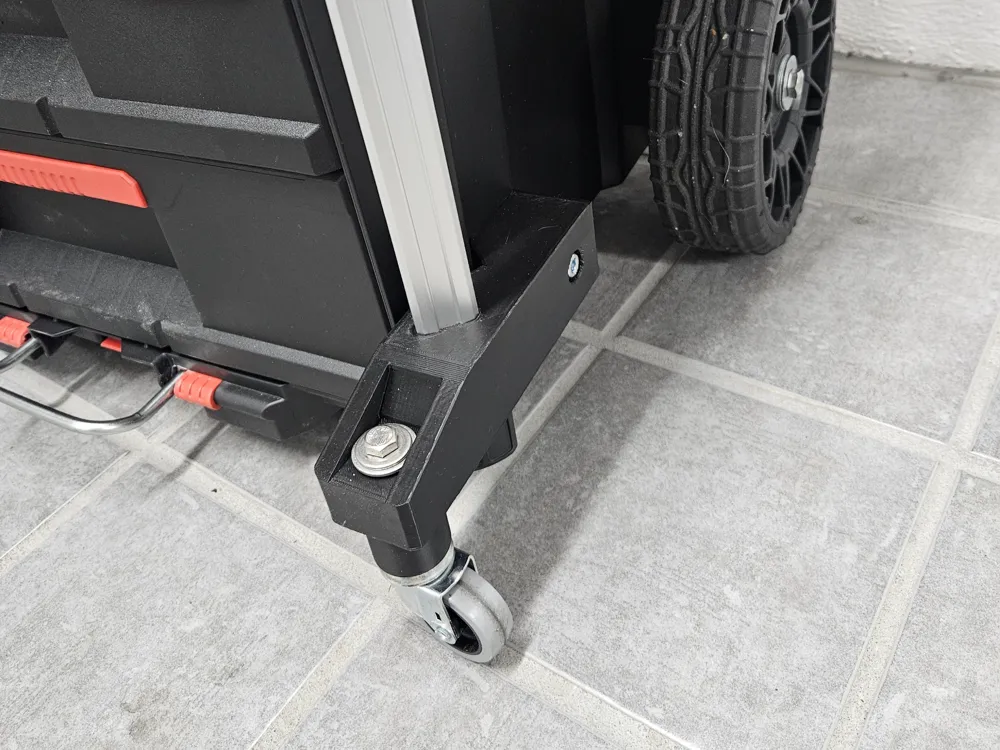

There are 2 lengths of the front wheel spacer , for different wheel sizes.

Printed in PLA 30% infill 4-5 walls. Feels sturdy enough but maybe PETG is preferable.

you need to remove rails for this and i recommend printing these for reassembly.
