Raspberry Pi 5 PC Case Acrylic Pannels NVME

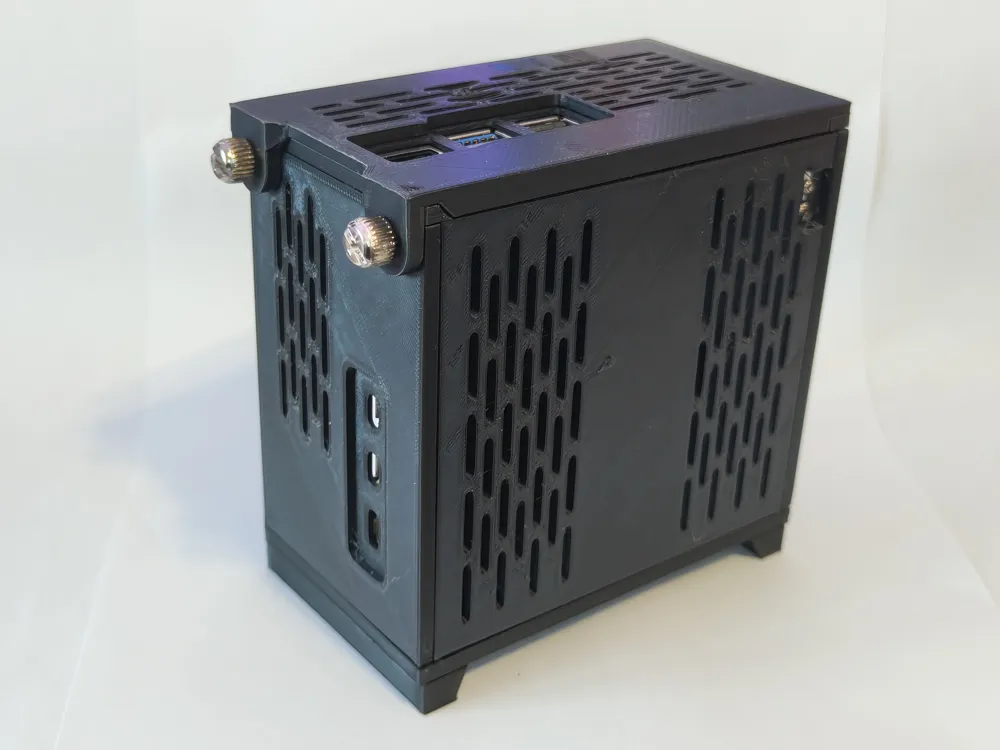

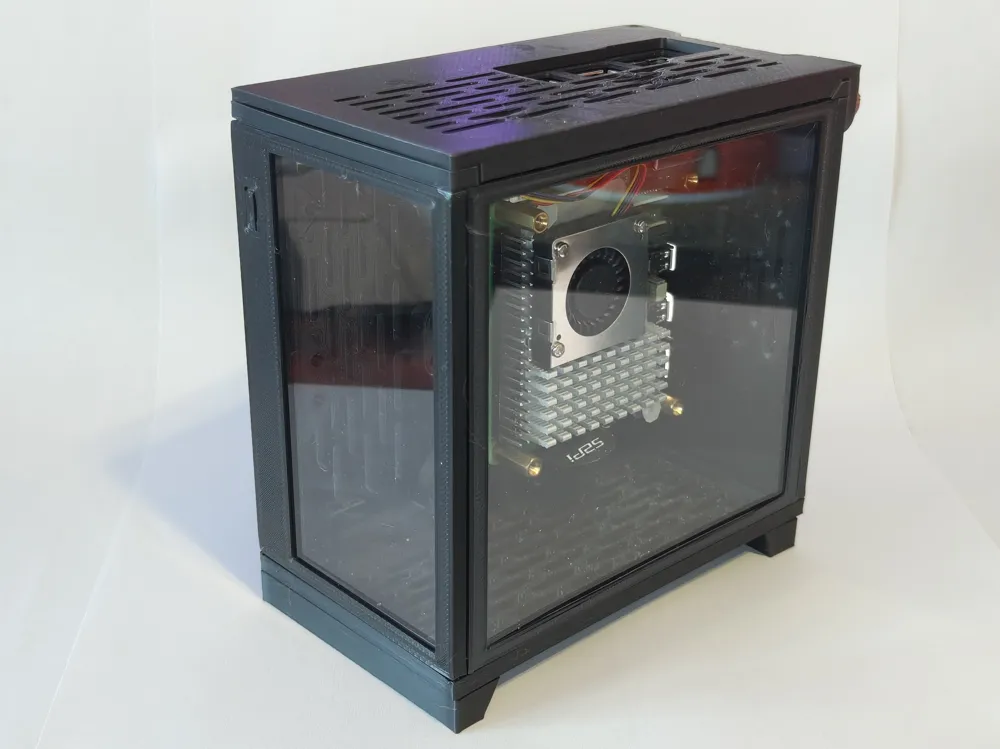

This Raspberry Pi 5 Case is inspired by the Lian Li O11D PC case. It has a power button, nvme ssd base and support for up to 3 internal fans.

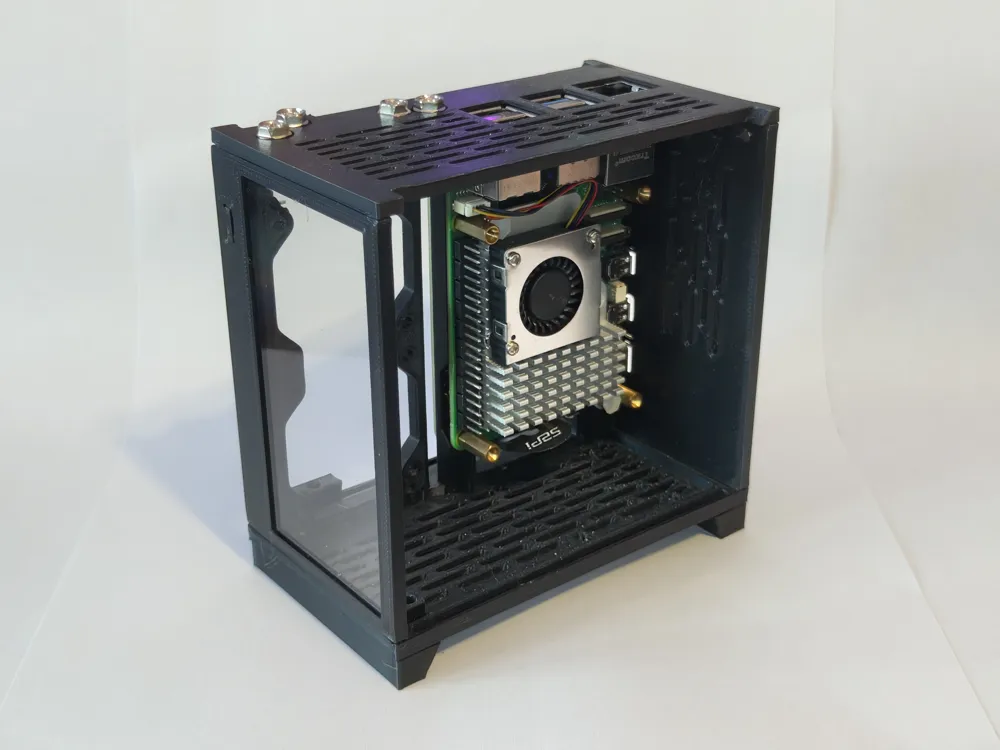

Similar to the Lian Li case all components can be easily accessed by removing the two thumbscrews at the back, sliding off the top panel and then the two side panels can simply slide out. This will then make it possible to access the fans, nvme, Raspberry Pi and anything else you might have in the case.

Included in the downloads are all the files in STEP format, feel free to edit these to modify the case in any way you would like.

The power button uses a 3D printer end-stop switch however it is optional and there are front panels and fan mounts that have different versions for if you are not including the power button.

Assembly instructions are a downloadable PDF included in the downloads.

IMPORTANT

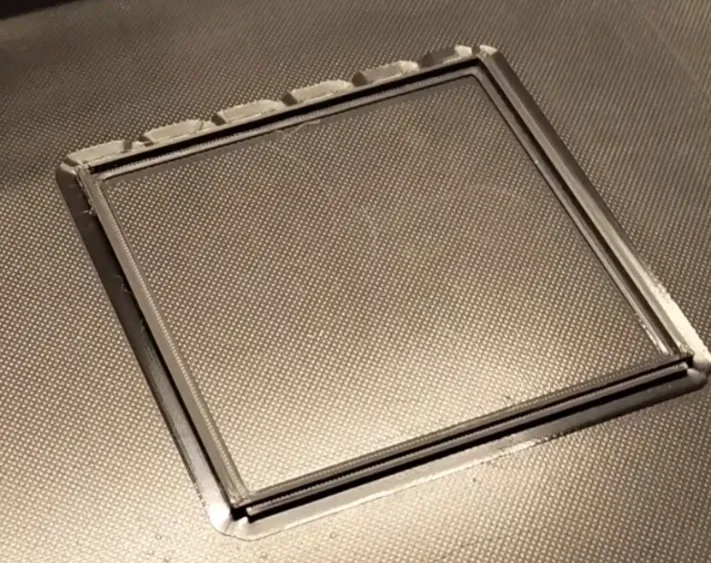

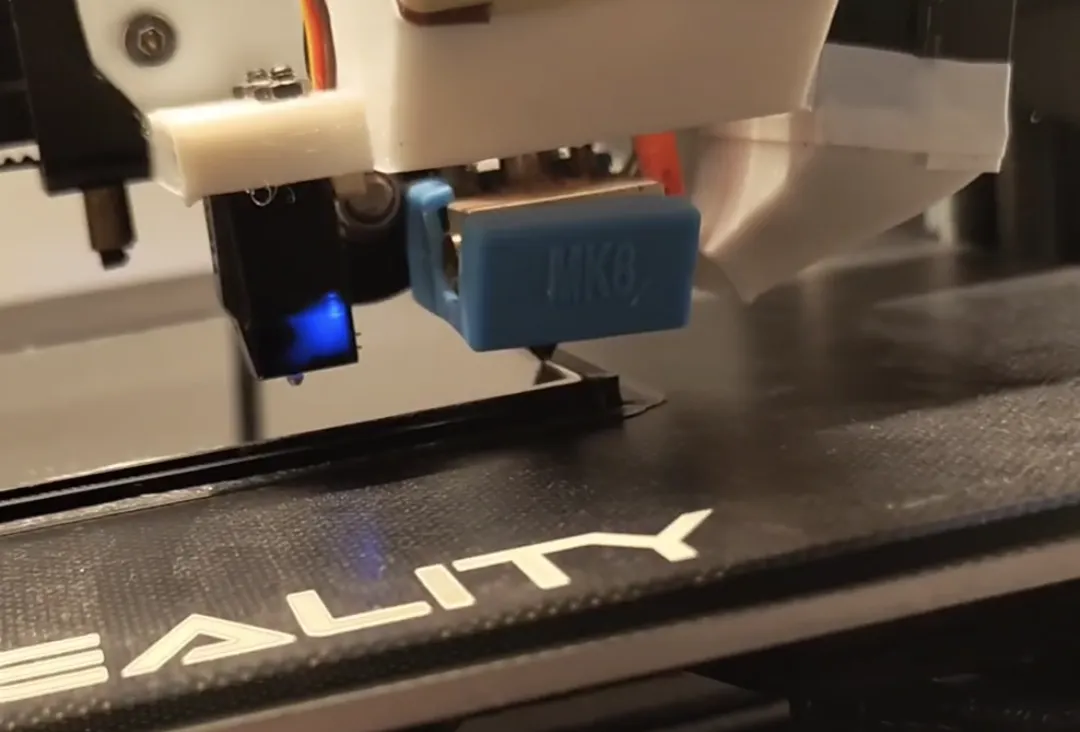

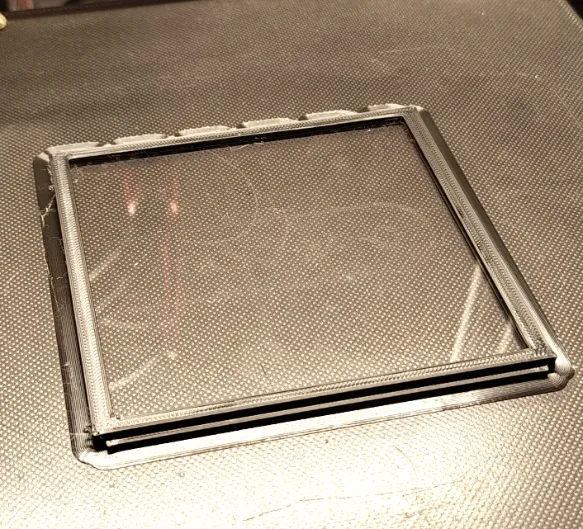

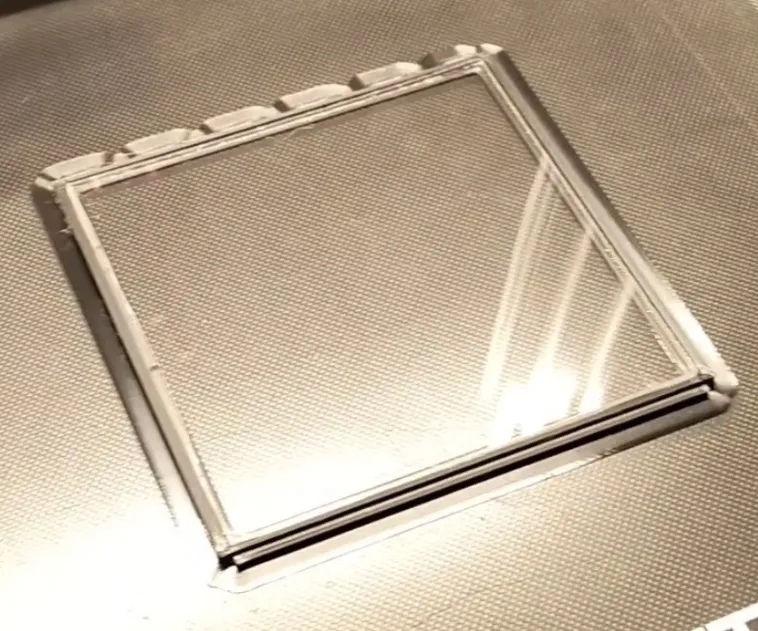

The acrylic panels are created by printing up to the last few layers of of the piece, pausing, inserting the acrylic and then resuming to allow the acrylic to embedded into the panels.

Acrylic side panel dimensions: 97.5mm x 92mm x 2mm

Acrylic front panel dimensions: 50mm x 92mm x2mm

Components:

Raspberry PI 5

10x M3.5x6 Standard PC Screws

2x M3.5x6 Standard PC Thumb Screws

(optional) NVME Base, Specifically https://thepihut.com/products/nvme-base-for-raspberry-pi-5-nvme-base

(optional) 3x 40mm Fan + 12x M3x15 Fan Bolts

(optional) 3D Printer End Stop Switch (used for power button)

Credits

Credit to @print_byte for the ‘Raspberry Pi 5’ model used in renders and also used as reference when designing the case. Link: https://www.printables.com/model/727155-raspberry-pi-5
