Xtool F1 5 in 1 Jig

Dave
Hobby & DIY>Other Hobby & DIY
IP Report

Print Profile(1)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L
0.2mm layer, 3 walls, 10% infill
0.2mm layer, 3 walls, 10% infill
Designer
1.4 h
1 plate
5.0(61)
Open in Bambu Studio
Boost
254
650
79
44
942
647
Released

Description

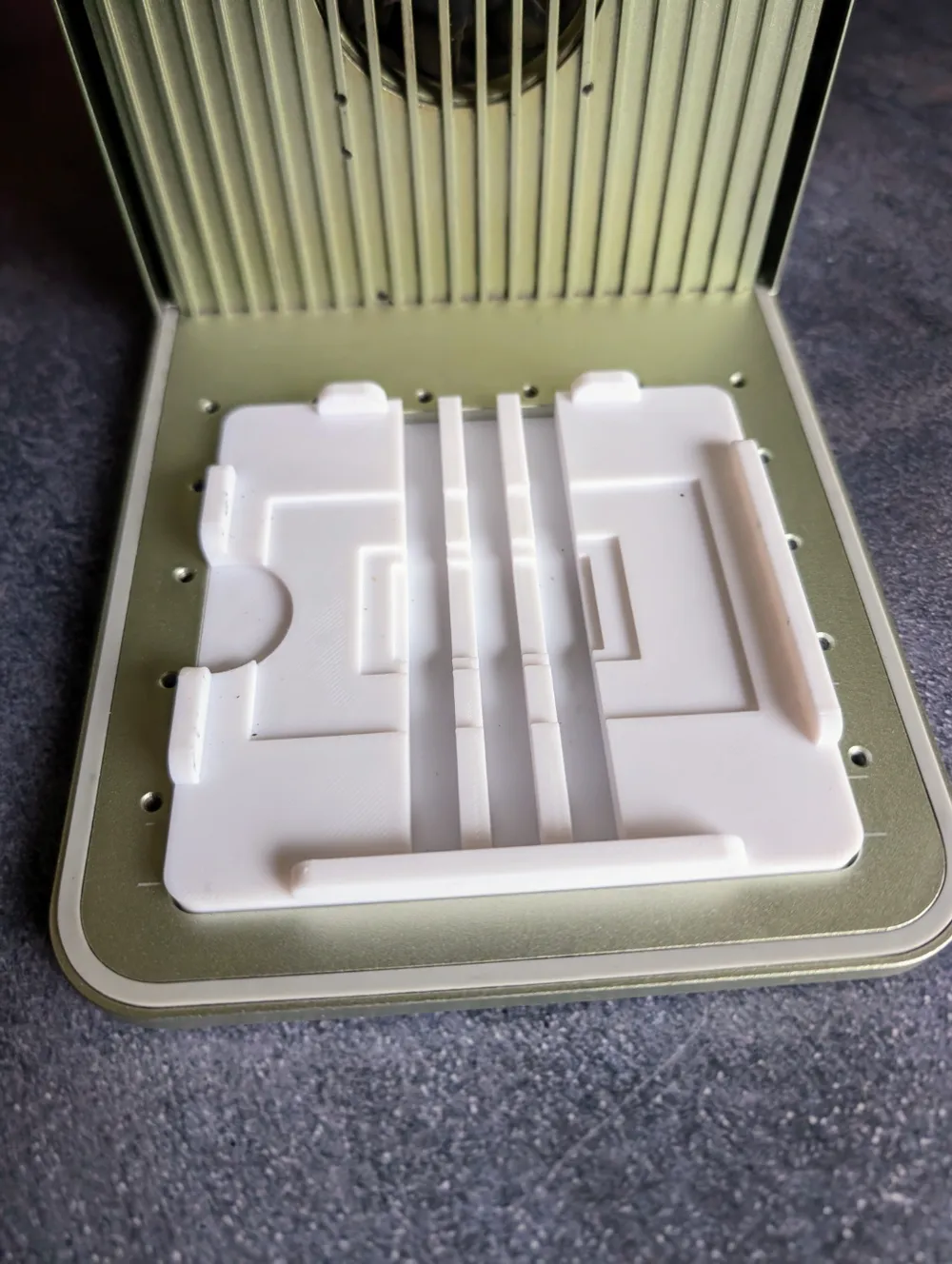

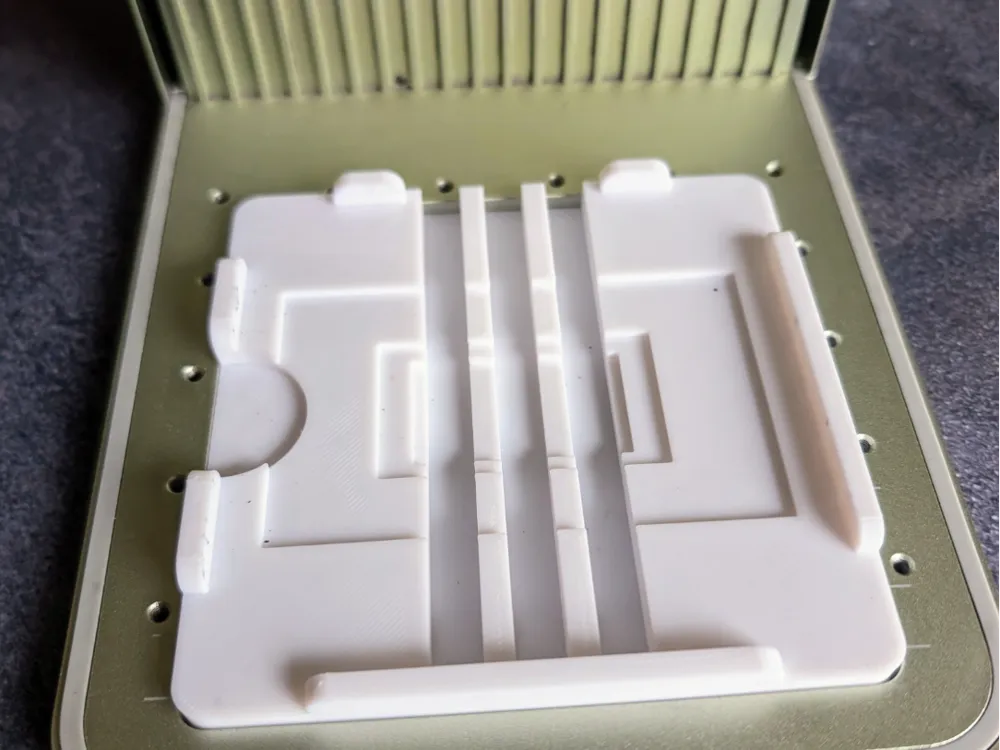

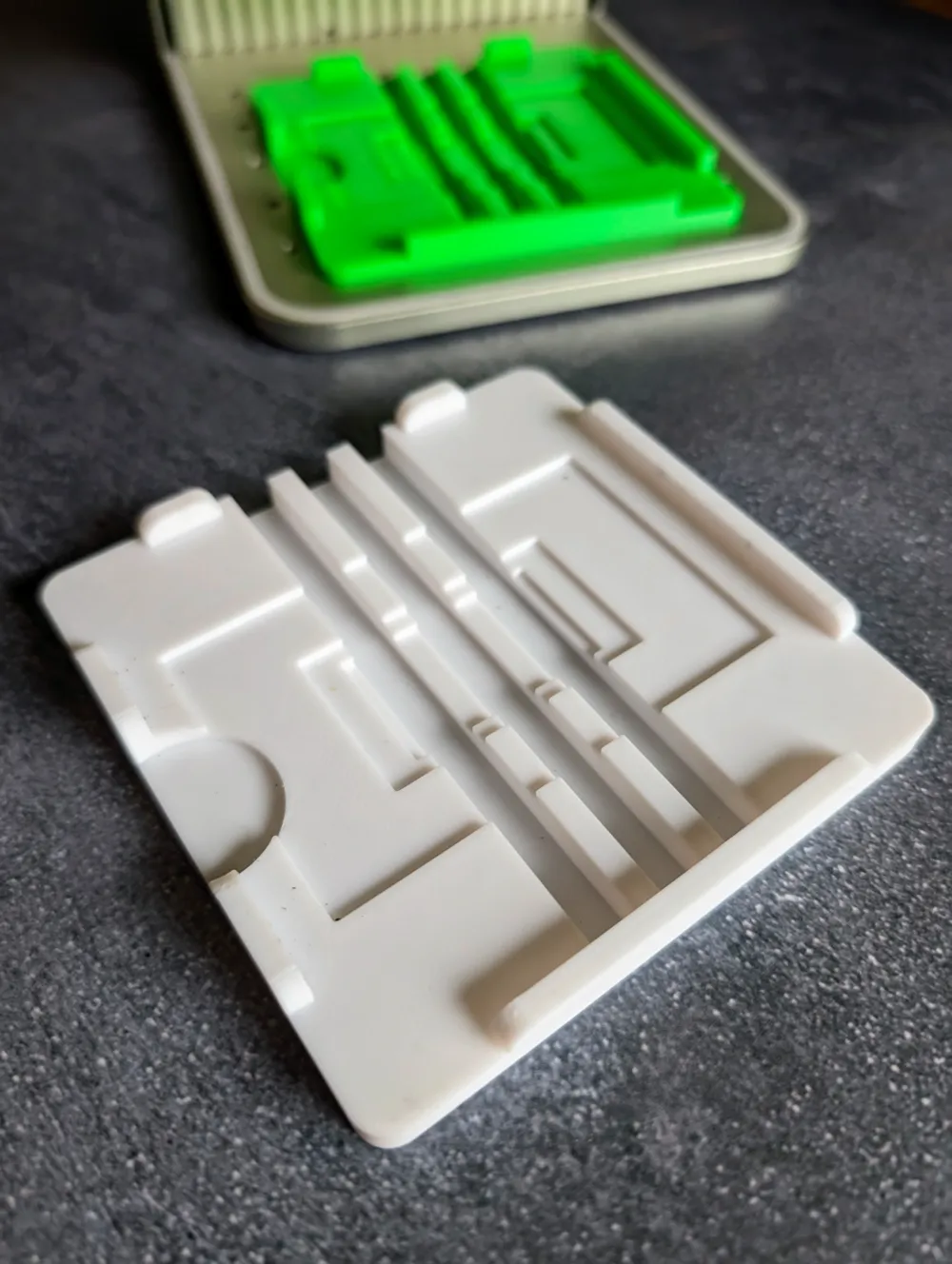

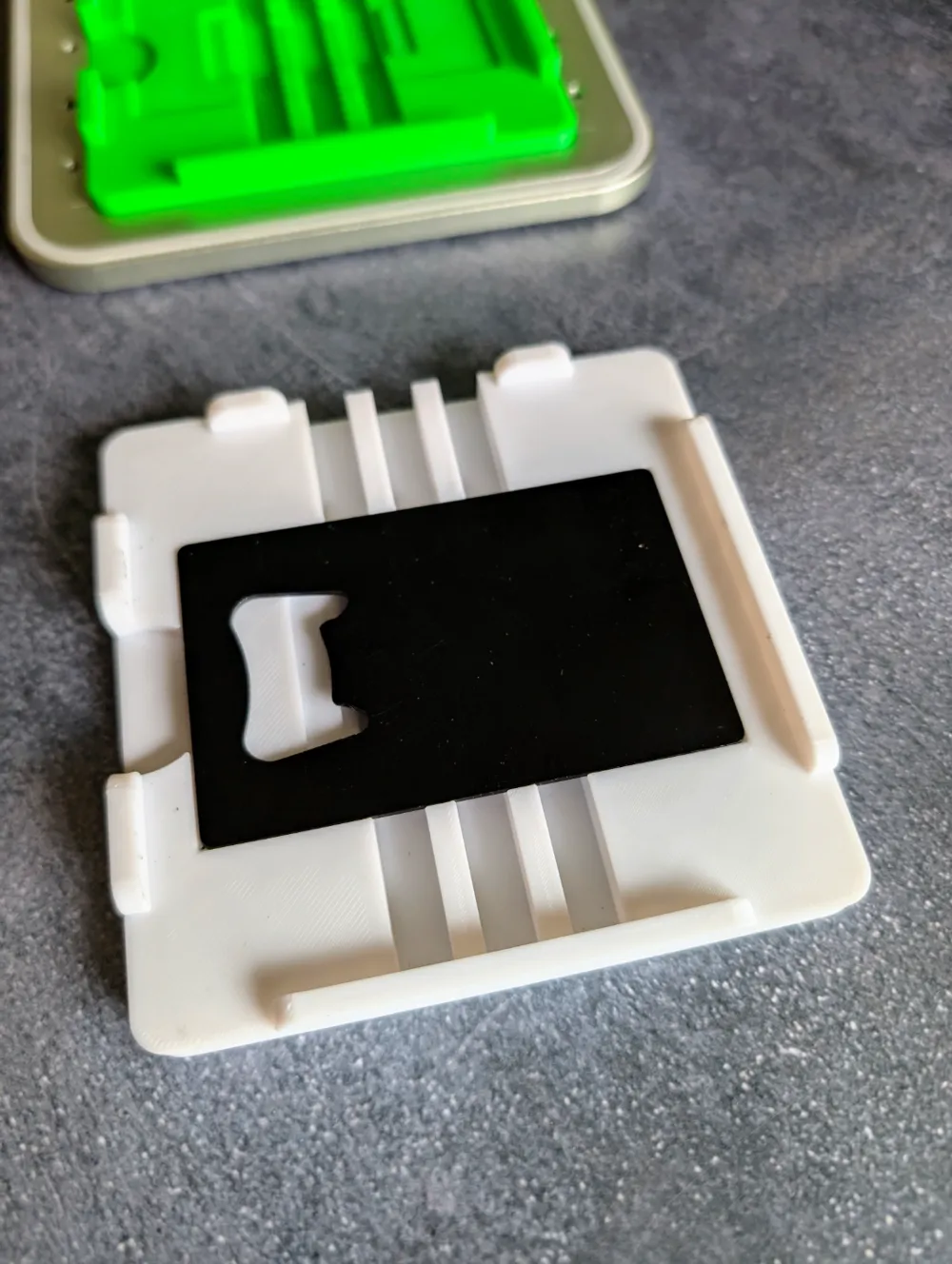

A 5 in 1 jig for the Xtool F1.



This jig is perfect for being as efficient as possible at an event where customers are typically getting 1 or 2 of each item.



After attending many markets and event with the F1 I wanted to a multi jig for some of the more popular items that I sold. This saved me so much time by not having to swap out different jigs for each item. It also saves on workspace by replacing 5 jigs with 1.

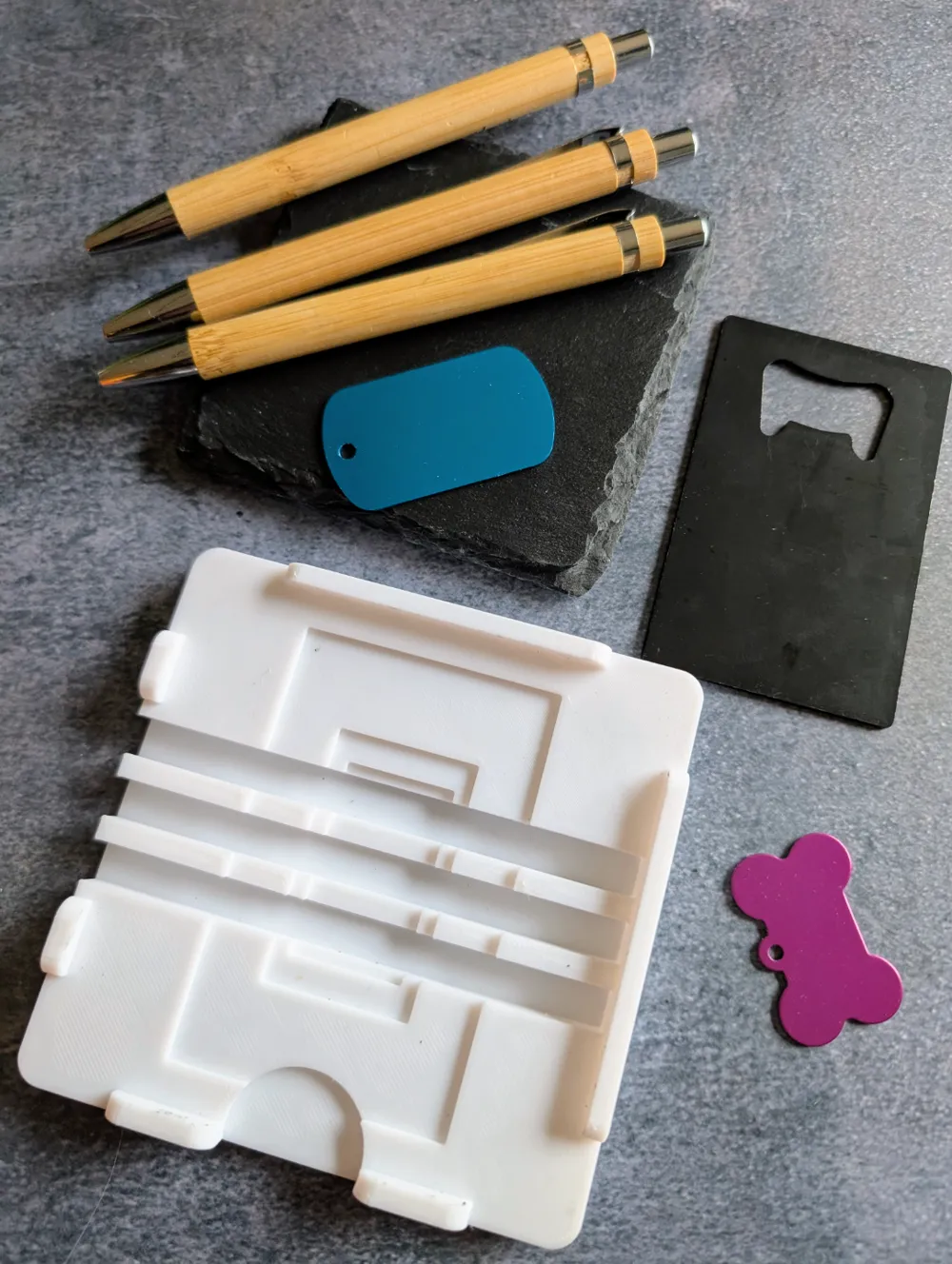

The jig works for:

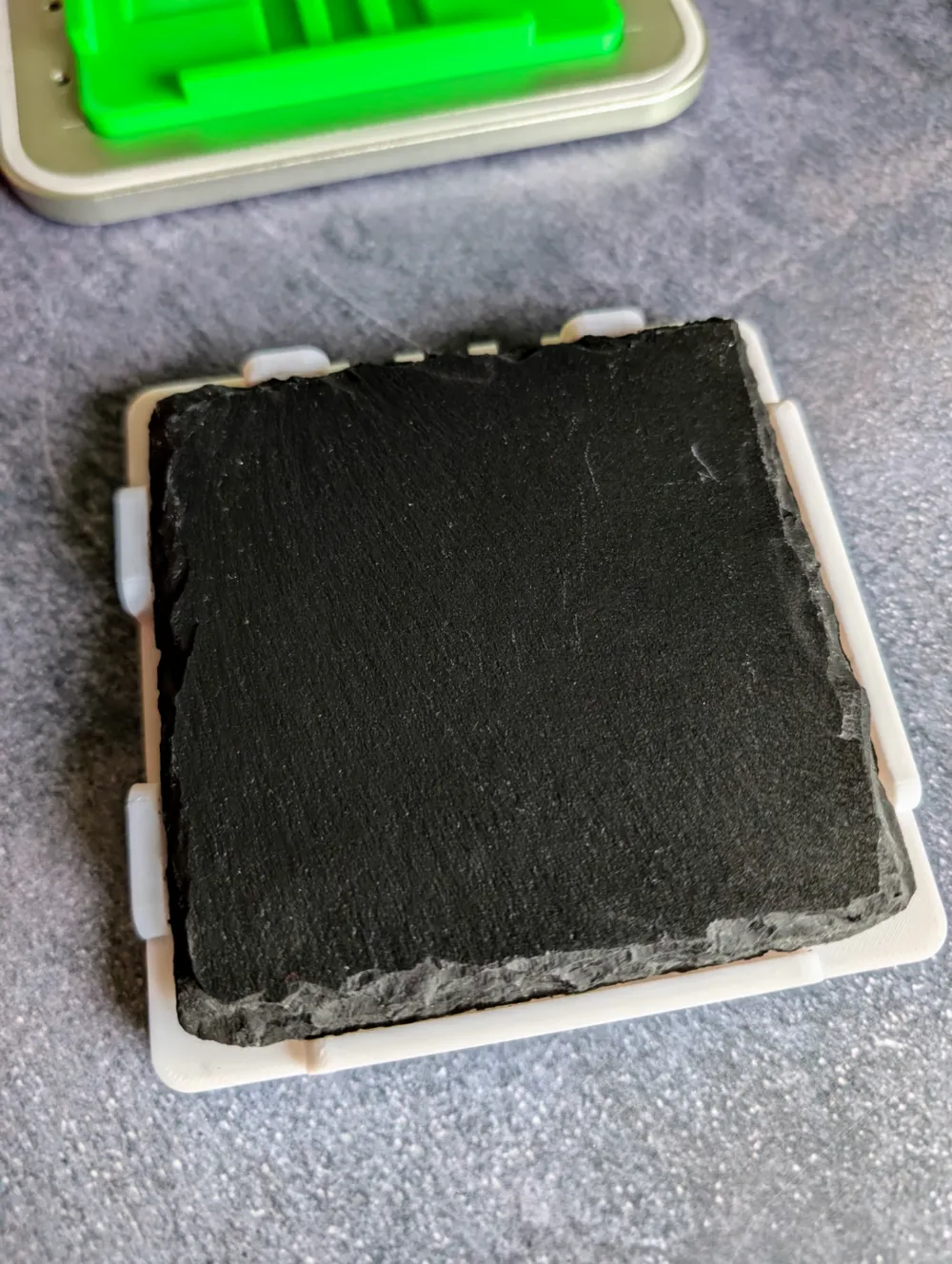

  • 100mm Coasters

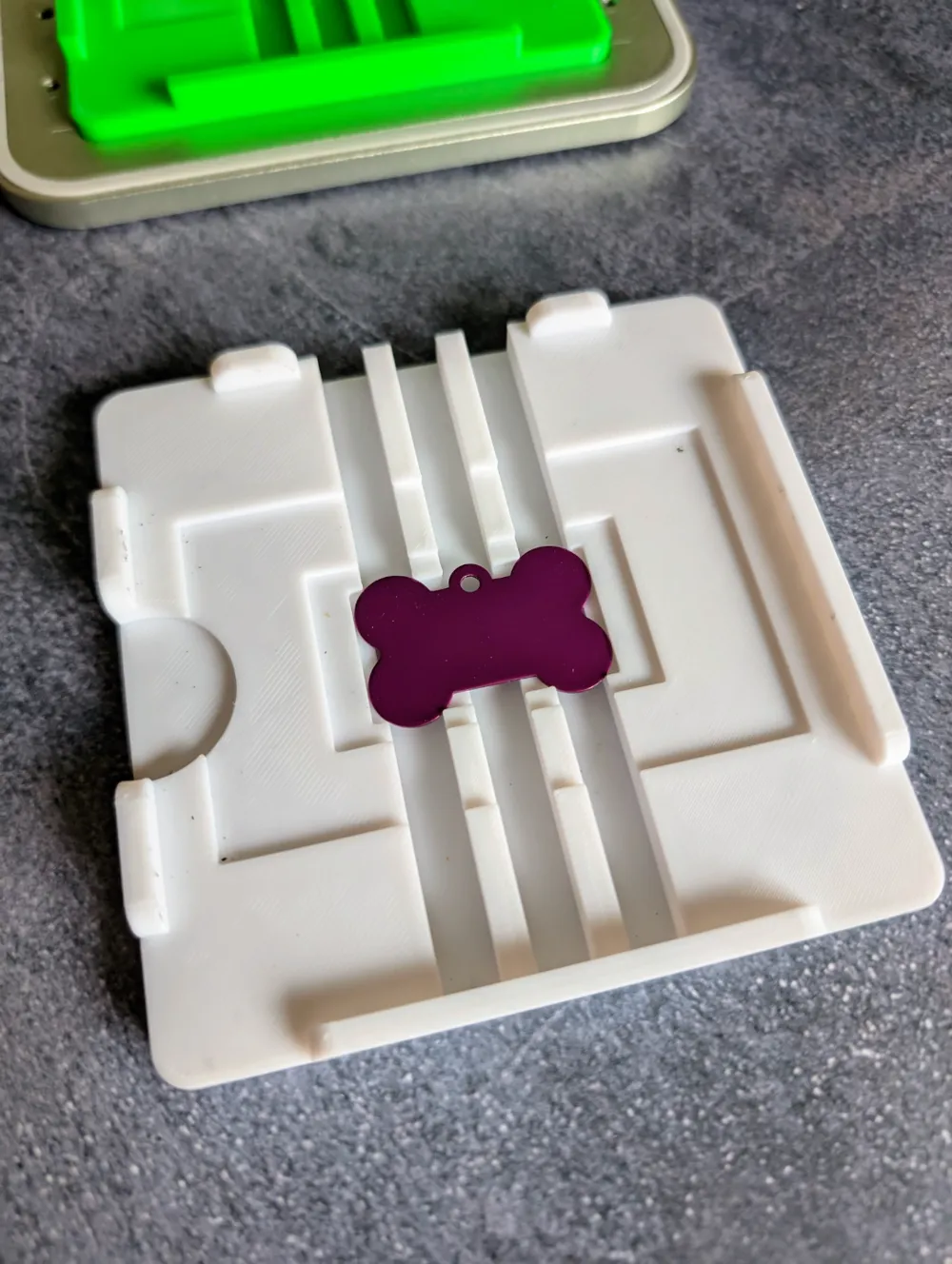

  • Pet bone tag

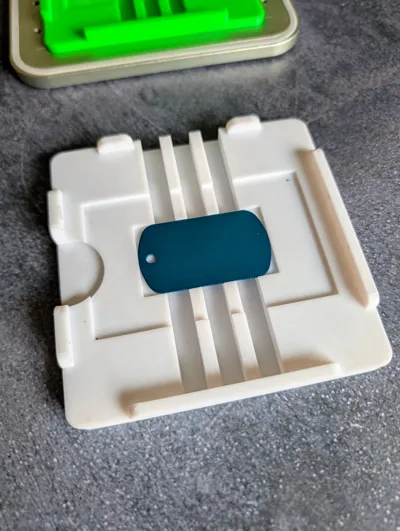

  • Dog Tag

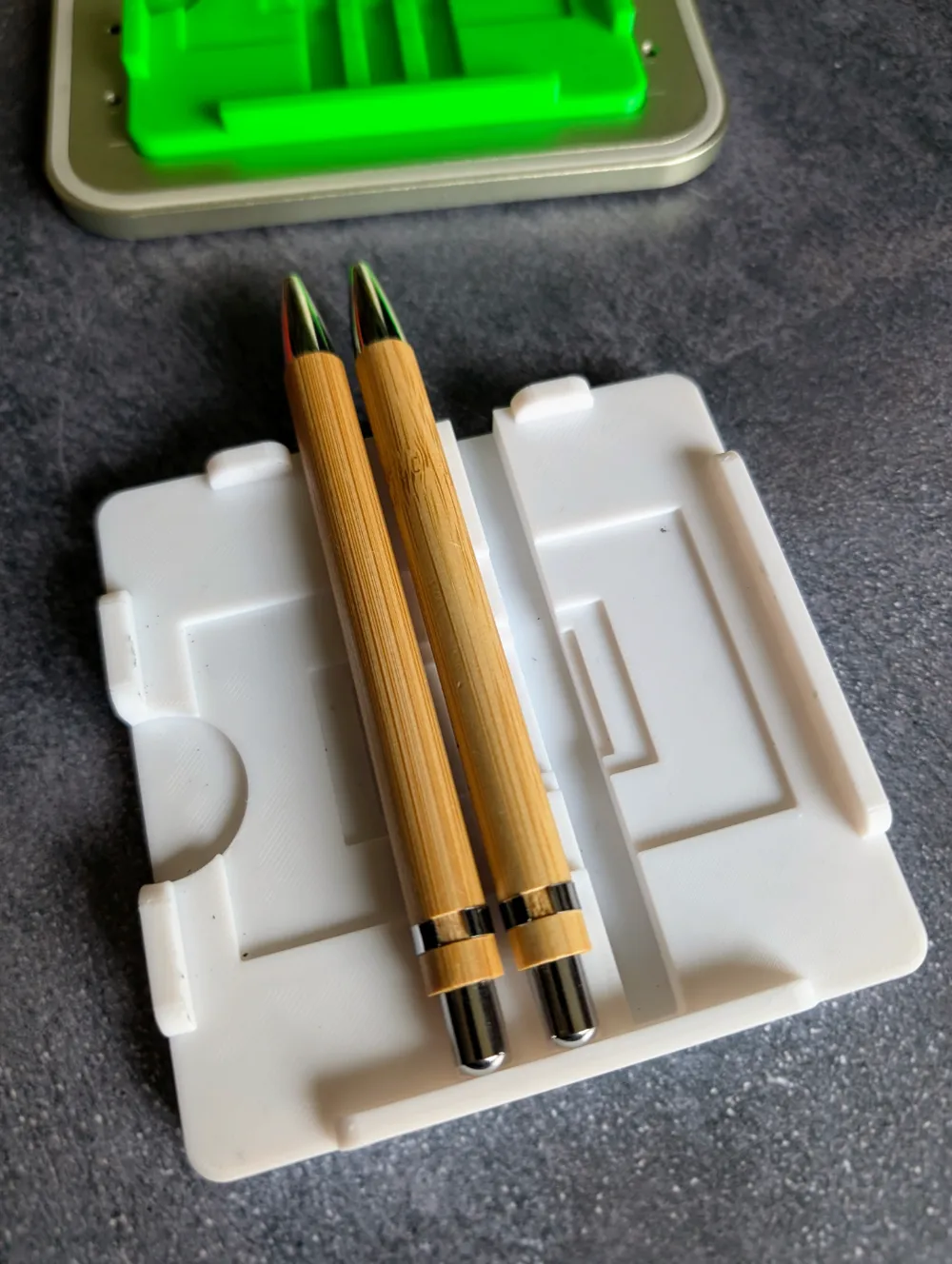

  • Pens
  • Business Cards

An XCS template is included in the file downloads section. You just need to unzip it and open it in XCS. There is a canvas for each jig item.
